Gas Sensor Guide

no price
BGS10 TVOC chip
g1
Performance index· Supply Voltage:3.0±0.1VDC· Supply current:28±5mA· Detection concentration: 0~99999ppb· Typical accuracy: 25% reading (25°C/50%RH)· Typical power: 75mW· Output signal: I2C slave mode· Calibration: Fully calibrated· Aadvantage: Rapid response, fast recovery time, stronganti-interference ability

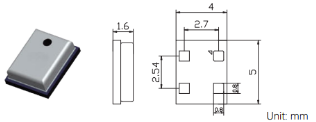

BGS10ET Ethanol sensor
g2
Performance index· Supply Voltage:3.0±0.1VDC· Supply current:28±5mA· Detection concentration: 0~99999ppb· Typical accuracy: 25% reading (25°C/50%RH)· Typical power: 75mW· Output signal: 12C slave mode· Calibration: Fully calibrated· Aadvantage: Rapid response, fast recovery time, stronganti-interference ability

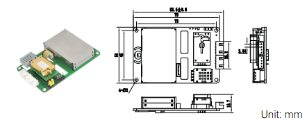

BEM1000 Environmental monitoring box
g3
Performance index· Supply Voltage:5.0V DC· Supply current:140mA5V· Typical power (power supply): 700mW@5V· Data update cycle: 1s/time· Output mode: RS485/UART· Preheating time: >120s· Humidity Range: 5~80%RH· Temperature Range: 10~50℃· Calibration: Fully calibrated· Aadvantage: Preheating time, rapid response, strong anti-interference ability

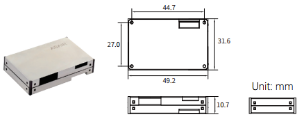

BMP10 Laser Particle Matter Sensor
g4
Performance index· Supply Voltage:4.75~5.25V· Supply current:50mA (Typical)· Measuring Range: 0.3~10um· Typical accuracy: 15ug/m3(0~100ug/m3) +15% read(100~1000ug/m3· Particle concentration range: 0~1000ug/m3· Operating temperature: -10-50℃· Storage temperature: -30-+70℃· Aadvantage: Standard digital outout. full metal shielo housing, anti-interference performance is stronger


BGS02MA TVOC gas sensor
g5
Performance index· Supply Voltage:33~5.5V· Supply current:28±5mA· Measuring Range: 0-99999ppb· Typical accuracy: 25% reading (25°C/50%RH)· Output mode: I2C slave mode (less than 30KHz)· Humidity Range: 0~95%RH· Temperature Range: 0-50°C· Aadvantage: Fast response, high sensitivity, fast response and recovery time

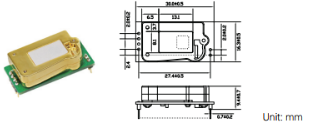

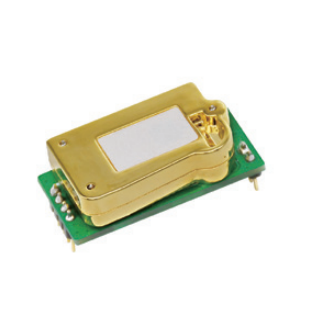

BCD10 Infrared carbon dioxide sensor
g6
Performance index· Supply Voltage:4.75~5.25V· Supply current:Average current <45mA· Typical power: 225mW @5V· Measuring range: 400-5000ppm· Accuracy: (50ppm+5%)· Humidity Range: 0-95%RH (non-condensing)· Temperature Range: 0-50°C· Aadvantage: Rapid response, fast recovery time, strong anti-interference ability

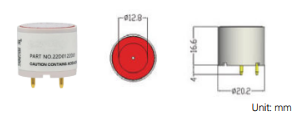

BCM2000 Carbon monoxide sensor
g7
Performance index· Measuring range: 0-500ppm· Upper limit of measurement: 1000ppm· Sensitivity:>15nA/ppm· Response time (T90): < 45s (0 to 50ppm)· Repeatability: < 5% (output value)· Resolution: 1ppm· Aadvantage:Stable signal output, fast response, low power consumption

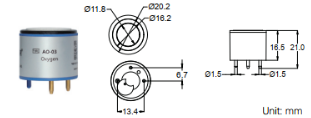

BO-03 Oxygen sensor
g8
Performance index· Output current: 01+0.03mA(in air)· Measuring range: 0~25%· Upper limit of measurement: 30%· Response time (T90): <15s· Working pressure range: Atmospheric pressure +20%· Humidity Range: 0-99%RH (non-condensing)· Temperature Range: 0-50℃· Linear output: 0~25%· Aadvantage: Fast response, accurate and reliable, lightweight and compact


BO-02 Full range oxygen sensor
g9
Performance index· Output current: 9-13mV(in the air)· Measuring range: 0~100%· Temperature compensation: <2% 02 equivalent (0-40℃)· Response time (T90): <15s· Working pressure range: 0.5-2.0Bar· Humidity Range: 0-99%RH (non-condensing)· Temperature Range: 0~50℃· Interface type: Molex 3 pin connector· Aadvantage: Fast response, accurate and reliable, strong anti-interference ability

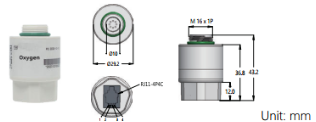

BO-07 Full range oxygen sensor
g10
Performance index· Output current: 9-13mV(in the air)· Measuring range: 0~100%· Temperature compensation: <2% 02 equivalent (0-40℃)· Response time (T90): <15s· Working pressure range: 0.5-2.0Bar· Humidity Range: 0-99%RH (non-condensing)· Temperature Range: 0~50℃· Interface type: RJ11-4P4C· Aadvantage: Temperature compensation, fast responseaccurate and reliable, strong anti-interference ability


BO-08 Full range oxygen sensor
g11
Performance index· Output current: 9-13mV(in the air)· Measuring range: 0~100%· Temperature compensation: <2% 02 equivalent (0-40℃)· Response time (T90): <15s· Working pressure range: 0.5-2.0Bar· Humidity Range: 0-99%RH (non-condensing)· Temperature Range: 0~50℃· Interface type: 3.5 mm TRS· Aadvantage: Temperature compensation, fast response accurate and reliable, strong anti-interference ability


BO-09 Full range oxygen sensor
g12
Performance index· Output current: 9-13mV(in the air)· Measuring range: 0~100%· Temperature compensation: <2% 02 equivalent (0-40℃)· Response time (T90): <15s· Working pressure range: 0.5-2.0Bar· Humidity Range: 0-99%RH (non-condensing)· Temperature Range: 0~50℃· Interface type: 3P 2.54· Aadvantage: Temperature compensation, fast response accurate and reliable, strong anti-interference ability
