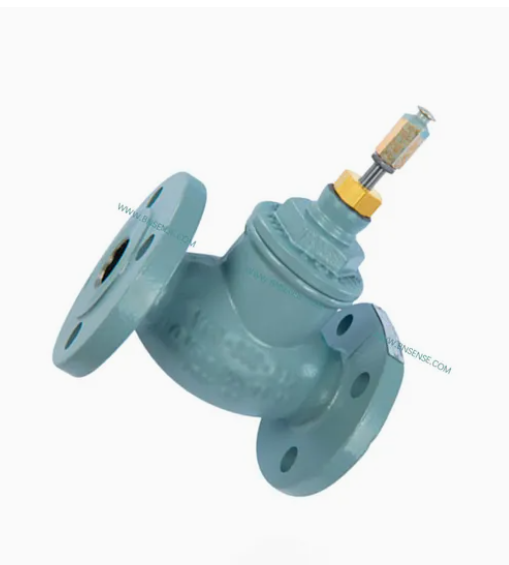

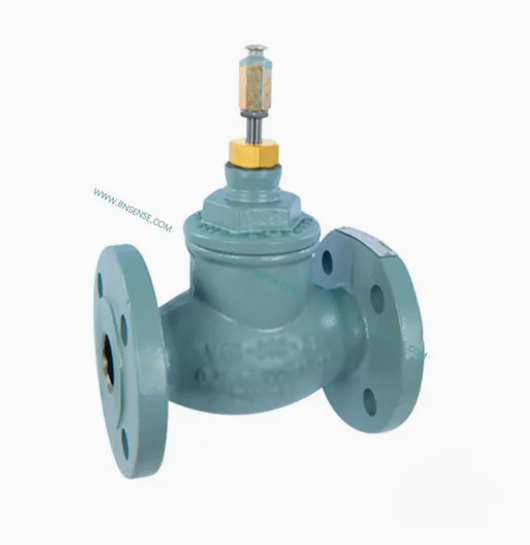

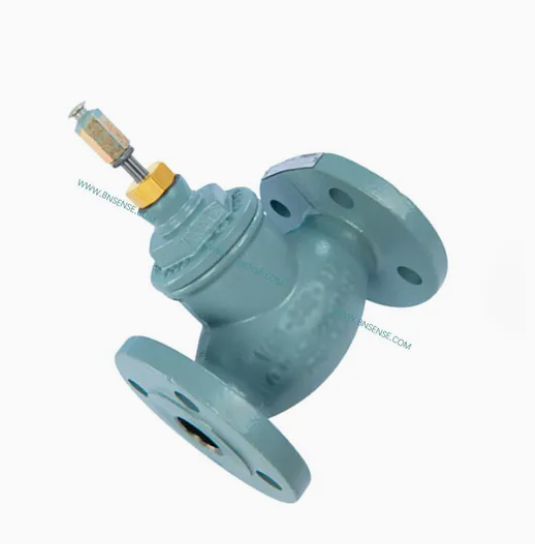

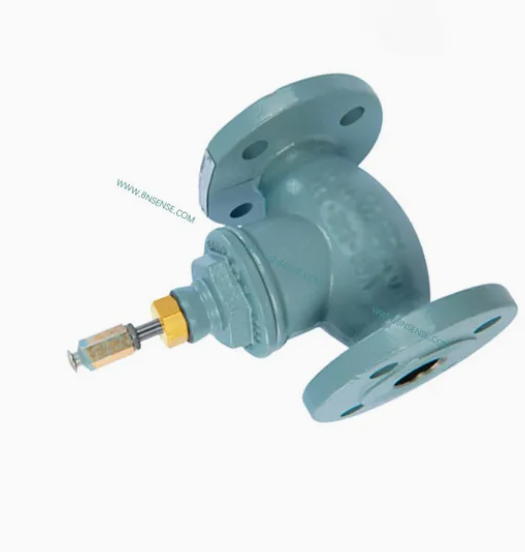

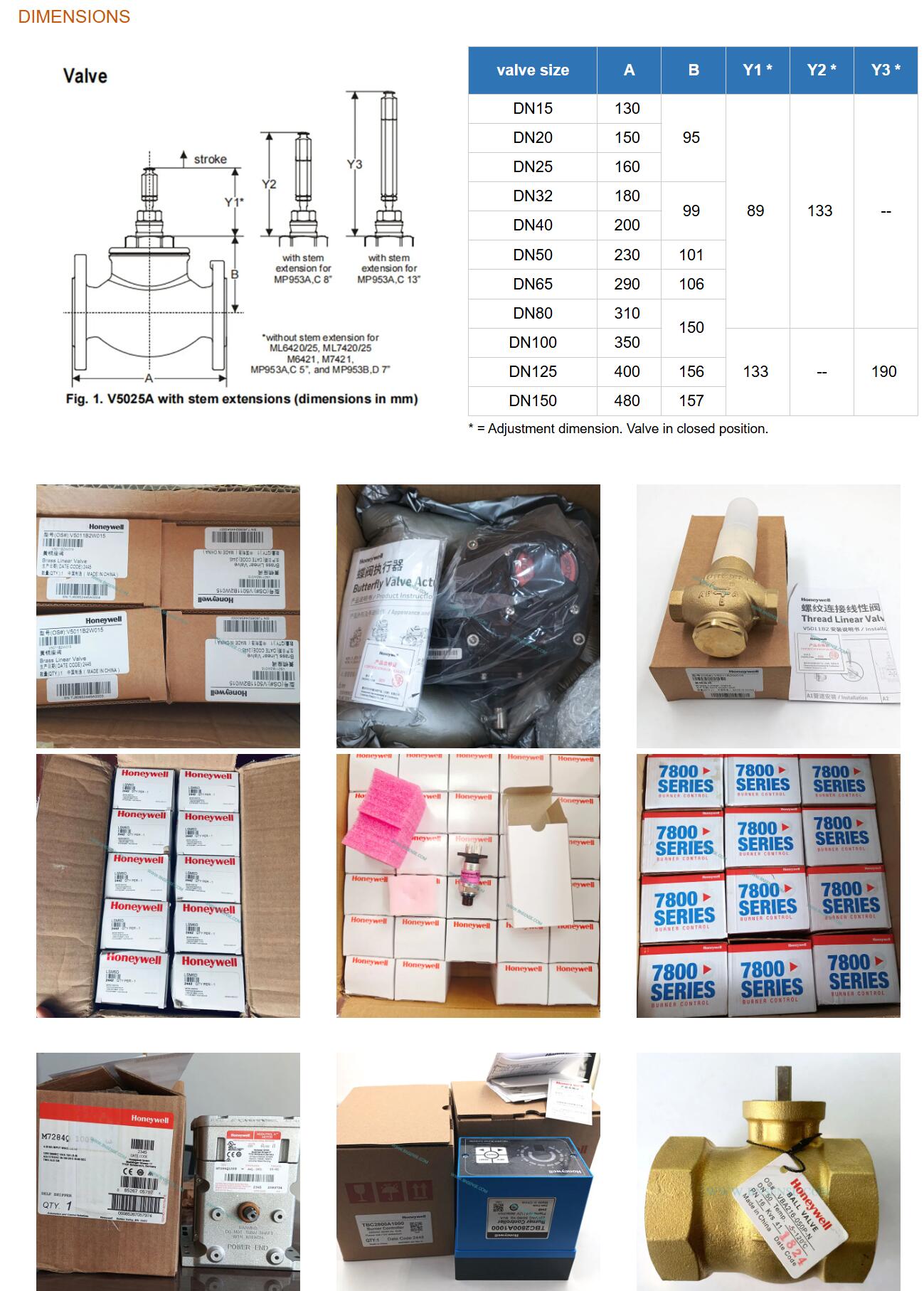

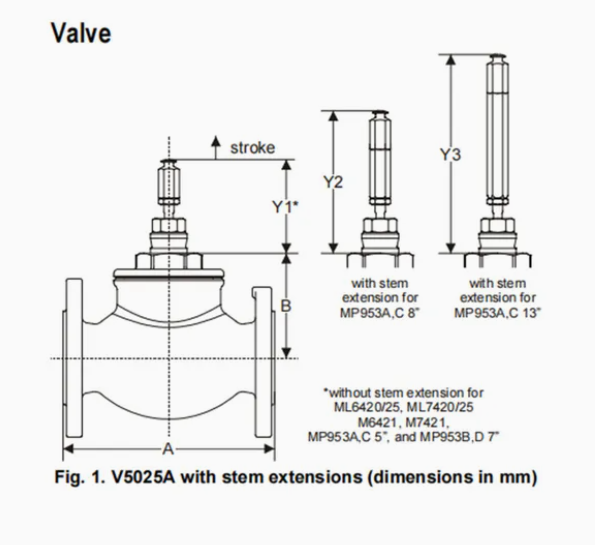

V5025A1084
Product Description
These single-seated valves are suitable for use in conjunction with the modulating control of hot / chilled water or steam in heating, ventilating, and air conditioning systems. They are designed especially for use in high differential pressure applications (e.g. district heating) and can be operated by linear actuators ML6420/ML6425, ML7420/ML7425, or M6421/M7421 or by pneumatic actuators MP953.
FEATURES
• Pressure-balanced plug
• Nodular iron body with flanged end connections
• Low seat leakage rate
• Metal-to-metal seating for long life span
• Self-adjusting packing
• Accurate positioning to ensure state-of-the-art temperature control
• Easy mounting of direct-coupled electric and pneumatic actuators
• Approved according to DIN 32730 in DN15...80 in combination with ML6425/ML7425
SPECIFICATIONS
| Action | Stem down to close |
| Nominal pressure rating | PN25 |
| Flow characteristic | Equal percentage |
| Rangeability | 50:1 |
| Leakage rate | ≤0.05% of kVS (DN15...80)≤0.1% of kVS (DN100...150) |
| Stroke | 20 mm (DN15...80)38 mm (DN100...150) |
| Valve body | |
| End connections | Flanged per ISO 7005-2 |
| Material | Nodular iron (GGG40.3) |
| Trim | |
| Seat | Stainless steel |
| Stem | Stainless steel |
| Plug | Stainless steel, skirt-guided |
| Packing | Spring-loaded PTFE cone rings |
| Medium temperature and pressure | 2...120 °C (max. 2500 kPa) |
| 120...160 °C (max. 2250 kPa) | |
| 160...200 °C (max. 2000 kPa) | |
| Max. temp. differential Medium | 60 K (alternating hot/cold water) water, water-glycol (max. 50%), steam |
SIZES AND FLOW CAPACITIES
| Order Number | Valve Size | kVS | ||||||
| V5025A1019 | DN15 | 0.40 | ||||||
| V5025A1027 | DN15 | 0.63 | ||||||
| V5025A1035 | DN15 | 1.0 | ||||||
| V5025A1043 | DN15 | 1.6 | ||||||
| V5025A1050 | DN15 | 2.5 | ||||||
| V5025A1068 | DN15 | 4.0 | ||||||
| V5025A1076 | DN20 | 6.3 | ||||||
| V5025A1084 | DN25 | 10.0 | ||||||
| V5025A1092 | DN32 | 16.0 | ||||||
| V5025A1100 | DN40 | 25.0 | ||||||
| V5025A1118 | DN50 | 40.0 | ||||||
| V5025A1126 | DN65 | 63.0 | ||||||
| V5025A1134 | DN80 | 100.0 | ||||||
| V5025A1142 | DN100 | 160.0 | ||||||
| V5025A1159 | DN125 | 250.0 | ||||||
| V5025A1167 | DN150 | 360.0 | ||||||
ACTUATORS
| Electric Actuators | |||||||||||
| 600 N (20 mm) | 600 N (20 mm),spring return | 1800 N (38 mm) | |||||||||
| ML6420A | ML6425A,B | ML6421B | |||||||||
| ML7420A | ML7425A,B | ML7421B | |||||||||
| Pneumatic Actuators | |||||||||||
| actuator | stroke | acting | positioner | ||||||||
| model | size | direct | reverse | ||||||||
| MP953A | 5", 8" | 20 mm | X | yes | |||||||
| 13" | 38 mm | ||||||||||
| MP953B | 7" | 20 mm | X | ||||||||
| MP953C | 5", 8" | 20 mm | X | no | |||||||
| 13" | 38 mm | ||||||||||
| MP953D | 7" | 20 mm | X | ||||||||
| CLOSE-OFF PRESSURE RATINGS (in kPa)Electric Actuators | |||||||||||||||||||||
| actuator | valve size | ||||||||||||||||||||
| model | stroke | force | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | ||||||||
| ML6420A, ML6425A,B,ML7420A, ML7425A,B | 20 mm | 600 N | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | -- | -- | -- | ||||||||
| ML6421B, ML6421B | 38 mm | 1800 N | -- | -- | -- | -- | -- | -- | -- | -- | 2500 | 2500 | 2500 | ||||||||
| Pneumatic Actuators | |||||||||||||||||||||
| actuator | valve size | ||||||||||||||||||||
| model | springrange | airpressure | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | ||||||||
| MP953A,C (5") | 28...77 kPa(4...11 psi) | 115 kPa | 2500 | 2500 | 2500 | 2500 | 2500 | 1600 | 1200 | -- | -- | -- | -- | ||||||||
| MP953A,C (8") | 28...77 kPa(4...11 psi) | 115 kPa | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | -- | -- | -- | ||||||||
| MP953B,D (7") | 55...90 kPa(8...13 psi) | 0 kPa | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | -- | -- | -- | ||||||||
| MP953A,C (13") | 28...77 kPa(4...11 psi) | 115 kPa | -- | -- | -- | -- | -- | -- | -- | -- | 2500 | 2500 | 2500 | ||||||||
