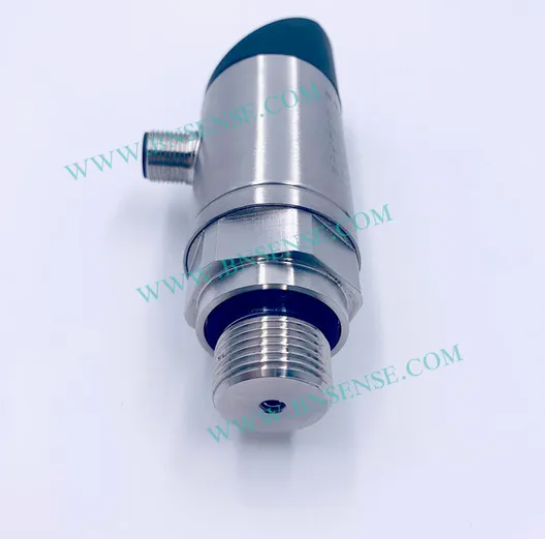

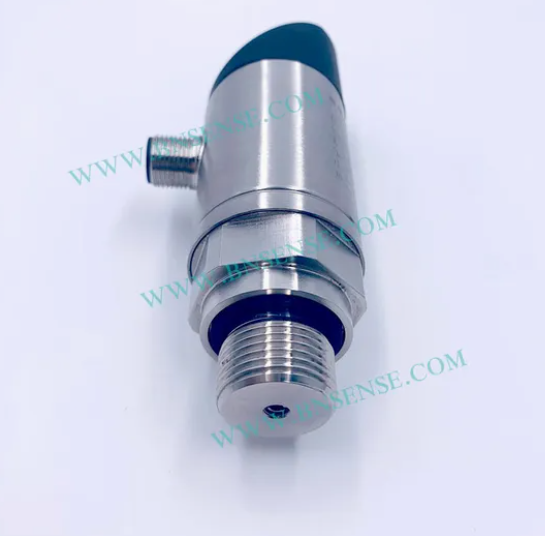

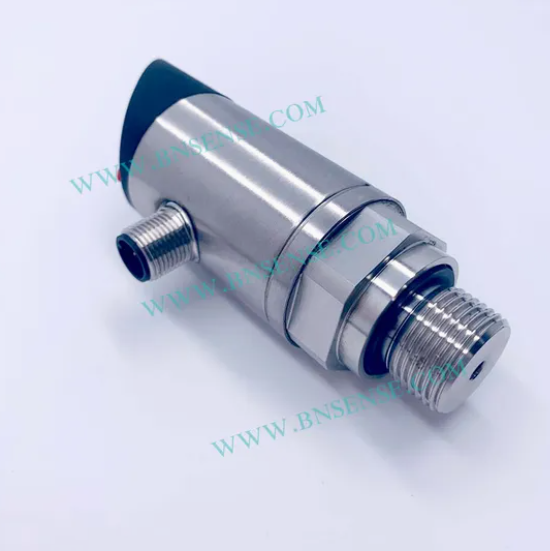

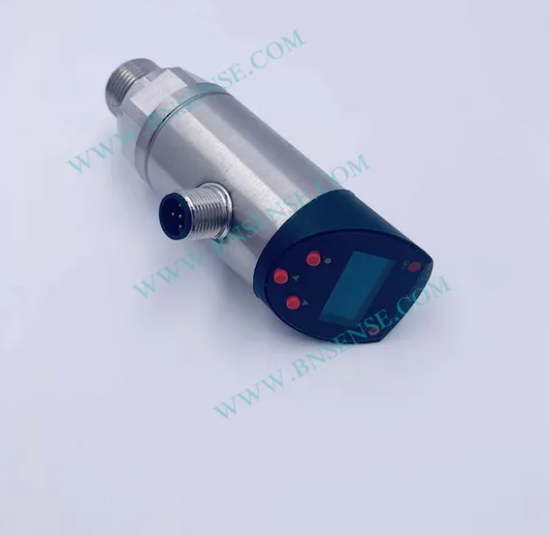

PM710-1MAS1
Product Description
Product Description
PM710 is an intelligent digital display pressure measurement and control product integrating pressure measurement, display, output and control. The product has a fully electronic structure, and the front end uses a silicon piezoresistive pressure sensor. The output signal is amplified and processed by a high-precision, low-temperature drift amplifier, sent to a high-precision A/D converter, processed by a microprocessor, and displayed in the field. And output 2 switching values to detect the pressure of the control system.
CHARACTERISTICS:
1,High switching accuracy
2,Adjustable response time
3,NPN, PNP compatible, freely switchable
4,Button adjustment, one click for quick zero adjusting,quick unit switching

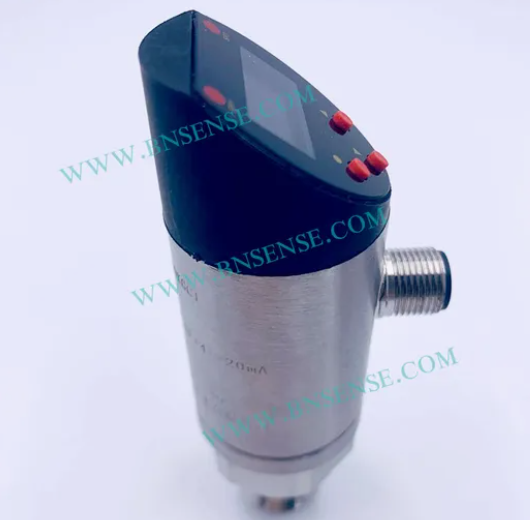

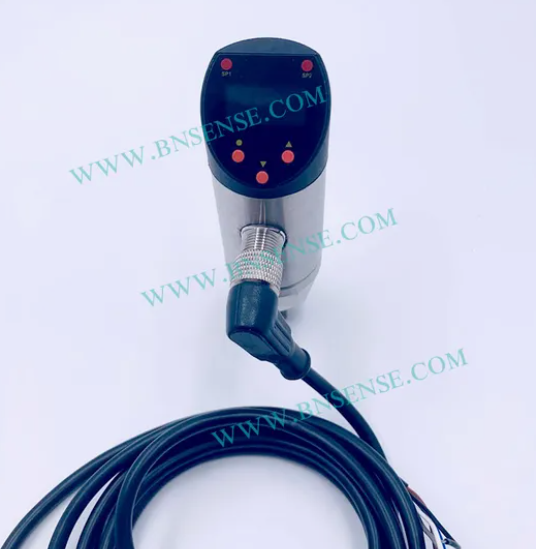

5,OLED display current pressure
6,Node action with luminous tube, easy to observe
Application:
• Hydropower • Chemical industry • Urban water supply • Research • Accurate measurement and control of fluid pressure

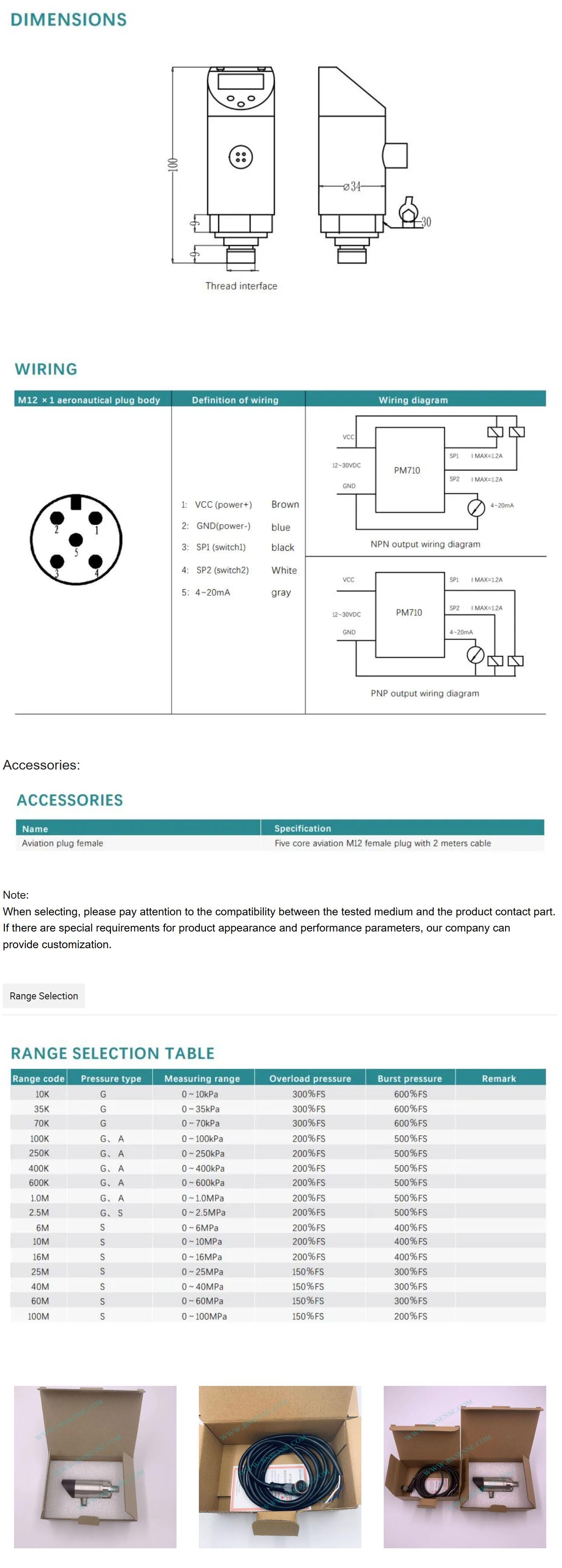

Product Parameters
| Scale range | -100kPa…0~10kPa…10MPa | |||||||
| Pressure type | Gauge pressure, absolute pressure, sealing pressure | |||||||
| Power output | 4~20mA(12~30VDC),0~5V, 1~5V, 0.5~4.5V, 0~10V (12~24VDC) | |||||||
| Accuracy | 0.25%FS | |||||||
| Hysteresis and repeatability | 0.1%FS | |||||||
| Temperature drift | 1.5%FS(@-20ºC~85ºC) | |||||||
| Response time | ≤1ms (up to 90% FS) | |||||||
| Service life | ≥10×106 Pressure cycling | |||||||
| Operating temperature | ±2%FS(@-20ºC~85ºC) | |||||||
| Medium temperature | -20ºC~85ºC | |||||||
| Storage temperature | -40ºC~85ºC | |||||||
| Insulation resistance | ≥100MΩ /250VDC | |||||||
| Vibration performance | Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6; Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 | |||||||
| Protection level | IP65 | |||||||
| Medium temperature | -40~85ºC (without heat sink); -40~150ºC (three heat sink); -40ºC~250ºC (five heat sink) | |||||||
| Media compatible | Various media compatible with 316L stainless steel | |||||||
| Explosion-proof grade | Intrinsically safe explosion-proof Exia IICT6 | |||||||

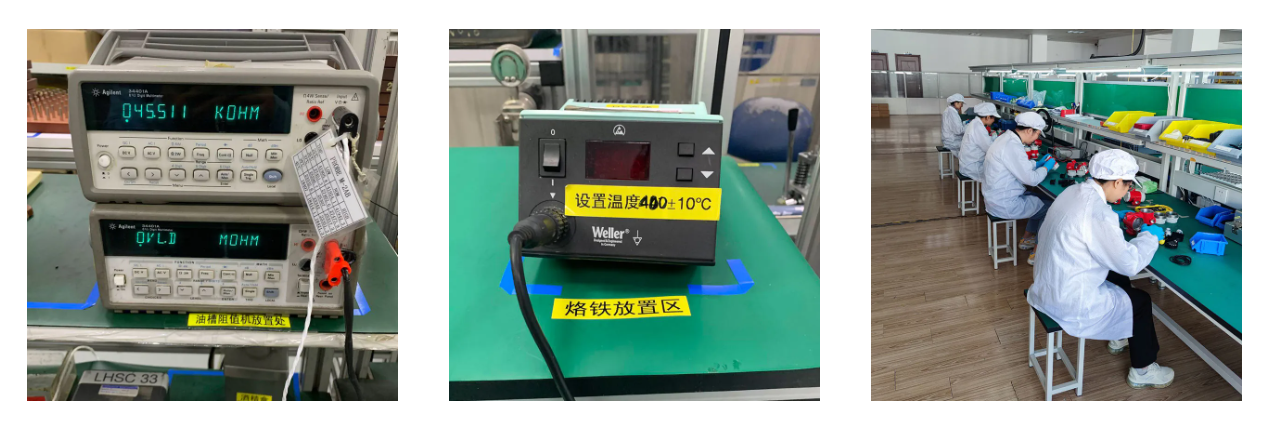

Company Profile
