BLWP6XXXAD board mount pressure sensor
DESCRIPTION ：
BLWP6XXXAD is a new type of integrated high precision digital output pressure sensor, with small size, high precision, high reliability. The sensor processing circuit is integrated in the internal noise reduction module to achieve strong anti-interference ability of the sensor performance; At the same time, the sensor integrates the high precision temperature sensor, and adopts the unique algorithm to realize the temperature compensation of the sensor.

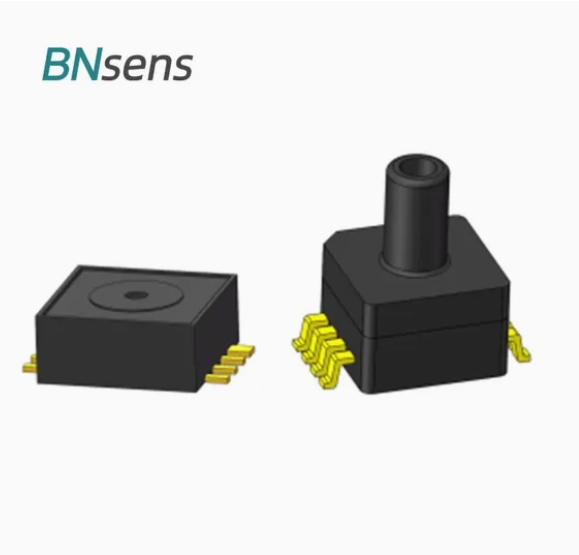

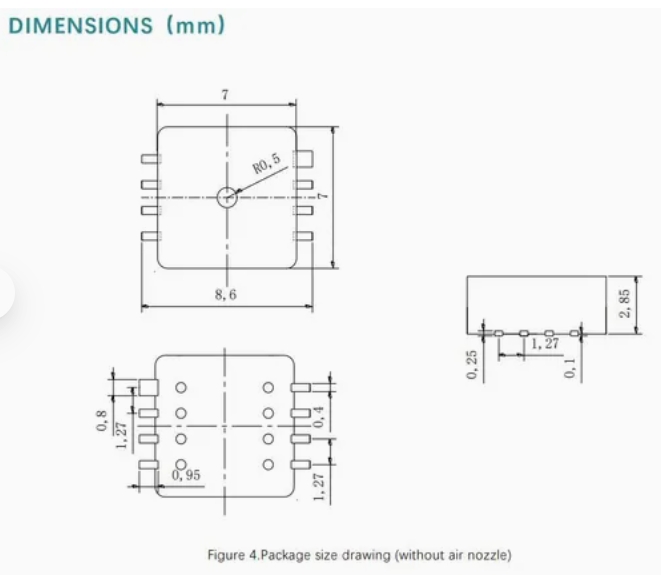

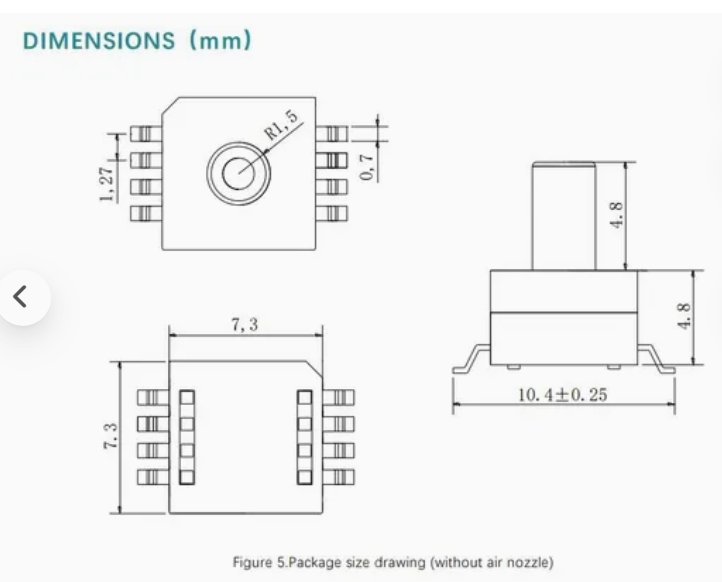

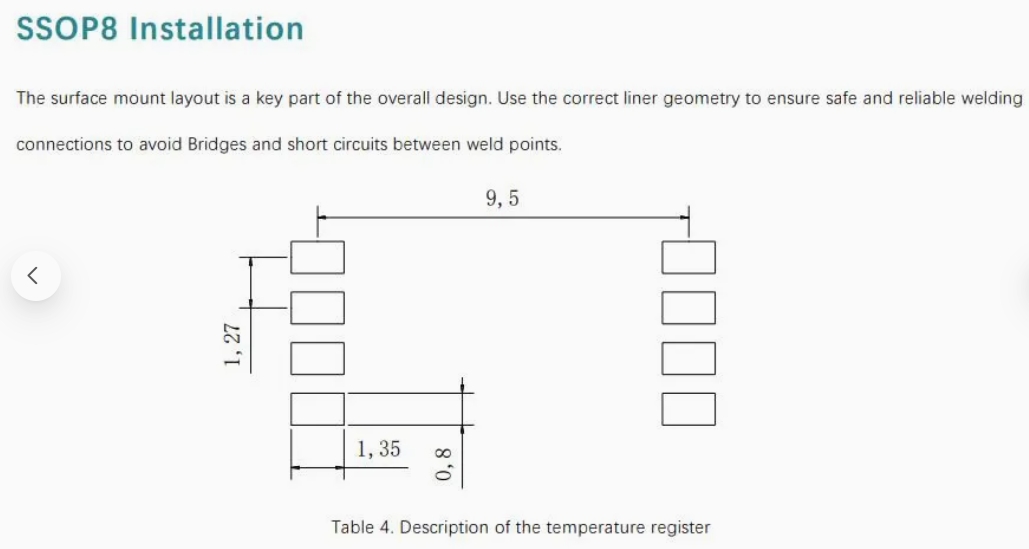

This series of pressure sensor adopts SSOP8 package, which can be divided into two forms: with and without air nozzle, to broaden the application of products.
CHARACTERISTICS ：
Pressure type: Absolute pressure
Measuring range: 0~130kpa, 0kpa ~300kPa, 0~700kpa, 0kpa ~1700kPa, etc
Accuracy 0.5%
Integrated digital output pressure sensor
High stability
Operating temperature: -40~125℃
PREFORMANCE ：
| Parameter | Minimum | Typical | Maximum | Unit | Note |
| Supply voltage | 1.68 | 3.3 | 3.6 | V dc | |
| Working current | 1 | mA | |||
| Current of sleep | 20 | nA | |||
| ADC | 24 | bit | |||
| Accuracy of accuracy | ±0.5 | %FS | |||
| Start up time | 2.5 | ms | |||
| Response time | 5 | 30 | ms | ||
| Operating temperature | -40 | 125 | ℃ | ||
| Temperature of storage | -55 | 150 | ℃ |
If not specified, test conditions are 3.3V supply voltage and 25℃ ambient temperature

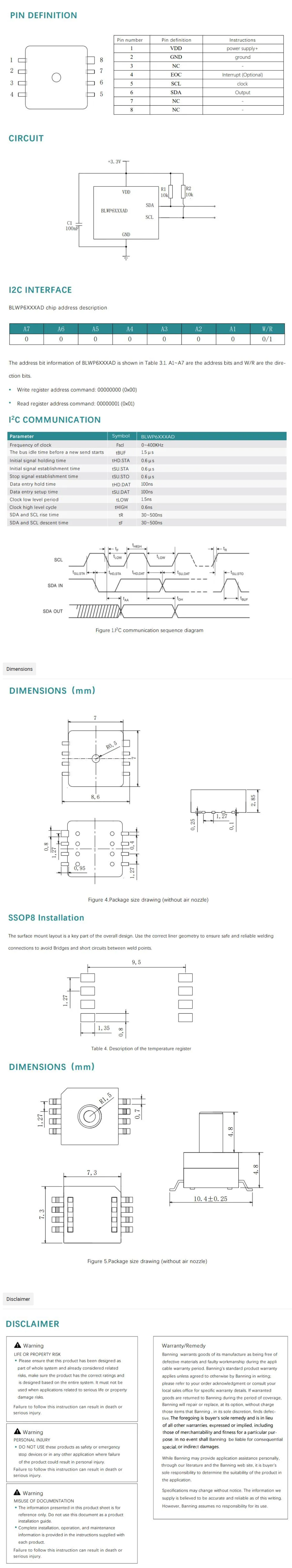

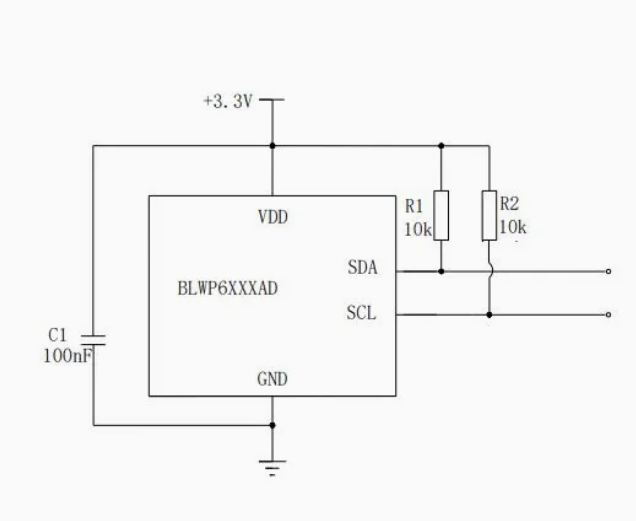

BLWP6XXXAD board mount pressure sensor reference↓
