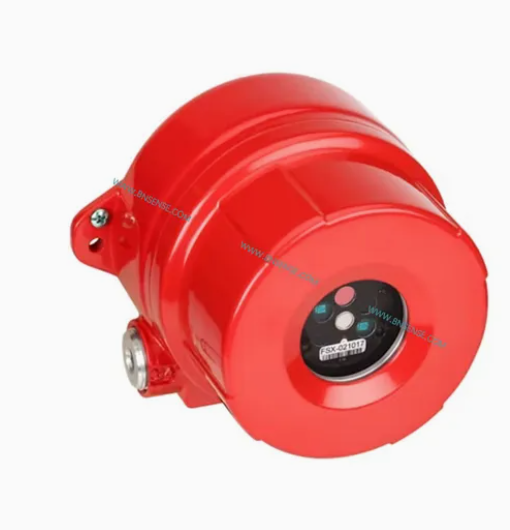

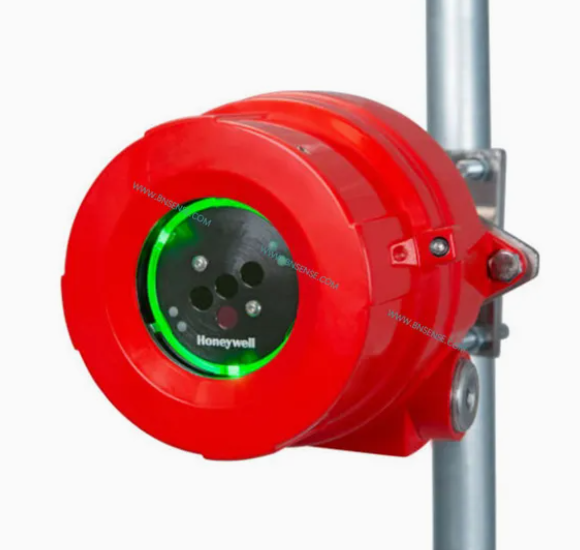

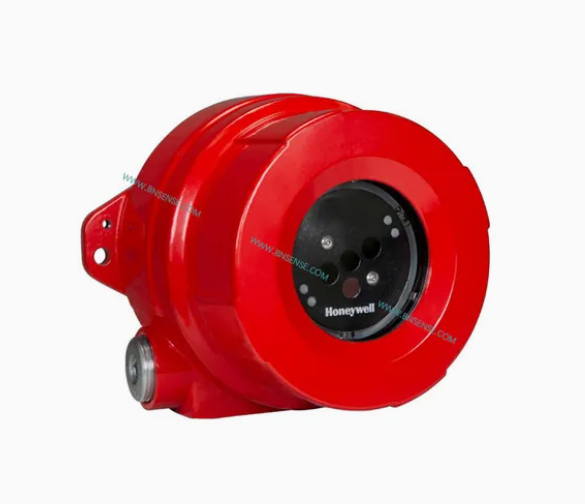

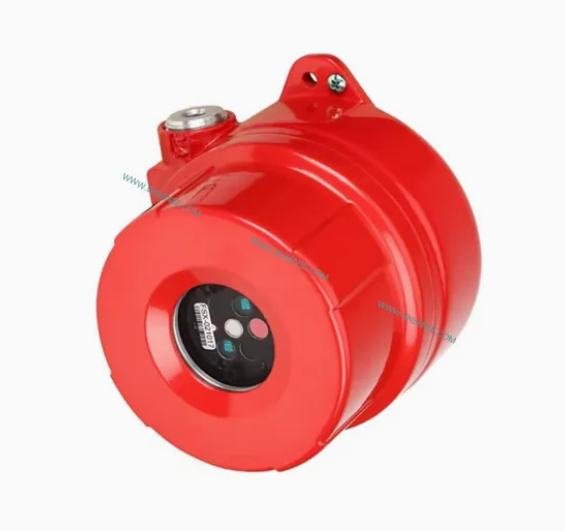

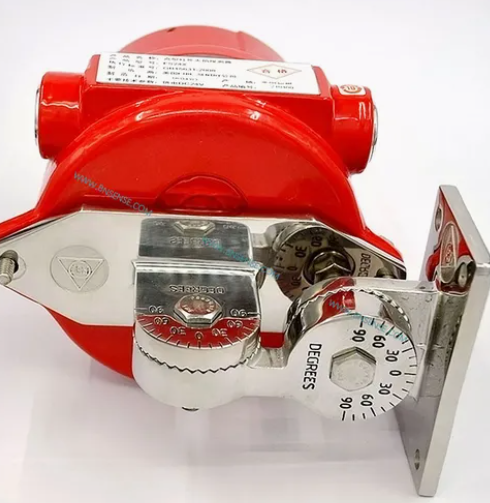

FS24X

Product Description

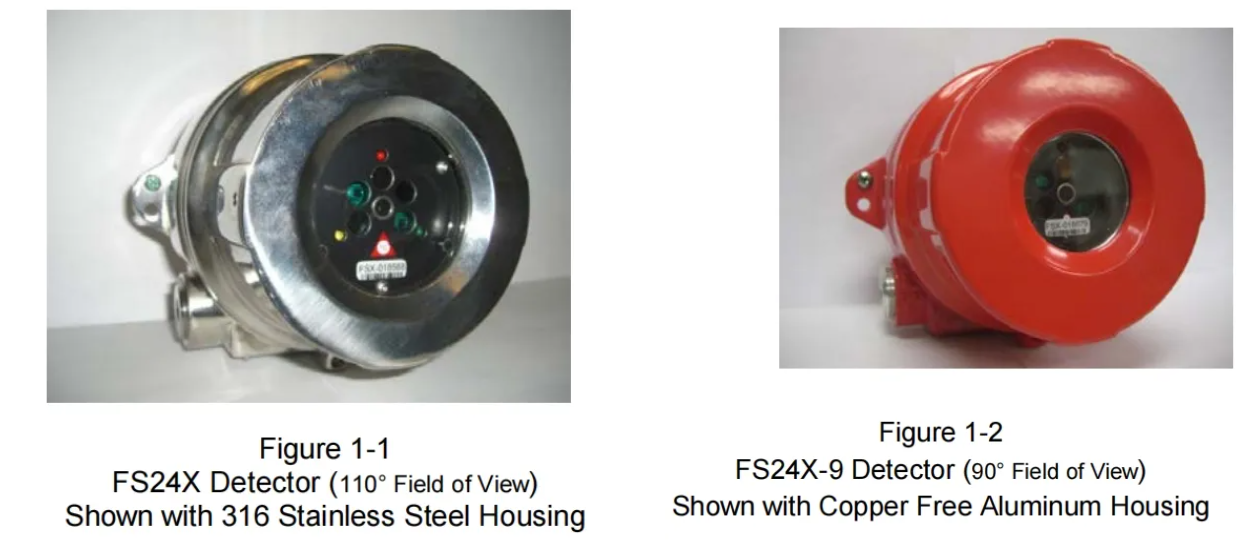

The Model FS24X™ Detectors sense the WideBand IR™ radiant energy of blackbody particulate and molecular emissions generated by BOTH hydrocarbon and non hydrocarbon flames and fires. The WideBand IR spectral radiant energy wavelengths sensed by the Quad (4) sensors span from approximately 0.4 to 5.0 microns for the FS24X. The Model FS24X Multi-Spectrum Fire and Flame Detectors are designed and Factory Mutual approved for use in Class I, Div. 1 and 2, Class II and Class III; Class I, Zone 1 AEx d and Ex d IIC Hazardous Locations and ATEX Certified Ex db IIC (T4-T6) and Ex tb IIIC (T4-T6) Flameproof (Figure 1-1 & Figure 1-2).

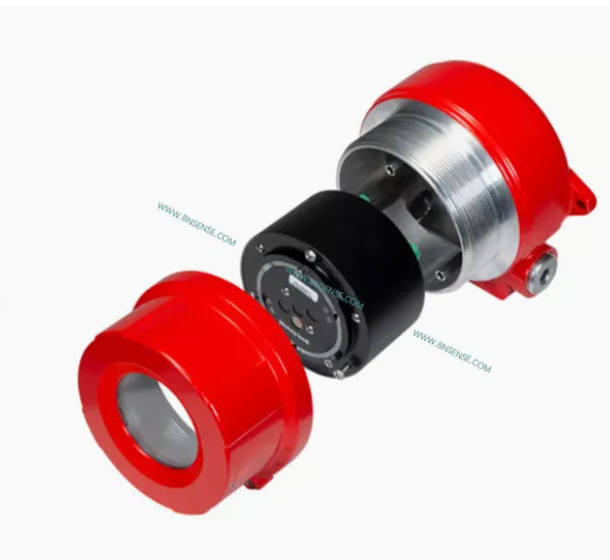

The FS24X Detectors are available in copper-free Aluminum or 316 Stainless Steel enclosure. The FS24X Detector electro-optical electronics module (puck) is enclosed in a field-replaceable black, hard anodized aluminum puck that provides superior ruggedness, handling, ease of installation, and protection against EMI/RFI.

FS24X Detector Field Connectors

The field connections feature two (2) connector choices for the installer:

1. A removable ten (10) pin screw terminal connector (J2) for hard-wired relay applications.

2. A removable six (6) pin screw terminal connector (J1) for analog output or RS-485 Digital Communication applications.

The removable connectors provide quicker installation and allows the Detector enclosure to be installed prior to the Detector Module (puck).

User Field Selectable Configuration Switches

1. The eight (8) pin DIP switch (SW2) is used to select the Detector's Sensitivity and Relay Options.

2. The ten (10) pin DIP switch (SW1) is used for:

• Selecting a unique digital address (128 choices).

• Factory Use

3. The ten (10) position Rotary switch allows selection of the analog and digital communication protocol.

1.2 Detector Technical Specifications

1.2.1 Mechanical Specifications Enclosure Material:                               Copper Free Aluminum

                                                                                                                316 Stainless Steel

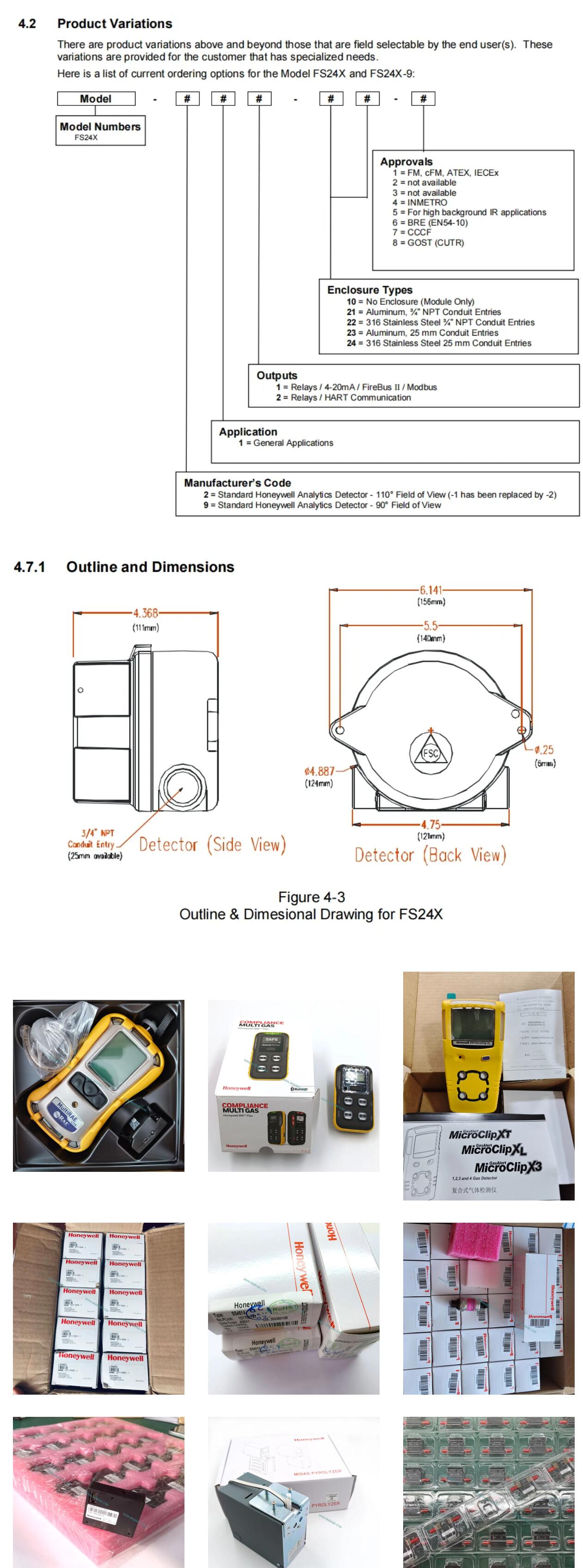

Physical Dimensions:                                           Assembly 4.35 in. (110.49 mm) Height X 4.81 in. (122.24 mm) Diameter

                                                                           Mounting Holes ¼ in. (6.35 mm) Diameter, 5.50 in. (139.70 mm) Center to Center

                                                                           Conduit Entries Two (2) ¾ in. NPT or Two (2) 25 mm

Weight:                                                                                                 Aluminum 3 lbs. 11 oz. (1.7 kg) approximately

                                                                                                           Stainless Steel 7 lbs. 7 oz. (3.4 kg) approximately

Enclosure Rating:                                                                                IP66 / NEMA 4X

Vibration:                                                                                              Meets or exceeds Mil Spec 810C,

                                                                                                            Method 514.2, Curve AW

1.2.2 Electrical Specifications

Input Voltage Range:                                                                            18 VDC to 32 VDC

Normal Operation Current:                                                              60 mA (nominal)      205 mA (nominal with heater1)

Maximum Fire Alarm Current:                                                         85 mA (maximum)     235 mA (maximum with heater1)

Relay Contact Rating:                                                                     1 Amp @ 24 VDC resistive

Analog Current Output:                                                                   0 to 20 mA (Source or Sink, User Selectable)

(400 Ohms Max Load)                                                                    0.0 mA (<0.6 mA) =Fault

                                                                                                       2.0 mA (±0.6 mA) = Dirty Window Lens

                                                                                                       4.0 mA (±0.6 mA) = Normal, Safe (no Fault, no Fire)

                                                                                                      20.0 mA (±0.6 mA) = Alarm or Verified Fire Alarm

Screw Terminal Wire Sizes:                                                           12 AWG to 22 AWG (2.50 mm to 0.762 mm)

                                                                                                      Use stranded conductors (not solid core)

1.2.3 Environmental Specifications

Operating Temperature, Standard:                        -40° F to +185° F (-40° C to +85° C) for FS24X-2 (110° FoV)

Operating Temperature, Standard:                        -76° F to +185° F (-60° C to +85° C) for FS24X-9 (90° FoV)

Operating Humidity Range:                                    0 to 95% RH,

                                                                              100% RH condensing for short periods of time

Storage Temperature:                                             -67° F to +221° F (-55° C to +105° C)

1.2.4 Performance Specifications2

Field of View:                                                         FS24X detectors have a cone of view of 90° horizontal and

                                                                             80° vertical with the highest sensitivity on the central axis

Sensitivity:                                                             One (1) sq. ft. heptane reference fire at 200 feet

Speed of Response:                                             2 to 5 seconds (typical)

Spectral Sensitivity:                                               0.4 microns to 5.0 microns
