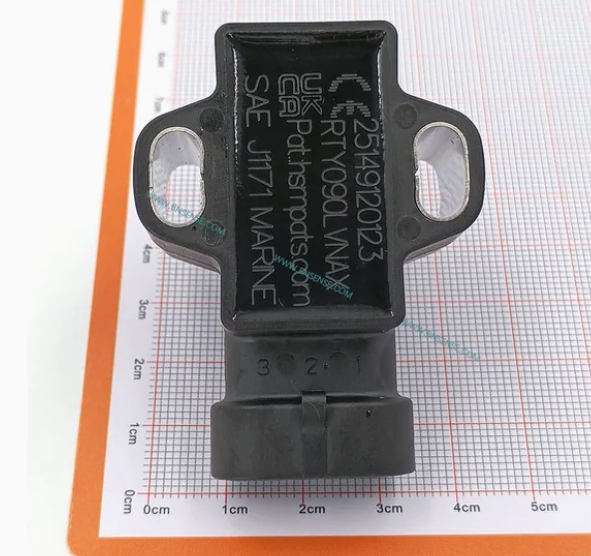

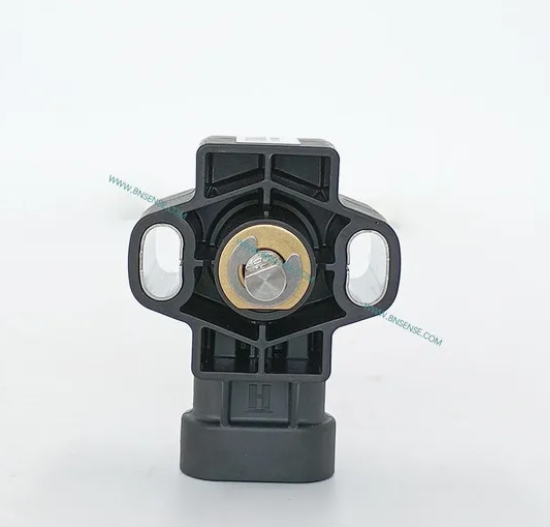

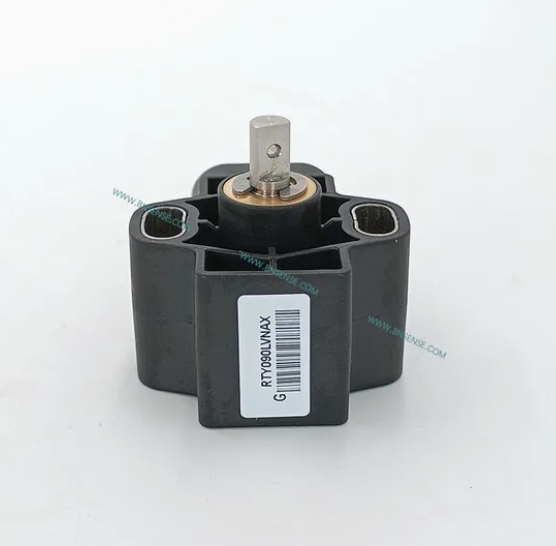

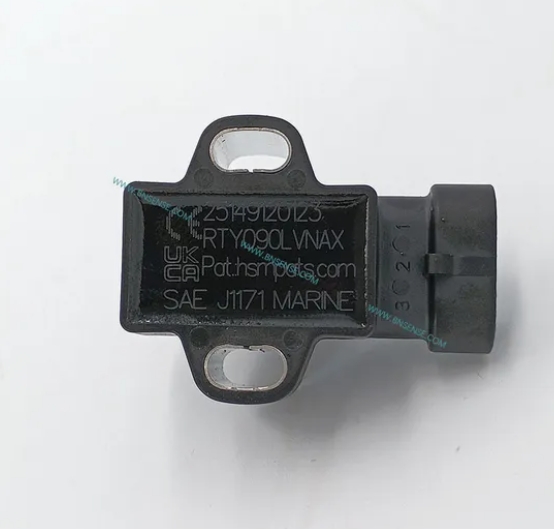

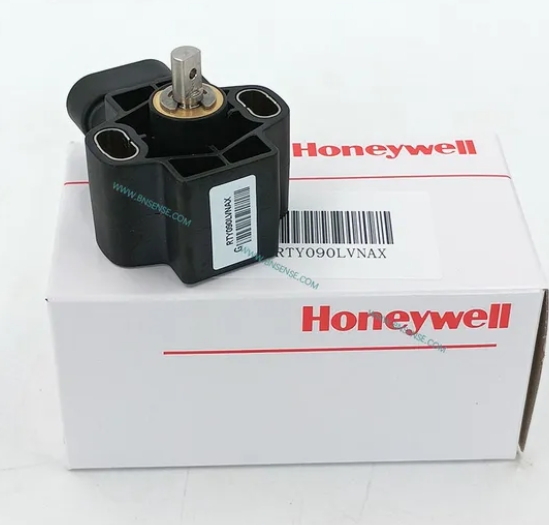

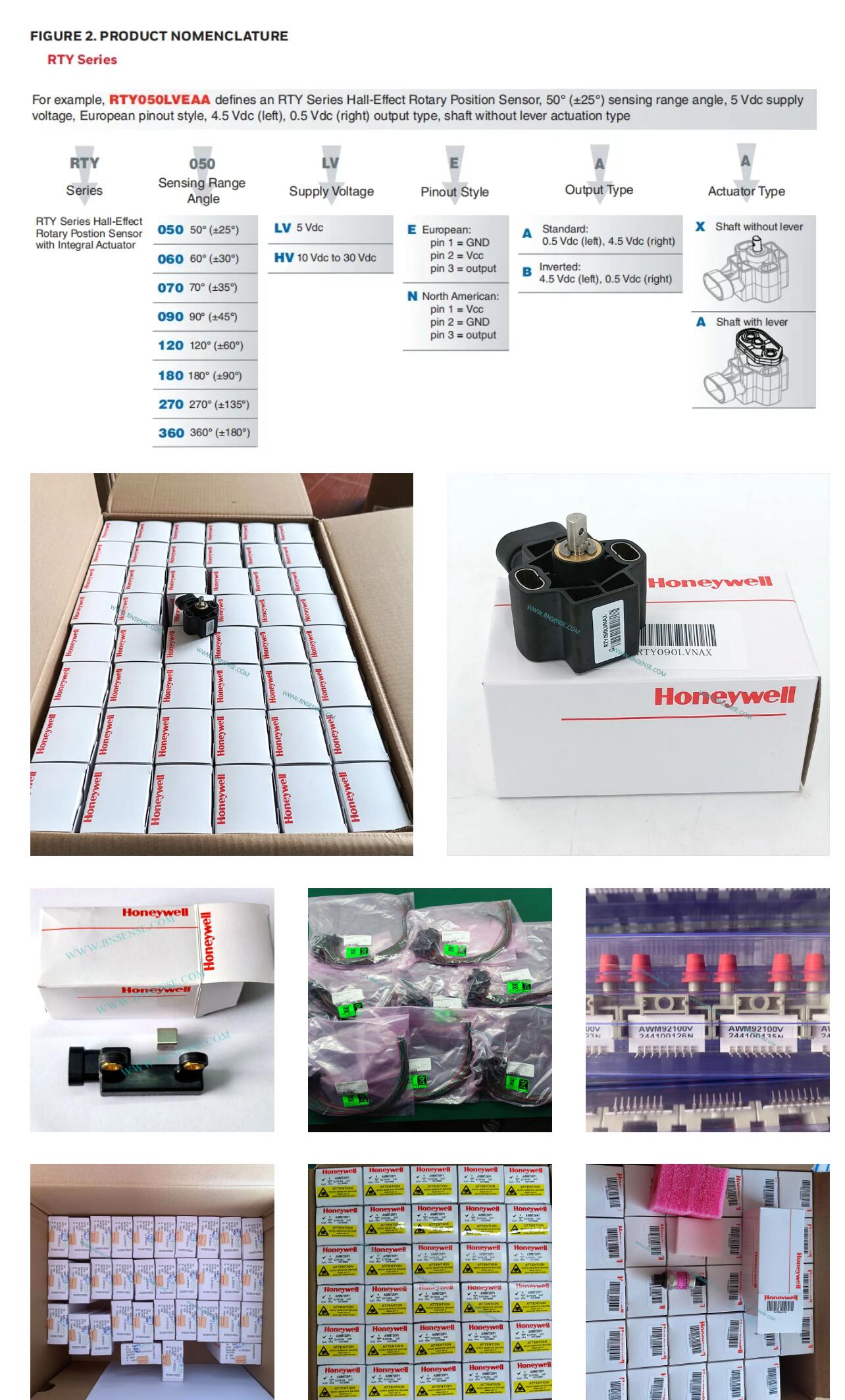

RTY090LVNAX
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Industrial Motion & Position Sensors |
| Product | Rotary Position Sensors |
| Output Type | Analog - Voltage |
| Voltage Rating | 5 V |
| Linearity | 1% |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Resistance Range | 10 kOhms |
| Tolerance | 1.60% |
| Type | Hall Effect Rotary Position Sensor |
| Measures | Angle |
| Technology | Hall Effect |
| Accuracy | +/- 1.6 % |
| Mechanical Travel | 90 deg |
| Packaging | Bulk |
| Product Type | Industrial Motion & Position Sensors |
| Series | RTY/RTP |
| Subcategory | Sensors |
Product Description
DESCRIPTION
The RTY Series and RTP Series Hall-effect Rotary Position Sensors provide non-contact sensing in harsh transportation and industrial applications at a competitive cost.
• RTY Series: These shaft activated products are available in two versions: an integral shaft with or without a lever. The lever may allow customers to reduce the number of mechanical linkages required for their applications, which may reduce the cost of the overall customer solution.
• RTP Series: Takes non-contact sensing to the next level by separating the magnet from the sensor body. The absence of the actuator shaft removes the wear and tear on the bearings caused by radial forces. A choice of a bare or a housed magnet is available. These products use a magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet's position relative to the IC. The resulting flux density change is converted to a linear output.
The IC, together with conditioning and protection circuitry, is sealed in an IP69K-qualified rugged package for durability in most harsh environments. Eight operating ranges from 50° to 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 Vdc to 30 Vdc.
Honeywell's industry-leading capabilities in research and development provide the customer with known quality and support.
FEATURES
• True, non-contact operation
• 35 M cycle product life (RTY Series); unlimited rotation (RTP Series)
• Solid-state Hall-effect technology
• Rugged IP69K-sealed package with integral connector
• Automotive-grade EMI/EMC testing, integrated reverse polarity, and short circuit protection
• Industry-standard AMP termination, 32 mm mounting pitch, North American or European pinout styles, and compact package
• Eight operating ranges up to 360°
POTENTIAL APPLICATIONS
Transportation
• Position and movement detection (pedals, throttles, gear shift, levers, steering, linkages, and hitches) in trucks, buses, off-road vehicles, cranes, and industrial/construction/ agricultural vehicles and equipment)
• Suspension/kneeling position (buses, trucks)
• Tilt/trim position (boat engines, tilling equipment)
Industrial
• Valve control
• HVAC damper control
• Irrigation equipment pivot control
ELECTRICAL SPECIFICATIONS
| CHARACTERISTIC | RTY SERIES | RTP SERIES | ||
| LV (Low Voltage) | HV (High Voltage) | LV (Low Voltage) | HV (High Voltage) | |
| Supply voltage | 5 ±0.5 Vdc | 10 Vdc to 30 Vdc | 5 ±0.5 Vdc | 10 Vdc to 30 Vdc |
| Supply current: normalduring output to ground short | 20 mA max.25 mA max. | 32 mA max.47 mA max. | 20 mA max.25 mA max. | 32 mA max.47 mA max. |
| Output: standard inverted | 0.5 Vdc to 4.5 Vdcratiometric 4.5 Vdc to 0.5 Vdcratiometric | 0.5 Vdc to 4.5 Vdcnon-ratiometric 4.5 Vdc to 0.5 Vdcnon-ratiometric | 0.5 Vdc to 4.5 Vdcratiometric 4.5 Vdc to 0.5 Vdcratiometric | 0.5 Vdc to 4.5 Vdcnon-ratiometric 4.5 Vdc to 0.5 Vdcnon-ratiometric |
| Output signal delay | 4 ms typ. | |||
| Overvoltage protection | 10 Vdc | - | 10 Vdc | - |
| Reverse polarity protection | -10 Vdc | -30 Vdc | -10 Vdc | -30 Vdc |
| Output to ground shortcircuit protection | continuous | |||
| Resolution | 12 bit | |||
| Output load resistance(pull down to ground) | 10 kOhm typ. | |||
| EMI:radiated immunity | 100 V/m per ISO11452-2 from 200 MHz to 1000 MHz | 100 V/m per ISO11452-2 from 200 MHz to 1000 MHz | ||
| conducted immunity | 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz | 100 mA BCI per ISO11452-4from 1 MHz to 400 MHz | 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz | 100 mA BCI per ISO11452-4from 1 MHz to 400 MHz |
| EMC | exceeds CE, UKCA requirements | |||
MECHANICAL SPECIFICATIONS
| CHARACTERISTIC | RTY SERIES | RTP SERIES | ||
| LV (Low Voltage) | HV (High Voltage) | LV (Low Voltage) | HV (High Voltage) | |
| Expected life | 35 M cycles | infinite rotation | ||
| Air gap:bare magnet actuatorhoused magnet actuatormisalignment | --- | 3,00 mm ±0.5 mm [0.12 in ±0.02 in]2,00 mm ±0.5 mm [0.08 in ±0.02 in]2.002,00 mm [0.08 in] max. | ||
| Material:shaftmagnetsensor housinghoused magnet overmold sensor/housed magnetbushingsensor bushing | stainless steel-PBT plastic--stainless steel | -NdFeBPBT plasticPPS plasticbrass- | ||

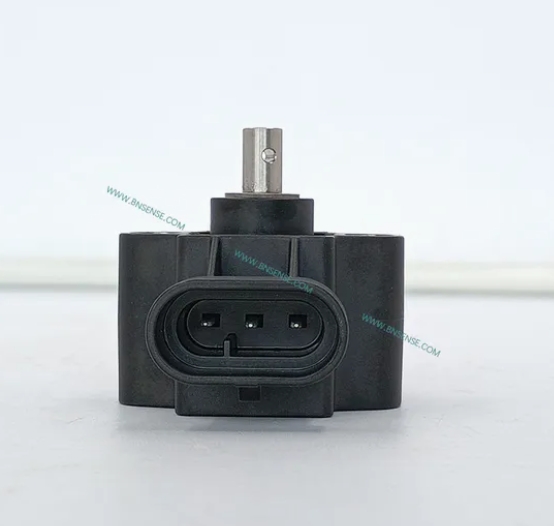

| Mating connector | AMP Superseal 282087-1 | |||
| Mechanical end stop | no | |||
| Mounting screw sizes:sensor to mounting surfacelever to mounting surfacehoused magnet actuator toactuator mounting shaft | non-magnetic, stainless steel M5 screws and10 mm [0.39 in] OD washersnon-magnetic stainless steel M6 screws,- | non-magnetic, stainless steel M4 X 0.7 screws and8 mm [0.31 in] OD washers-non-magnetic, stainless steel M3 X 0.5plain cup point set screws | ||
| Approvals | CE, UKCA | |||
