R8001C6001

Product Description

SLATE is a revolutionary new combustion system that combines configurable combustion safety with programmable logic in one single platform. SLATE can easily be customized for almost any requirement or application- offering virtually limitless development opportunities with a far less complexity.

SLATE streamlines and simplifies the product development process, allowing customers to bring unique solutions to market in a matter ofweeks instead of months.

SLATE is a modular control that integrates configurable safety devices with user-programmable logic, inputs and outputs. Its purpose is to allow equipment manufacturers to create a customized controller by selecting modules and I/O specifically for that equipment and then designing a customized control program to make them work together. The SLATE modules mount on a DIN rail via a sub-base and each includes side by side plugs and jacks to interconnect adjacent modules.In previous conventional control systems, a control panel often contains a PLC combined with separate safety devices such as burner controls. In this case, the safety devices are separately responsible for the operation and safety of critical equipment. This is maintained also in the SLATE design: safety modules operate as discrete and self contained safety controls. In the previous conventional control systems, the data produced by the safety modules is connected to what the control is doing. Or if the control includes communication, then the programmable logic may capture and interpret this using specialized customer software. In SLATE all safety module status data and all non-safety control of safety modules (such as burner control call-for-hear signal) is fully integrated into the programmable logic. It is one system, even

though the safety modules are independent.

Overview

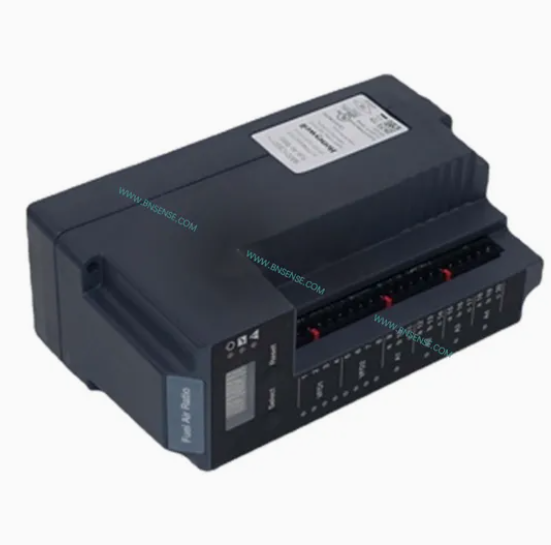

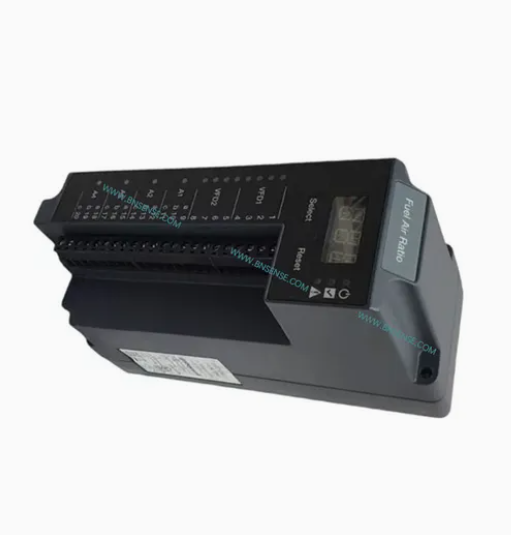

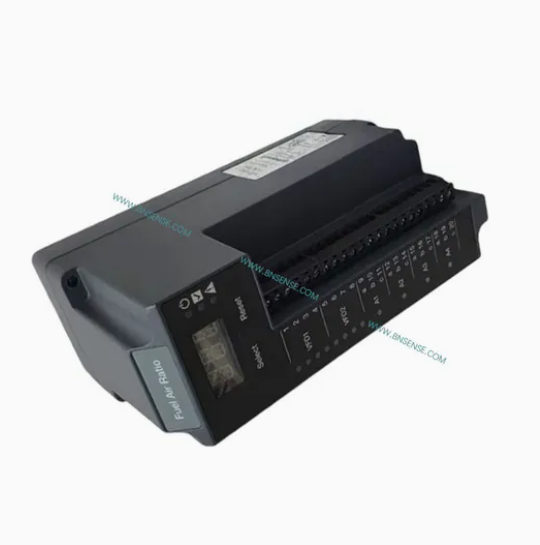

The R8001C6001 SLATE Fuel Air Ratio module uses the latest technology to control up to 4 SLATE actuators and or 2 Variable Frequency Drives. The Fuel Air Control module controls the relationship between fuel, airflow and flue gas recirculation on a power burner.

Within the SLATE system, the fuel air ratio module provides:

• Air fuel ratio control for up to 4 actuators

• Drive 2 Variable Frequency Drives (VFDs)

• RS-485 Modbus communications to communicate to the actuators and receive feedback

• SLATE actuator torque sizes:

- R8001M1050 50 in/lb in NEMA 1

- R8001M1150 150 in/lb NEMA 1

- R8001M4050 50 in/lb NEMA 4

- R8001M4150 150 in/lb NEMA 4

• Up to 24 points on the curve

• Field configurable

• Automated actuator endpoint seeking process

• UL Listed, FM and NFPA acceptable

• Password protected

• Fault information

• Status of four actuator channels

• Unused VFD terminals can be used as analog cells for general purpose I/O configuration

• Flue gas recirculation (FGR)

• Trim

• Dual Fuel

• Seasonality or recipe curves Safety Features

• Class C operating software system

• Fail-safe feedback

• Curve verification algorithms

• Password protected

• Built in self test

• No slope constraints that would limit the steepness of the curve

• Component anti-swap protection

• Off curve checking algorithm

LED Array

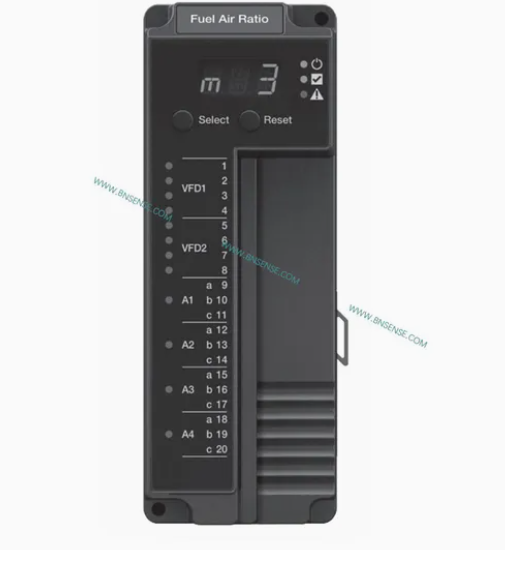

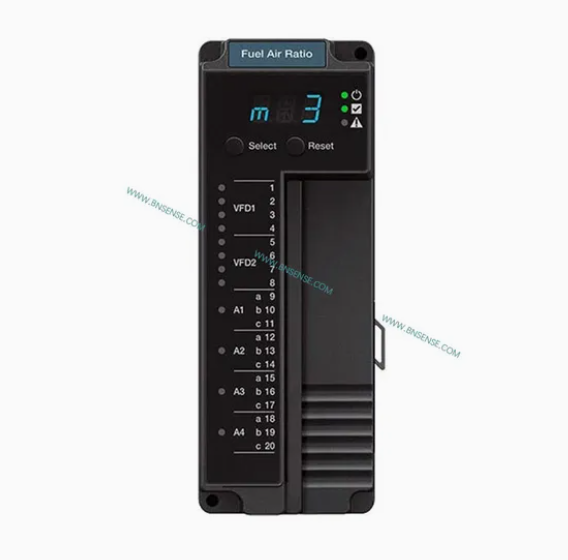

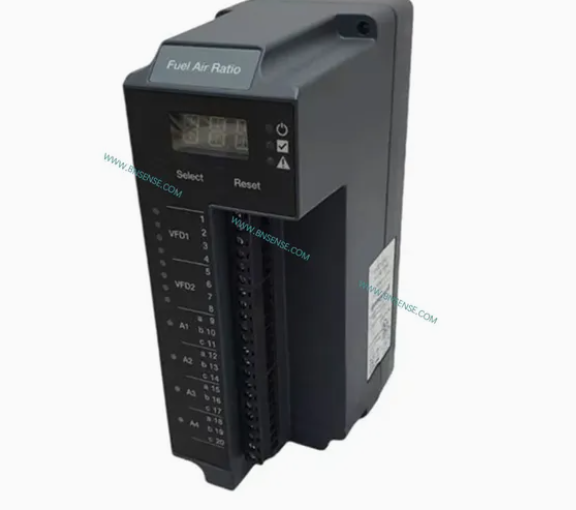

There are three LEDs on the front of the Fuel Air Ratio module that provide quick identification of the system status and any problems that might occur. The status is broadcast to other modules on the platform bus in case they are affected by the inoperable modules.

Understanding the Terminals

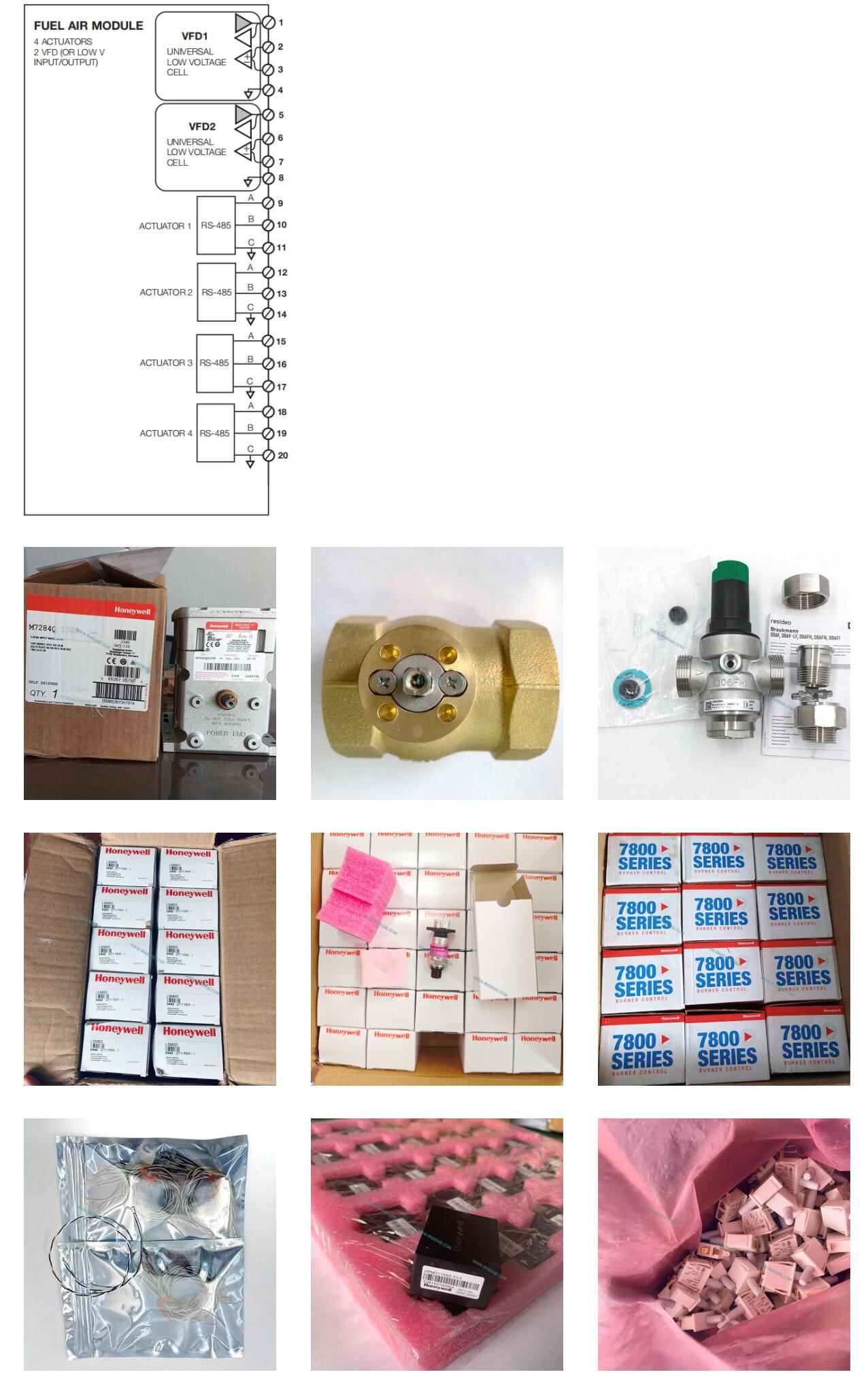

The SLATE Fuel Air Ratio Control Modules contains 20 wired terminals.
