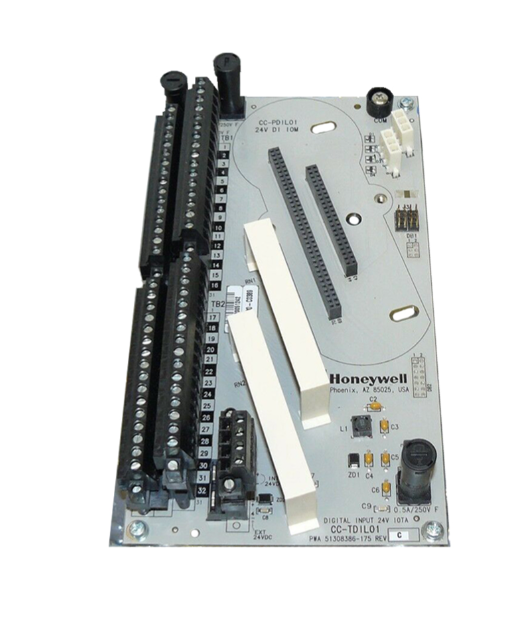

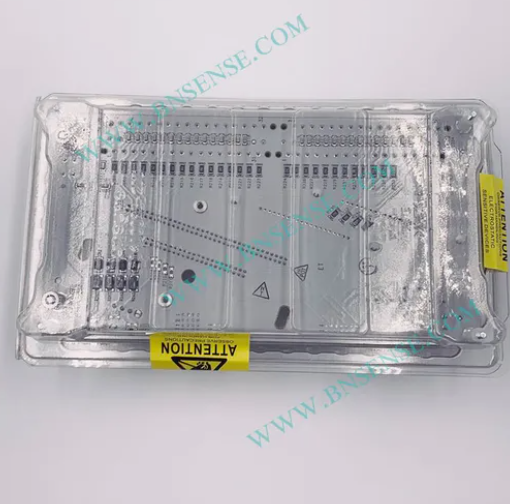

CC-TDIL01
The Honeywell CC-TDIL01 is a high-performance digital input module designed to receive and process digital signals from external devices or sensors. It is widely used in industrial automation production lines, machinery and equipment monitoring, environmental monitoring systems and other fields, and can be seamlessly integrated with PLC systems to provide real-time data and control functions.
Product parameters
Input voltage: 24V DC
Current consumption: 0.190A (at 24V DC)
Heat dissipation power: 4.220W
Operating temperature range: -40°C to 70°C
Storage temperature range: -40°C to 85°C
Size: 230x260x80mm
Weight: Approximately 0.38kg.
Product Specifications:
Input Type: Numeric input
Number of channels: 16 digital input channels.
Response time: < 10ms
Isolation: 1500V AC isolation between the input channel and the backplane.
Communication interface: support RS-485 bus interface.
series
The CC-TDIL01 belongs to Honeywell's C-series digital input modules, which are highly reliable and flexible for harsh industrial environments.
features
High reliability: Designed with high-quality components and rugged construction to ensure stable operation in harsh environments.
Easy to integrate: Modular design for easy maintenance and upgrades, fast response and accurate handling of digital input signals.
Internal diagnostics: Open circuit detection, redundant design, galvanic isolation, and other functions to ensure data integrity.
Flexible configuration: support internal or external field power supply selection, on-board excitation power function, non-flammable field power supply.
Function and function
Signal acquisition and processing: Digital input signals are taken from field devices, such as sensors and switches, and converted into a format that can be processed by the control system.
Monitoring and control: It is used to monitor industrial automation production lines, machinery and equipment, environmental parameters, etc., to achieve condition monitoring and control.
Data transmission: The collected data is transmitted to the control system via RS-485 interface.
Uses and fields of application
Industrial automation: widely used in manufacturing, petrochemical, electric power, water treatment and other industries.
Environmental monitoring: used for the detection of temperature, humidity, pressure and other parameters.
Safety system: used for safety interlock system, fire alarm system, etc
