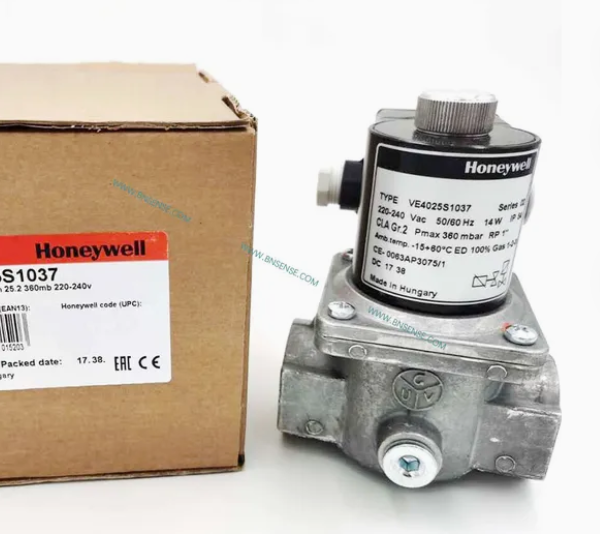

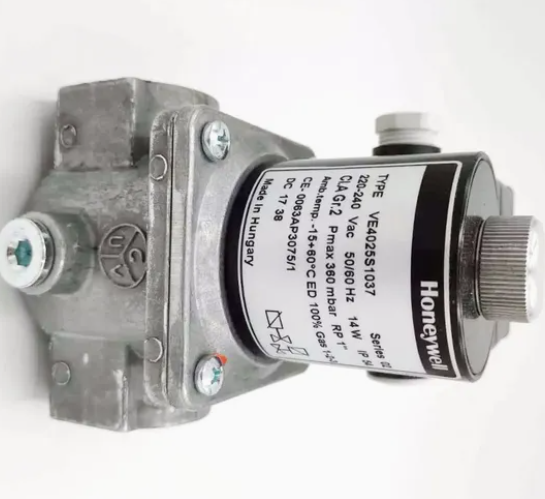

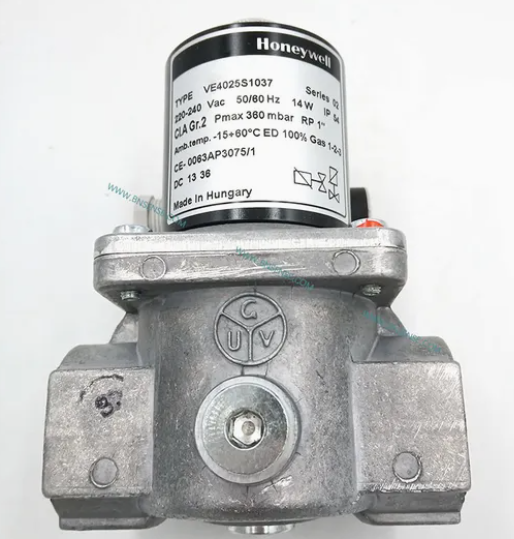

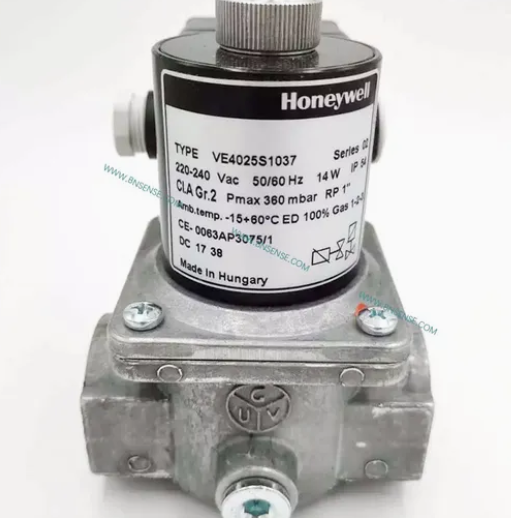

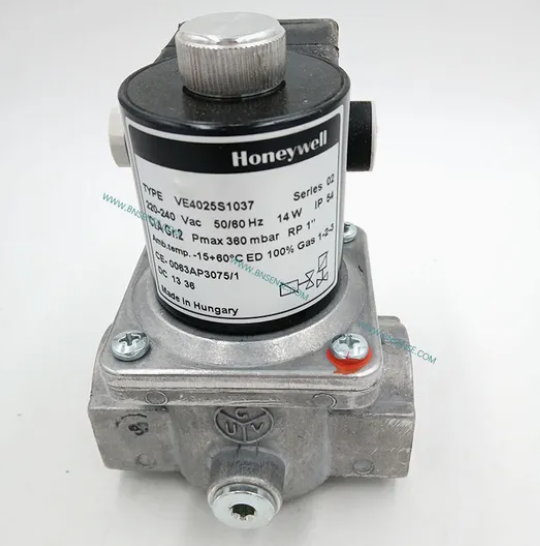

VE4025S1037

Product Description

FEATURES

• Normally Open valve. (spring loaded valve disc, opened when de--energized)

• Non regulated ON/OFF.

• Closed Position Indication switch (optional for VE4000S1).

• Opening/closing time: <1 sec.

• Maximum working frequency: 20 cycles/min.

• Wrench boss as well on inlet side as on outlet side for pipe fitting incorporated in the valve housing.

• 2 Auxiliary pressure taps with Rp 1/4" threaded connections, both on the inlet pressure side.

• Coil field replaceable.

• Coil suitable for permanent energization.

• Coil turnable over 360°.

• Internal fine mesh screen

APPLICATION

The VE4000S1 and VE4000S2 Series safety relief solenoid valves are used for safety and control of gaseous fluids in gas power burners, atmospheric gas boilers, melting furnaces, incinerators and other gas consuming appliances.

SPECIFICATION

•Models:   VE4000S1, without Closed Position Indication (CPI) switch

                VE4000S2, with CPI switch

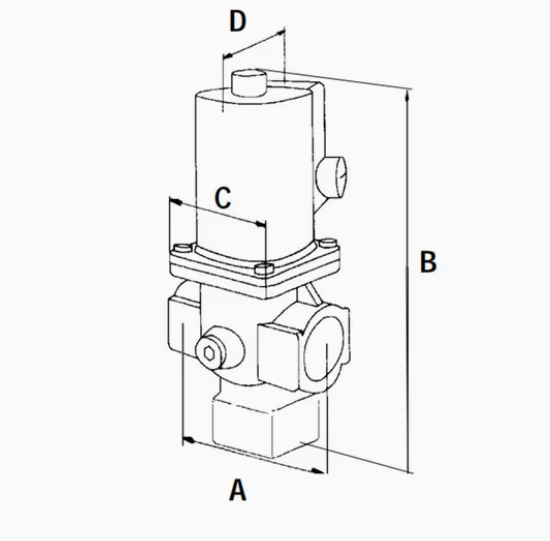

•Dimensions:  See table below.

•Pipe sizes:    Inlet and outlet 3/4" and 1" internal parallel pipe thread according to ISO 7--1. The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy.

•Capacity: See capacity curves VE4000 Series on page 66. Maximum operating pressure 200 or 360 mbar

•Torsion and bending stress:  Pipe connections meet group 2, according to EN161 requirements

•Supply voltage:  Line voltage: 220 ... 240 Vac, 50/60 Hz

                      110 Vac, 50/60 Hz

                       24 Vac, 50/60 Hz                        24 Vac, 50/60 Hz

•Ambient temperature range:    --15 ... 60 °C

•Electrical connection :See table below.  Optional : Male DIN plug connector according to ISO4400

•Coil insulation solenoid valves :  Insulation material according to class F.

•Enclosure :  IP54

                   IP65 on request

•Valve body:  Aluminium alloy die--cast

•Bottom plug : Rp 1/4" for Closed Position Indication (CPI) switch.

•Strainer:  AISI 303 steel

•Closing spring:   AISI 302 steel

•Valve plunger:   Chrome plated Fe 360B steel sliding on anti--friction bearing.

•Seals and gaskets:  Hydrocarbon resistant NBR rubber type.

Optional : Viton rubber type

•Standards and Approvals:  Class "A" valve in accordance with EN161 standards.

The VE4000 Series gas valves conform with the following EC directives:

           Gas Appliance Directive (90/396/EEC)

           PIN: CE--0063AP3075/1

           Low Voltage Directive (73/23/EEC)

           Electro Magnetic Compatibility Directive (89/336/EEC)
