Limit Switches
Product Description

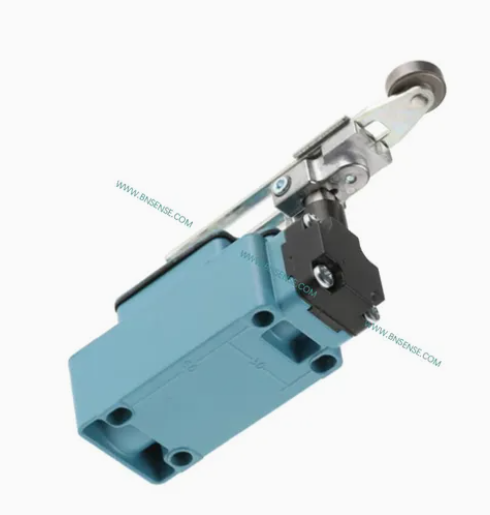

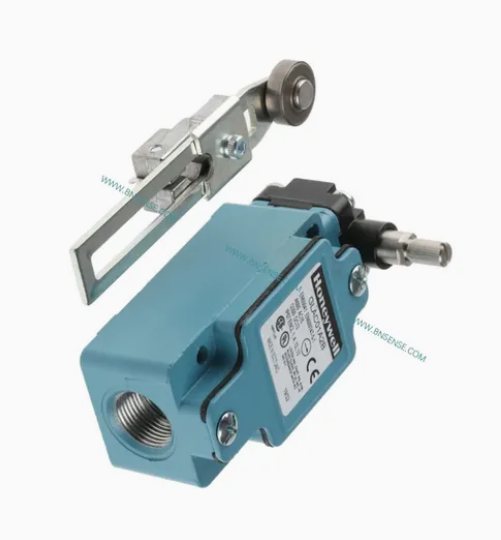

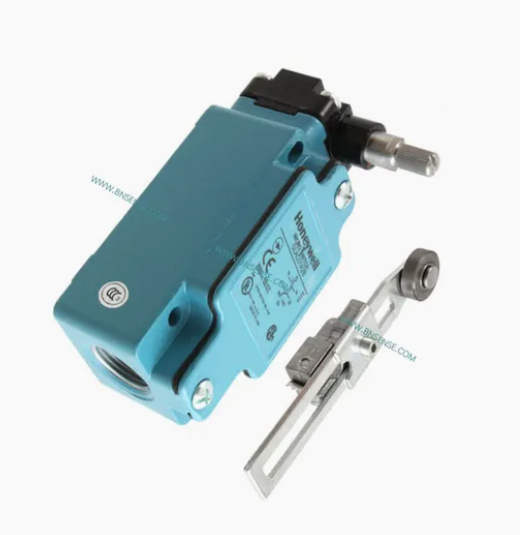

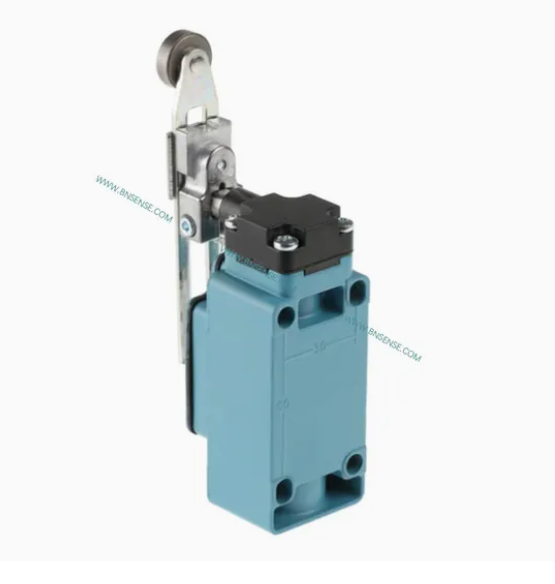

DESCRIPTION
Honeywell's MICRO SWITCH GLA Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. The modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required. Normally closed snap-action contacts and normally closed slow-action contacts are positive opening .
DIFFERENTIATION
• Side rotary actuator incorporates dual bearing design which prevents side loading during operation
• Removable contact block allows for ease of wiring
• Modular design of limit switch (heads/actuators, bodies, and contact blocks) allows for rapid customization and delivery
• Optional 1 LED or 2 LED pilot lights in limit switch front cover to indicate voltage present to switch and/or switch actuated
• Specialty contact options, sequential (2-step style) action, and center neutral action
FEATURES
• Designed to EN50041 standard, 30 mm x 60 mm mounting
• Available as a standard body or plug-in body with same footprint
• Wide range of actuator heads and levers
• Side rotary switches factory set for CW and CCW actuation; field adjustable for CW only or CCW only
• Certified for global applications; UL/CSA (Americas/Canada), CE (Europe), CCC (Asia-Pacific)1
• Conforms to IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series)
• Sealed to IP67 and NEMA/UL 1, 4, 12, and 13
• Operating temperatures as low as -40 °C to 85 °C [-40 °F to 185 °F]
• Multiple connectivity options to meet most applications: four different threaded conduits, micro-change connectors, minichange connectors, Deutsch style 4-pin connector
• One or two LED indicators available in switch body
• Single pole double throw, two pole single throw contact blocks (1NC/1NO, 2NC, 2NO) are galvanically (electrically) isolated (Zb) and designed with bifurcated contacts
• Two pole double throw contact block (2NC/2NO) has each pole galvanically (electrically) isolated (Zb)
• Normally closed contacts are positive opening , except center neutral style
• Contact blocks are available as snap action or slow action
• Analog output available with side rotary actuator
• Mechanical life up to 15 million operations
POTENTIAL APPLICATIONS
• Aerial lifts, boom lifts
• Automotive assembly lines and machining centers
• Agriculture equipment
• Conveyors
• Doors and apertures
• Material handling
• Machine tools
• Railroad locomotives and railroad signaling equipment
• Transportation hubs
• Valves
VALUE TO CUSTOMERS
• Easy to install and maintain
• Rugged metal construction
| MICRO SWITCH GLOBAL LIMITSWITCHES, GLA SERIES | |||||
| TABLE 1. SPECIFICATIONS | |||||
| Characteristic | Parameter | ||||
| Description | EN50041 industrial grade limit switch, standard body or plug-in body with 30 mm x 60 mm mounting | ||||
| Certifications | CE, CCC1 , CSA, UL | ||||
| Conforming to standards | IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series), EN 61373 | ||||
| Housing material | Electrostatic epoxy coated zinc | ||||
| Actuators | Side rotary, toppin plunger, top adjustable plunger, top roller plunger, top roller lever,wobble stick (multi-directional) actuator, cat whisker (multi-directional) actuator | ||||
| Termination | 0.5-14 NPT; PG 13,5; M20; G 1/2 (PF 1/2); Deutsch style 4-pin connector; Micro-change connector;Mini-change connector; Pre-cabled | ||||
| Contact options* | 1NC/1NO, 2NC, 2NO, 2NC/2NO, 2NC/2NO sequential, 2NC/2NO center neutral | ||||
| Contact type | Snap action, slow action break-before-make (BBM), slow action make-before-break (MBB),slow action | ||||
| Contact material | Silver alloy (standard), gold-plated (low-energy applications) | ||||
| Utilization category | ac15, A300/A600; dc13, Q300 | ||||
| Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc | ||||
| Rated operational current (Ie) | 3 A, 1.2 A, 0.27 A | ||||
| Thermal current (Ith) | 10 A, 2.5 A | ||||
| Rated insulation voltage (Ui) | 300 V; 600 V | ||||
| Rated impulse withstandvoltage (Uimp) | 2500 V | ||||
| Short circuit protective device(SCPD), type, and rating | Class J fuse, rated 10A, 600 V | ||||
| Pollution degree | 3 | ||||
| Sealing | IP67; NEMA/UL 1, 4, 12, and 13 | ||||
| Operating temperature | -40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator-25 °C to 85 °C [-13 °F to 185 °F] other actuators | ||||
| Mechanical life | Up to 15 million operations | ||||
| Vibration (actuator not fitted) | 10 g conforming to IEC 68-2-6; railway application per IEC 61373 Class I Car B type | ||||
| Shock (actuator not fitted) | 50 g conforming to IEC 68-2-27; railway application per IEC 61373 Class I Car B type | ||||
| Options | Standard limit switch with 1 LED pilot light (GLF Series) or 2 LED pilot lights (GLH Series) in front coverPlug-in limit switch with 1 LED pilot light (GLG Series) in front cover | ||||
* Normally closed (NC) contacts are positive opening except for the center neutral limit switches
1 CCC certification is not available on the GL Series Switches sold within Europe, Middle East, and Africa. Option for CCC certification in these regions is available upon request.
TABLE 2. ELECTRICAL RATINGS
Electrical Rating
| ac | dc | |||
| A600 Ue (Volts) | AC15 Ie (Amps) | Q300 Ue (Volts) | DC13 Ie (Amps) | Gold-platedcontacts |
| 120 | 6 | 24 | 2.8 | 1 V 10 mA min.50 V 100 mA max. |
| 240 | 3 | 125 | 0.55 | |
| 380 | 1.9 | 250 | 0.27 | |
| 480 | 1.5 | |||
| 500 | 1.4 | |||
| 600 | 1.2 | |||

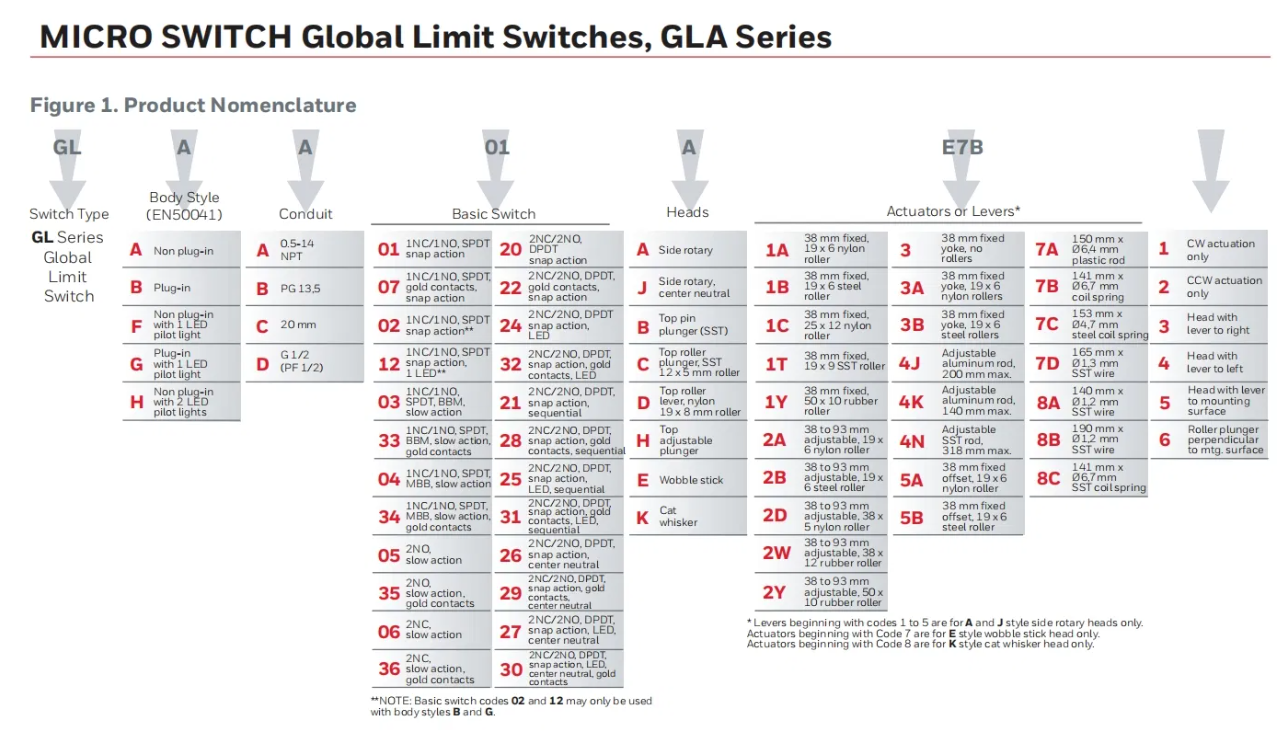

MICRO SWITCH GLA Series Side Rotary Order Guide, Catalog Listing*

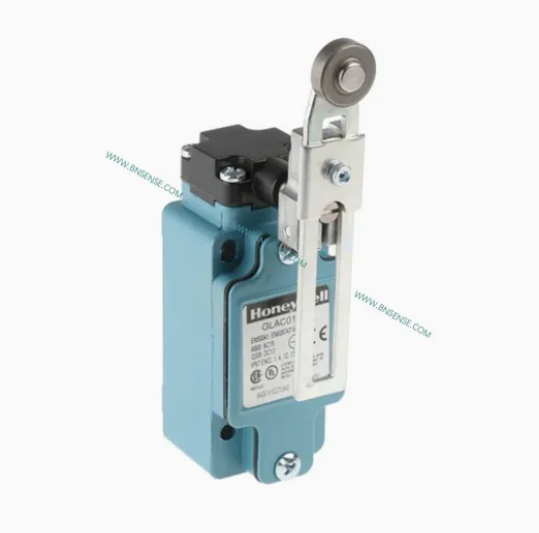

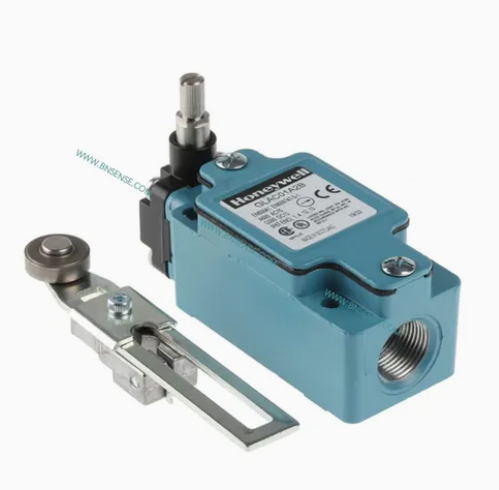

| HeadandLeverType | ContactArrangement | ContactType | ContactMaterial | OperatingTorquemax. | 0.5-14 NPTConduit | 20 mmConduit |
| Siderotary,adjust-ablelever,nylonroller | 1NC/1NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA01A2A | GLAC01A2A |
| 1NC/1NO | Snap ac-tion | Gold-plated | 0,33[2.9] | GLAA07A2A | - | |
| 2NC | Slow action | Silveralloy | 0,33[2.9] | GLAA06A2A | - | |
| 2NC/2NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA20A2A | - | |
| 2NC/2NO | Snap ac-tion | Gold-plated | 0,33[2.9] | GLAA22A2A | - | |
| 2NC/2NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLFA24A2A | - | |
| 2NC/2NOCenterneutral | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA26J2A | - | |
| Siderotary,adjust-ablelever,steelroller | 1NC/1NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA01A2B | GLAC01A2B |
| 1NC/1NO | Snap ac-tion | Gold-plated | 0,33[2.9] | GLAA07A2B | GLAC07A2B | |
| 1NC/1NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLFA01A2B | GLFC01A2B | |
| 1NC/1NO | Slow ac-tion, BBM | Silveralloy | 0,33[2.9] | GLAA03A2B | - | |
| 1NC/1NO | Slow ac-tion, BBM | Silveralloy | 0,33[2.9] | GLFA03A2B | - | |
| 1NC/1NO | Slow ac-tion, BBM | Gold-plated | 0,33[2.9] | GLFA33A2B | - | |
| 2NC/2NO | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA20A2B | GLAC20A2B | |
| 2NC/2NOCenterneutral | Snap ac-tion | Silveralloy | 0,33[2.9] | GLAA26J2B | - |
