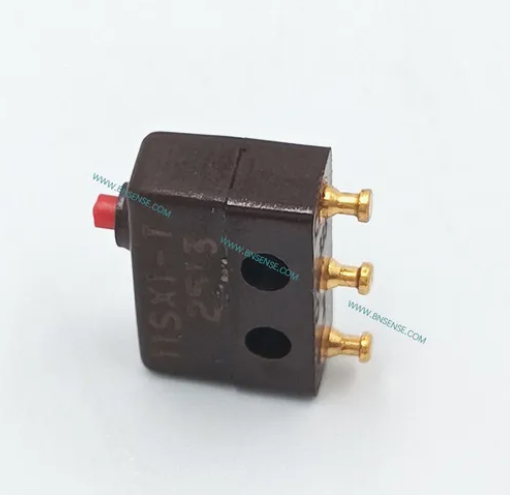

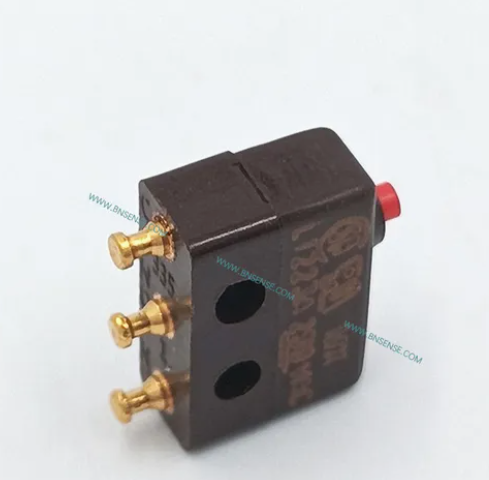

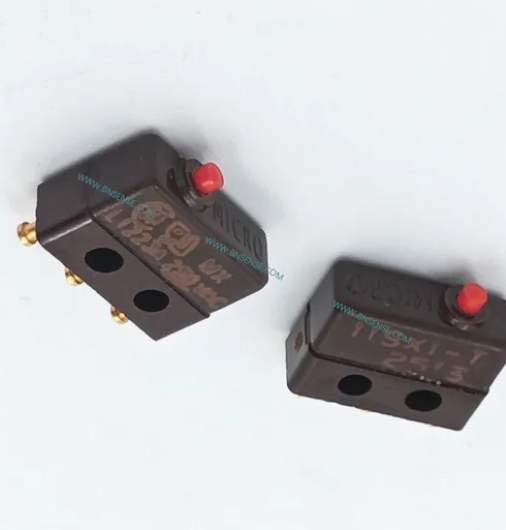

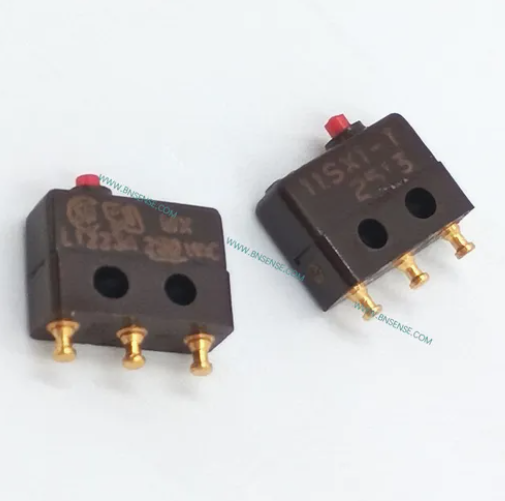

11SX1-T
Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Basic / Snap Action Switches |
| Series | SX |
| Type | Micro Switch |
| Contact Form | SPDT |
| Switch Function | ON - (OFF), OFF - (ON) |
| Actuator | Plunger |
| Current Rating | 3 A |
| Voltage Rating AC | 250 VAC |
| Voltage Rating DC | 28 VDC |
| Operating Force | 1 N |
| Termination Style | Solder Turret |
| Mounting Style | Chassis Mount |
| Packaging | Bulk |
| Actuator Style | Plunger |
| Illuminated | Non-Illuminated |
| Product Type | Snap Action Switches |
| Subcategory | Switches |
| Tradename | Microswitch |
Product Description
DESCRIPTION
MICRO SWITCH SX Series is a premium subminiature snap-action switch from the family of S series subminiature basic switches. Although small in size, the SX Series is rated for controlling electrical loads ranging from logic-level/ computer-based circuits to limited power-duty switching (up to 7 A/ 250 Vac). The SX premium subminiature switch package offers gold contacts for low energy switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SX switch.
A wide variety of stainless steel levers are available and when combined with the subminiature package size, can adapt the SX Series to a wide range of applications. To enhance the versatility of SX switches, the family is certified to UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA and UKCA for worldwide use. The SX Series is the right choice for a cost-effective premium subminiature switch package.
FEATURES
• Industry-leading life cycle of up to 10,000,000 operations
• Selection of actuation, electrical termination, and operating characteristics
• Wide temperature range of -54°C to 204°C [-65°F to 400°F]
• Built from MIL-grade components
• MIL-PRF-8805 qualified listings
• Available with FAA-PMA approvals for commercial aircraft applications
• Silver, gold-plated, or bifurcated gold contacts to handle a variety of electrical load requirements
• Available worldwide through Honeywell's network
DIFFERENTIATION
• Industry-leading life cycle rating reduces the need to replace switches over life in an OEM platform - reducing total system cost
• Very wide temperature range allows for years of reliable performance in the harshest of conditions
• MIL-PRF-8805 qualified listings
• Operating forces as low as 0,147 N [15 g] and differential travel as low as 0,025 mm [0.001 in] delivers consistent precise switch characteristics
APPLICATIONS
• In precision switch assemblies for commercial aircraft to monitor doors for "closed" and "locked" position
• Monitor whether landing gear is "up" or "down and locked"
• In precision switch assemblies for commercial cockpit applications for pushbuttons, toggle, or joystick assemblies
• MIL-PRF-8805 listings suitable for precision switch assemblies in MIL applications
• FAA-PMA approvals for commercial aircraft
• In precision switch assemblies for pressure switches and temperature switches
• In power generation, fuel level switch for gas and oil
| CHARACTERISTIC | PARAMETER | ||
| Differentiator | low operating force to 0,147 N [15 g] max; sensitive differential travel as low as0,025 mm [0.001 in] max.; power load switching capability to 7 A | ||
| Ampere rating | 1 A to 7 A | ||
| Circuitry | SPDT, SPNO | ||
| Operating force | 0.71 oz to 6 oz | ||
| Termination | quick connect, solder, pcb | ||
| Actuator | pin plunger, straight lever, roller lever, simulated roller lever, offset flag lever, crossed roller lever | ||
| Voltage | 125 Vac, 250 Vac, 28 Vdc | ||
| Circuitry | SPNO, SPDT, DPDT | ||
| Agency approvals | UL, CE, UKCA, CSA, ENEC, MIL-PRF-8805, FAA-PMA | ||
| Agency file information | UL: E12252; CSA: LR41372 | ||
| Operating temperature | -54°C to 12°C [-65°F to 250°F]; select catalog listings 204°C [400°F] | ||
| Contacts | silver, gold-plated, bifurcated gold | ||
| Housing | phenolic or thermoplastic polyester | ||
| Sealing | not weather sealed | ||
| Mechanical Life | up to 10,000,000 operations for 11SX Seriesup to 1,000,000 operations for 1SX Series | ||

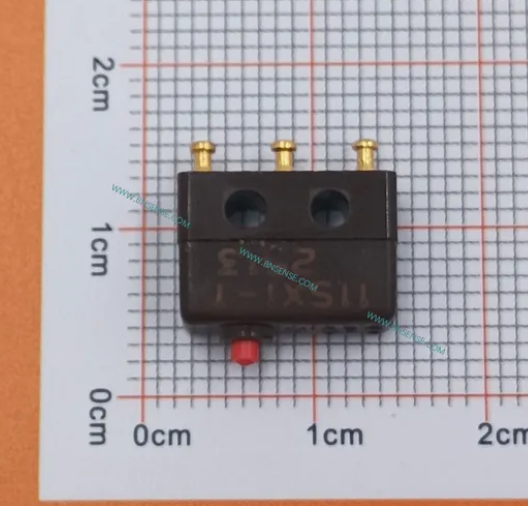

| Size | 10,2 mm H x 5,08 mm W x 12,7 mm L [0.4 in H x 0.20 in W x 0.5 in L] | ||
ELECTRICAL DATA AND UL CODES
| TABLE 2. UL ELECTRICAL RATINGS | |||
| CODE | CIRCUITRY | ELECTRICAL DATA AND UL CODES | |
| A | SPDT | 5 A res., 3 A ind., (sea level),4 A res., 2 A ind., (50,000 feet), 28 Vdc5 A res. or ind. 115 Vac, 60 Hz. UL/CSA rating: 5 A, 250 Vac | |
| B | SPDT | 7 A res., 4 A ind., (sea level),7 A res., 2.5 A ind., (50,000 feet), 28 Vdc. UL/CSA rating: 7 A, 250 Vac | |
| C | SPDT | 3.5 A res., 2 A ind., (sea level),3.5 A res., 1.5 A ind., (50,000 feet), 28 Vdc. UL rating: 7 A, 250 Vac | |
| D | SPDT | 1 A res., 0.5 amp ind., (sea level and 50,000 feet), 28 Vdc.UL/CSA rating: 1 amp, 125 Vac | |
| E | SPDT | 3 A res., 2 A ind., (sea level), 28 Vdc.UL rating: 3 A, 250 Vac | |
| F | SPDT | 7 A res., 4 A ind., 2.5 A lamp load, (sea level),4 A res., 2.5 A ind., 2.5 A lamp load, (50,000 feet), 28 Vdc.7 A res., 7 A ind., 2 A lamp load, 115 Vac, 60 Hz (sea level) | |
| G | SPDT | 2 A res., lamp ind., (sea level) 28 Vdc | |
| H | SPDT | .010 A res. and ind., (sea level). 28 Vdc.UL/CSA rating: 1 A, 125 Vac | |
| I | SPDT | 7 A res., 4 A ind., (sea level), 28 Vdc | |
| L | SPDT | 1 A res., 1/2 A ind., (sea level) 28 Vdc | |
