TR42

Product Description

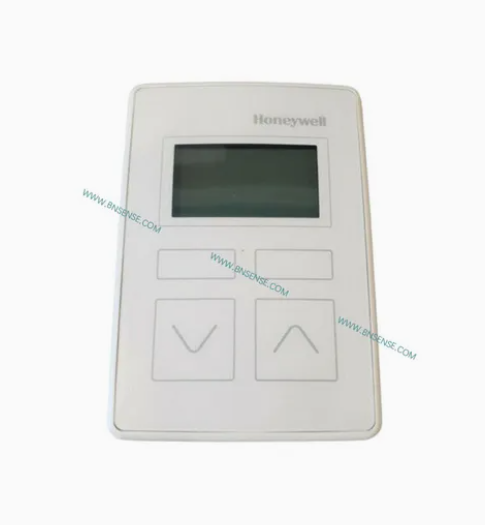

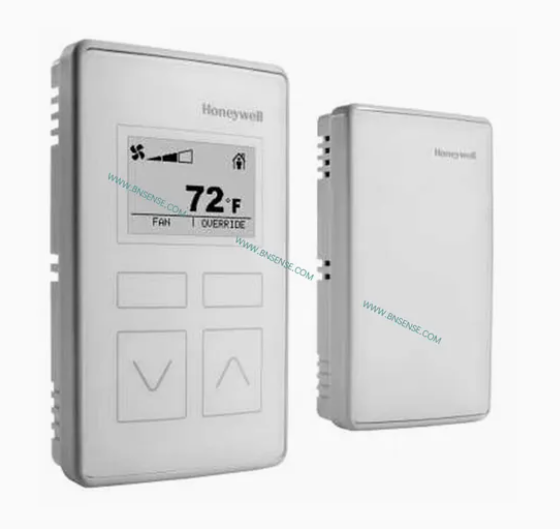

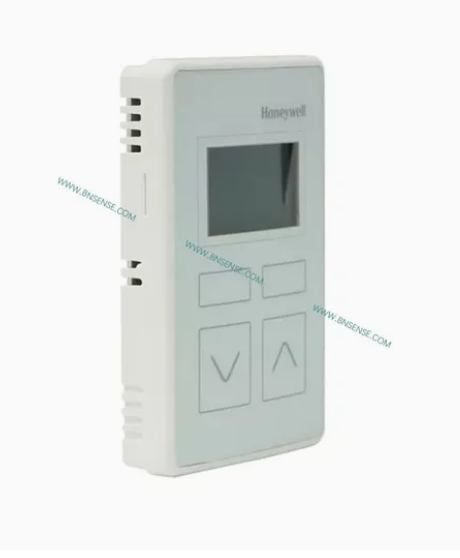

The TR40 and TR42 series of room sensors and displays are designed to operate with Trend IQX controllers.

All models have an integral temperature sensor and variants are available that also include sensors for relative humidity and/or CO2 concentration. The TR42 features a monochrome backlit LCD display which can be configured to show sensor readings and allow user control of fan speed, occupancy and temperature setpoint. Up to 7 devices can be connected to the controller by a two wire Sylk™ bus which carries both data and power.

Features

▪ Single power/data connection to controller reduces wiring.

▪ Temperature sensing plus versions with humidity and/or CO2

▪ Operates in either °C or °F.

▪ Common backplate and connections allows easy upgrade from TR40 to TR42.

TR42 only

▪ Backlit LCD display with temperature, humidity, CO2, fan speed, occupancy and setpoint display options.

▪ Setpoint, fan speed, and occupancy override functions.

SPECIFICATIONELECTRICALDisplay (TR42 only)

Type                                          Backlit monochrome LCD matrix.

Backlight Function On when buttons press, off 1 minute

                                                 after last button press

Sylk Bus

Cable type                                Unscreened twisted pair.

Bus length                                60 m (200 ft) max.

Address range                         1 to 15 (1 to 10 supported by IQVISION).

Number of devices 10 maximum

Temperature Sensor (all variants)

Range                                       0 to 52°C (32 to 125°F)

Accuracy                                  ±0.2°C at 25°C (±0.36 °F at 77°F)

Humidity Sensor (-H-D1, -HC-D1 variants only)

Range                                      5 to 95 %RH (non c-condensing)

Accuracy                                  ±3 %RH from 20 to 80 %RH

CO2 Concentration Sensor (-C-D1, -HC-D1 variants only)

Range                                     0 to 2000 ppm

                                              (TR42 can display up to 9999 ppm)

Accuracy                                 ±(30 ppm + 3% of measured value).

Calibration                              Factory calibrated. Uses automatic background calibration. No calibration required for the life of the product.

Note: CO2 sensor meets CEC Title 24 requirement of ±75 ppm. accuracy at 600 ppm and 1000 ppm ambient levels. For proper CO2 operation install only in places that see at least 4 hours of continuous unoccupied time per week.

Setpoint Control (TR42 only)

Range                                 10 to 65°C (55 to 150°F), configurable.

Adjustment interval 1° or 0.5°.

MECHANICAL

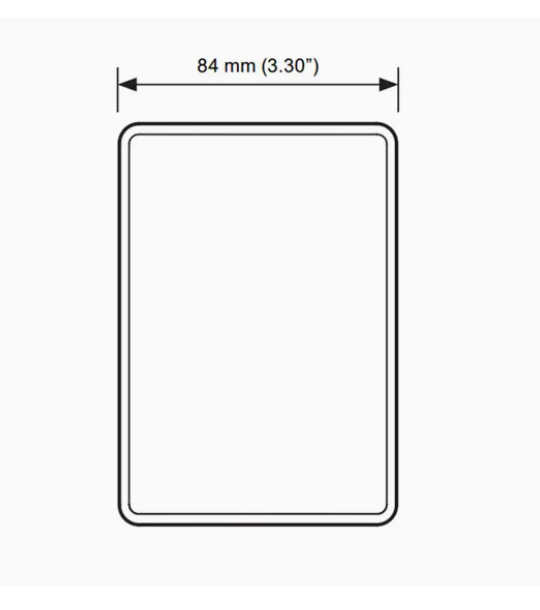

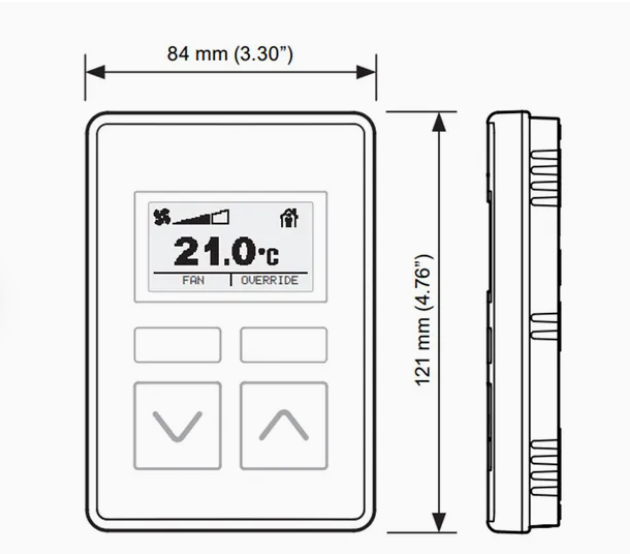

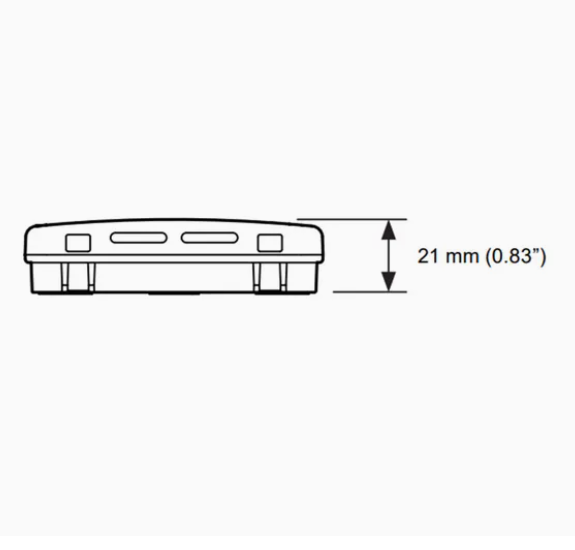

Dimensions (WxHxD) 84 x 121 x 21 mm (3.30 x 4.76 x 0.83")

Material

Main module                         ABS, Polylac PA-765, UV Stabilised

Back plate                            ABS

Colour                                  White

Weight                                 0.103kg (0.23 lbs)

Protection                            IP30

Connections                        2 part connector with 2 screw terminals for 0.33 to 0.82 mm2 (22 to                                               18 AWG) cross section area cable.

ENVIRONMENTAL

Ambient Limits

Storage                                -40 to +65.5°C (-40 to 150°F)

Operating                            0 to 52°C (32 to 125°F)

Humidity                              5 to 95% RH, non-condensing

Approvals:                           CE, UL94-V0 plastic enclosure; FCC Part 15, Class B.

ORDER CODES
