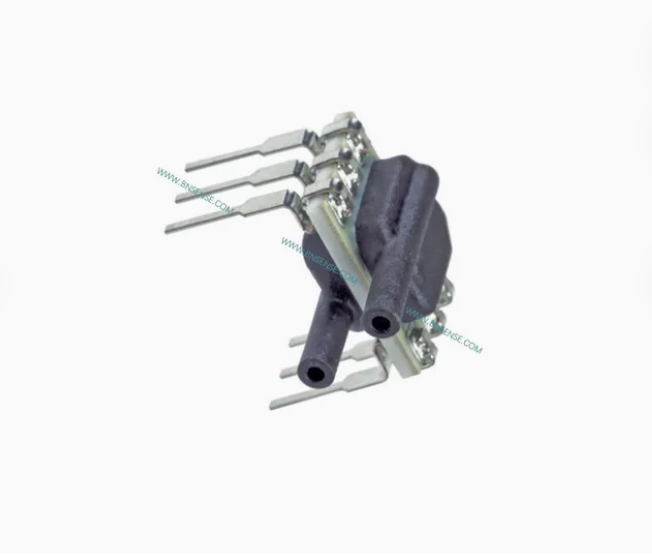

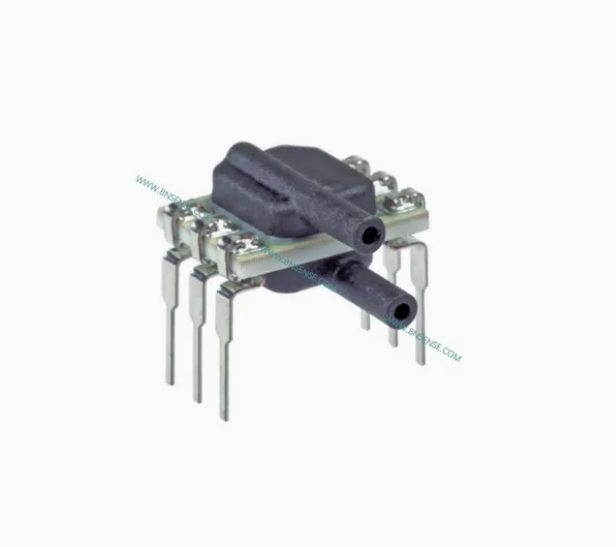

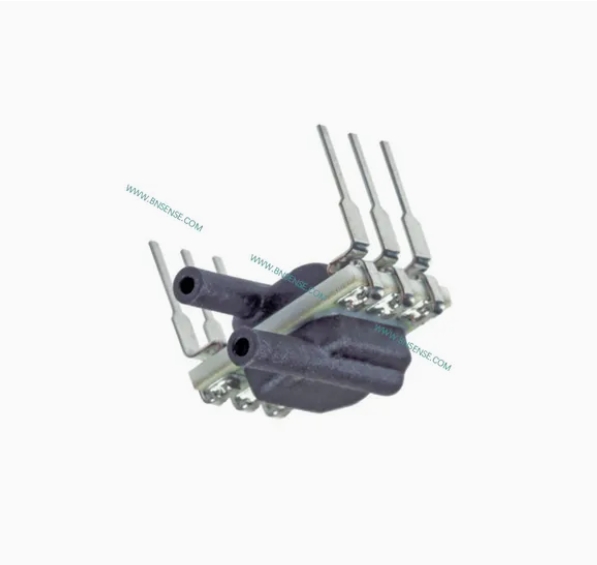

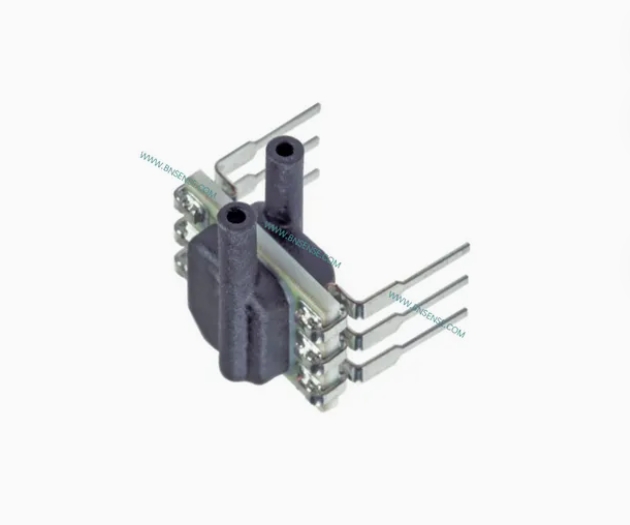

ABPDJJT001PGAA5
$30Details
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Board Mount Pressure Sensors |
| Pressure Type | Gauge |
| Operating Pressure | 0 psi to 1 psi |
| Accuracy | 0.25 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Port Type | Dual Radial Barbless, Same Side |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | ABP |
| Operating Supply Current | 2.7 mA |
| Port Size | 1.88 mm |
| Product Type | Board Mount Pressure Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Tradename | TruStability |
