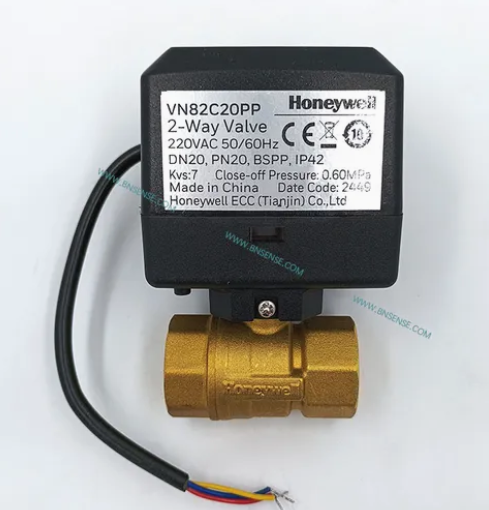

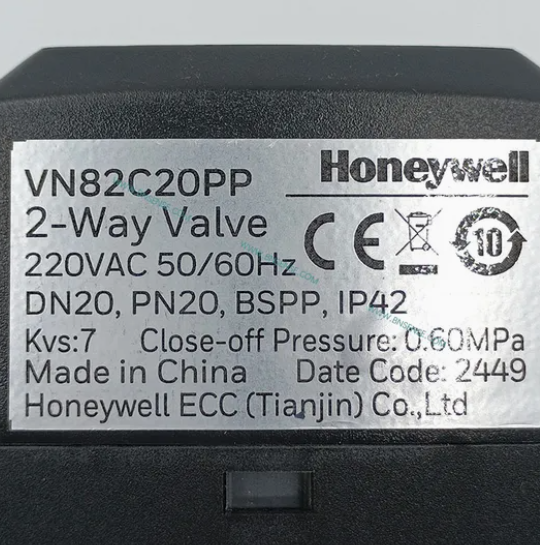

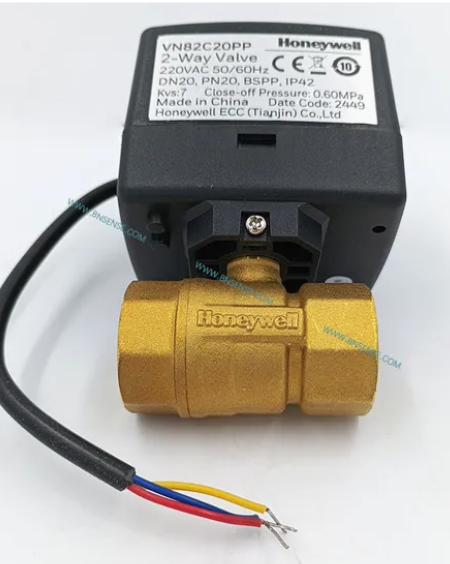

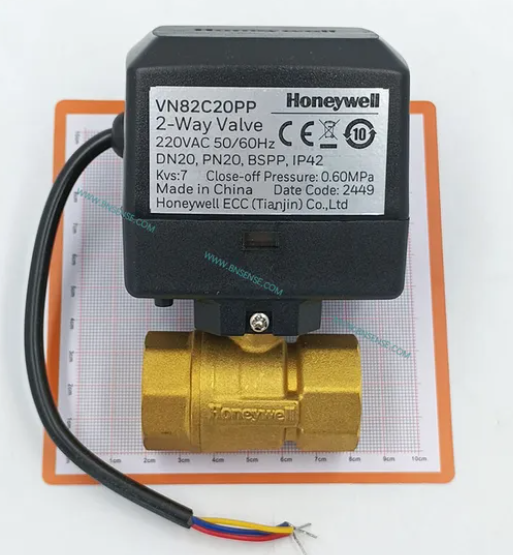

VN82C20PP
Product Description
SCOPE OF APPLICATION VALVE VN8 series electric control valves can be used at home and in commercial buildings to control the flow of hot or cold liquid. Each setincludes electric actuator and valve body. The VN8 series offer a wide range of options in voltages and thread standards according to the usage of different regions and provides two-way and three-way valve bodies to meet most of the requirements in buildings control.
TECHNICAL PARAMETERS
| ACTUATOR | |
| Operating power supply | 220VAC±10%, 110VAC±10% ; 24VAC±10%, 50/60Hz |

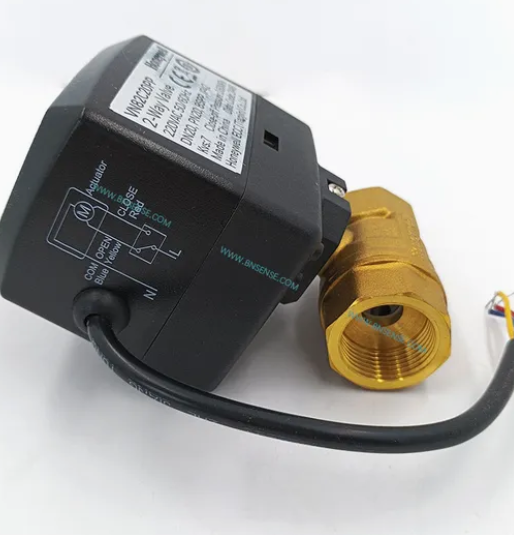

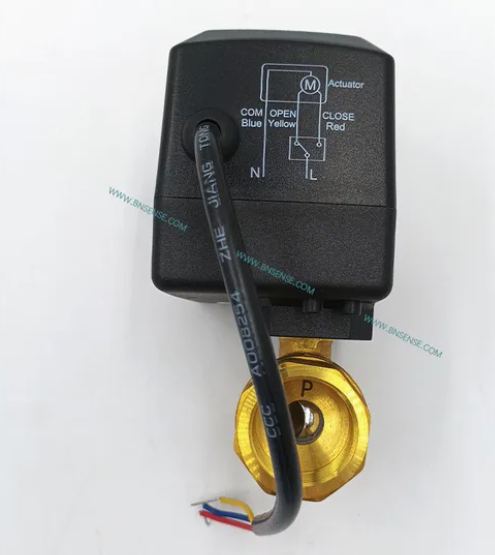

| Control mode | Electric 3-wire on-off Non-spring return |
| Working temperature | 0~65°C |
| Working condition relative humidity | 10%~90%RH without condensate water |
| Power consumption | ≤6W (50Hz); 7.5W (60Hz) |
| Actuation time | Switch on 15s, switch off 15s |
| Protection rating | IP42 |
| VALVE BODY | |
| Applicable medium | Cold, hot water or 50% glycol solution |
| Fluid temperature range | 0~94°C |
| Working temperature | 0~65°C |
| Working condition relative humidity | 10%~90%RH |
| Nominal pressure | PN20 |
| Leak-rate | 0.05%Kvs |
| Materials | Valve body and ball-forging brass(HPb59-1) Valve rod - stainless steel (0Cr18Ni9) Valve seat - polytetrafluoroethylene (PTFE) 0-sealing ring-Ethylene-Propylene-Diene Monomer (EPDM) |

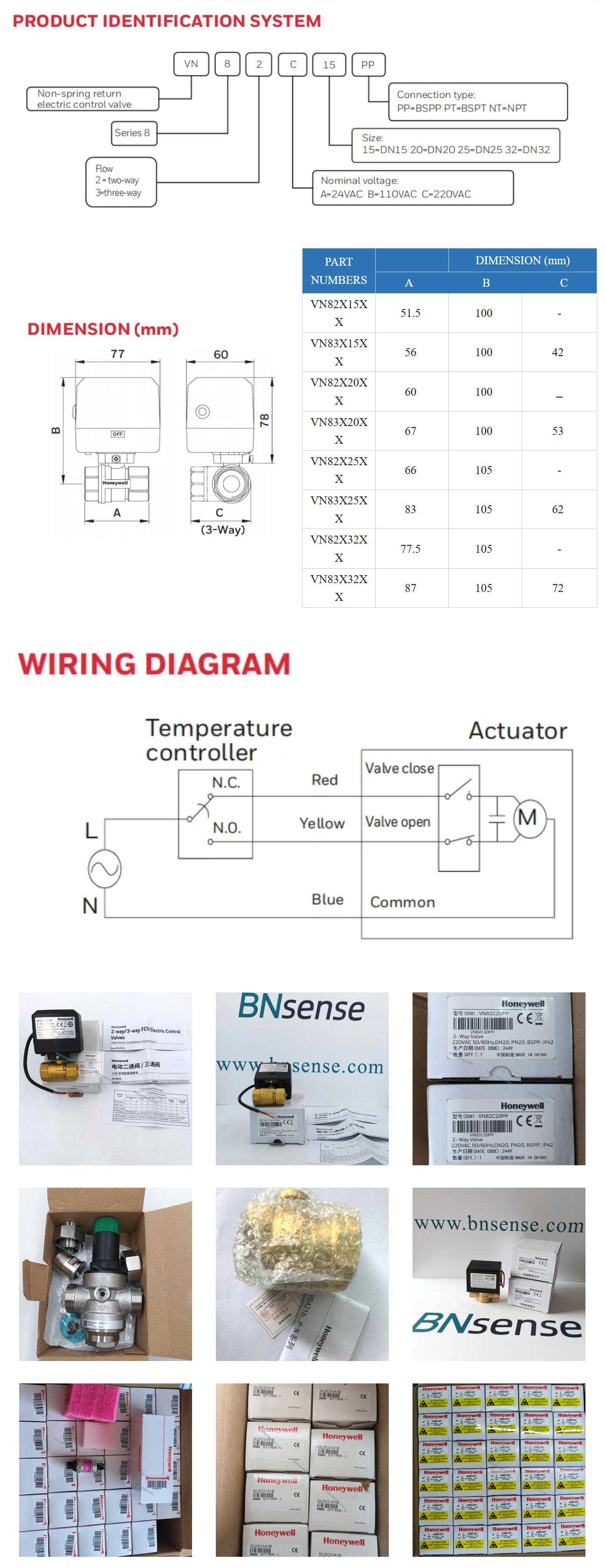

ORDERING PART NUMBERS (220Vac only shown as example)
| PARTNUMBERS | VOLTAGE | FLOW | SIZE(diameter) | CONNECTIONTYPE | NOMINALFLOWRATING (Kvs) | CLOSE-OFF DIFFERENTIALPRESSURE (PSI) (MPa) | ||
| VN82C15PP | 220Vac±10% | 2-way | DN15, 1/2" | BSPP | 4.0±10% | 87 | 0.6 | |
| VN82C15PT | 220Vac±10% | 2-way | DN15, 1/2" | BSPT | 4.0±10% | 87 | 0.6 | |
| VN82C15NT | 220Vac±10% | 2-way | DN15, 1/2" | NPT | 4.0±10% | 87 | 0.6 | |
| VN82C20PP | 220Vac±10% | 2-way | DN20, 3/4" | BSPP | 7.0±10% | 87 | 0.6 | |
| VN82C20PT | 220Vac±10% | 2-way | DN20, 3/4" | BSPT | 7.0±10% | 87 | 0.6 | |
| VN82C20NT | 220Vac±10% | 2-way | DN20, 3/4" | NPT | 7.0±10% | 87 | 0.6 | |
| VN82C25PP | 220Vac±10% | 2-way | DN25, 1" | BSPP | 8.0±10% | 87 | 0.6 | |
| VN82C25PT | 220Vac±10% | 2-way | DN25, 1" | BSPT | 8.0±10% | 87 | 0.6 | |
| VN82C25NT | 220Vac±10% | 2-way | DN25, 1" | NPT | 8.0±10% | 87 | 0.6 | |
| VN82C32PP | 220Vac±10% | 2-way | DN32, 11/4" | BSPP | 10.0±10% | 87 | 0.6 | |
| VN82C32PT | 220Vac±10% | 2-way | DN32, 11/4" | BSPT | 10.0±10% | 87 | 0.6 | |
| VN82C32NT | 220Vac±10% | 2-way | DN32, 11/4" | NPT | 10.0±10% | 87 | 0.6 | |
| VN83C15PP | 220Vac±10% | 3-way | DN15, 1/2" | BSPP | 4.2±10% | 87 | 0.6 | |
| VN83C15PT | 220Vac±10% | 3-way | DN15, 1/2" | BSPT | 4.2±10% | 87 | 0.6 | |
| VN83C15NT | 220Vac±10% | 3-way | DN15, 1/2" | NPT | 4.2±10% | 87 | 0.6 | |
| VN83C20PP | 220Vac±10% | 3-way | DN20, 3/4" | BSPP | 8.0±10% | 87 | 0.6 | |
| VN83C20PT | 220Vac±10% | 3-way | DN20, 3/4" | BSPT | 8.0±10% | 87 | 0.6 | |
| VN83C20NT | 220Vac±10% | 3-way | DN20, 3/4" | NPT | 8.0±10% | 87 | 0.6 | |
| VN83C25PP | 220Vac±10% | 3-way | DN25, 1" | BSPP | 14.0±10% | 87 | 0.6 | |
| VN83C25PT | 220Vac±10% | 3-way | DN25, 1" | BSPT | 14.0±10% | 87 | 0.6 | |
| VN83C25NT | 220Vac±10% | 3-way | DN25, 1" | NPT | 14.0±10% | 87 | 0.6 | |
| VN83C32PP | 220Vac±10% | 3-way | DN32, 11/4" | BSPP | 14.0±10% | 87 | 0.6 | |
| VN83C32PT | 220Vac±10% | 3-way | DN32, 11/4" | BSPT | 14.0±10% | 87 | 0.6 | |
| VN83C32NT | 220Vac±10% | 3-way | DN32, 11/4" | NPT | 14.0±10% | 87 | 0.6 | |
