R8001K1010
Product Description
SLATE™ brings configurable safety and programmable logic together into one single platform. The platform can easily be customized for almost any requirement or application- offering virtually limitless development opportunities with far less complexity.

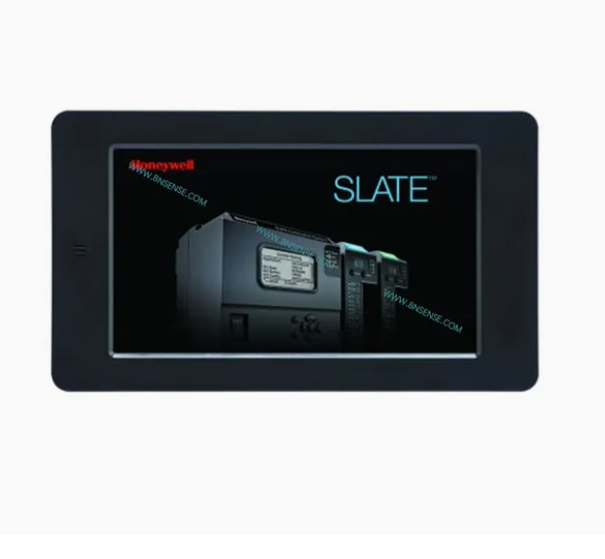

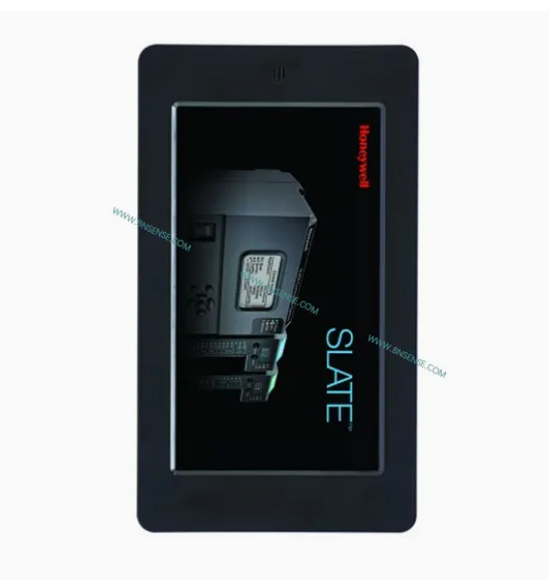

The R8001K1010 SLATE 10" Color Touch Screen Display provides users with the ability to create vivid application displays using web technology. The screen is web enabled and with the SLATE Web Editor tool creating screens is simple and easy.
Features
• Display screens are web pages served from SLATE Base Module
• Integrated view of SLATE system
• Standard Honeywell pages for Burner Control, Fuel Air Ratio, Limit and Base modules
Specifications
Electrical Ratings:
Voltage and Frequency: 24 VAC, 50/60Hz; 24AC/DC
Environmental Ratings
Ambient Temperature:
Operating: 32° F to 158° F (0° C to 70° C)
Shipping: -40° F to 158° F (-40° C to 70° C)
Humidity: 95% continuous, noncondensing.
Weight: 4 lb 5 oz (1.5 Kg)

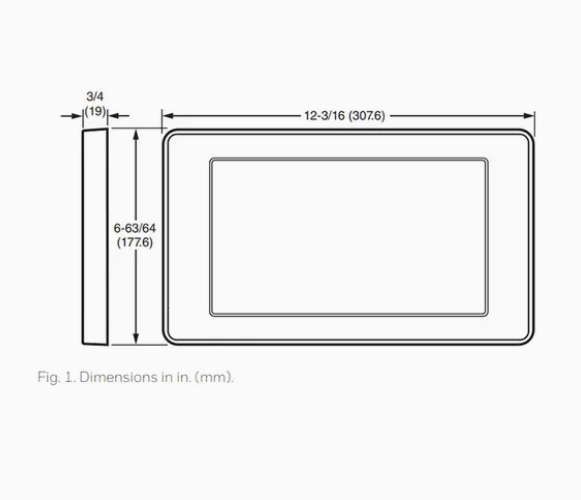

Panel Mounting

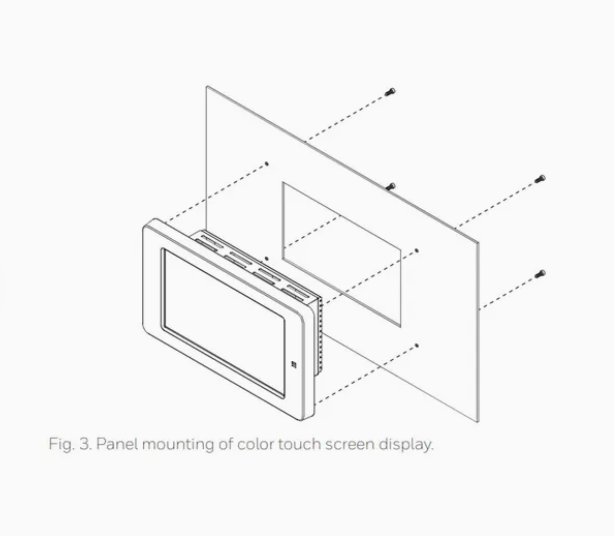

The display can be mounted through a cutout in the panel door, using four #4 thread-forming Plastite screws.

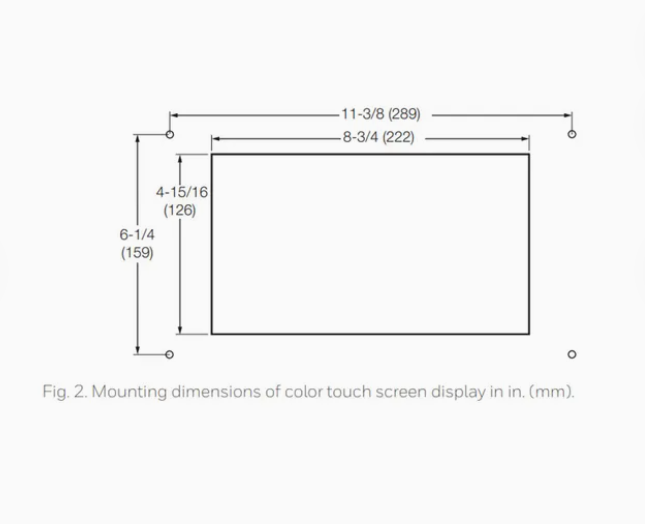

For standard panel thicknesses of 0.060"-0.090" Honeywell recommends screw length of 3/8". See Fig. 2for hole spacing.
Required Components
R8001A1001 SLATE Base Controller

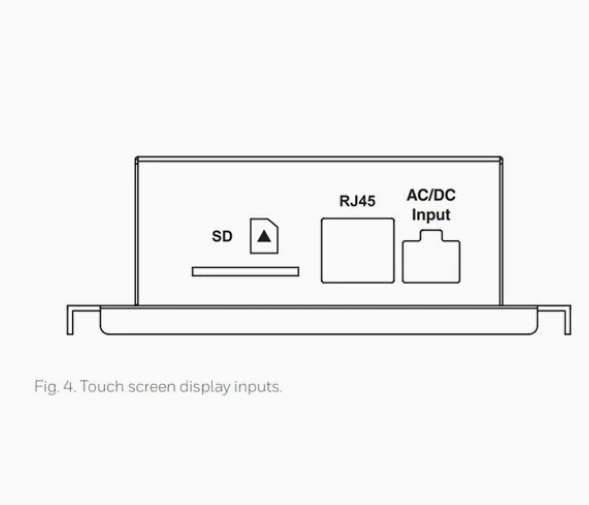

Power Plug Recommendations
The SLATE 10 inch color touch screen display will not come with a power plug connector. The following are recommendations for the power connection.
• 24VAC Wall Plug-in Transformer (Input Voltage: 120VAC, 60HZ - Output Voltage: 24VAC ±5%). Honeywell p/n 32006131 or equivalent.
• 18AWG wire
• Plug-in connectors (or equivalent) NOT INCLUDED:
- Phoenix - p/n 1757019
- EBY Electro - p/n EB1508-02-500
- Dinkle - p/n 2ESDV-02P
- Molex - p/n 0395300002
Principal Technical Features
The R8001K1010 color touch screen display provides a webbased user interface for viewing system status, and viewing, creating, or modifying configurations.
Communications and Networking
The R8001K1010 color touch screen display interfaces directly with the SLATE system using a standard Ethernet connection, and can connect directly to the Base module or via an Ethernet switch.
The R8001K1010 color touch screen display locates all base modules on an IP subnet using a subnet broadcast message, and once located allows users to select one to initiate a connection to that SLATE system.
User Interface and Technology
The R8001K1010 color touch screen display is based on the Google Chrome™ browser and supports HTML5. A double tap on any web screen activates the Home, Back, and Help buttons, URL address bar, plus other controls that are normally hidden from view. Double tapping again deactivates these controls.
