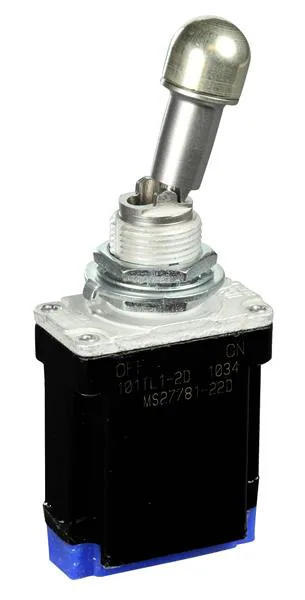

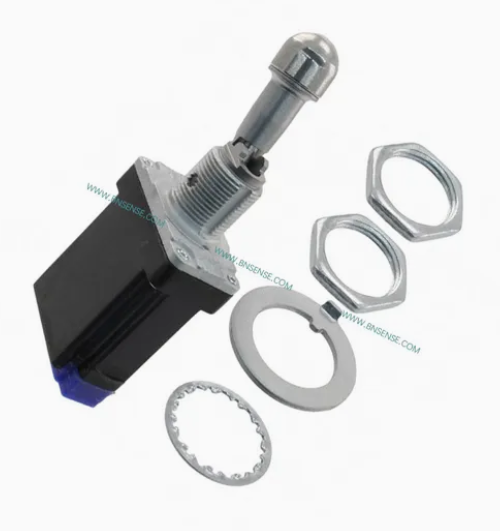

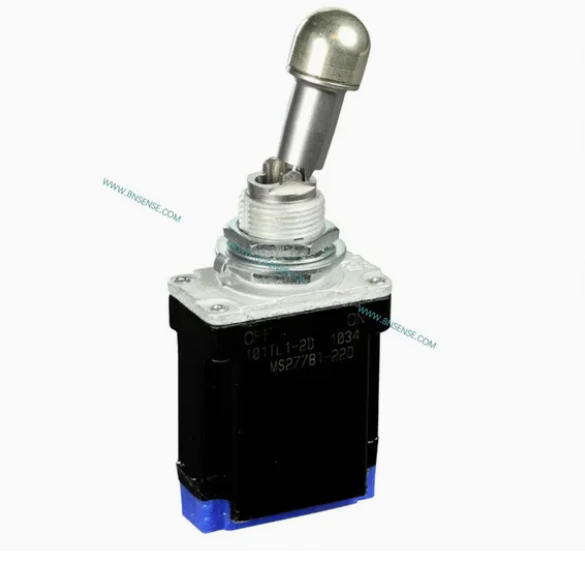

101TL1-2D
Inventory: 21
$76.5Details
Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Toggle Switches |
| Illuminated | Non-Illuminated |
| Contact Form | SPST |
| Switch Function | ON - OFF |
| Mounting Style | Through Hole |
| Termination Style | Solder Pin |
| Current Rating | 15 A |
| Voltage Rating AC | 125 VAC |
| Bushing Size | 15/32-32 |
| Actuator | Paddle |
| Terminal Seal | Sealed |
| Contact Plating | Silver Cadmium Oxide |

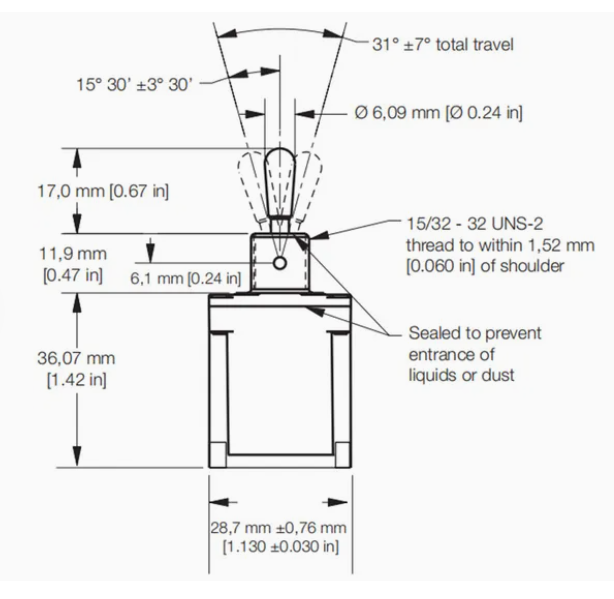

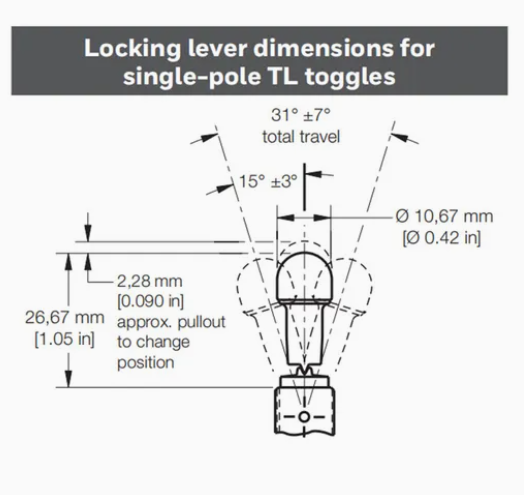

| Actuator Length | 26.67 mm |
| Actuator Style | Locking Lever |
| Maximum Operating Temperature | + 71 C |
| Minimum Operating Temperature | - 65 C |
| Product Type | Toggle Switches |
| Subcategory | Switches |
