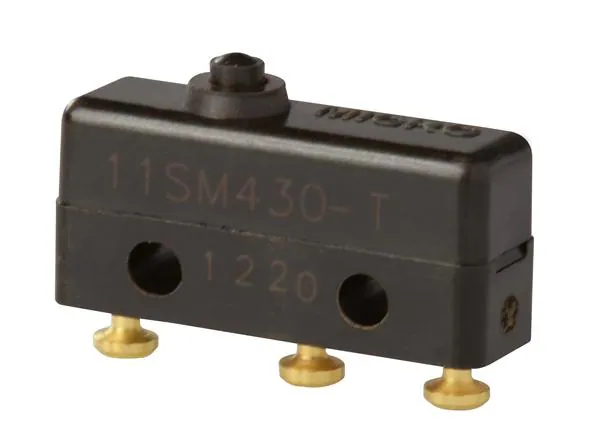

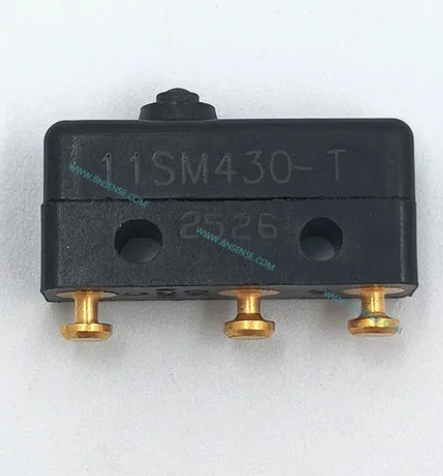

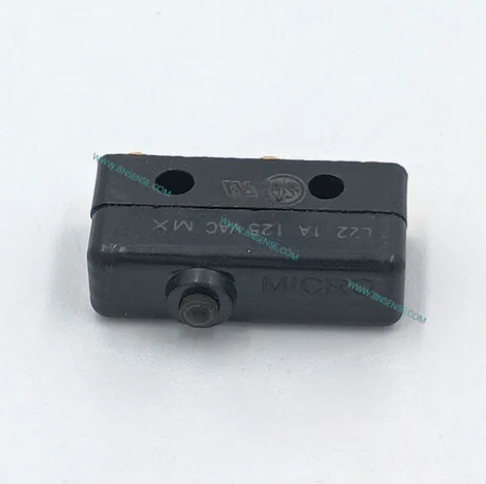

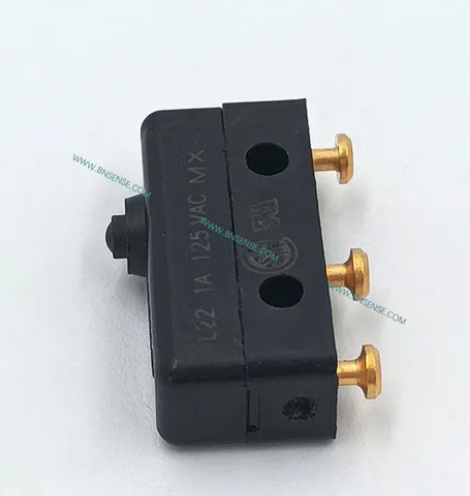

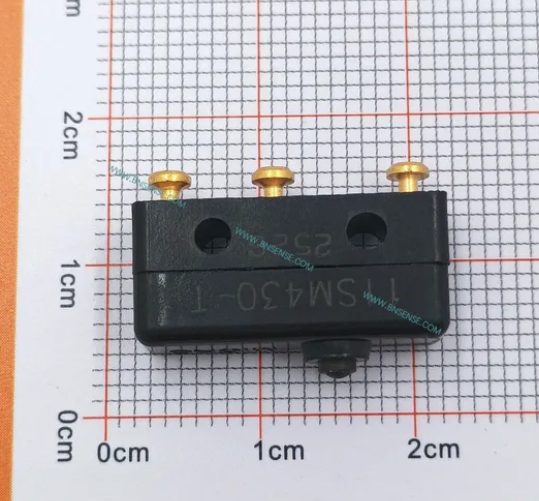

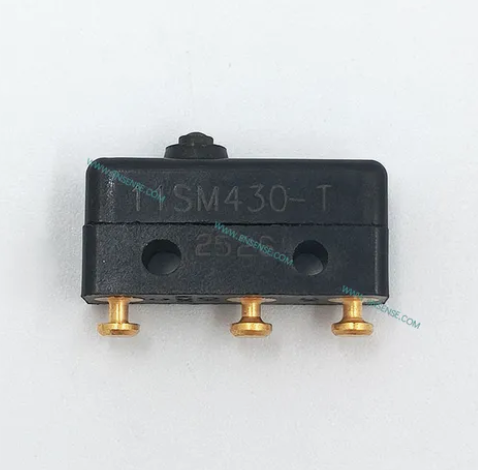

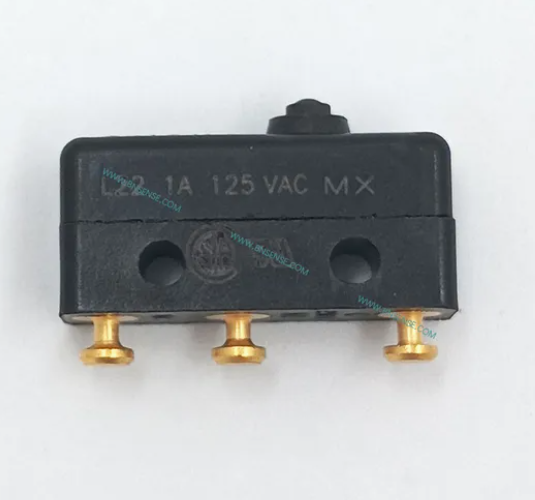

11SM430-T
Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Basic / Snap Action Switches |
| Series | SM |
| Termination Style | Screw |
| Mounting Style | Chassis Mount |
| Illuminated | Non-Illuminated |
| Product Type | Snap Action Switches |
| Subcategory | Switches |
Product Description
The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH SM Series delivers consistent performance within a range of conditions. The MICRO SWITCH SM Series' small size and light weight are combined with ample electrical capacity, precision operation, and extended life. Featuring high precision and repeatability, the SM Series offers gold contacts for low-energy switching and gold bifurcated contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SM switch. The SM switch is available for power-duty switching up to 11 A (Vac) or 1/4 HP (Vac).
DIFFERENTIATION
• Very wide temperature range allows for years of reliable performance in the harshest of conditions
• MIL-PRF-8805 qualified listings
• Operating forces as low as 0,06 N [6 g] and differential travel as low as 0,025 mm [0.001 in] delivers consistent, precise switch characteristics
FEATURES
• Industry-leading mechanical life of up to 10,000,000 operations
• Selection of actuation, electrical termination, and operating characteristics along with high-temperature construction options
• Wide temperature range of -54°C to 204°C [-65°F to 400°F]
• MIL-PRF-8805 qualified listings in a lightweight, small package
• FAA-PMA approvals for commercial aircraft
• Choice of silver or gold-plated, or gold bifurcated contacts to handle a variety of electrical load requirements
• UL/CSA, cUL, ENEC, and CE approvals
VALUE TO CUSTOMERS
• Industry-leading life cycle rating reduces the need to replace switches over life in an OEM platform - reducing total system cost
• Low operating forces
• Mil-qualified listings
• Life of up to 10,000,000 cycles
POTENTIAL APPLICATIONS
• Precision switch assemblies for commercial aircraft to monitor doors for "closed" and "locked" position
• Landing gear monitor
• Precision switch assemblies for commercial cockpit applications for pushbuttons, toggle, or joystick assemblies
• Precision switch assemblies in MIL applications
• Assemblies for industrial pressure switches and temperature switches
• Power generation fuel level (gas and oil)
PORTFOLIO
The SM Series of premium subminiature basic switches are a part of a strong offering of submins including SX Series (premium) and ZM, ZM1, ZD, ZX, and ZW Series (standard) switches.

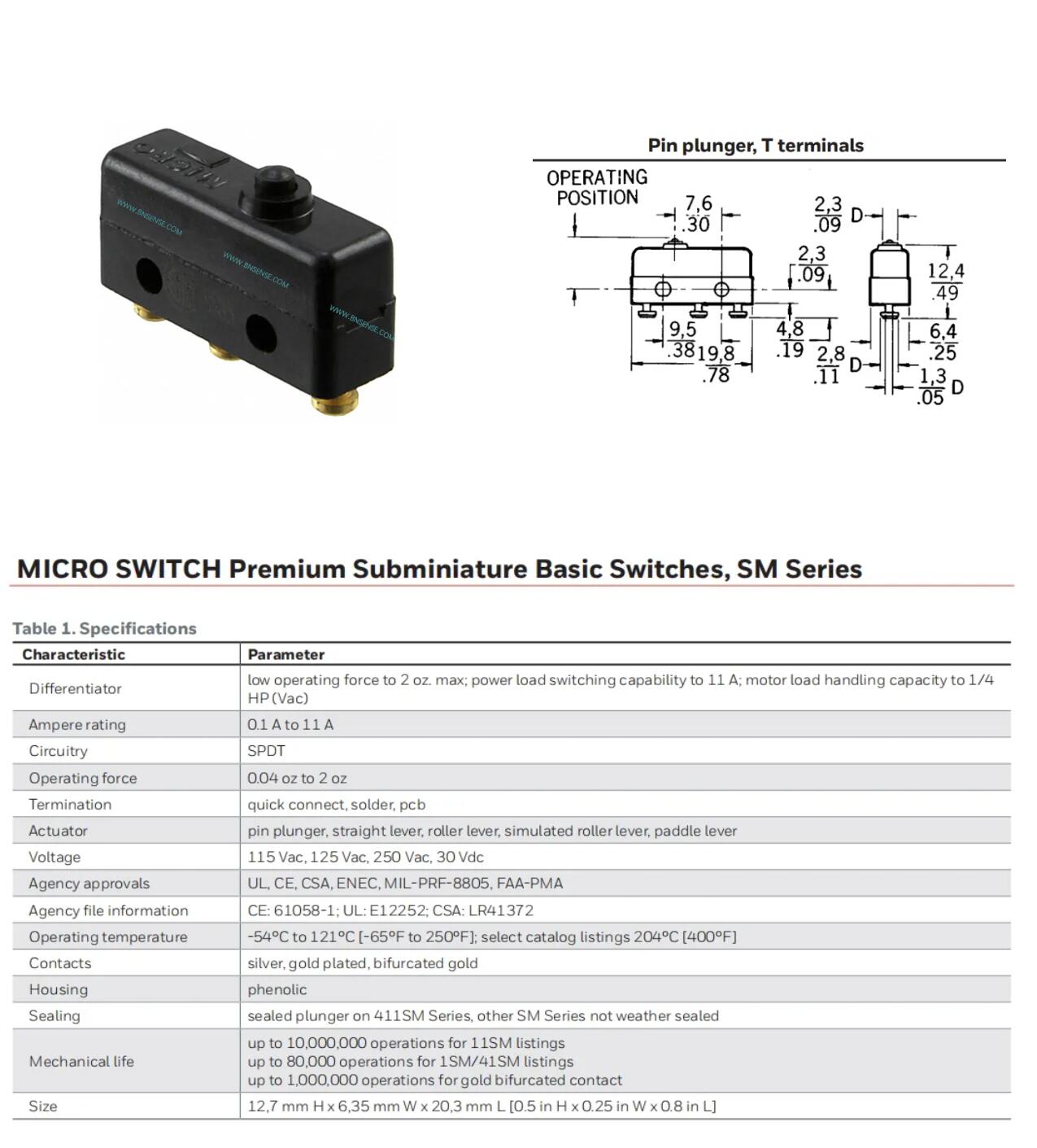

| MICRO SWITCH SM Series Order Guide • Pin Plunger | O. F. • Operating forceR. F. • Release forceP.T. • PretravelO.T. • OvertravelD.T. • Differential travelO. P. • Operating position | |||||||||
| CatalogListing | Recommended For | Electrical | Data and ULCodes | O.F.N [oz] | R.F. min.N [ oz] | P.T. max.mm [in] | O.T. min.mm [in] | D.T.mm [in] | O.P. *mm [in] | |
| 11SM1077-T | Gold-plated contacts | 0.1 AP | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 12SM604-T | Bifurcated gold contacts,reduced rating | 0.1 AP | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,076[0.003] | 0,1 [0.004] | 8,38[0.330] | ||
| 11SM23-T | Gold-plated contacts | 1 AN | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 12SM4-T | Enhanced reliability(bifurcated gold contacts) | 1 AN | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,076[0.003] | 0,1 [0.004] | 8,38[0.330] | ||
| 11SM701-T | Lower force | 4 AS | 0,56 [2] | 0,14 [0.5] | 0,51[0.020] | 0,13[0.005] | 0,051[0.002] | 8,38[0.330] | ||
| 11SM1-T | General purpose | 5 AJ | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 11SM3-T | Operating temps to 121°C[250°F] | 5 AJ | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 11SM244-T | Operating temps to 204°C[400°F] for 100 hours | 5 A | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 11SM401-T | Less differential travel | 5 AK | 0,97 [3.5]max. | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,025[0.001] | 8,38[0.330] | ||
| 21SM284-T2(MS25085-2) | MIL-PRF-8805applications | 5 AR | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,76[0.030] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 21SM284(MS25085-1) | MIL-PRF-8805applications, solderterminals | 5 AR | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,76[0.030] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 22SM1-T | Enhanced stability undervarying humidity | 5 AJ | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 41SM1-T | Up to 11 A, 1/4 HP (ac) | 11 AM | 0,83 to 1,39[3 to 5] | 0,28 [1] | 0,76[0.030] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 411SM1 | Sealed plunger construction | 5 AK | 0,83 to 2,09[3 to 7.5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
| 411SM23 | Sealed plunger construc-tion, gold contacts | 1 AN | 0,83 to 2,09[3 to 7.5] | 0,28 [1] | 0,51[0.020] | 0,13[0.005] | 0,1 [0.004] | 8,38[0.330] | ||
* except where stated ±0,38 mm [±0.015 in]
| MICRO SWITCH SM Series Order Guide • Integral Lever | O. F. • Operating forceR. F. • Release forceP.T. • PretravelO.T. • OvertravelD.T. • Differential travelO P • Operating | ||||||||||
| CatalogListing | Recommended For | Electrical | Data and | UL Codes | O.F.N [oz] | R.F.min.N [ oz] | P.T. max.mm [in] | O.T. min.mm [in] | D.T.mm [in] | O.P. *mm [in] | |
| 311SM1-T | 7,24 mm [0.285 in] straightlever | 5 AJ | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,51[0.020] | 0,48[0.019] | 8,64 mm ±1,5 mm[0.34 in ±0.060 in] | |||
| 311SM23-T | 7,24 mm [0.285 in] straightlever, gold contacts | 1 AN | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,51[0.020] | 0,48[0.019] | 8,64 mm ±1,5 mm[0.34 in ±0.060 in] | |||
| 311SM701-T | 7,24 mm [0.285 in] straightlever, lower force | 4 AS | 0,16[0.57] | 0,03[0.11] | 2,16[0.085] | 0,51[0.020] | 0,36[0.014] | 8,64 mm ±1,5 mm[0.34 in ±0.060 in] | |||
| 311SM2-T | 14,35 mm [0.565 in] straightlever | 5 AJ | 0,31[1.1] | 0,05[0.18] | 3,05[0.12] | 0,66[0.026] | 0,69[0.027] | 8,51 mm ±2 mm[0.335 in ±0.08 in] | |||
| 311SM43-T | 14,35 mm [0.565 in] straightlever, gold contacts | 1 AN | 0,31[1.1] | 0,05[0.18] | 3,05[0.12] | 0,66[0.026] | 0,69[0.027] | 8,51 mm ±2 mm[0.335 in ±0.08 in] | |||
| 311SM702-T | 14,35 mm [0.565 in] straightlever, lower force | 4 AS | 0,11[0.4] | 0,02[0.07] | 3,05[0.12] | 0,66[0.026] | 0,38[0.015] | 8,51 mm ±2 mm[0.335 in ±0.08 in] | |||
| 311SM3-T | 44,8 mm [1.765 in] straightlever | 5 AJ | 0,15[0.53] | 0,02[0.07] | 7,87[0.31] | 1,45[0.057] | 2,8[0.11] | 7,11 mm ±4,3 mm[0.28 in ±0.17 in] | |||
| 311SM17-H58 | 44,8 mm [1.765 in] straightlever, gold contacts | 1 AN | 0,15[0.53] | 0,02[0.07] | 7,87[0.31] | 1,45[0.057] | 2,8[0.11] | 7,11 mm ±4,3 mm[0.28 in ±0.17 in] | |||
| 311SM703-T | 44,8 mm [1.765 in] straightlever, lower force | 4 AS | 0,06[0.2] | 0,01[0.04] | 7,87[0.31] | 1,45[0.057] | 1,78[0.07] | 7,11 mm ±4,3 mm[0.28 in ±0.17 in] | |||
| 311SM4-T | 6,38 mm [0.251 in] simulat-ed roller lever | 5 AJ | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,46[0.018] | 0,48[0.019] | 11,7 mm ±1,5 mm[0.46 in ±0.06 in] | |||
| 311SM25-T | 6,38 mm [0.251 in] simu- latedroller lever, gold contacts | 1 AN | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,46[0.018] | 0,48[0.019] | 11,7 mm ±1,5 mm[0.46 in ±0.06 in] | |||
| 311SM704-T | 6,38 mm [0.251 in] simulat-ed roller lever, lower force | 4 AS | 0,16[0.57] | 0,03[0.11] | 2,16[0.085] | 0,46[0.018] | 0,33[0.013] | 11,7 mm ±1,5 mm[0.46 in ±0.06 in] | |||
| 311SM5-T | 13,6 mm [0.535 in] simulat-ed roller lever | 5 AJ | 0,31[1.1] | 0,05[0.18] | 3,05[0.12] | 0,66[0.026] | 0,69[0.027] | 11,56 mm ±2 mm[0.455 in ±0.08 in] | |||
| 311SM705-T | 13,6 mm [0.535 in] simulat-ed roller lever, lower force | 4 AS | 0,11[0.4] | 0,02[0.07] | 3,05[0.12] | 0,66[0.026] | 0,38[0.015] | 11,56 mm ±2 mm[0.455 in ±0.08 in] | |||
| 311SM6-T | 6,38 mm [0.251 in] rollerlever | 5 AJ | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,46[0.018] | 0,48[0.019] | 14,2 mm ±1,5 mm[0.56 in ±0.06 in] | |||
| 311SM68-T | 6,38 mm [0.251 in] rollerlever, gold contacts | 1 AN | 0,39[1.4] | 0,07[0.25] | 2,16[0.085] | 0,46[0.018] | 0,48[0.019] | 14,2 mm ±1,5 mm[0.56 in ±0.06 in] | |||
| 311SM706-T | 6,38 mm [0.251 in] rollerlever, lower force | 4 AS | 0,16[0.57] | 0,03[0.11] | 2,16[0.085] | 0,46[0.018] | 0,33[0.013] | 14,2 mm ±1,5 mm[0.56 in ±0.06 in] | |||
| 311SM7-T | 13,6 mm [0.535 in] rollerlever | 5 AJ | 0,31[1.1] | 0,05[0.18] | 3,05[0.12] | 0,66[0.026] | 0,69[0.027] | 14,1 mm ±2 mm[0.555 in ±0.08 in] | |||
| 111SM1-T | Leaf actuator | 5 AJ | 1,95[7] | 0,56[2] | 5,54[0.218] | 0,76[0.03] | 0,76[0.03] | 8,89 mm ±0,76 mm[0.35 in ±0.03 in] | |||
| 111SM17-T | Leaf actuator gold contacts | 1 AN | 1,95[7] | 0,56[2] | 5,54[0.218] | 0,76[0.03] | 0,76[0.03] | 8,89 mm ±0,76 mm[0.35 in ±0.03 in] | |||
| 111SM2-T | Flexible leaf with roller | 5 AJ | 1,95[7] | 0,56[2] | 5,56[0.219] | 0,76[0.03] | 0,64[0.025] | 14,3 mm ±0,76 mm[0.562 in ±0.03 in] | |||
| 111SM23-T | Flexible leaf with roller, goldcontacts | 1 AN | 1,95[7] | 0,56[2] | 5,56[0.219] | 0,76[0.03] | 0,64[0.025] | 14,3 mm ±0,76 mm[0.562 in ±0.03 in] | |||
| Electrical data and UL codes | |||
| UL Electrical Ratings | |||
| Code | Circuitry | Electrical data and UL codes | |
| J | SPDT | 5 A res., 3 A ind., (sea level),5 A res., 2.5 A ind., (50,000 feet), 28 Vdc. UL rating: 5 A, 250 Vac | |
| K | SPDT | UL rating: 5 A, 125 or 250 Vac | |
| M | SPDT | UL rating: 11 A and 1/4 hp, 125 or 250 Vac | |
| N | SPDT | 1 A res., 0.5 A ind., 30 Vdc. UL rating: 1 A, 125 Vac | |
| P | SPDT | 1 A res., 30 Vdc. UL rating: .1 A, 125 Vac | |
| R | SPDT | 5 A res., 3 A ind., 2.4 A lamp load (sea level),5 A res., 2.5 A ind., 2.4 A lamp load, (50,000 feet), 28 Vdc.5 A res., 5 A ind., 1.5 A lamp load, 115 Vac. 60 Hz (sea level) | |
| S | SPDT | UL rating: 4 A, 250 Vac | |
