Product Description

APPLICATION

SLATE brings configurable safety and programmable logic together into one single platform. The SLATE program can easily be customized for almost any application-offering virtually limitless development opportunities with far less complexity.

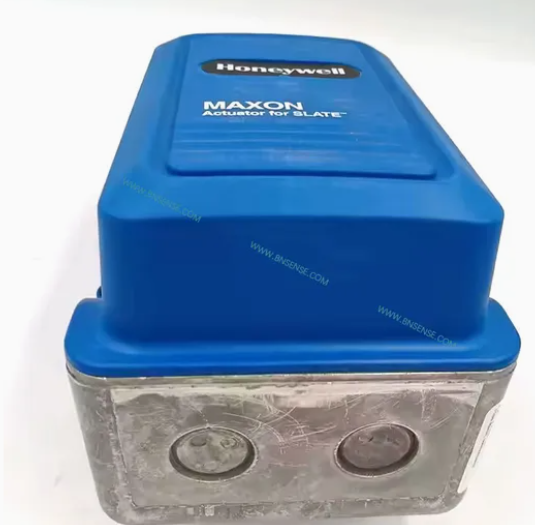

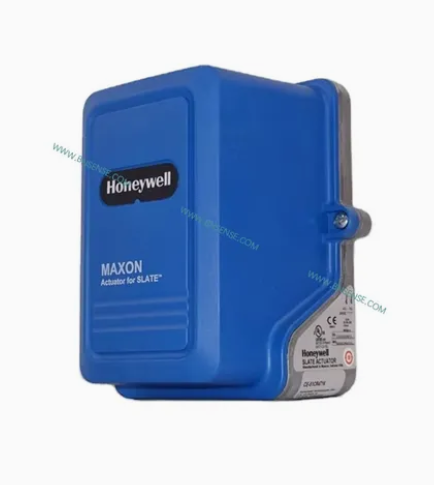

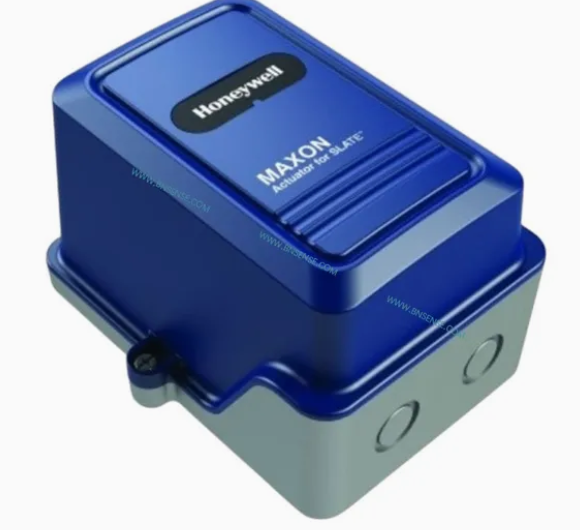

The SLATE Low Torque Actuator series includes commercial- and industrial-grade 1/4-turn actuators available in 50 and 150 in/lb models with highly repeatable position accuracy designed specifically to integrate with the SLATE system. This series is well suited for the precise control of air and gas flow and can operate in a wide range of temperatures and environmental conditions.

SLATE™ Low Torque Actuator can be easily mounted to the following valves using the mounting kits noted below.

• Maxon CV Valve Series (1/2"-2") mounting kit #50123928-001

• Honeywell V51E Valve Series (1-1/2"-2") mounting kit #50124386-001 and mounting kit #32003396-001

• Honeywell V51E Valve Series (2-1/2"-4") mounting kit #50124386-001 and mounting kit #32003396-002

• Honeywell V5197A Valve Series (3/4"-3") mounting kit #50124386-001


FEATURES AND BENEFITS

• Offered in two different configuration options:

- NEMA 1 rated, operating in a temperature range of -18 to 158 °F (-28 to 70 °C) with 450 positions over a 90° span

- NEMA 4 rated, operating in a temperature range of -40 to 158 °F (-40 to 70 °C) with 900 positions over a 90° span

• Field-reversible clockwise and counterclockwise rotation operation.

• Internal temperature, valve status, health diagnostics, and error codes reporting.

• Robust, heavy-duty construction, continuous duty cycle-rated.

• Closed loop position control via Modbus RS-485 communications as an input to the SLATE Fuel Air Ratio Module, part R8001C6001.

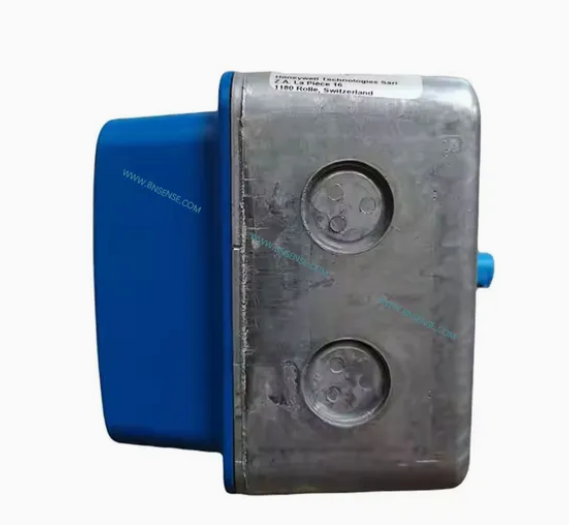

• Dual 1/2-in knockout conduit connections.

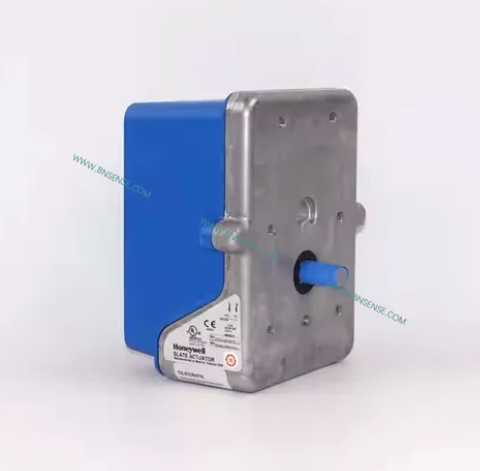

• 1/2-in keyed output shaft with a 1/8-in square key.

• Die-cast aluminum base with high-impact resistant, reinforced plastic cover.

• Meets UL353 Safety for Limit Controls.

• Meets UL1998 when used with R8001C6001SLATE Fuel Air Ratio Module.

SPECIFICATIONS

Supply Voltage (Peak Current): DC model: 24VDC +10/-20%

Power:   50 in/lb: 10 Watts maximum

             150 in/lb: 25 Watts maximum

Rotation: Max span: 90° usable

Resolution: Commercial: 450 positions (0.2° resolution)

                    Industrial: 900 positions (0.1° resolution)

Control Deadband:  Commercial: ±0.2 degrees

                                  Industrial ±0.1 degrees

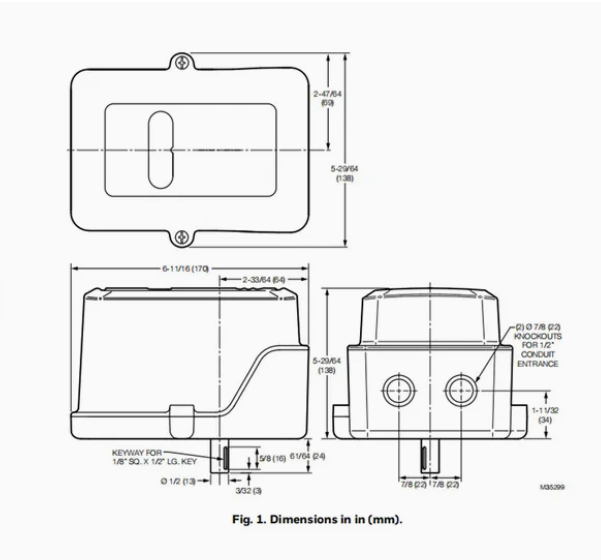

Dimensions in in (mm): 6-11/16 x 5-29/64 x 5- 29/64 (170 x 138 x 138); See Fig. 1

Weight: 3 Lbs. (1.4 Kg)

Operating Temperature: -28 to +70 °C (-18 to +158 °F) for commercial models;                                          -40 to +70 °C (-40 to +158 °F) for industrial models

Storage Temperature: -40 to +80 °C (-40°F to +176°F)

Relative Humidity: 0 to 99% non condensing (for commercial models)

Vibration: Honeywell V2 test specification; 3 axes tested as follows:

                                  2-Hour Performance/Resonant Detection Sweep:

Vibration sinusoidal: 5 Hz - 30 Hz;

Amplitude: 0.012mil pk/pk75 mm

Vibration sinusoidal: 30 Hz - 300 Hz at 0.6G

Endurance: 1.1G for 2 hours at resonant frequencies

EMC: EN61000-6-1/2/3 (See Safety and Agency

         Approval Requirements), FCC Part 15, Level A

         EN55022, Level A

Enclosure: NEMA1 (commercial models)

                   NEMA 4 (industrial models)
Model

Table 1. Model Specifications.

Table 2. Wiring Terminal Identification.

1 Do not wire the non-isolated common terminal to the Slate system; leave it unconnected. Instead, wire the 24V- of the actuator supply to Pin 2 of the Slate Sub-Base. If all actuators share the same supply, only one connection is needed.
