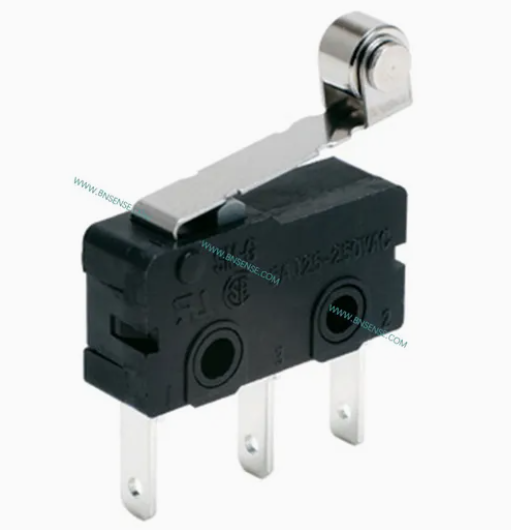

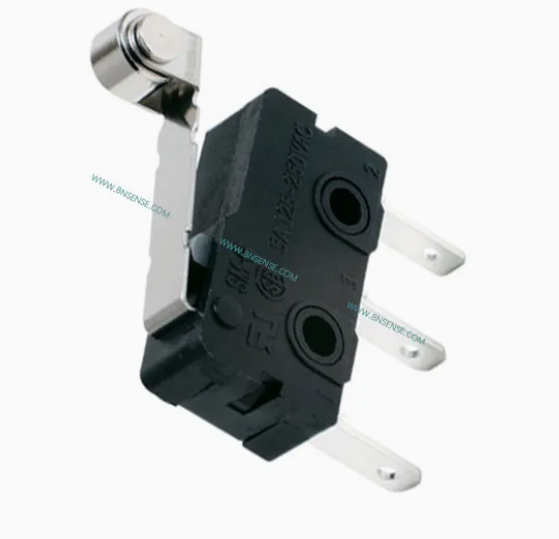

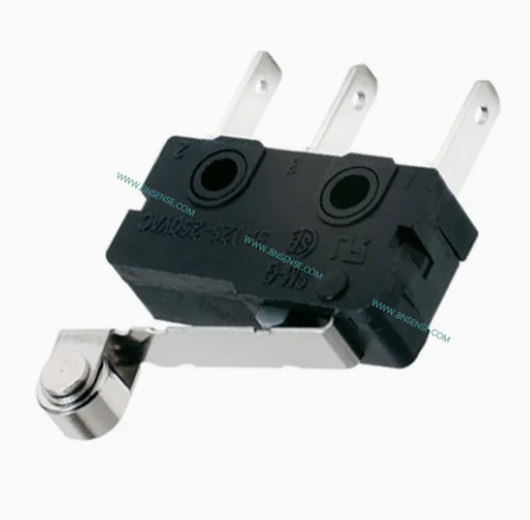

ZM10B70F01
Product Description
Honeywell MICRO SWITCH ZM and ZM1 Series are subminiature snap action switches from the Honeywell MICRO SWITCH family of Z Series subminiature basic switches. Although small in size, the Honeywell ZM and ZM1 Series are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac).
The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of the Honeywell ZM and ZM1 Series are less than 20 mm [0.78 in]. As with all snap-action switches, the audible click when actuated promotes ease of installation and set-up of the switches.
A wide variety of integral stainless steel levers are available and when combined with the subminiature package size, may adapt the switch to a wide variety of applications. The Honeywell ZM Series is agency certified to UL, cUL and CQC for worldwide use, while the ZM1 Series is agency certified to UL, cUL, ENEC, CE, UKCA and CQC for worldwide use.FEATURES

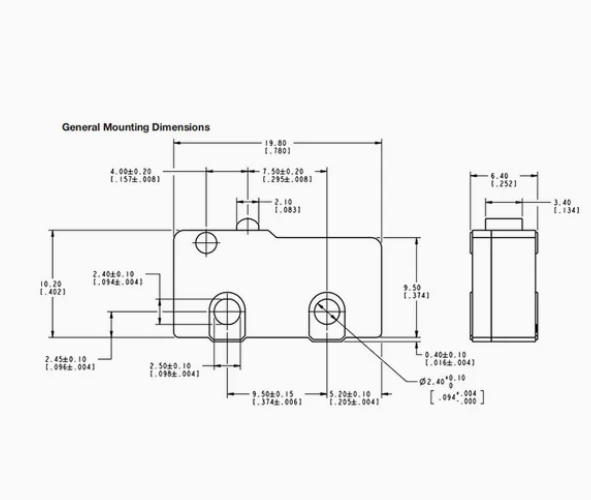

• Subminiature package size (19,80 mm x 10,60 mm x 6,40 mm [0.78 in x 0.42 in x 0.25 in]) allows switch to fit in applications where other sensor or switch package size is too large.
• Well suited for power-duty and logiclevel loads
• SPDT, SPNC, or SPNO switch options help assure the circuit requirements are met
• Switches are built with pin plunger or various styles of stainless steel levers
• MICRO SWITCH ZM and ZM1 products are certified per UL; cUL to UL 61058-1; CE & UKCA to EN 61058-1; and CQC to GB 15092.1
VALUE TO CUSTOMERS
• Temperature ranges from -40 °C to 125 °C [-40 °F to 257 °F] typically allows for years of reliable performance in harsh conditions
• Choice of internal switch mechanism: ZM Series with coil spring design for increased mechanical life or ZM1 Series with flat spring design for increased electrical rating
• Current carrying capacity, up to 16.1 A (ZM1 Series), typically allows for a solution in many applications where space is a premium
• Wide variety of electrical ratings, integral actuators, and electrical terminations to facilitate integration into control and/or monitoring circuits
POTENTIAL APPLICATIONS
Commercial
• Copy machines: Senses paper position
• Cash registers: Senses drawer open or closed
• Refrigerators with integral ice makers: Turns water on-and-off
• HVAC: Senses back pressure in exhaust outlet
• HVAC: Senses float position for water level
Medical
• Hospital beds: Senses bed rail position
MICRO SWITCH ZM SERIES SPECIFICATIONS
| Characteristic ZM10 Series (Logic Level) ZM50 Series (Standard Duty) ZM90 Series (Power Duty) | |||||
| Circuitry | SPDT, SPNC, SPNO | ||||
| Operating force(atpin plunger) | 60 g, 104 g, 146 g, 249 g | 104 g, 146 g, 249 g | 249 g | ||
| Termination | Solder (standard and extended), PCB (standard, left, or right) | ||||
| Sealing | IP40 | ||||
| Actuators,pin plunger standardLevers (300 series stainlesssteel) | pin plunger, straight lever (5 lengths), simulated roller lever (3 styles), roller lever,L-shaped lever, special levers | ||||
| Agency certification | UL, cUL, CQC, RoHS and Reach compliant | ||||
| Operating temperature(manufacturer rated) | -40 °C to 125 °C [-40 °F to 257 °F] | ||||
| Mechanical endurance(cycles) | 5,000,000 min. @ 400 cycles/minute max. | ||||
| Switch resistance (initial) | 100 mΩ max. | 100 mΩ max. | 300 mΩ max. | ||
| Insulation resistance (initial) | 100 MΩ min. (500 Vdc for 1 minute) | ||||
| Dielectric strength (initial)(between live parts and ground) | 1500 V RMS for one minute (≤0.5 ma leakage current) | ||||
| Plunger material | PA (nylon) | ||||
| Case/cover material | PA (nylon) | ||||
| Contact material | gold-plated silver alloy | silver alloy | silver alloy | ||
MICRO SWITCH ZM SERIES ELECTRICAL RATINGS
| Switch option | UL/cUL per UL 61058-1File E12252, Temp 120 °C [248 °F] | CQC per GB15092.10 °C to 125 °C [32 °F to 257 °F]μ (micro-disconnection) | |||
| ZM10 Series(Gold-plated silver alloy con-tacts) | 0.1 RA 30 Vdc, 10,000 cycles min.0.1 RA 125/250 Vac, 10,000 cycles min. | 0.1 A 30 Vdc0.1 A 125/250 Vac10,000 cycles | |||
| ZM50 Series(Silver alloy contacts) | 5 RA 30 Vdc, 10,000 cycles min.5 RA 125/250 Vac, 10,000 cycles min. | 5 A 125/250 Vac10,000 cycles | |||
| ZM90 Series(Silver alloy contacts) | 10.1 GPA 125/250 Vac, 10,000 cycles min. | 10.1 A 125/250 Vac10,000 cycles | |||
MICRO SWITCH ZM1 SERIES SPECIFICATIONS
| Characteristic | ZM110 Series, ZM115 Series (Logic Level) | ZM150 Series, ZM155 Series,ZM160 Series (Standard Duty) | ZM190 Series, ZM195 Series(Power Duty) | |||
| Circuitry | SPDT, SPNC, SPNO | |||||
| Operating force (atpinplunger) | 70 g, 95 g, 150 g | 70 g, 95 g, 150 g | ZM190: 150 g, 355 gZM195: 355 g | |||
| Termination | solder (standard and extended); PCB (standard, left, or right),special termination | |||||
| Sealing | IP40 | |||||
| Actuators,pin plunger standardLevers (300 series stainlesssteel) | pin plunger, straight lever (5 lengths), simulated roller lever (3 styles), roller lever,L-shaped lever, special levers | |||||
| Agency certification | UL, cUL, CQC, ENEC, CE, UKCA, RoHS and Reach compliant | |||||
| Operating temperature(manufacturer rated) | ZM110: -40 °C to 125 °C [-40 °C to 257 °F] ZM115: 0 °C to 85 °C [32 °F to 185 °F] | ZM150, ZM160: -40 °C to 125 °C[-40 °C to 257 °F]ZM155: 0 °C to 85 °C[32 °F to 185 °F] | -40 °C to 125 °C[-40 °C to 257 °F] | |||
| Mechanical endurance(cycles)* 120 cycles/minutemax. | 1,000,000 min. | 1,000,000 min. | ZM190 (150 G OF): 1,000,000 min.ZM190 (355 g OF): 50,000 min.ZM195: 50,000 min. | |||
| Switch resistance (initial) | 300 mΩ max. | |||||
| Insulation resistance (initial) | 100 MΩ min. (500 Vdc for 1 minute) | |||||
| Dielectric strength (initial)(between live parts andground) | 1500 V RMS for one minute (≤0.5 ma leakage current) | |||||
| Plunger material | PA (nylon) | |||||
| Case/cover material | PBT (polyester) | PBT (polyester) | PA (nylon) | |||
| Contact material | silver alloy | silver alloy | silver alloy | |||
| Contact material (optional) | gold-plated silver alloy (ZM115 only) | gold-plated silver alloy (ZM115only) | ||||
Note: Refer to engineering drawing for additional information
*Refer to engineering drawing for additional detail of mechanical endurance
MICRO SWITCH ZM1 SERIES ELECTRICAL RATINGS
| Switch option | UL/cUL per 61058-1 File E12252 | ENEC per IEC 61058-1μ (Micro-disconnection) | CQC per GB 15092.1μ (Micro-disconnection) | |||
| ZM110 Series | 0.1 RA 125/250 Vac, 10,000 cycles min.125 °C [257 °F] | 0.1 A 125/250 Vac, 10,000 cycles-40 °C to 125 °C [-40 °F to 257 °F] | ||||
| ZM115 Series | 0.1 RA 125/250 Vac, 10,000 cycles min.85 °C [185 °F] | 0.1 A 125/250 Vac, 10,000 cycles0 °C to 85 °C [32 °F to 185 °F] | ||||
| ZM150 Series | 3 RA 125/250 Vac, 10,000 cycles min.125 °C [257 °F] | 3 A 125/250 Vac, 10,000 cycles-40 °C to 125 °C [-40 °F to 257 °F] | ||||
| ZM155 Series | 3 RA 125/250 Vac, 10,000 cycles min.85 °C [185 °F] | 3 A 125/250 Vac, 10,000 cycles0 °C to 85 °C [32 °F to 185 °F] | ||||
| ZM160 Series | 6 RA 125/250 Vac, 10,000 cycles min.125 °C [257 °F] | 6 A 125/250 Vac, 6 (2) A 125/250 Vac, 10,000 cycles-40 °C to 125 °C [-40 °F to 257 °F] | ||||
| ZM190 Series | 10.1 GPA 125/250 Vac, 10,000 cycles min.125 °C [257 °F] | 10.1 A 125/250 Vac, 6 (2) A 125/250 Vac, 10,000 cycles-40 °C to 125 °C [-40 °F to 257 °F] | ||||
| ZM195 Series | 16.1 GPA 125/250 Vac10,000 cycles min.55 °C [131 °F] | 16.1 (4) A 125/250 Vac10,000 cycles-40 °C to 85 °C [-40 °F to 185 °F]16.1 A 125/250 Vac6 (3) A 125/250 Vac10,000 cycles-40 °C to 125 °C [-40 °F to 257 °F] | 16.1 A 125/250 Vac6 (3) A 125/250 Vac10,000 cycles-40 °C to 125 °C[-40 °F to 257 °F | |||
RA - Resistive Amps (Resistive Load), GPA - General Purpose Amps (Inductive Load) , X (Y) - X is max. resistive amps., and (Y) is max. inductive amps.

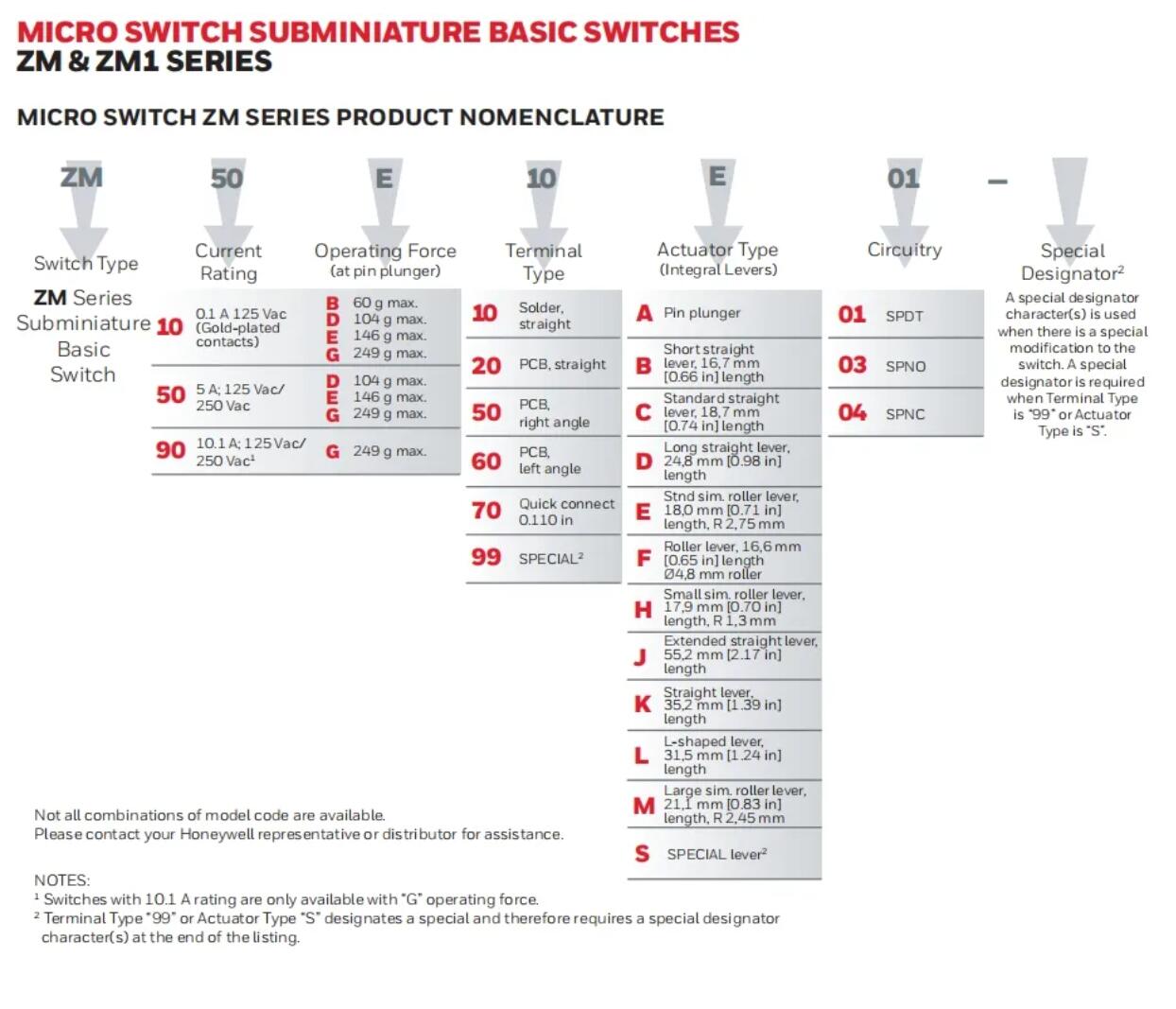

MICRO SWITCH ZM SERIES PRODUCT SPECIFICATIONS AND LISTINGS
O.F. • Operating forceR.F. • Release forceP.T. • PretravelO.T. • OvertravelD.T. • Differential travelO.P. • Operating position
| Catalog Listing | Circuitry/Contact Material | Elect.Rating(page 6) | Termination | Operate Force max. g [oz] | Release Forcemin. g [oz] | Free Positionfrommountinghole mm [in]max. | |||

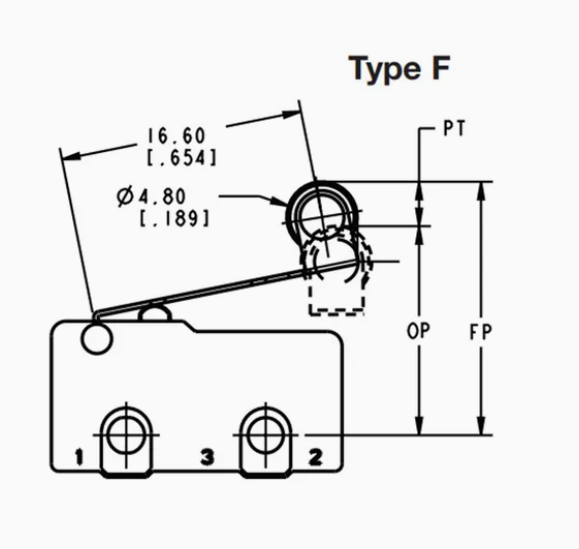

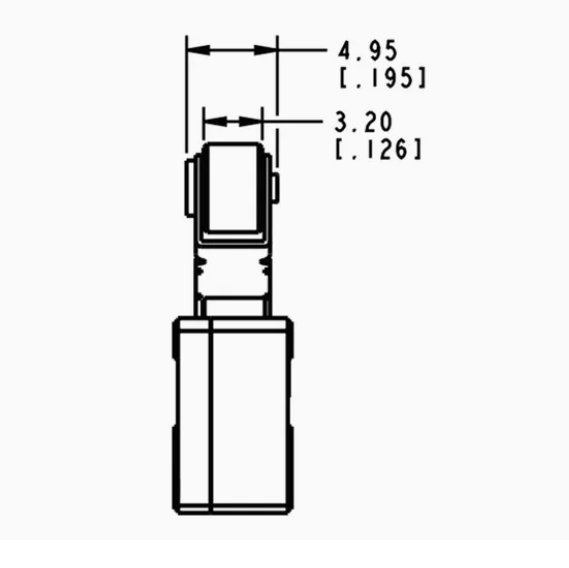

| Roller Lever(16,6 mm[0.65 in]) | ZM10B70F01 | SPDT Gold Plated | 0.1 A | Long Solder | 19 [0.67] | 2 [0.07] | 17,6 [0.69] | ||
| ZM10E10F01 | SPDT Gold Plated | 0.1 A | Solder | 34 [1.23] | 8 [0.28] | 17,6 [0.69] | |||
| ZM10E50F01 | SPDT Gold Plated | 0.1 A | PCB (90° Right) | 34 [1.23] | 8 [0.28] | - | |||
| ZM50D10F01 | SPDT Silver Alloy | 5 A | Solder | 25 [0.88] | 6 [0.21] | 17,6 [0.69] | |||
| ZM50E10F01 | SPDT Silver Alloy | 5 A | Solder | 34 [1.23] | 8 [0.28] | 17,6 [0.69] | |||
| ZM50E50F01 | SPDT Silver Alloy | 5 A | PCB (90° Right) | 34 [1.23] | 8 [0.28] | - | |||
| ZM50E70F01 | SPDT Silver Alloy | 5 A | Long Solder | 34 [1.23] | 8 [0.28] | 17,6 [0.69] | |||
| ZM90G20F01 | SPDT Silver Alloy | 10.1 A | PCB (Straight) | 60 [2.17] | 15 [0.53] | - | |||
| L-ShapedLever(31,5 mm[1.24 in]) | ZM50E10L01 | SPDT Silver Alloy | 5 A | Solder | 20 [0.71] | 4 [0.14] | 2,5 [0.10] | ||
