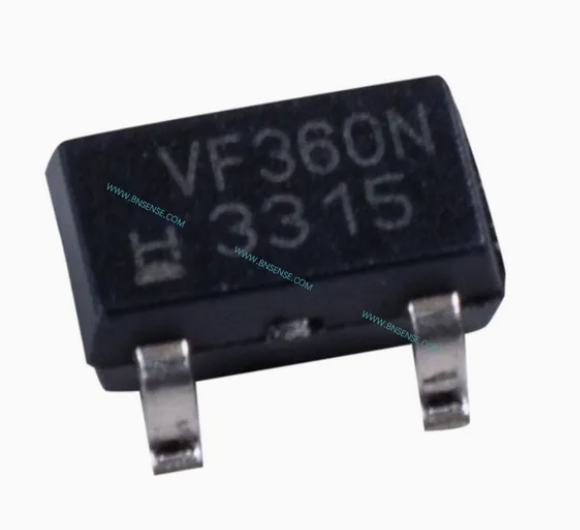

VF360NT

tion

The VF360NT, VF360ST, and VF460S High Sensitivity Latching Digital Hall-Effect Sensor ICs are small, sensitive and versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to alternating North and South poles. The VF360NT is turned ON by a North pole, while the VF360ST and VF460S are turned ON by a South pole. This sensor IC does not use chopper stabilization on the Hall element, providing a clean output signal and a faster latch response time when compared to competitive high sensitivity Hall-effect latching sensor ICs which do use chopper stabilization.

VALUE TO CUSTOMERS

• AEC-Q100 qualification provides enhanced reliability and quality of electronic components. Components meeting these specifications are often suitable for use in harsh automotive environments without the customer's need for additional component-level qualification testing.

• Designed to provide reliable, consistent performance and a fast response time, enhancing efficiency in brushless dc motor (BLDC) applications

• Designed to provide a wide supply voltage range and no chopper delay, allowing for potential use in a variety of applications

• Designed to provide a clean output signal without the customer having to include additional circuitry to achieve noise suppression due to chopper stabilization

DIFFERENTIATION

Honeywell's VF360NT, VF360ST, and VF460S AEC-Q100- qualified latching sensor ICs offer better performance than many competitive sensor ICs that employ chopper stabilization techniques.

• Response time: Honeywell's device provides a fast response time, enabling efficiency in BLDC motors.

• No noise generation: Honeywell's device utilizes a resistorcapacitor (RC) circuit to enable noise suppression required for chopper stabilized sensors.

FEATURES

• Qualified to the AEC-Q100 standard for potential use in automotive applications

• Fastest response time in its class (1.5 µs)

• Operate from 30 Gauss typical at 25°C [77°F] and 55 Gauss maximum over the full -40°C to 150°C [-40°F to 302°F] temperature range

• Latching magnetics

• Repeatable magnetics (no jitter)

• No additional electronic noise generated by sensor

• Non-chopper-stabilized design

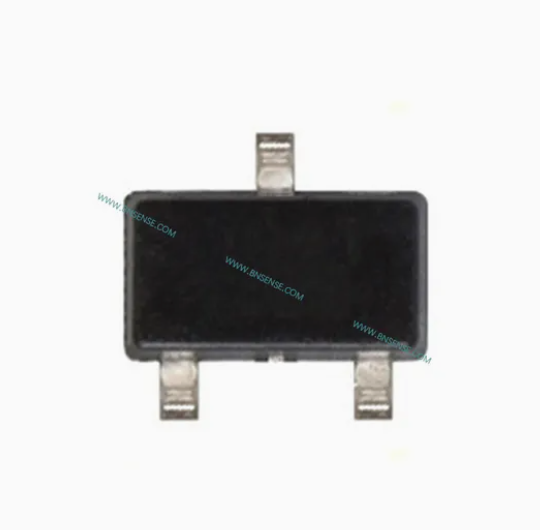

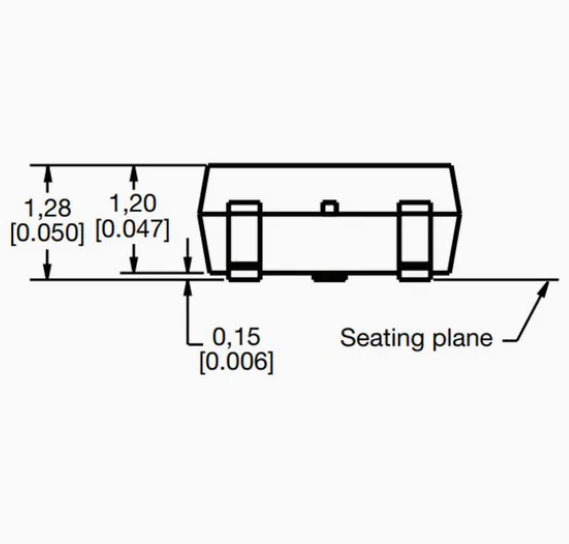

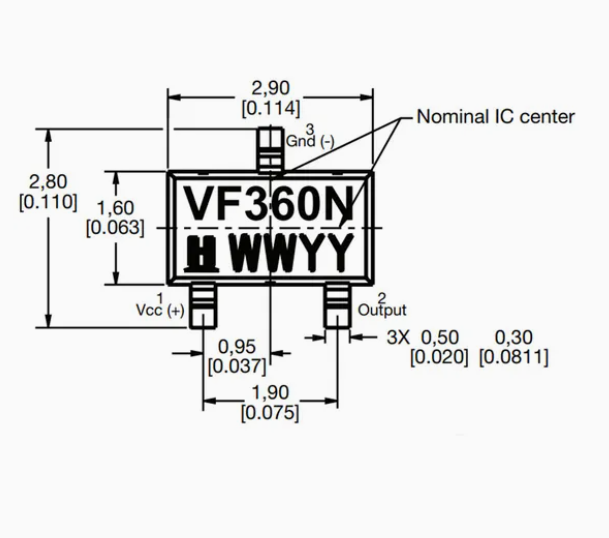

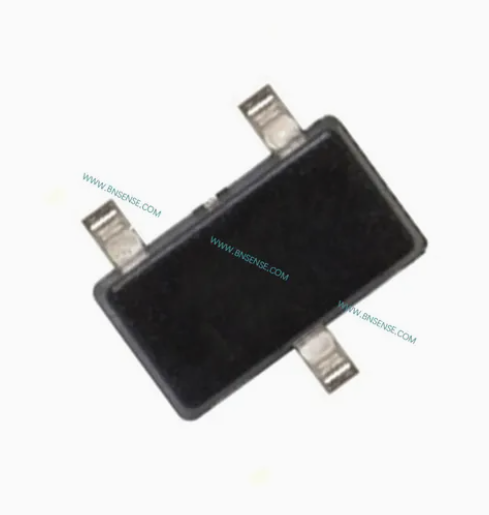

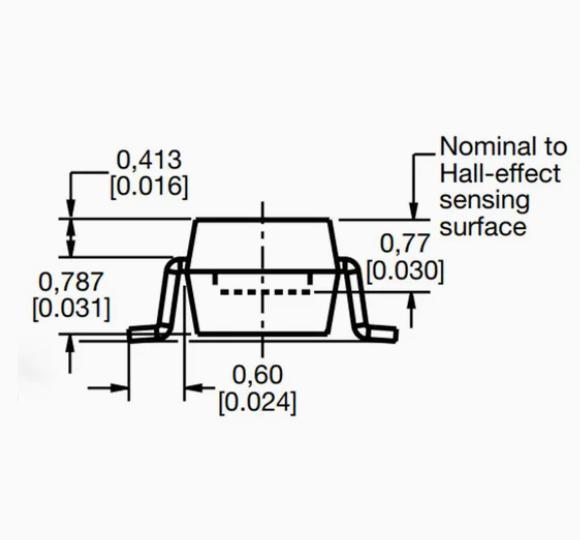

• VF360NT and VF360ST subminiature SOT-23 surface mount package supplied on tape and reel (3000 units per reel)

• VF460S flat TO-92-style package (1000 units per bag)

• 3 Vdc to 24 Vdc

• Built-in reverse polarity protection

• RoHS-compliant material

POTENTIAL TRANSPORTATION APPLICATIONS

• BLDC motor commutation for automotive applications: Air input flap to engine, convertible roof position, electronic parking brakes, electronic window lifts and anti-pinch power window systems, HVAC blowers, headlights, power doors, mirrors and tail gates, seat motors, steering, windshield washers and wipers

• Speed and RPM sensing: Motors and fans; tachometer and counter pickup

• Flow rate sensing

PORTFOLIO

The VF360NT, VF360ST, and VF460S are a part of Honeywell's family of latching digital Hall-effect sensor ICs which also include:

• SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2. SS460S-LP

• SS360PT, SS460P, SS460P-T2

• SS361CT, SS461C

• SS361RT, SS461R

• SS400 Series, SS500 (select catalog listings)

• VF526DT (dual outputs)

Electrical and Environmental Specifications

(At Vs = 3.0 Vdc to 24.0 Vdc, 20 mA load, TA = -40ºC to 150ºC [-40ºF to 302ºF] except where otherwise specified.)

Absolute Maximum Specifications

NOTICE

Absolute maximum ratings are the extreme limits the device will momentarily withstand without damage to the device. Electrical and mechanical characteristics are not guaranteed if the rated voltage and/or currents are exceeded, nor will the device necessarily operate at absolute maximum ratings.
