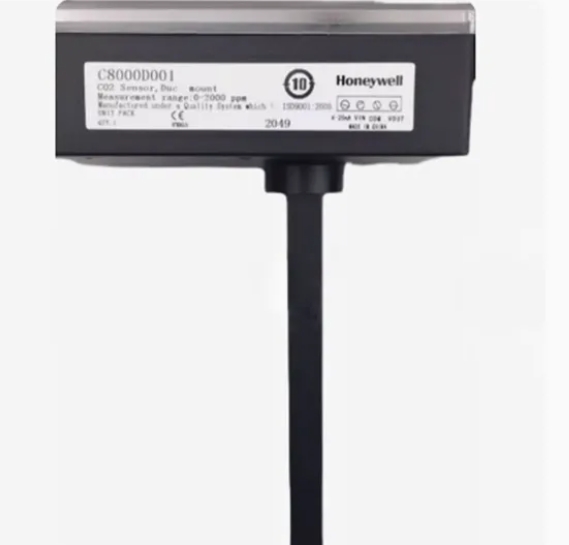

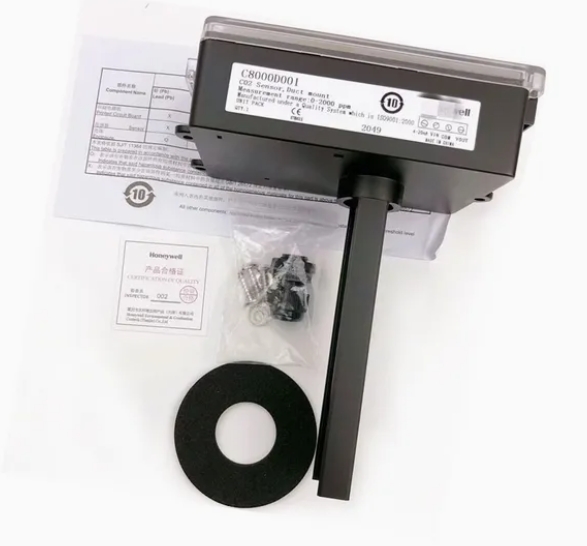

C8000D001
Product Description

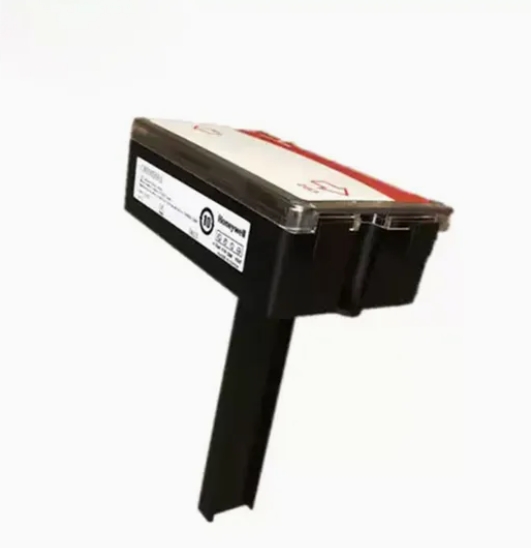

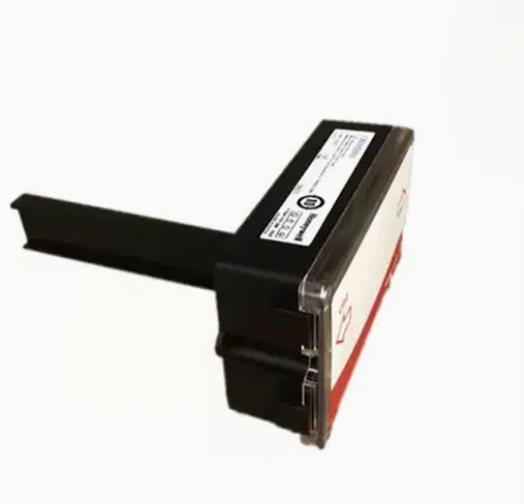

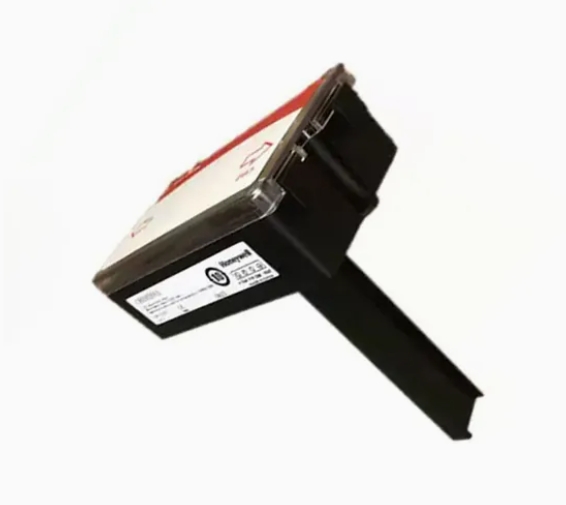

The C8000 series with the new CO2 module is a cost-optimized, maintenance-free and easy-to-install infrared CO2 sensor for indoor and duct ventilation detection. The C8000 detects the CO2 gas content in the surrounding environment online, with a maximum range of 2000ppm, and outputs the measured data in analog form.The C8000 can help intelligent buildings save energy, thereby reducing operating costs, while helping to improve indoor air quality.The C8000 detects the CO2 gas content in the surrounding environment online, with a maximum range of 2000ppm, while helping to improve indoor air quality.This product can be applied to the following systems• Intelligent building• commercial building• Ordinary residence• Other process gas controlsFeatures:• 0-2000ppm measurement range• Two analog signal outputs• According to actual application requirements, the gas content can be dynamically monitored• With internal self-diagnosis function• Maintenance-free under normal application conditions• Best choice for connecting to DDC controllers• Two models available: Duct and Indoor Wall Mount
| Overall performance | |
| Meet standards | EMC2004/108/EC directive RoHs directive 2011/65/EU |
| Working temperature | 0+50°C |
| Storage temperature | -20-+70°C max. |
| Working humidity | 0-95% (no condensation) |
| Working environment | Public places, commercial buildings, residential buildings and other intelligent buildings, avoiding SO2 and corrosive gas environment |
| Warm up time | 1 Minutes. (≤15 minutes at full specification) |
| Expected service life | 15 years (ABC function enabled or regular maintenance) |
| Maintenance interval | maintenance free |
| Self-calibration function is on (default) | |
| Power Supply | |
| power supply | 24VAC/DC±20%,50/60Hz (half-wave rectifier input) |
| Peak power consumption | 3VA for 24VAC 3W for 24VAC |
| CO2 measurement | |
| Measurement method | NDIR measurement and patented EQC coating technology with automatic calibration |
| Measurement frequency | Standard 0.5Hz |
| Repeat rate | ±20ppm Reading ±1% |
| Accuracy 1 | ±40ppm Reading ±3% |
| Pressure error | 1.6% of reading per kPa at normal atmospheric pressure |
| Measuring range | 0-2000ppm |
| Signal output | |
| OUT1 linear conversion range | 0-5VDC 0-2000ppm 0-10VDC 0-2000ppm |
| OUT2 linear conversion range | 4-20mA 0-2000pm |
| Resolution | Output 1: less than 10mV |
| Output 2: less than 0.02mA | |
| Analog output resistance | 100Ohm max (DC) |
