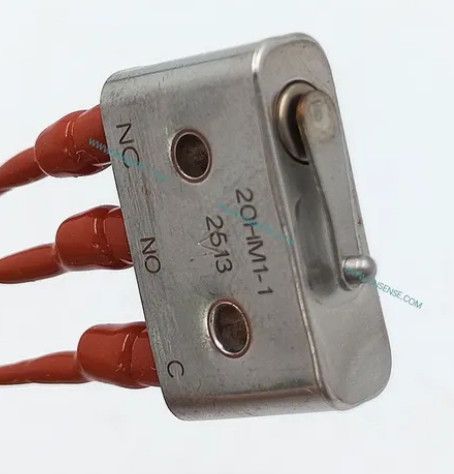

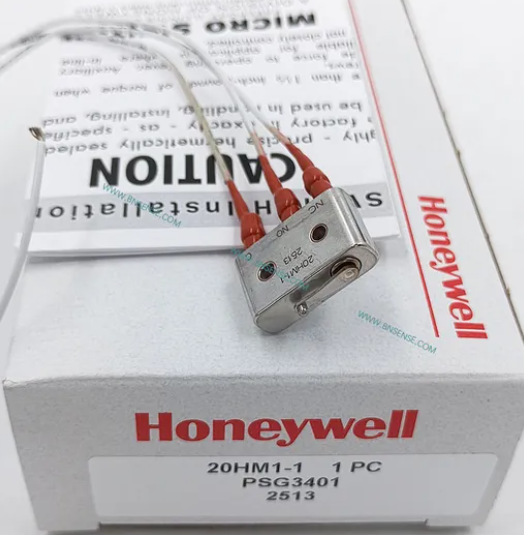

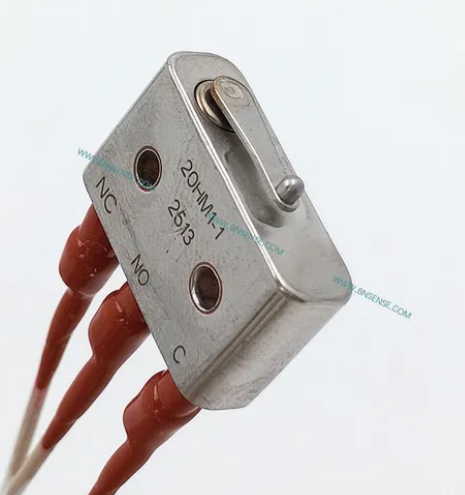

20HM1-1

Product Description

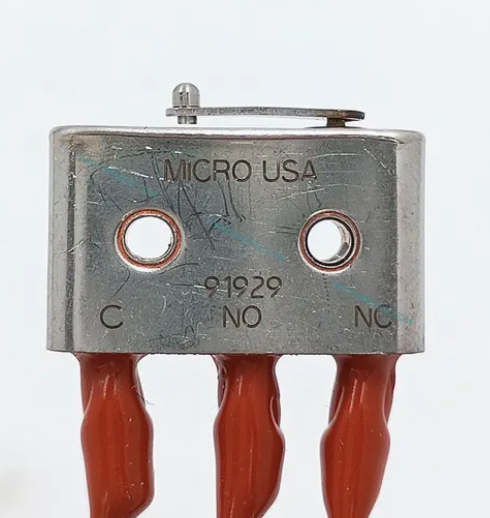

Honeywell HM hermetic sealed miniature basic switches are designed for a variety of commercial and MIL aircraft as well as equipment for deep space applications (high altitude requirements). These miniature hermetic sealed switches can be found in a variety of other applications including MIL land vehicles, marine environments, and other harsh industrial environments. The switches are available as a MIL-PRF-8805 qualified switch. Select HM switches are available with UL 508 certification for industrial or surface transportation applications. The Honeywell  MICRO SWITCH™ HM hermetic sealed switch design incorporates the glass-to-metal and metal-to-metal sealing with more than 50 years of use in multiple applications.

The Honeywell  hermetically sealed HM basic switches are ideal where a symbol 5 seal is required for stringent applications including a wide range of temperatures from -184 °C to 260 °C [-300 °F to 500 °F]. Designed with a stainless steel housing and hermetic seal construction, the HM switches are suitable for applications where dust, water, other particulate contaminants, and corrosive gases are present.

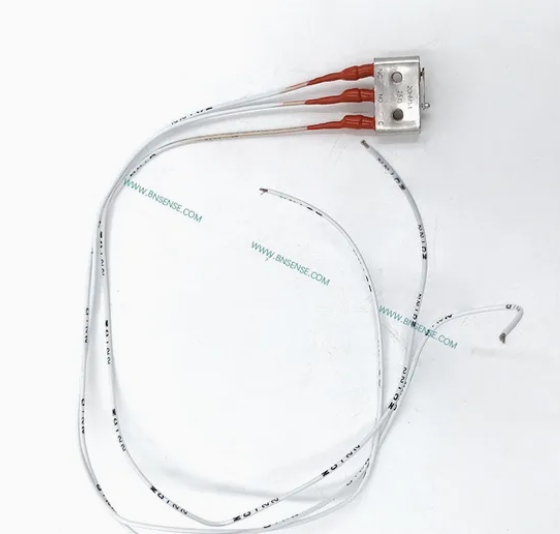

The Honeywell  HM basic switch provides versatility with bifurcated gold contacts for controlling low energy loads (mA and mV) reliably or silver contacts for switching power duty loads at 30 vdc or 115 Vac, 400 Hz. Electrical connectivity to the switch is achieved with individual wire leads or "through hole" solder posts adding to the versatility of the HM switch.

What makes our switches better?

• Precisely detects position of mechanical components within a particular system that is susceptible to physical and atmospheric (corrosive gas, oxygen, etc.) elements

• Consistent and precise performance in a hermetic-sealed package for adverse, inclement environments

• Functionality over a large temperature range - can tolerate very low and high temperatures

• Honeywell can create value-added HM assemblies for unique, custom applications beyond a simple HM switch• HM switches are available with MIL-PRF-8805 qualifications or UL 508 certifications

Features and Benefits

MIL-QUALIFIED

MICRO SWITCH™ HM switches are hermetically sealed with versions that are MIL-PRF-8805 qualified for demanding MIL or commercial applications on aircraft, spacecraft, or ground vehicles.

UL CERTIFIED

Select HM catalog listings are UL 508 certified for industrial and surface transportation applications.

TINY

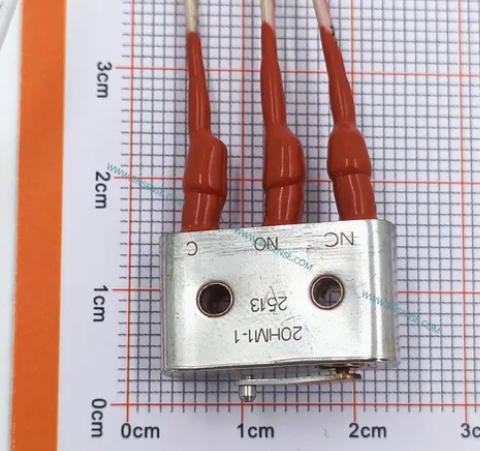

Miniature package size requires minimal space on equipment.Hermetically sealed with wide temperature rangeSEALED TIGHT

HM Series' Symbol 5 hermetic-sealed enclosures are suitable for applications at sea level, high altitude, or deep space.

LOW VOLTAGE AND POWER DUTY CAPABILITY

MICRO SWITCH™ HM products are available with silver contacts for control of power duty circuits or gold contact surfaces for control of logic level circuits.

LEVERS FURTHER EXPAND FUNCTIONALITY

Auxiliary actuators expand the versatility of the switch for additional applications.

WELL SUITED FOR LOW AND HIGH TEMPERATURES

For endurance in harsh temperature environments, wide temperature range is available from -184 °C to 260 °C [-300 °F to 500 °F]. Operate point stability is maintained over the specified temperature range.

MIL AIRCRAFT AND HELICOPTERS

• Detects landing gear bay doors in closed and locked position• Senses engine fuel valve position

• Identifies when external hatches and doors are in closed and/or locked position

COMMERCIAL AIRCRAFT AND HELICOPTERS

• Detects landing gear bay doors in closed and locked position

• Senses engine fuel valve position

• Identifies when external hatches and doors are in closed and/or locked position

• Miscellaneous applications inside commercial aircraft cabin, including waste management valve position, refreshment (liquids and food) stowed and locked position, HVAC, and oxygen valve position

AVIATION GROUND SUPPORT EQUIPMENT

• Monitor position of valves, doors or panels, for open, closed, or locked position

SPACECRAFT

• Identifies when external hatches and doors are in closed and/or locked position

• Senses engine fuel valve position

• Select sensing applications inside spacecraft cabin

POWER GENERATION, OIL AND GAS

• Internal switch element in pressure switches, temperature switches, and/or flow switches

ELECTROMECHANICAL SWITCHES

Definitions below explain the meaning of operating characteristics. Characteristics shown in tables were chosen as most significant. They are taken at normal room temperature and humidity. These may vary as temperature and humidity conditions differ. Sketches show how characteristics are measured for in-line plunger actuation. Linear dimensions for in-line actuation are from top of plunger to a reference line, usually the center of the mounting holes.

Differential Travel (D.T.) - Plunger or actuator travel from point where contacts ''snap-over'' to point where they ''snap back.''

Free Position (F.P.) - Position of switch plunger or actuator when no external force is applied (other than gravity).

Full Overtravel Force - Force required to attain full overtravel of actuator

Operating Position (O.P.) - Position of switch plunger or actuator at which point contacts snap from normal to operated position. Note that in the case of flexible or adjustable actuators, the operating position is measured from the end of the lever or its maximum length. Location of operating position measurement shown on mounting dimension drawings.

Operating Force (O.F.) - Amount of force applied to switch plunger or actuator to cause contact ''snap-over.'' Note in the case of adjustable actuators, the force is measured from the maximum length position of the lever.

Overtravel (O.T.) - Plunger or actuator travel safely available beyond operating position.

Pretravel (P.T.) - Distance or angle traveled in moving plunger or actuator from free position to operating position.

Release Force (R.F.) - Amount of force still applied to switch plunger or actuator at moment contacts snap from operated position to unoperated position.

Total Travel (T.T.) - Distance from actuator free position to overtravel limit position.MICRO SWITCH™ HM SERIES PRODUCT SPECIFICATIONS AND LISTINGSO.F. •  Operating forceR.F. •  Release forceP.T.  •  PretravelO.T. •  OvertravelD.T. •  Differential travelO.P. •  Operating position

* Recommended to minimize force on housing of HM switch and any resulting damage to switch housing.
Note: Torque on #2 mounting screws must not exceed 0,17 Nm [1.5 in-lb]. The force spreading plate, 19PA137-HM, will allow up to 0,28 Nm [2.5 in-lb] of mounting torque.
Contact us for additional listings
