JTW-LD-9698

Product Description

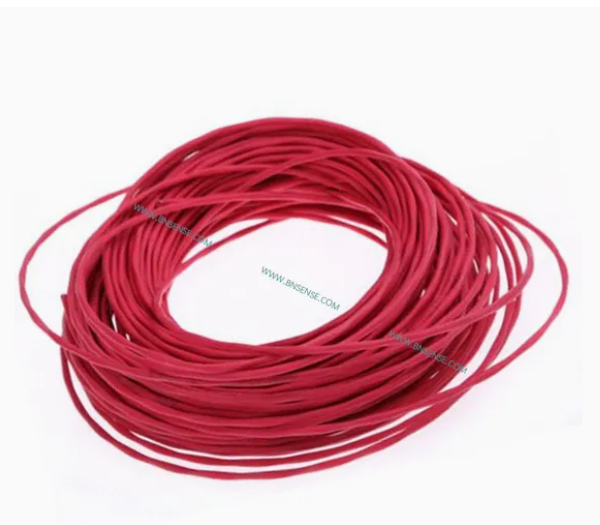

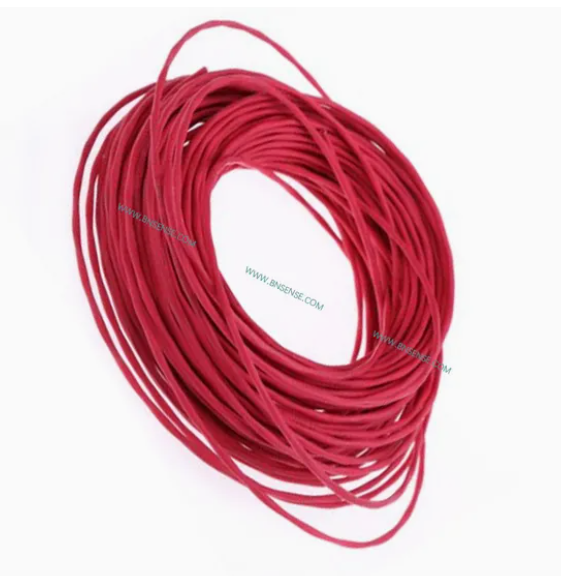

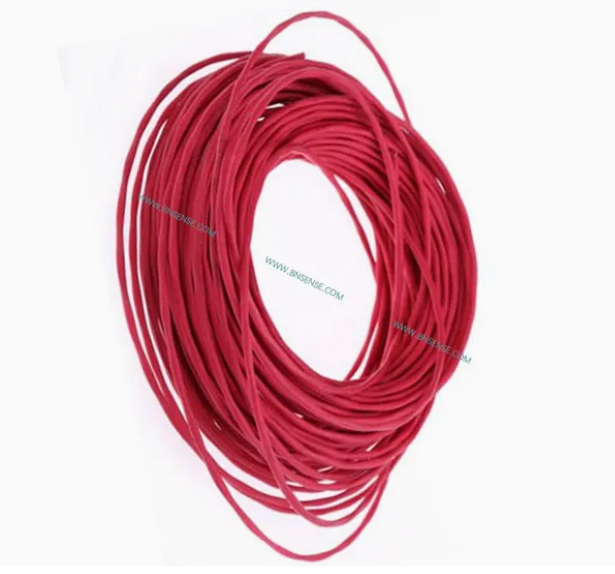

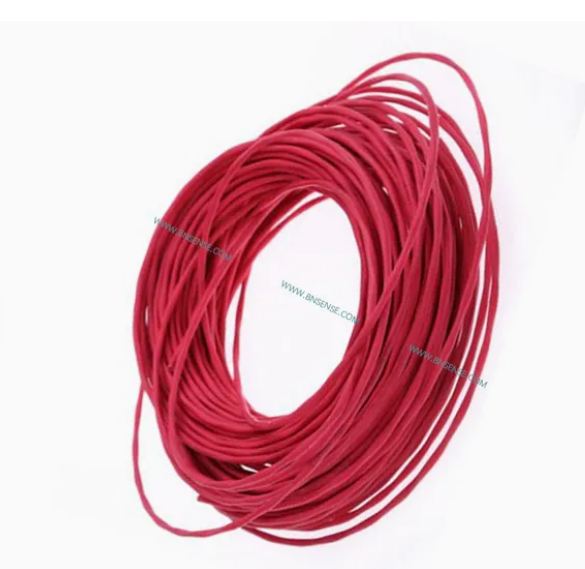

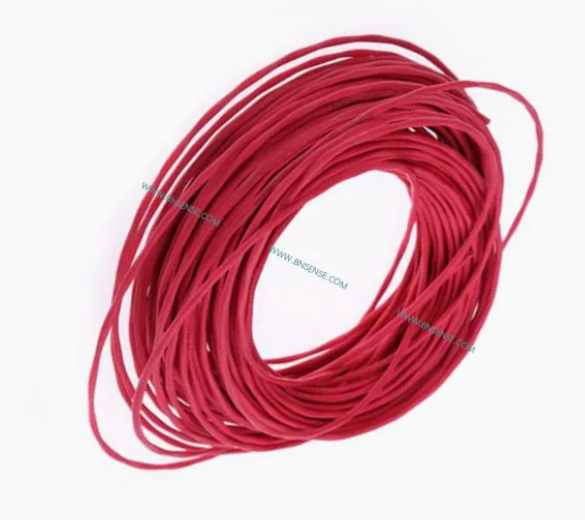

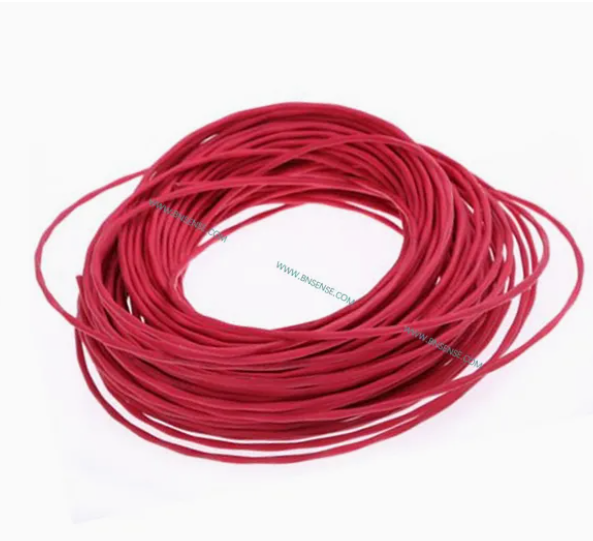

The technical performance indicators of cable-type linear heat-sensing fire detectors developed and produced by SystemSensor meet the national standard GB 16280-2014 "Linear Fire Heat-sensing Detectors", and have passed the inspection of the National Fire Electronic Products Supervision and Inspection Center and obtained the fire product certification certificate. The detector consists of a temperature-sensing cable, a signal processing unit, a terminal box, and an intermediate junction box (optional), which can be conveniently matched with fire alarm controllers from other manufacturers. The products are widely used in cable tunnels, cable trays, cable shafts, cable interlayers, various belt conveyors, and other occasions.FEATUREIt complies with the relevant requirements of the national standard GB16280-2014 "Linear Temperature Sensing Fire Detector". The heat-sensitive length of its operating performance is 1 meter; it can be easily connected to the alarm controller or temperature monitoring system through the input module of any manufacturer;It has two sets of independent passive relay contact outputs for fire alarm and fault alarm, and the fault relay output normally open and normally closed contacts are optional; It can monitor the open circuit and short circuit faults of the sensor cable; The detector has an alarm reset button, which can be reset with one button without power off; the sensor cable adopts a metal shield and twisted cable structure, which has strong resistance to mechanical damage and electromagnetic interference.Constant temperature cable linear temperature fire detector:• With fixed temperature alarm function, the alarm threshold of 9698 type is 85ºC and 105ºC;• Maximum use length is 200 meters; With explosion-proof and IP protection grade certification. Differential fixed temperature cable linear temperature fire detector:• With fixed temperature alarm function, the alarm threshold of 9698R type is 85ºC;Order Guide

BNSENS (Nanjing) Sensor Technology Co., Ltd. is located in Nanjing, China. It is a high-tech enterprise specializing in the development, manufacturing and trade of sensor products. The company has brought together a group of outstanding technical experts in various fields such as automation, electronics, machinery and computers. All employees of the company have college degrees or above. It adopts the world-class management and operation model and 6 sigma quality system. At present, the company's main products are pressure, liquid level, flow, current, switches, etc. The company's users are all over the country, and some products have been exported to Japan, South Korea and Southeast Asia.

Since its inception, the company has been based on the technical accumulation and management standards of American sensor giants. It is composed of senior engineers and managers who have served in multinational companies for many years, and has rapidly developed various pressure sensors, transmitters, liquid level, flow meters, pressure switches, digital meters, current sensors, proximity switches and other products. After years of unremitting efforts, it has become one of the leading suppliers in the domestic automation industry. Our pressure transmitters can achieve an accuracy of more than 3/10, 000. The products have been widely used in oil, natural gas, electricity, chemical industry, metallurgy, building materials, food, light industry, environmental protection, aerospace, tap water, municipal and other industries.

It is a sensor science and technology innovation company that masters the core technology of MEMS chips. The company has a research and development center in Minnesota, USA. The leader is Dr. Pan Hanjin, a famous scientist in the sensor industry. Dr. Pan Hanjin has been deeply involved in the sensor industry for more than 20 years and is an expert in the sensor industry.

The company has a number of ASIC chips independently developed, which are widely used in industrial, automotive, home appliance and other markets.

BNSENS (Nanjing) Sensing Technology Co., Ltd. is a strategic partner of Honeywell in China. The two parties proposed a plan of East serving East and jointly developed several sensors specifically for the Chinese market. These sensors will be widely used in intelligent manufacturing, Internet of Things, artificial intelligence, and smart home fields. These sensors include: Magnetic sensors, temperature sensors, humidity sensors, force sensors, fire water pressure sensors, equipment vibration sensors, human body status monitoring sensors, motion sensors, etc.

History of BNSENS Company:

BNSENS is a company focusing on sensors, instruments, and electronic components. We are a young company, founded in 1999, just 25 years old, and we are still growing.

1999: The company's first pressure sensor was launched, mainly for the petroleum and petrochemical industries.

2002: The company expanded its product line and launched temperature sensors

2005: Started producing high-precision pressure sensors for the test and measurement market

2006: Became an official authorized agent of Honeywell

2009: Introduced the Six Sigma management system, and the product qualification rate was greatly improved

2010: Became a supplier of Emerson

2011: We started selling SICK sensors

2014: Introduced the sensor production line from Germany, developed more industrial control sensors, and cooperated with TSMC

2015: Cooperated with Siemens in Vietnam

2017: The factory moved to Nanjing High-tech Zone

2019: Became a national high-tech enterprise in China

2023: We started selling products from Infineon and Rohm

BNSENS, The Future Starts Here.
