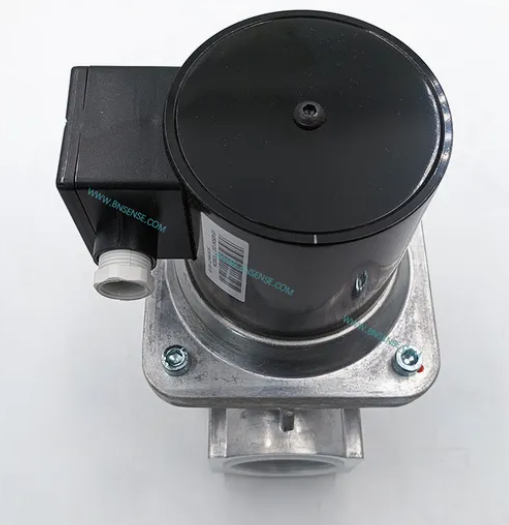

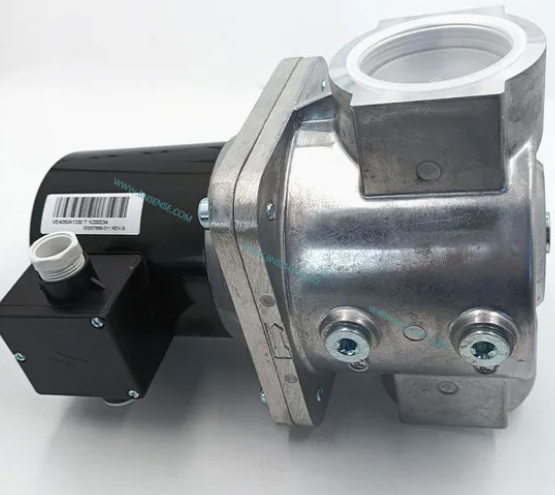

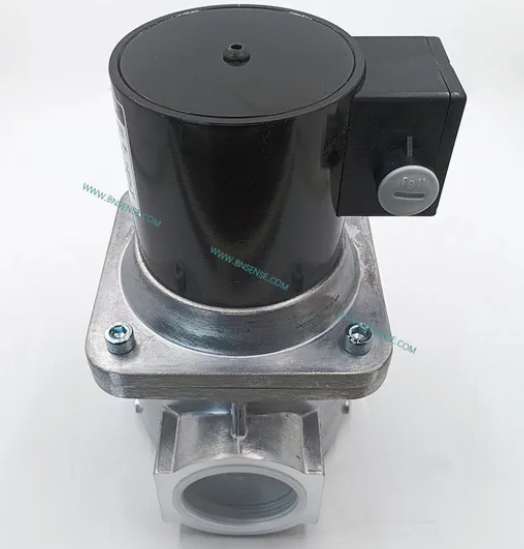

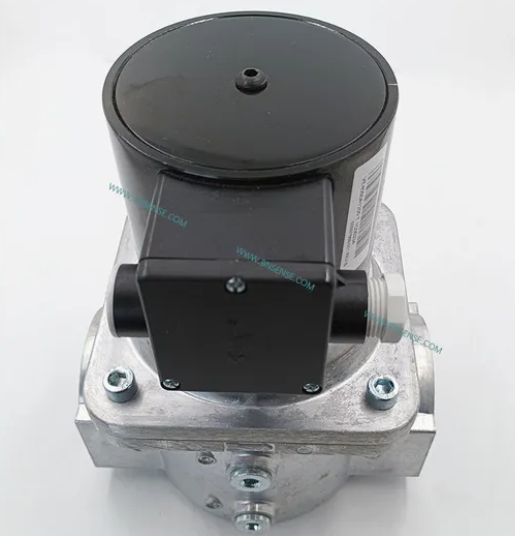

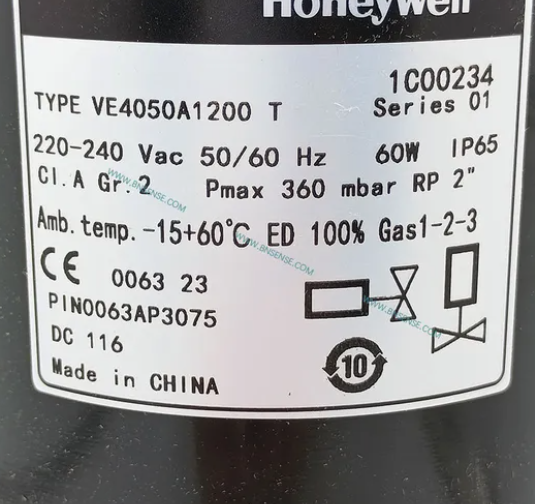

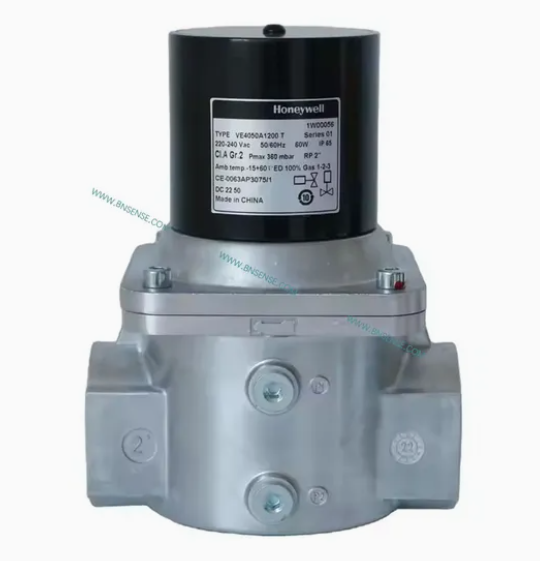

VE4050A1200T
Product Description
APPLICATION
These series class "A" gas valves are used for control and regulation of gaseous fluids in gas power burners, atmospheric gas boilers, melting furnaces, incinerators and other gas consuming appliances.FEATURES• Normally Closed valve. (spring loaded valve disc, closed when de--energized).• Non regulated ON/OFF.• Opening/closing time: <1 sec.• Maximum working frequency: 20 cycles/min.• Wrench boss as well on inlet side as on outlet side for pipe fitting incorporated in the valve housing.• 2 auxiliary pressure taps with Rp 1/4" threaded connections, both on the inlet pressure side.• Coil field replaceable.• Coil suitable for permanent energization.• Coil turnable over 360E .• Internal fine mesh screen.
SPECIFICATION
Model VE4000A1
Dimensions See figure and table below.
Pipe sizes Inlet and outlet 3/8" up to 3" internal parallel pipe thread according to ISO 7--1.
Mounting and orientation
The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy.
Maximum operating pressure
Rp 3/8" to Rp 1/2" types up to 360 mbar
Rp 3/4" to Rp 2. 1/2" types; 200 or 360 mbar
Torsion and bending stress
Pipe connections meet group 2, according to EN161 requirements.
Supply voltage
Line voltage: 220 ... 240 Vac, 50/60 Hz
110 Vac, 50/60 Hz
24 Vac, 50/60 Hz
24 ... 28 Vdc
Ambient temperature range --15 ... 60 ° C
Electrical connection
Plug connection according to Table 1.
Optional : Male DIN plug connector according to ISO4400
Coil insulation solenoid valves
Insulation material according to class F.
Electrical protection
IP54
IP65 on request.
Valve body
Aluminium alloy die--cast
Bottom plug
Rp 1/4" for Closed Position Indication (CPI) switch.
Strainer
AISI 303 steel
Closing spring
AISI 302 steel
Valve plunger
Chrome plated Fe 360B steel sliding on anti--friction bearing.
Seals and gaskets
Hydrocarbon resistant NBR rubber type
Optional : Viton rubber type
Standards and Approvals
Class "A" valve in accordance with EN161 standards.
The VE4000 Series gas valves conform with the following
EC directives:
• Gas Appliance Directive (90/396/EEC) PIN: CE--0063AP3075/1
• Low Voltage Directive (73/23/EEC)
• Electro Magnetic Compatibility Directive (89/336/EEC)
| VE4000A1 Series, Class "A" Normally Closed solenoid valve, ON/OFF. | ||||||||||||||
| O.S. Number | Rated Voltage(Vac) | Connect(inch) | DN | MaximumOperating (mbar) | Overall Dimensions(mm) | (W) | Enclosure | Weight(kg) | BottomPlug | DINPlug | Viton | |||
| A | B | C | D | |||||||||||
| VE4010A1006 | 220 ... 240 | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4010A1030 | 220 ... 240 | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4010A1048 | 220 ... 240 | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | √ | √ |
| VE4010A1014 | 110 | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE8010A1010 | 24 .. . 28Vdc | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE8010A1028 | 24 .. . 28Vdc | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE8010A1002 | 24 | 3/8 | 10 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4015A1005 | 220 ... 240 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4015A1039 | 220 ... 240 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP65 | 1.1 | -- | -- | -- |
| VE4015A1070 | 220 ... 240 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP65 | 1.1 | -- | -- | -- |
| VE4015A1013 | 110 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4015A1054 | 110 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP65 | 1.1 | -- | -- | -- |
| VE8015A1001 | 24 | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE8015A1019 | 24 .. . 28Vdc | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE8015A1027 | 12Vdc | 1/2 | 15 | 360 | 72 | 112 | 52 | 85 | 14 | IP54 | 1.1 | -- | -- | -- |
| VE4020A1005 | 220 ... 240 | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 20 | IP54 | 1.9 | √ | -- | -- |
| VE4020A1062 | 220 ... 240 | 3/4 | 20 | 360 | 86 | 156 | 70 | 96 | 20 | IP54 | 1.9 | √ | -- | -- |
| VE4020A1104 | 220 ... 240 | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 20 | IP54 | 1.9 | √ | √ | -- |
| VE4020A1054 | 110 | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 18 | IP54 | 1.9 | √ | -- | -- |
| VE4020A1088 | 110 | 3/4 | 20 | 360 | 86 | 156 | 70 | 96 | 21 | IP54 | 1.9 | √ | -- | -- |
| VE4020A1096 | 110 | 3/4 | 20 | 360 | 86 | 156 | 70 | 96 | 21 | IP54 | 1.9 | √ | -- | √ |
| VE8020A1019 | 24 .. . Vdc | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 21 | IP54 | 1.9 | √ | -- | -- |
| VE8020A1001 | 24 | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 21 | IP54 | 1.9 | √ | -- | -- |
| VE8020A1027 | 12Vdc | 3/4 | 20 | 200 | 86 | 156 | 70 | 96 | 21 | IP54 | 1.9 | √ | -- | -- |
| VE4025A1004 | 220 ... 240 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 20 | IP54 | 2.0 | √ | -- | -- |
| VE4025A1061 | 220 ... 240 | 1 | 25 | 360 | 100 | 156 | 75 | 96 | 20 | IP54 | 2.0 | √ | -- | -- |
| VE4025A1095 | 220 ... 240 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 20 | IP54 | 2.0 | √ | -- | -- |
| VE4025A1053 | 110 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 18 | IP54 | 2.0 | √ | √ | -- |
| VE4025A1103 | 110 | 1 | 25 | 360 | 100 | 156 | 75 | 96 | 21 | IP54 | 2.0 | √ | -- | -- |
| VE4025A1187 | 110 | 1 | 25 | 360 | 100 | 156 | 75 | 96 | 21 | IP65 | 2.0 | √ | -- | -- |
| VE4025A1111 | 110 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 21 | IP65 | 2.0 | √ | -- | -- |
| VE4025A1129 | 110 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 21 | IP65 | 2.0 | √ | √ | √ |
| VE8025A1018 | 24 .. . 28Vdc | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 21 | IP54 | 2.0 | √ | -- | -- |
| VE8025A1034 | 24 .. . 28Vdc | 1 | 25 | 360 | 100 | 156 | 75 | 96 | 21 | IP54 | 2.0 | √ | √ | -- |
| VE8025A1000 | 24 | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 21 | IP54 | 2.0 | √ | -- | -- |
| VE8025A1026 | 12Vdc | 1 | 25 | 200 | 100 | 156 | 75 | 96 | 21 | IP54 | 2.0 | √ | -- | -- |
| VE4032A1000 | 220 ... 240 | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 40 | IP54 | 5.8 | √ | -- | -- |
| VE4032A1018 | 110 | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 47 | IP54 | 5.8 | √ | -- | -- |
| VE4032A1067 | 110 | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 47 | IP65 | 5.8 | √ | -- | -- |
| VE8032A1014 | 24 .. . 28Vdc | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 53 | IP54 | 5.8 | √ | -- | -- |
| VE8032A1022 | 24 .. . 28Vdc | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 53 | IP54 | 5.8 | √ | √ | -- |
| VE8032A1006 | 24 | 1 1/4 | 32 | 200 | 150 | 214 | 110 | 118 | 53 | IP54 | 5.8 | √ | -- | -- |
| VE4040A1003 | 220 ... 240 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 40 | IP54 | 5.8 | √ | -- | -- |
| VE4040A1094 | 220 ... 240 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 40 | IP65 | 5.8 | √ | -- | -- |
| VE4040A1102 | 220 ... 240 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 40 | IP65 | 5.8 | √ | √ | -- |
| VE4040A1052 | 110 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 47 | IP54 | 5.8 | √ | -- | -- |
| VE4040A1086 | 110 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 47 | IP65 | 5.8 | √ | -- | -- |
| VE8040A1017 | 24 .. . 28Vdc | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 53 | IP54 | 5.8 | √ | -- | -- |
| VE8040A1009 | 24 | 1 1/2 | 40 | 200 | 150 | 214 | 110 | 118 | 53 | IP54 | 5.8 | √ | -- | -- |
| VE4050A1002 | 220 ... 240 | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 41 | IP54 | 6.4 | √ | -- | -- |
| VE4050A1077 | 220 ... 240 | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 41 | IP65 | 6.4 | √ | -- | -- |
| VE4050A1051 | 110 | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 48 | IP54 | 6.4 | √ | -- | -- |
| VE4050A1085 | 110 | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 48 | IP65 | 6.4 | √ | -- | -- |
| VE8050A1016 | 24 .. . 28Vdc | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 50 | IP54 | 6.4 | √ | -- | -- |
| VE8050A1008 | 24 | 2 | 50 | 200 | 170 | 220 | 135 | 123 | 50 | IP54 | 6.4 | √ | -- | -- |
| VE4065A1000 | 220 ... 240 | 2 1/2 | 65 | 200 | 225 | 290 | 170 | 145 | 73 | IP54 | 12.2 | √ | -- | |
