SS441A
Inventory: 1000
$0.45Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Unipolar |
| Operating Supply Current | 10 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 55 G to 115 G |
| Release Point Min/Max (Brp) | 20 G to 95 G |
| Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |

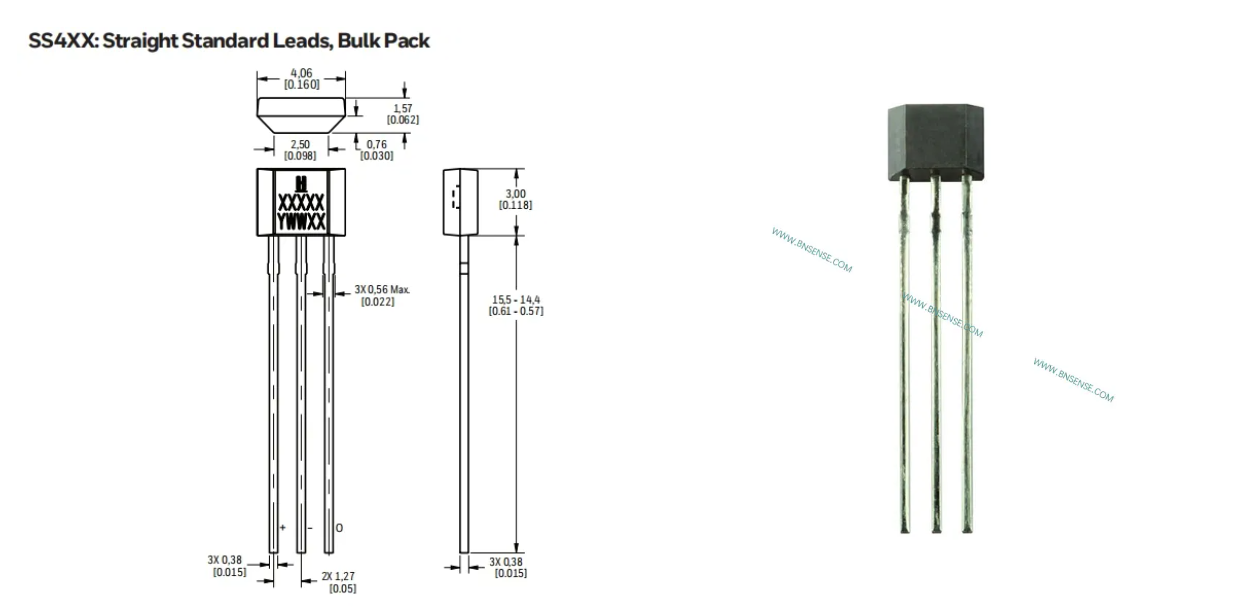

| Package / Case | TO-92-Flat-3 |
| Packaging | Bulk |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 3.8 V |
