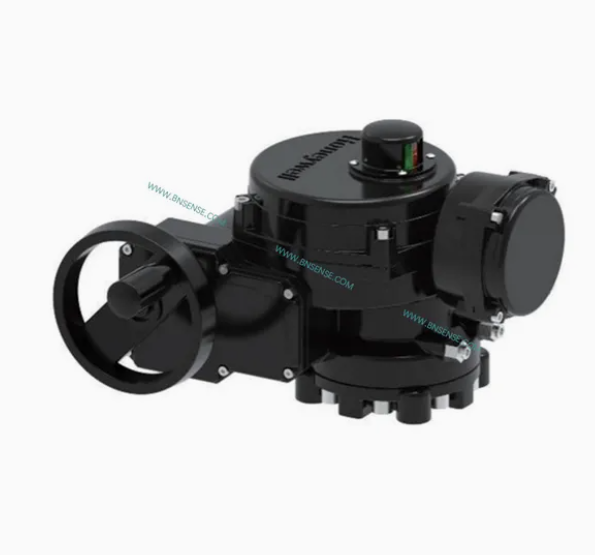

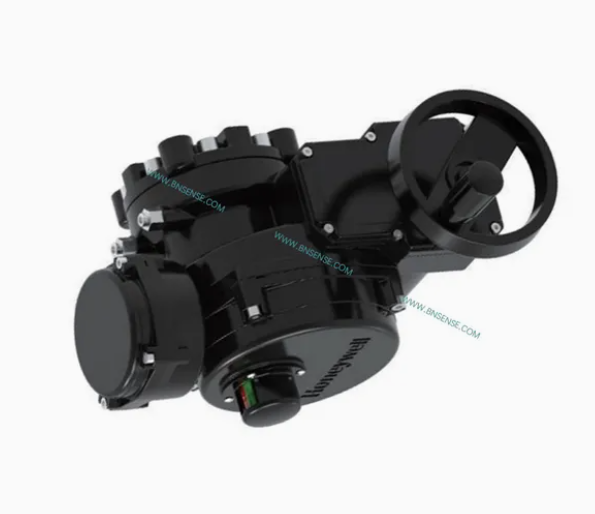

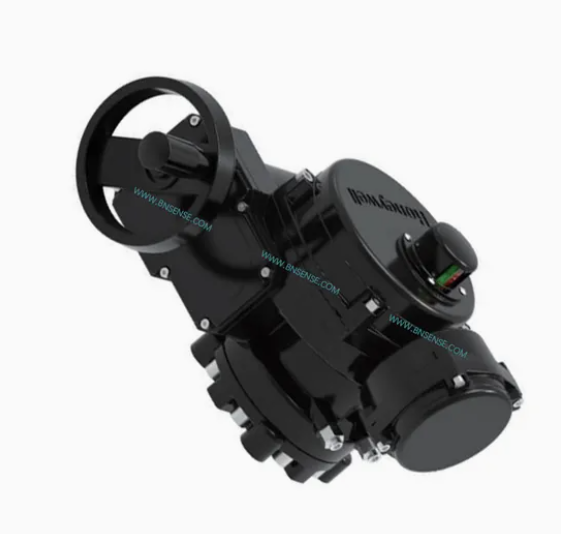

NOM16H0200P

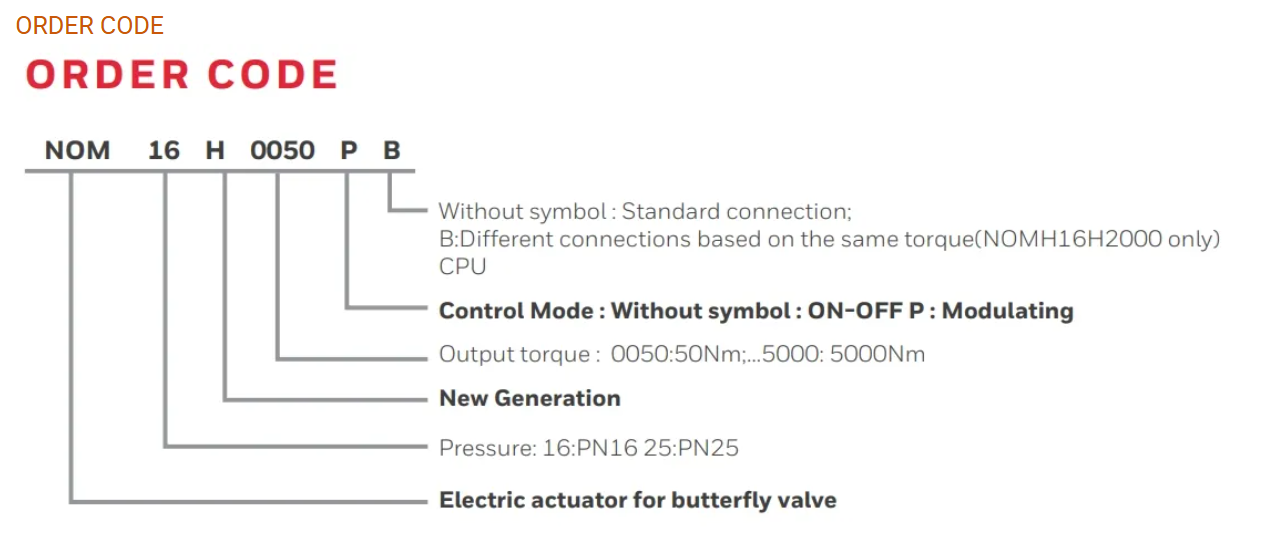

Product Description
NOM...H... series electric actuators for butterfly valves are suitable for V8 and V9 series,which are used in water systems such as buildings/public buildings/urban pipe networks control, it's possible to offer ON-OFF control and modulating control as option,and 4~20mA ,0~10V/2-10V signals are available for the modulating control.
TECHNICAL DATA
| Electrical data | ||
| Power Supply | AC220V±10% 50/60HZ | |
| Limit switch | 2 ×SPDT ,250VAC 5A | |
| Auxiliary switch | 2 ×SPDT ,250VAC 5A | |
| Cable entries | 2 × M20*1.5 | |
| ON-OFF Type (NOM...) | Input signal:ON-OFF;Output signal:ON-OFF+Dry contact | |
| Modulating Type (NOM... P) | Input signal:4~20mA(Default),0~10V/2~10V/0~20mA adjustableOutput signal: Dry contact+ 4~20mA(Default),0~10V/2~10V/0~20mA adjustable | |
| Functional data | ||
| Torque range | 50-5000Nm | |
| Angle of rotation | 90° | |
| Manual operation | Handwheel | |
| Mounting base | ISO5211 standard | |
| Position indicator | 3D indicator | |
| Safety | ||
| Degree of protection | IP67,(IP68 as option) | |
| CE | EMC:2014/30/EULVD: 2014/35/EU | |
| Ambient temperature | -30ºC~ 65° C | |
| Thermal protection | Built-in thermal protection starting 125° C±5° C | |
| Status of power Lost | Stop | |
| Status of signal Lost | 4~20mA/2~10V:Fully open/Fully closed adjustable(Default:Stop)0~10V:Fully closed | |
| Double anti-condensationprotection | Heater AC220V,5WAnti-condensation Vent plug | |
| counter unit | Built-in counter unit to record the running times (200Nm-5000Nm) | |
Matching table of butterfly valve and Electric actuator (Close-off pressure of below items:1000kpa)
| Size | ON/OFF | Modulating | Actuator Torque Nm | Runningtime(50Hz) | MotorConsumption(VA) | Heater(W) | |
| DN50 | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 | |
| DN65 | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 | |
| DN80 | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 | |
| DN100 | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 | |
| DN125 | NOM16H0080 | NOM16H0080P | 80 | 30 | 48 | 5 | |
| DN150 | NOM16H0200 | NOM16H0200P | 200 | 30 | 92 | 5 | |
| DN200 | NOM16H0200 | NOM16H0200P | 200 | 30 | 92 | 5 | |
| DN250 | NOM16H0400 | NOM16H0400P | 400 | 30 | 136 | 5 | |
| DN300 | NOM16H0400 | NOM16H0400P | 400 | 30 | 136 | 5 | |
| DN350 | NOM16H1000B | NOM16H1000BP | 1000 | 54 | 220 | 5 | |
| DN400 | NOM16H2000 | NOM16H2000P | 2000 | 70 | 286 | 5 | |
| DN450 | NOM16H2000B | NOM16H2000BP | 2000 | 70 | 286 | 5 | |
| DN500 | NOM16H4000B | NOM16H4000BP | 4000 | 140 | 286 | 5 | |
| DN600 | NOM16H4000B | NOM16H4000BP | 4000 | 140 | 286 | 5 | |

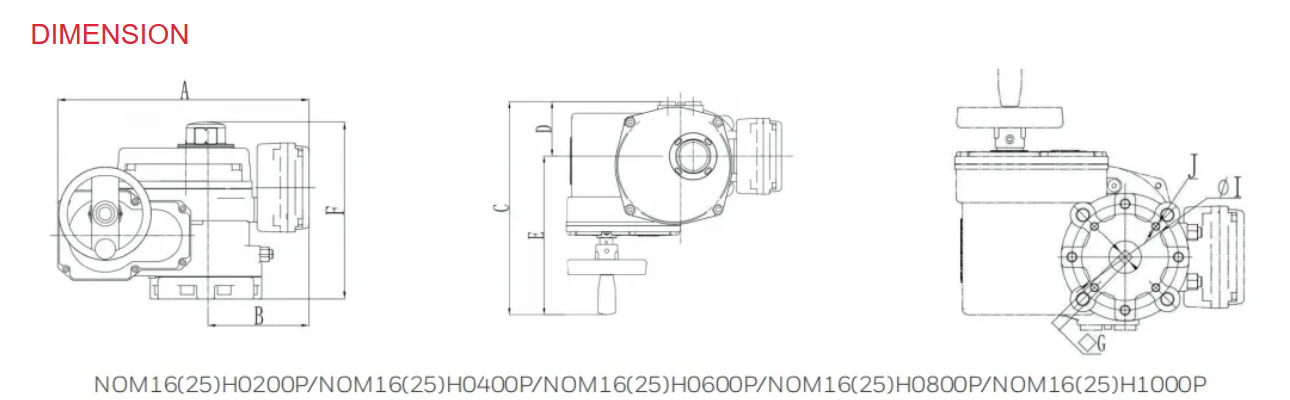

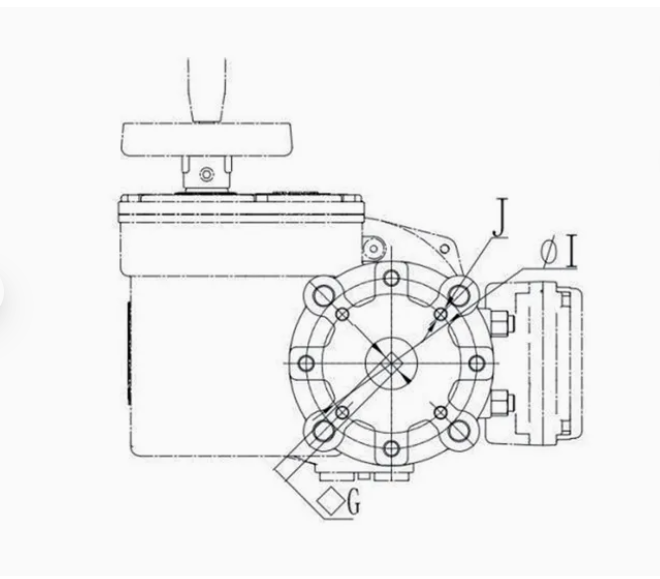

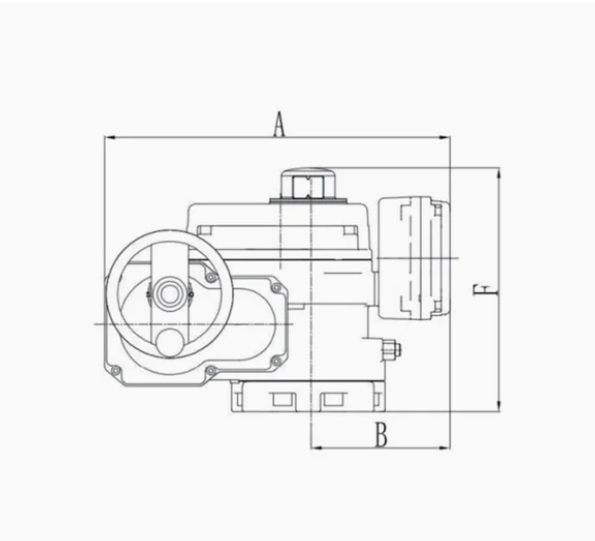

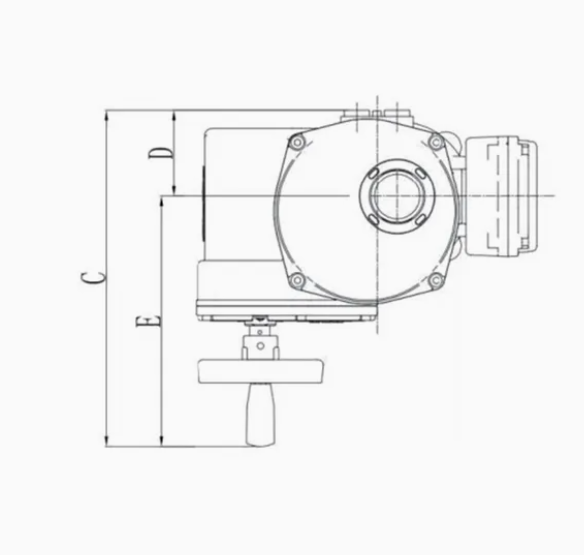

| Size | Dimension(mm) | |||||||
| A | B | C | D | E | F | Weight(Kg) | ||
| NOM16(25)H0050 | 166 | 52 | 236 | 66 | 170 | 180 | 3.3 | |
| NOM16(25)H0080 | 166 | 52 | 236 | 66 | 170 | 180 | 3.5 | |
| NOM16(25)H0200 | 243 | 84 | 342 | 82 | 260 | 214 | 10 | |
| NOM16(25)H0400 | 243 | 84 | 342 | 82 | 260 | 214 | 10.5 | |
| NOM16(25)H0600 | 243 | 84 | 342 | 82 | 260 | 214 | 11 | |
| NOM16(25)H0800 | 265 | 90 | 355 | 86 | 269 | 239 | 15.5 | |
| NOM16(25)H1000(B) | 265 | 90 | 355 | 86 | 269 | 239 | 16 | |
| NOM16(25)H2000(B) | 380 | 241 | 406 | 137 | 269 | 420 | 52 | |
| NOM16(25)H4000(B) | 380 | 241 | 406 | 137 | 269 | 420 | 55 | |
| NOM16(25)H5000 | 380 | 241 | 406 | 137 | 269 | 420 | 57 | |
| NOM16(25)H0050P | 234 | 121 | 236 | 66 | 170 | 180 | 4.5 | |
| NOM16(25)H0080P | 234 | 121 | 236 | 66 | 170 | 180 | 4.7 | |
| NOM16(25)H0200P | 303 | 132 | 342 | 82 | 260 | 214 | 11.2 | |
| NOM16(25)H0400P | 303 | 132 | 342 | 82 | 260 | 214 | 11.7 | |
| NOM16(25)H0600P | 303 | 132 | 342 | 82 | 260 | 214 | 12.2 | |
| NOM16(25)H0800P | 343 | 143 | 355 | 86 | 269 | 239 | 16.7 | |
| NOM16(25)H1000P(B) | 343 | 143 | 355 | 86 | 269 | 239 | 17.2 | |
| NOM16(25)H2000P(B) | 420 | 241 | 406 | 137 | 269 | 425 | 53.2 | |
| NOM16(25)H4000P(B) | 420 | 241 | 406 | 137 | 269 | 425 | 56.2 | |
| NOM16(25)H5000P | 420 | 241 | 406 | 137 | 269 | 425 | 58.2 | |
