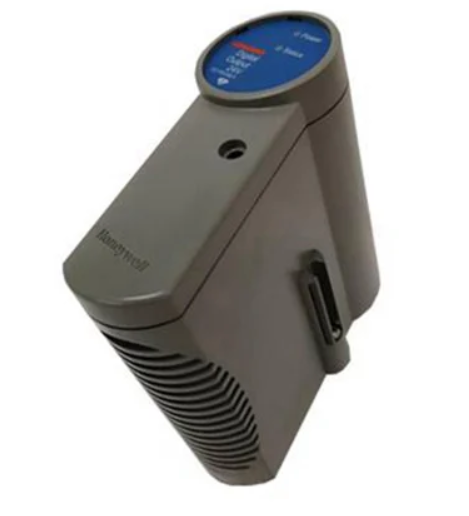

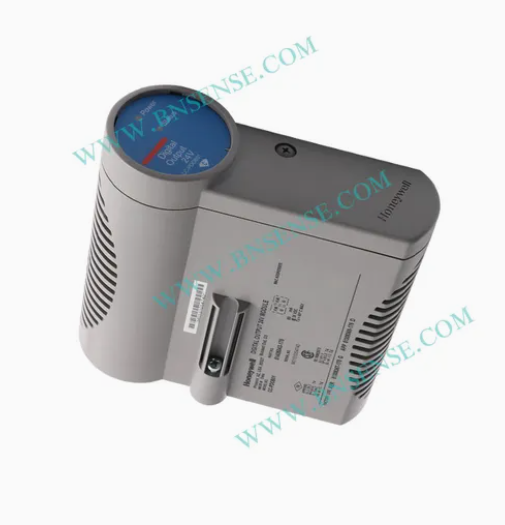

CC-PDOB01

CC-PDOB01 is a Honeywell Digital Output Module with a 24V output is used in building automation and control systems. It receives control signals and switches external devices on or off based on those signals.

Specifications:

• Manufacturer: Honeywell
• Product No.: CC-PDOB01
• Product Type: Digital Output 24V Module
• Digital Output 24V Bussed Out 32 Card
• Output Channels: 32
• Load Voltage: Maximum 30VDC
• Galvanic Isolation: 1500 VAC RMS or ±1500 VDC
• On-State Voltage: 24 V (typical), load current @ 0.5A
• Off-State Voltage: 0V VDC (maximum) (3.3VDC maximum indicated under no-load condition)
• Off-State Leak Current: 0.5 µA (maximum)
• Turn-On/Turn-Off Time: 10 ms (maximum)
