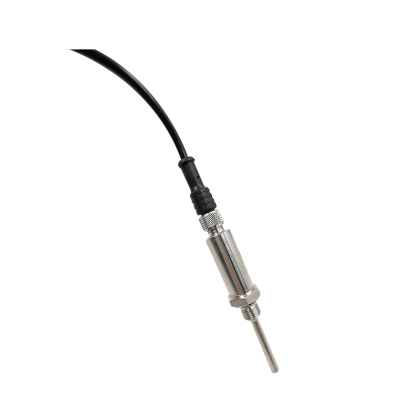

TP110 compact temperature transmitter

The TP110 compact temperature transmitter uses the resistance of platinum resistance to change with temperature and shows a certain functional relationship to measure the temperature of the measured medium. The product is composed of temperature sensor, compensation circuit and conversion circuit. It has the advantages of stable performance, high sensitivity and strong reliability.


1、Integrated compact design

2、Can output 4-20mA standard signal, can also output Pt100 resistance signal

3、A variety of mechanical connection methods, various threads, clamps, sanitary, etc.

Performance parameter

Shell  Outer diameter: φ18mm; material: stainless steel AISI 304 (1.4031)
Electrical InterfaceM12 plug, 4-pin
Output signal4~20mA two-wire system or Pt100 resistance
Supply voltage   DC 9-30V
Temperature range  -40℃~+300℃ (with standard heat sink)
Minimum temperature range  20℃
PrecisionGrade A,Grade B
AlarmLower limit≤3.6mA or upper limit≥21.5mA
Maximum load  RL≤(Us-9)/25mA
Sensor materialStainless steel AISI 304 (standard); stainless steel AISI 316L (optional)
Sensor diameter  Standard φ6mm, others can be customized
Sensor length<1000mm
Ambient temperature  Pt100 output: -40℃~125℃; with transmitter: -40℃~85℃
Protection levelIP67
Pt100 Class A±(0.15+0.002*t)℃
Wire outlet method of thermal resistanceSingle: 2/3/4 lines optional; Double: 2 lines
