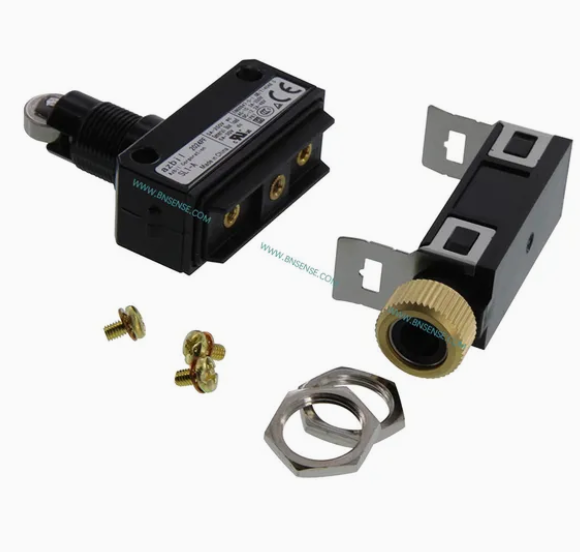

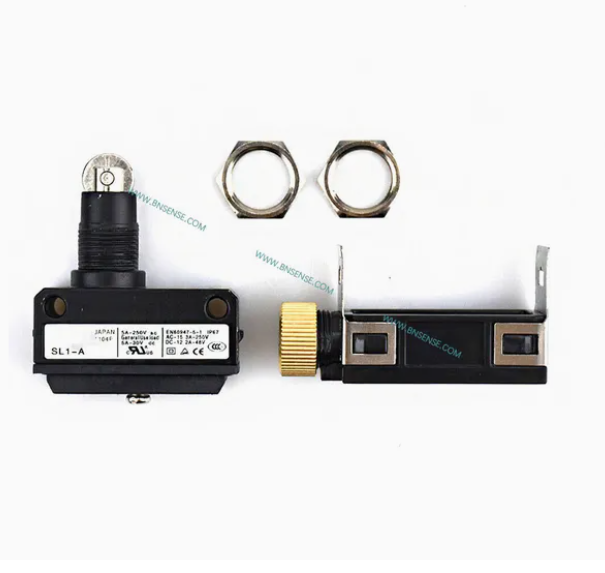

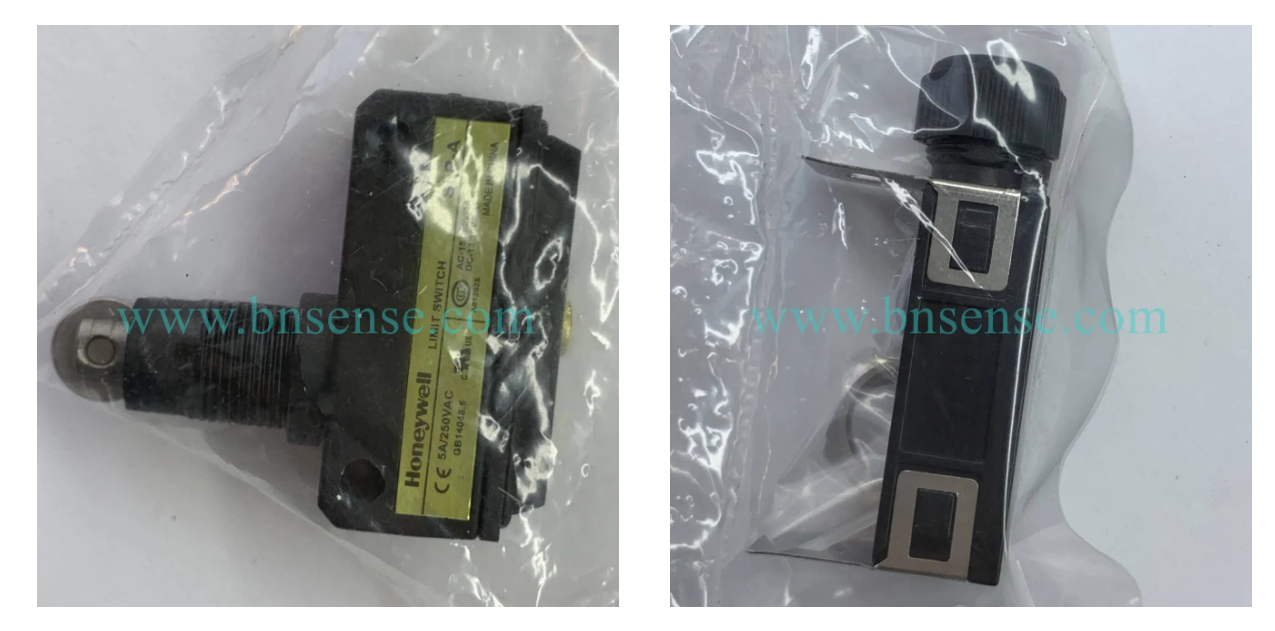

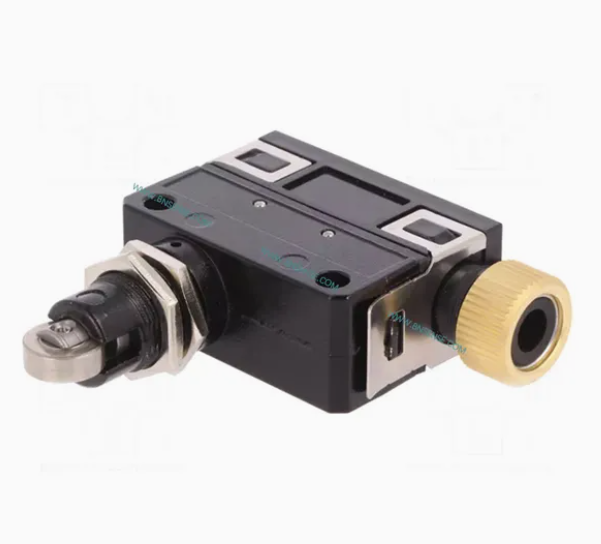

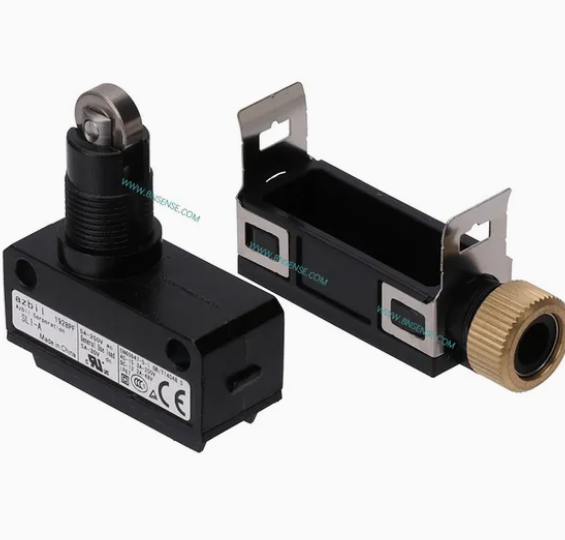

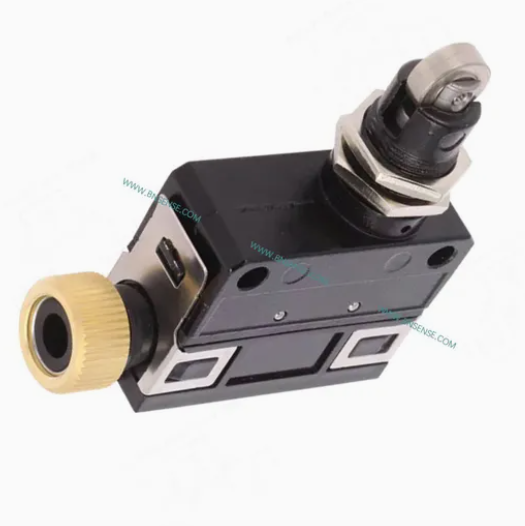

SL1-A
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Limit Switches |
| Illuminated | Non-Illuminated |
| Contact Form | SPDT |
| Actuator | Roller Plunger |
| Current Rating | 5 A |
| Voltage Rating AC | 250 VAC |
| Operating Force | 11.76 N |
| Termination Style | Screw |
| IP Rating | IP67 |
| Actuator Style | Roller Plunger |
| Product Type | Limit Switches |
| Series | SL1 |
| Subcategory | Switches |
| Tradename | Microswitch |
Product Description
The SL1 series compact limit switches are sealed, sensitive, and have a long life. The compact size makes them suitable for the total miniaturization of machinery or equipment.FEATURES• Ideal source of replacement parts for imported machine tools• NEMA 3, 4, 13 and IEC IP 67 sealing• Smaller size saves space• Rugged Zinc diecast housing• Wide product selection to suit many applications• Snap-in terminal enclosures makes mounting and wiring easy• Temperature ranges: standard and low
Applications:
• Robotics
• Light Material Handling
• Machine Tools
• Automotive Factory Floor• Electronic Assembly Equipment
| Product Specifications | |
| Availability | North America; Asia-Pacific; Latin America |
| Operating Force (O.F.) | 11,76 N max. [2.64 lbs max.] |
| Release Force (R.F.) | 4,90 N min. [1.10 lbs min.] |
| Pretravel (P.T.) | 1,5 mm max. [0.060 in max.] |
| Overtravel (O.T.) | 3,0 mm max. [0.118 in max.] |
| Differential Travel (D.T.) | 0,10 mm max. [0.004 in max.] |
| Product Type | Miniature Limit Switches |
| Actuator | Top Roller Plunger |
| Lever Style | None |
| Circuitry | 1 NC 1 NO SPDT Snap Action |
| Ampere Rating | 5.0 A |
| Supply Voltage | 125 Vac, 250 Vac |
| Housing Material | Zinc Die-Cast |
| Termination Type | Cable Gland |
| Series Name | SL1 Series |
| Sealing | IP67, Nema 3, 4, 13 |
| Operating Temperature Range | -10 °C to 70 °C (14 °F to 160 °F) |
| Comment | M3 Terminal screws; 5.8 mm to 9.6 mm outside cable diameter |
| Sealed | Industrial |
