SP-2104PLUS
Product Description

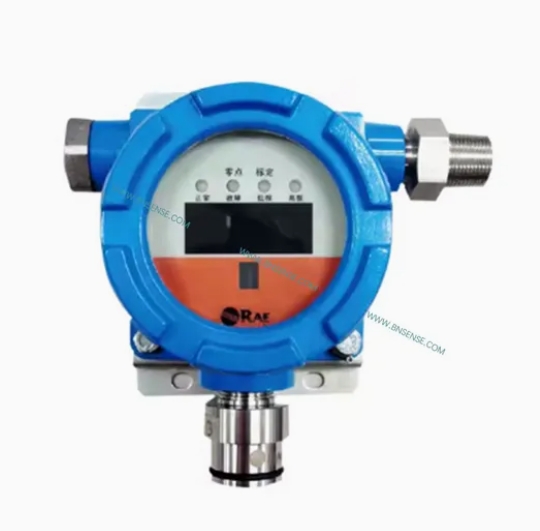

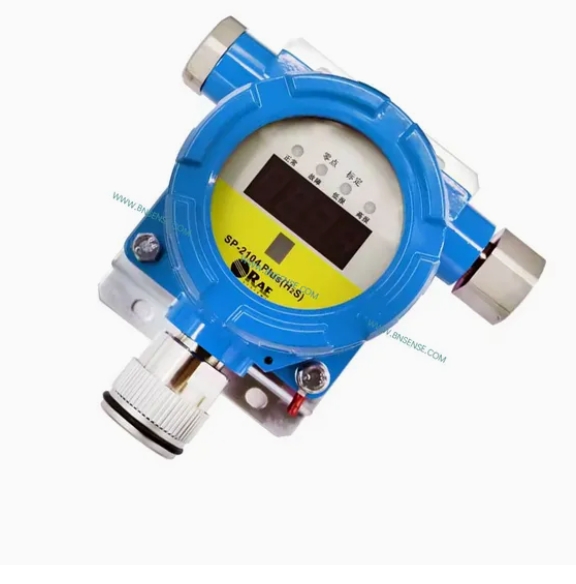

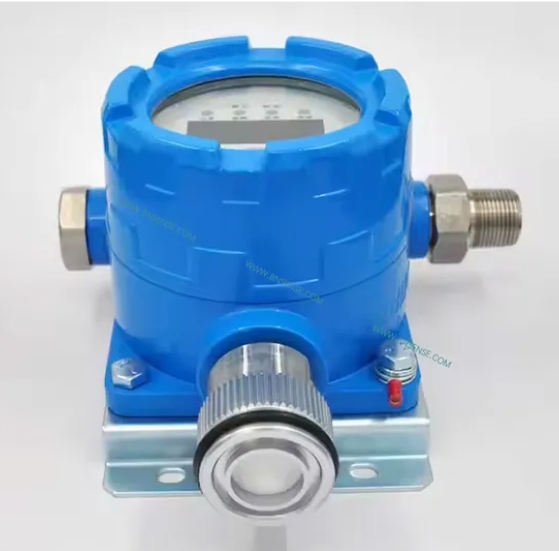

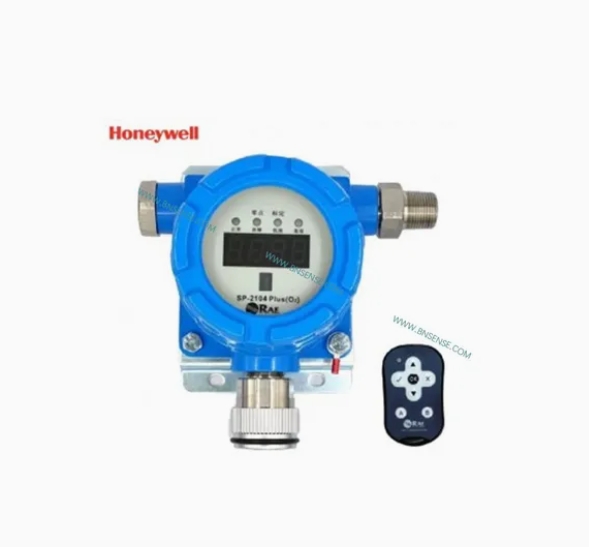

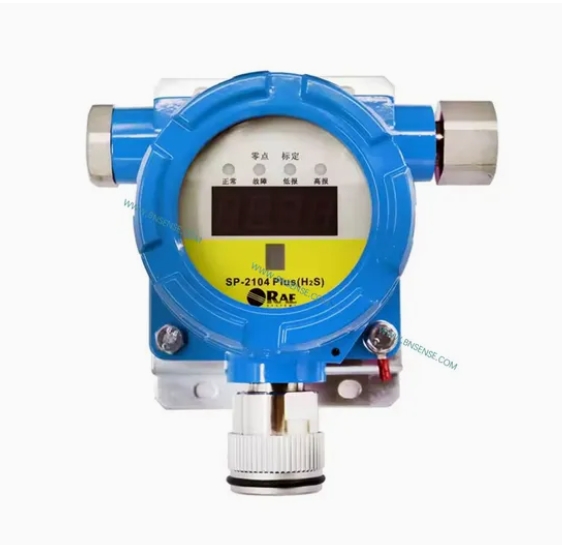

SP-2104Plus is an intelligent toxic and harmful gas detector that adopts explosion-proof structure, intelligent sensor detection technology and fixed installation. Its intelligent processing platform and Smart sensor technology can support multi-gas and multi-range detection. The standard configuration is a four-digit ultra-bright LED display and a three-wire 4~20mA analog signal output; the optional configuration is RS485 Modbus digital signal output and three-level passive switch output, infrared remote control, and sound and light alarm. The detector also supports functions such as output signal fine-tuning, which is convenient for system networking and maintenance.
Ordering Guide
| Model | Measuring Gas | Standard Range | Resolution | Model | Measuring Gas | Standard Range | Resolution | |||||
| SP-2104Plus | CO | 0-2000ppm | 1ppm | SP-2104Plus | NO | 0-250ppm | 1ppm | |||||
| SP-2104Plus | H2S | 0-200ppm | 0.1ppm | SP-2104Plus | NO2 | 0-20ppm | 0.1ppm | |||||
| SP-2104Plus | O2 | 0-30%vol | 0.1%vol | SP-2104Plus | HCN | 0-50ppm | 0.1ppm | |||||
| SP-2104Plus | NH3 | 0-100ppm | 1ppm | SP-2104Plus | HF | 0-10ppm | 0.1ppm | |||||
| SP-2104Plus | Cl2 | 0-50ppm | 0.1ppm | SP-2104Plus | PH3 | 0-20ppm | 0.1ppm | |||||
| SP-2104Plus | SO2 | 0-20ppm | 0.1ppm | SP-2104Plus | H2 | 0-1000ppm | 1ppm | |||||
| SP-2104Plus | ETO(A) | 0-100ppm | 1ppm | SP-2104Plus | ETO(B) | 0-10ppm | 1ppm | |||||
| SP-2104Plus | ETO(C) | 0-500ppm | 1ppm | SP-2104Plus | HCl | 0-30ppm | 0.1ppm | |||||
Technical parameters
| Detection principle | Electrochemistry | |
| Sensor | Smart sensor | |
| Sampling method | Diffusion | |
| Working power supply | 12~28VDC | |
| Maximum power | 80mA@24VDC | |
| Output signal | 4 ~ 20mA, Can be fine-tuned | |
| Load impedance | 600Ω | |
| Detection accuracy | ±2%F.S.(calibration point) | |
| Response time (T90) | <20s | |
| Protection level | IP65 | |
| Electrical interface | 3/4" NPT MOptional 3/4" NPT F,1/2" NPT F/M,G3/4 F/M | |

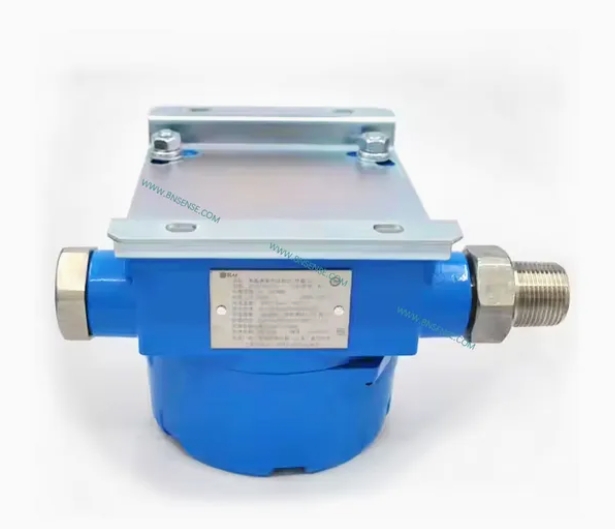

| Installation method | 2" riser / wall mount | |
| Other outputs | RS485 ModbusHigh alarm, low alarm and fault 30VDC/2A, normally open/normally closed selectable | |
| Ambient temperature | -40ºC ~+70ºC(Max. ) -20ºC ~+50ºC (Typical) | |
| Ambient humidity | 0~93% RH(No condensation) | |
| Environmental pressure | 86kPa ~106kPa | |
| Display mode | Four-digit 7-segment ultra-bright display4 LED status and function indicators | |
| Dimension | 176mm×145mm×105mm(HWD) | |
| Shell material | Aluminum alloy | |
| Weight | About 2.0kg | |
| Explosion-proof certification | Ex dia IIC T6 Gb, DIP A21 TA,T6 | |
、
