Q179A1050/U

Product Description

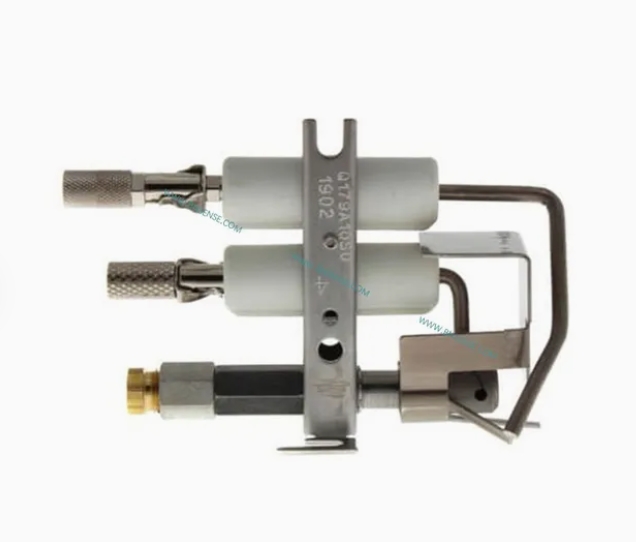

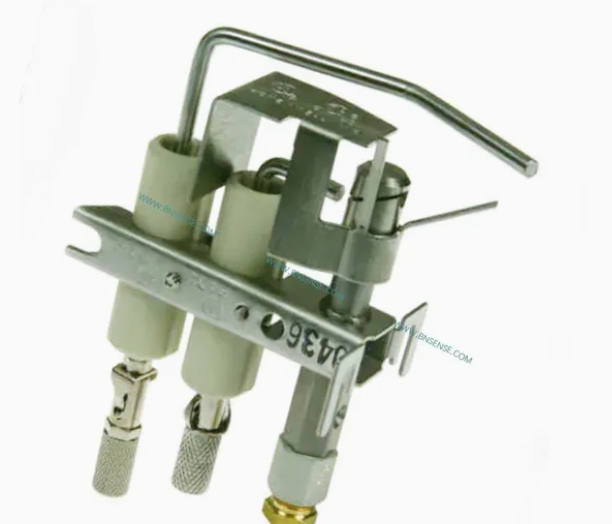

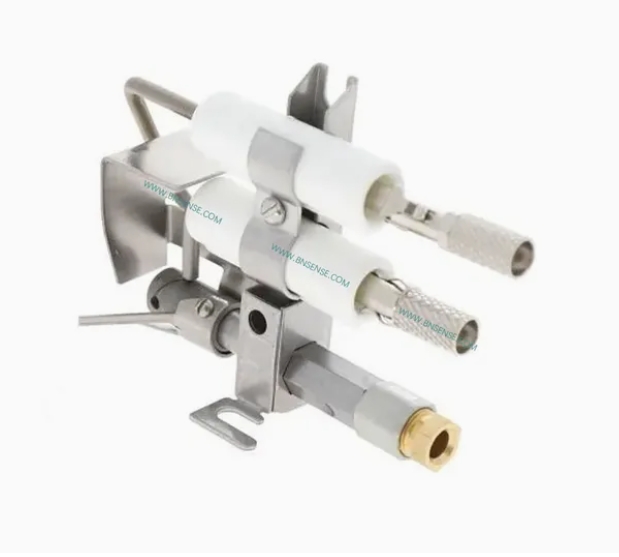

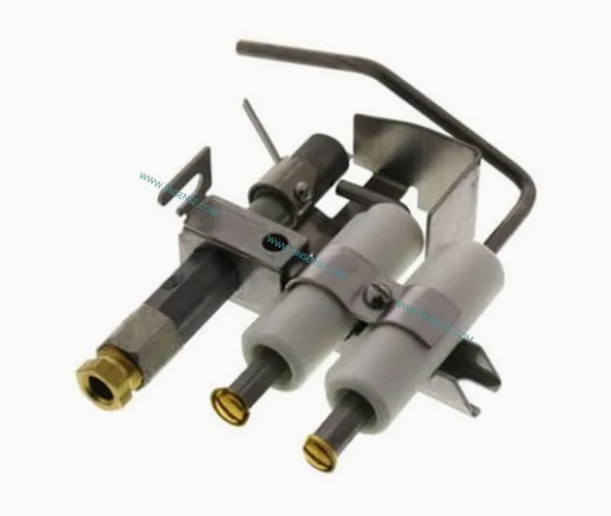

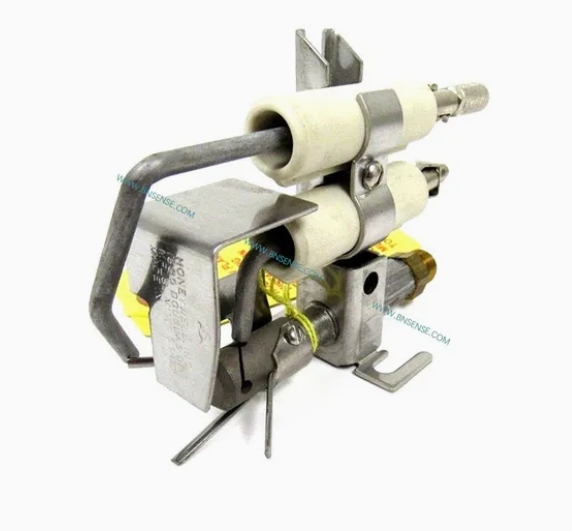

Q179A,B Gas Pilot Burner Assemblies use the flame rectification principle to prove the flame. Q179A,B are used in conjunction with a suitable electronic flame safeguard control on industrial or commercial gas and gas pilot ignited oil burners.FEATURES• Q179A is a gas pilot assembly with a flame electrode (rod) and ignition electrode, making it suitable for applications requiring an interrupted or intermittent electrically ignited gas pilot burner.• Q179A1183 is an ìIî port burner with an ignition electrode (spark) only.• Q179B has only the flame electrode and is suitable for use in continuous pilot applications.• Primary aerated type burner is equipped with stainless steel fins that provide the proper flame rod area to ground area ratio for maximum flame signal and flame stabilization.

SPECIFICATIONS

Model Number:

Q179AóGas pilot assembly with ignition and flame electrodes. Use with intermittent or interrupted ignition. Ignition electrode is for use with 6,000V grounded secondary-ignition transformer. (Q179A1183 has ignition electrode [spark] only.)

Q179BóGas pilot assembly with flame electrode (rod) only. Use with continuous pilot.Burner:

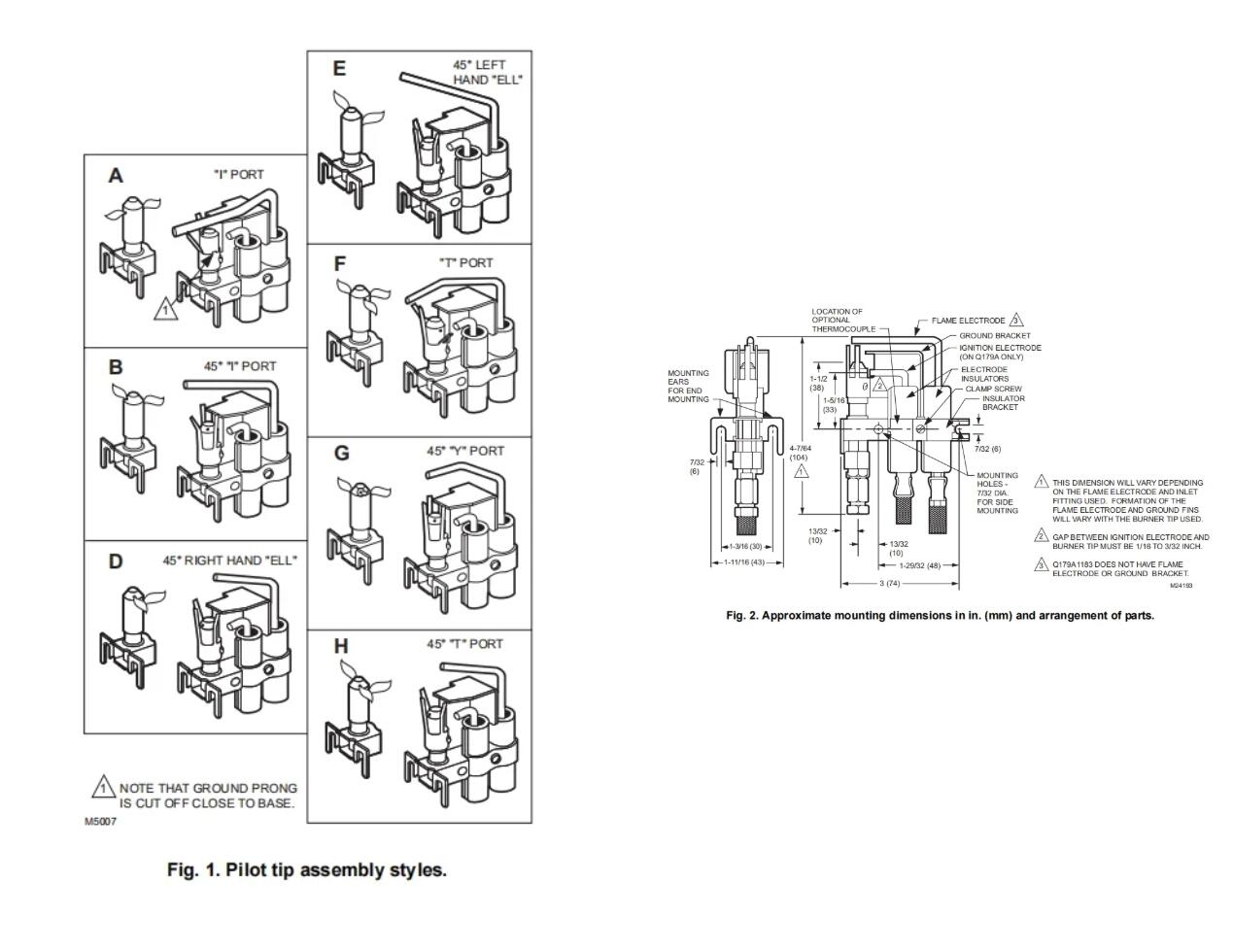

Primary aerated. Stainless steel fins provide proper flame contact area to ground area. Flame electrode and ground bracket are furnished with each tip. Available tips are illustrated in Fig. 1, and listed in Table 1.

Mounting Means:

Bracket has holes for side mounting and two lugs for end mounting.

Type of Gas:

Natural; for LP gas, order LP orifice separately (see Accessories).

Gas Consumption:

Approximately two cu ft/hr.

Electrodes:

Stainless steel, maximum temperature 1750°F (954°C).

Electrode Insulator(s):

Ceramic.

Electrical Connector:

Rajah connector (both male and female supplied).

Approvals:

Underwriters Laboratories Inc. listed, File No. MP268; Industrial Risk Insurers acceptable; CSA certified, Master File No. LR-95329-1; Factory Mutual approved;

American Gas Association certified, No. G140.401.

Mounting Dimensions: See Fig. 2

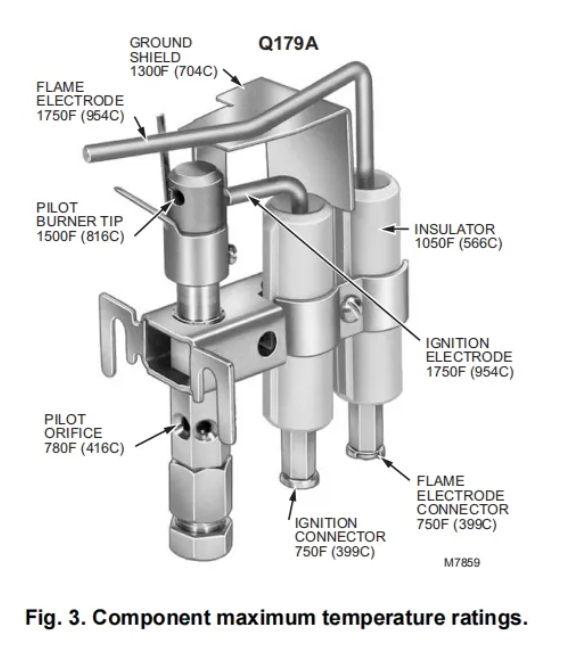

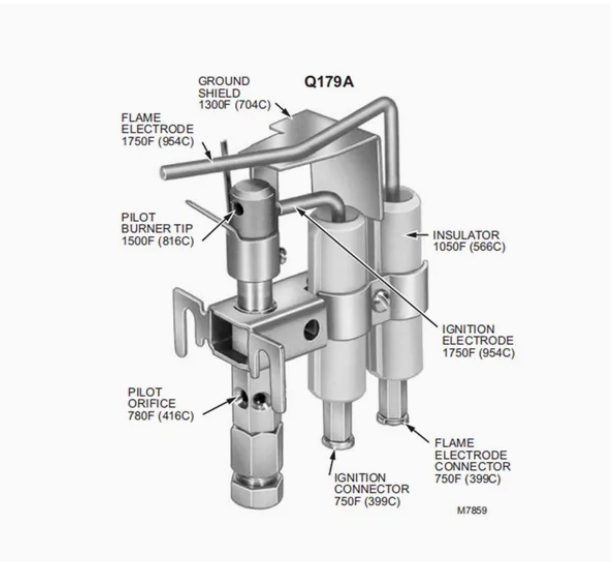

Maximum Temperature: See Fig. 3.

Inlet Fittings:

1/4 inch compression coupling factory-installed on all models.

Replacement Parts (See Table 1):

37356 Rajah Connectorófor ignition electrode.

104312 Rajah Connectorófor flame electrode.

133445A Ignition Electrode and Insulator Assembly.

Accessories:

High temperature (higher than 125°F [52°C]) cable:

Flame Rod Leadwireópart no. R1298020 (specify length) rated at 400°F (204°C).

Ignition Leadwireópart no. R1061012 (specify length), rated at 350°F (177°C).

High Tension Cableópart no. R1239001 (specify length), rated at 220°F (104°C)

^a On some ground areas, one or more prongs were intentionally removed at the factory.

^b Orifice 0.025 in. (0.635 mm) diameter.

^c Orifice 0.0130 in. (0.330 mm) diameter (order separately).

^d Orifice 0.028 in. (0.711 mm) diameter.
