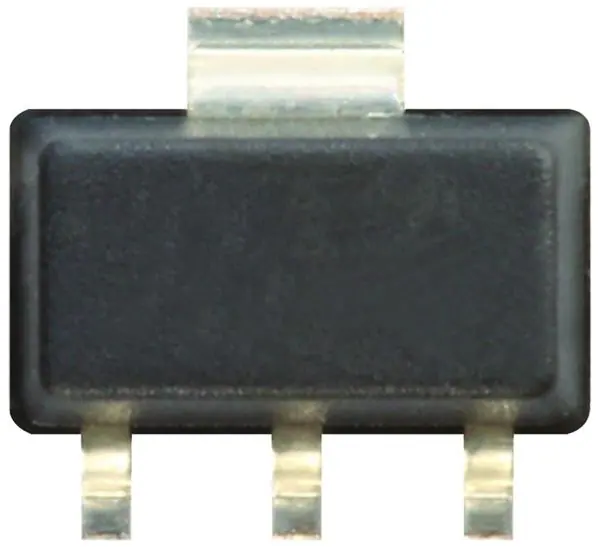

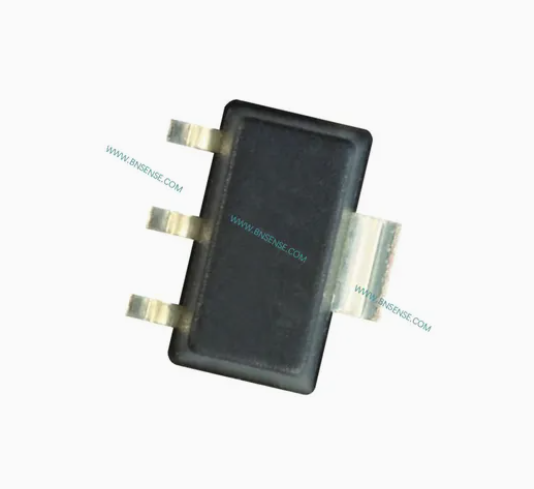

SS566AT
Inventory: 2000
$0.45Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Bipolar |
| Operating Supply Current | 8.7 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 100 G to 180 G |
| Release Point Min/Max (Brp) | - 180 G to - 100 G |
| Operating Supply Voltage | 30 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | SMD/SMT |

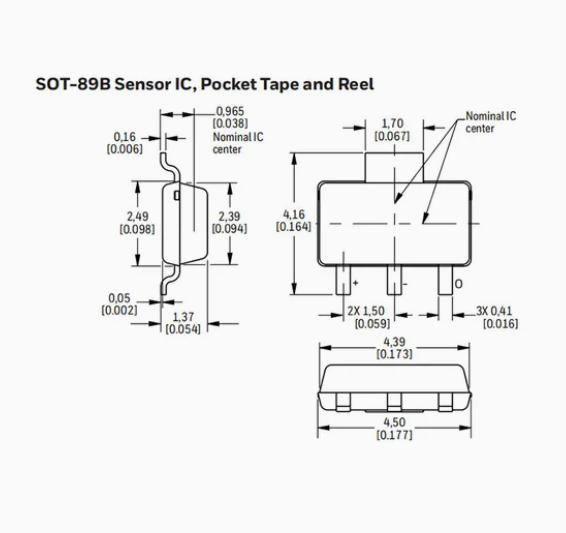

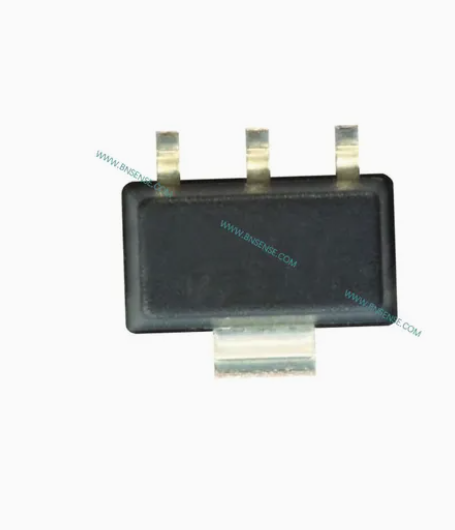

| Package / Case | SOT-89-3 |

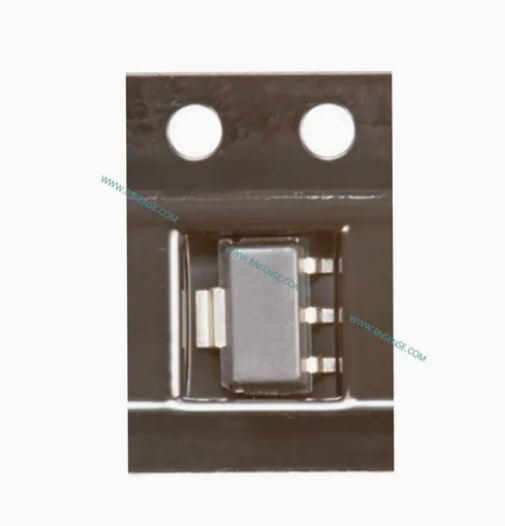

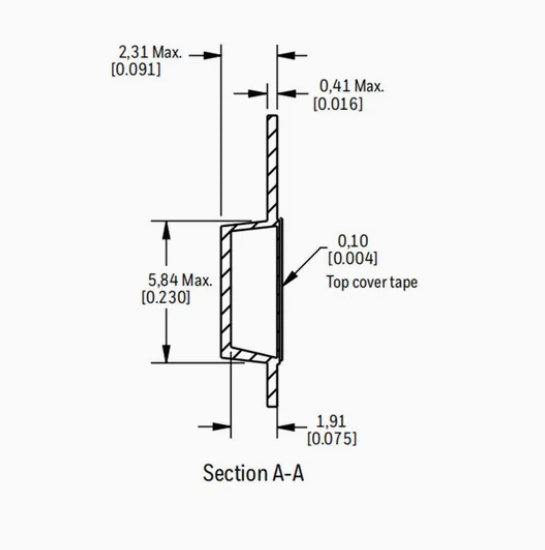

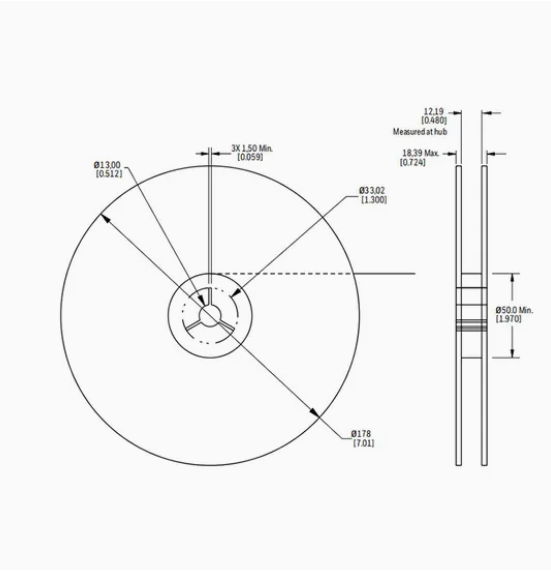

| Packaging | Reel |
| Output Voltage | 400 mVDC |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
