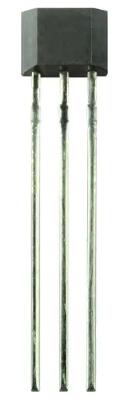

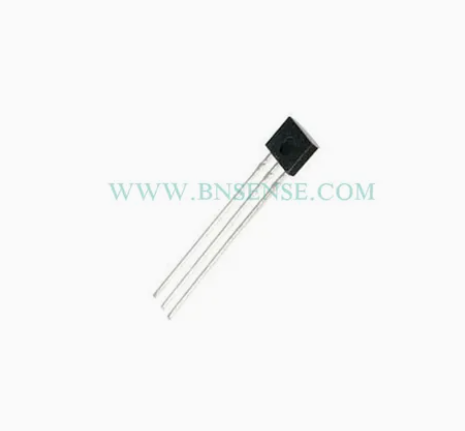

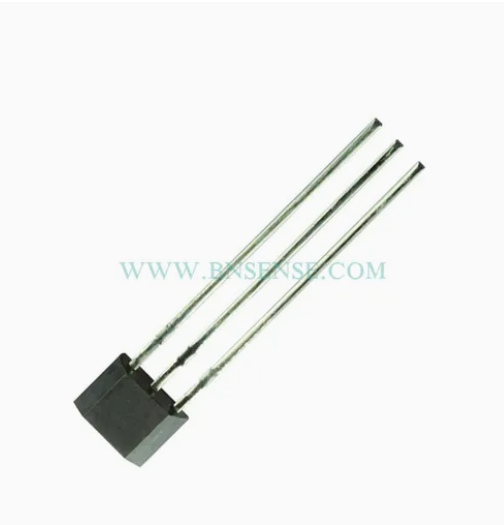

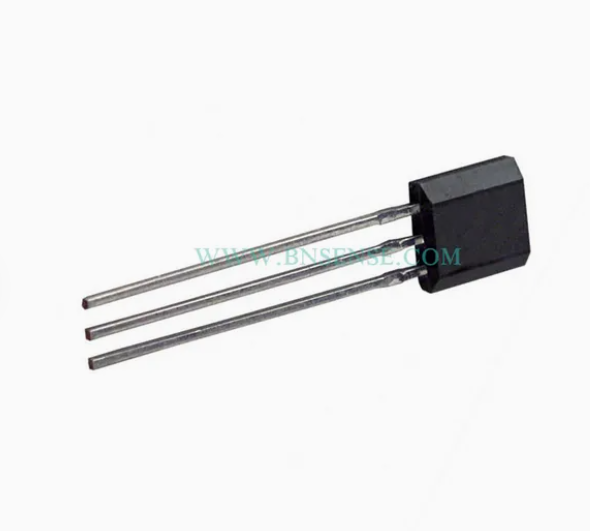

SS449R
Inventory: 3000
$1.7Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Unipolar |
| Operating Supply Current | 3.5 mA |
| Maximum Output Current | 8 mA |
| Operating Point Min/Max | 240 G to 460 G |
| Release Point Min/Max (Brp) | 135 G to 370 G |
| Operating Supply Voltage | 24 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-Flat-3 |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 3 V |
