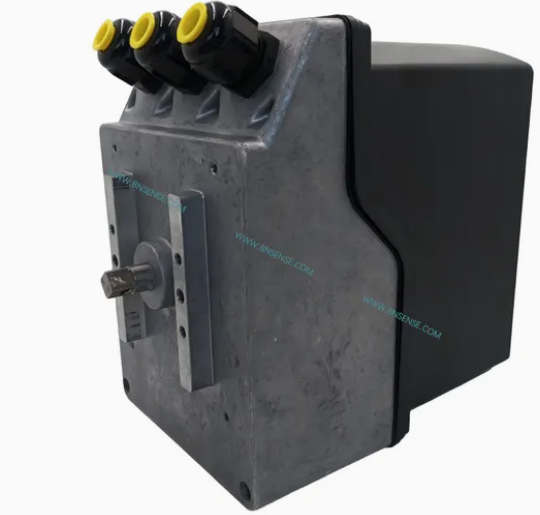

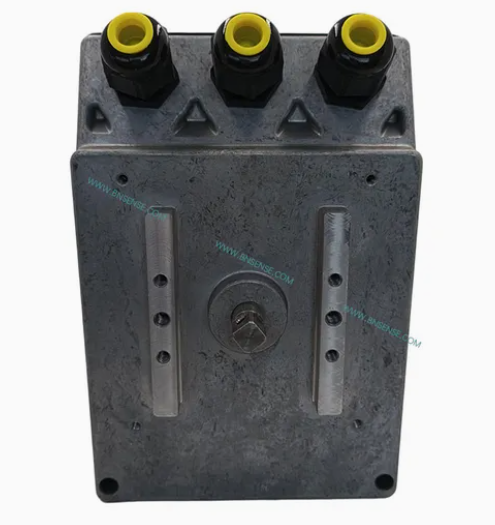

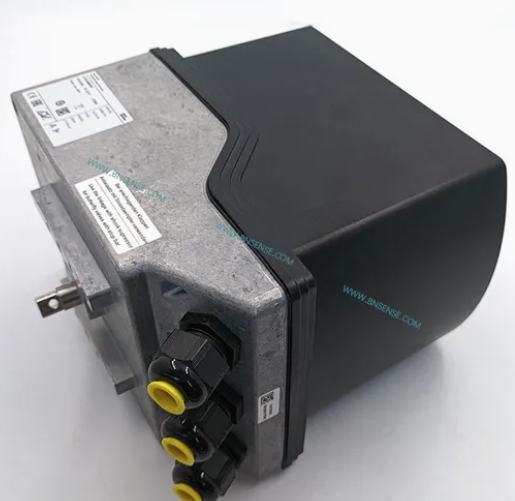

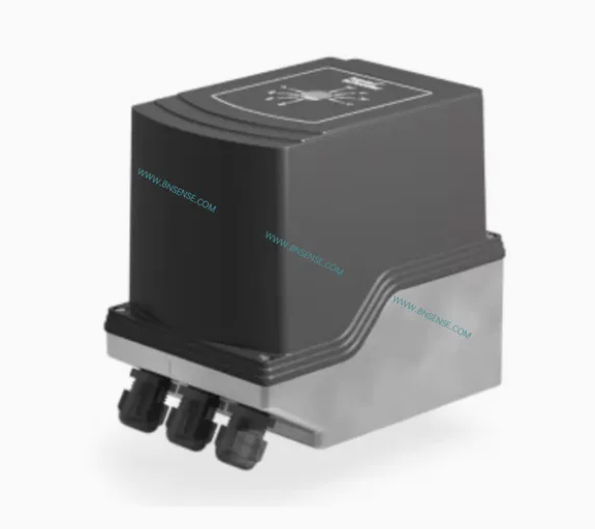

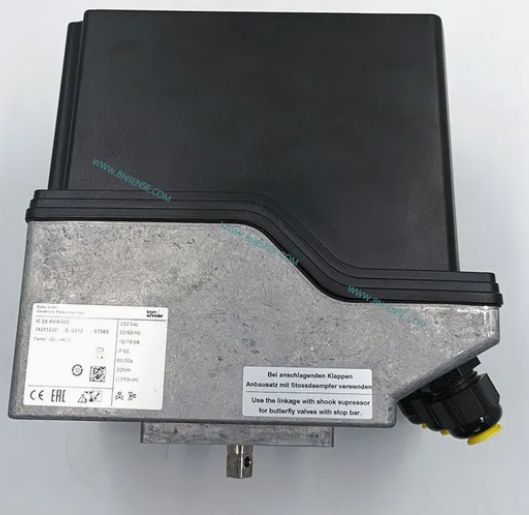

IC 50-60W30E

Product Description

Reversible gear motor to transmit rotary movements between 0 and 90°, for actuation of gas and air valves.
Features & Benefits:

• IC 20, IC 30, IC 50 with voltage-free limit switches, Automatic/Manual mode changeover, position feedback and externally readable position indicator
• IC 50 also with selectable direction of rotation
• IC 40 for complex applications with programmable functions for flexible adjustment to the process, with statistics and fault history to support service personnel
• Running time:
• Mains voltage:
• Torque:
• Controlled by
• Intended use
• Actuator IC 50 is designed for all applications that require precise, controlled rotary movement between 0° and 90°. If the voltage is disconnected, the actuator stops in its current position. The combination of actuator IC 50 and butterfly valve DKR or BVA/BVG is designed to adjust volumes of hot air and flue gas on various appliances and flue gas lines.

• This function is only guaranteed when used within the specified limits - see page 8 (10 Technical data).  Any other use is considered as non-compliant. For information on butterfly valves DKR and BVA/BVG, Butterfly valve DKR and Butterfly valve BV.. operating instructions.
  Order Guide
• IC 50 on butterfly valve DKRPre-assembled combinations of actuator IC 50 and butterfly valve DKR are available as models IDR up to nominal size DN 300.

IC 50 on butterfly valves BVA/BVG

For the assembly of BVA/BVG and IC 50, an adapter set can be supplied.

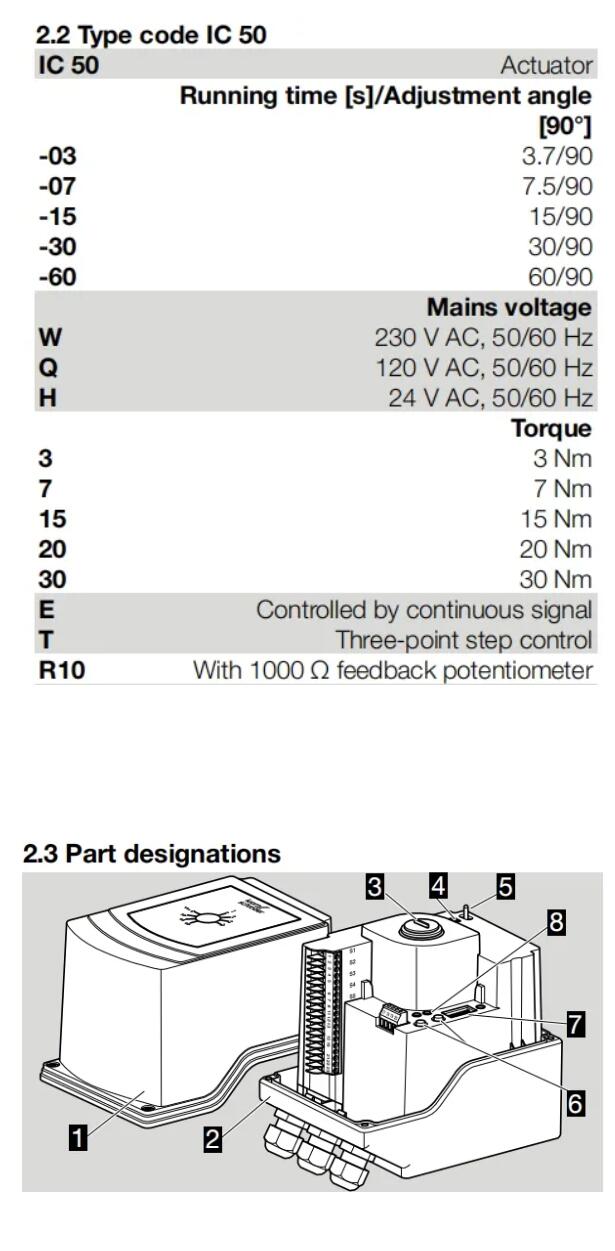

1 Housing cover

2 Cover

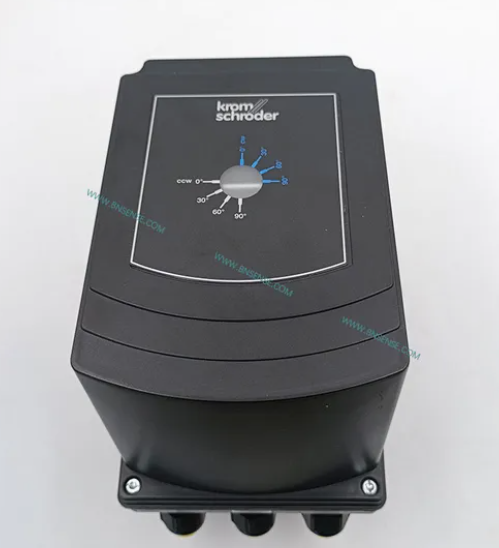

3 Angle-of-rotation indicator

4 Slide switch (S10/S12)

5 Toggle switch (S11)IC 50..E:

6 min/max buttons

7 DIP switches

8 Red and blue LEDs

TECHNICAL DATA

Ambient conditions

Icing, condensation and dew in and on the unit are not permitted.

Avoid direct sunlight or radiation from red-hot surfaces on the unit. Note the maximum medium and ambient temperatures!

Avoid corrosive influences, e.g. salty ambient air or SO2.

The unit may only be stored/installed in enclosed rooms/buildings.

The unit is suitable for a maximum installation height of 2000 m AMSL.

Ambient temperature: -20 to +60°C, no condensation permitted.

Storage temperature: -20 to +40°C.

Enclosure: IP 65, safety class: I.

This unit is not suitable for cleaning with a high-pressure cleaner and/or cleaning products.

Mechanical data

Medium temperature = ambient temperature.

Housing cover: PC + ABS.

Lower housing section: aluminium.

Angle of rotation: 0-90°, adjustable.

Holding torque = torque.

Electrical data

Mains voltage:

24 V AC, -15/+10%, 50/60 Hz,

120 V AC, -15/+10%, 50/60 Hz,

230 V AC, -15/+10%, 50/60 Hz.

Duty cycle: 100%.

Contact rating of the cam switches:

Typical designed lifetime:

1) Typical contactor application (230 V, 50/60 Hz, 22 mA, cos φ = 0.3)
Line entrance for electrical connection:
3 x M20 plastic cable glands.
Screw terminals using the elevator principles for cables up to 4 mm2 (single core cables) and for cables up to 2.5 mm2 with wire end ferrules.
Three-point step signal to terminals 1 and 2: minimum pulse duration: 100 ms, minimum pause between 2 pulses: 100 ms.
