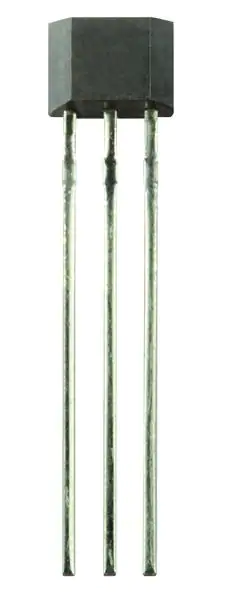

SS449A
Inventory: 500
$1.06Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Unipolar |
| Operating Supply Current | 10 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 310 G to 390 G |
| Release Point Min/Max (Brp) | 235 G to 315 G |
| Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-Flat-3 |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 3.8 V |
