SS349RT

Product Description

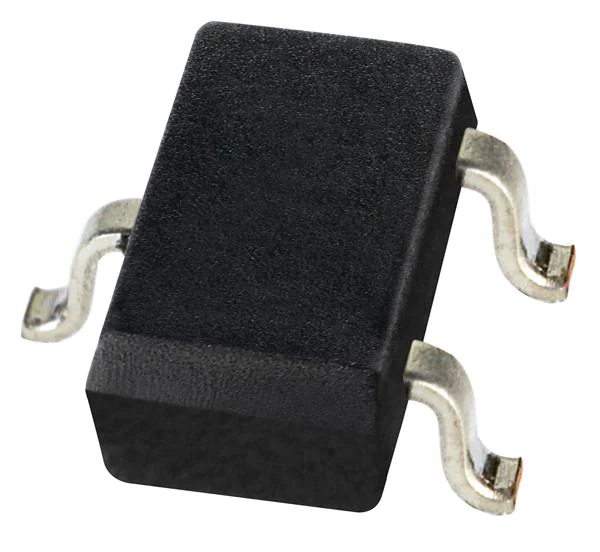

The SS340RT/SS440R sensor ICs are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to a single pole: North (SS340RT) or South (SS440R).

These unipolar Hall ICs are supplied in three different magnetic sensitivities to meet a wide range of potential applications:

• SS341RT and SS441R offer the highest sensitivity, with a typical operating point of 75 G at 25 °C [77 °F].

• SS343RT and SS443R offer medium sensitivity, with a typical operating point of 135 G at 25 °C [77 °F].

• SS349RT and SS449R offer the lowest sensitivity, with a typical operating point of 305 G at 25 °C [77 °F].

These sensors are available in two package styles:

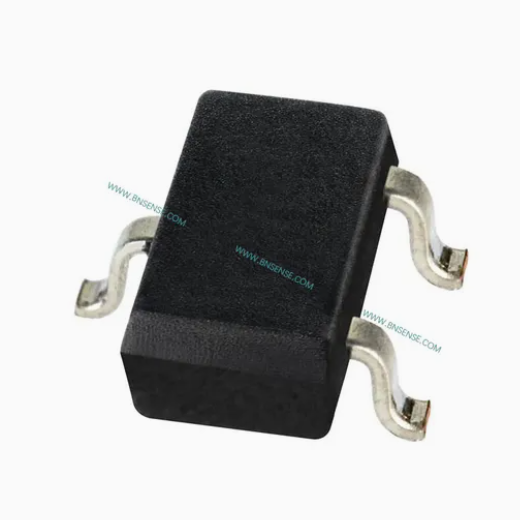

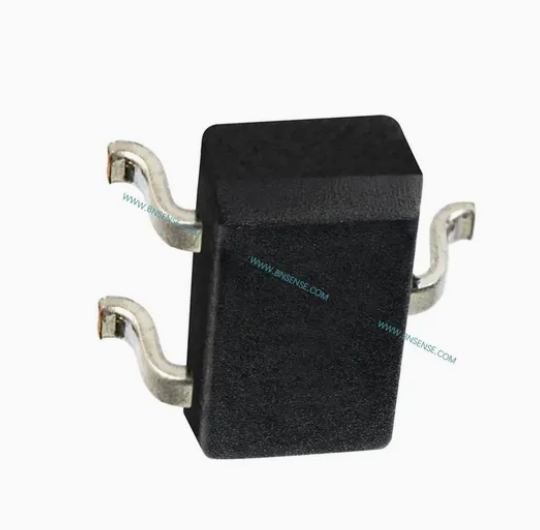

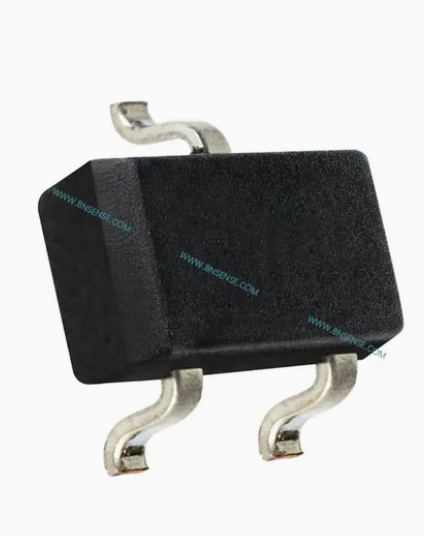

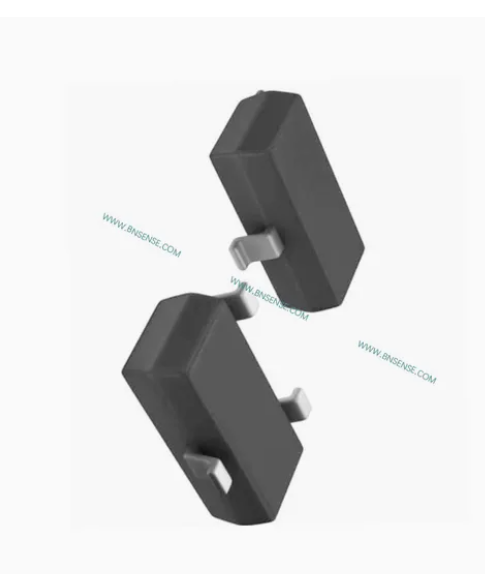

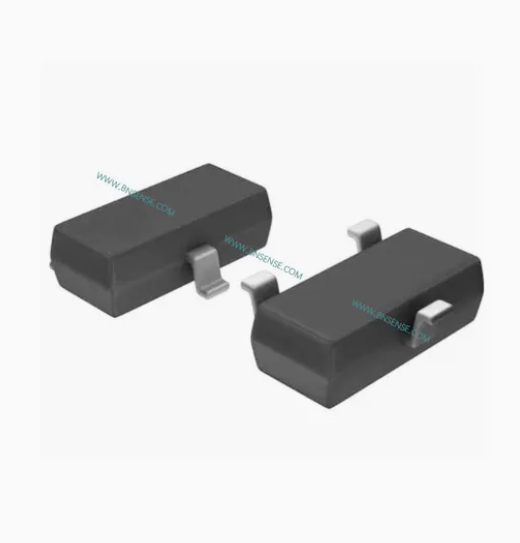

• The SS340RT is available in the miniature SOT-23 surface mount package.

• SS440R is available in the leaded, flat TO-92-style package.

The SS340RT's small size requires less PC board space, allowing it to be used in smaller assemblies. Its 3 Vdc capability allows for use in low voltage applications, promoting energy efficiency.

The SS340RT Series is available on tape and reel (3000 units per reel); the SS440R Series is available in a bulk package (1000 units per bag).

What makes our sensors better:

• Robust IC design with ESD Class 2, reverse polarity protection and 150 °C [302 °F] capability

• Package and sensitivity options to better match application needs

• Dependable performance - similar Honeywell sensor ICs have been tested to over 100 million operations

• Honeywell legacy and expertise - 45 years of engineering excellence and Hall effect technology experience

Features and Benefits

Subminiature package size (SS340RT) supplied on tape and reel

Allows for a compact design with automated component placement, helping to reduce manufacturing costs

Simple activation from a single pole and multiple magnetic sensitivities (high, medium and low)

Make this product suitable in a variety of potential motion control, lid closure detection, and displacement sensing applications

High, medium and low magnetic sensitivities.

Low voltage 3 V capability

Helps reduce power consumption

Built-in reverse polarity protection

Protects the device from potential damage during installation

Thermally balanced integrated circuit

Provides for stable operation over a wide temperature range of -40 °C to 150 °C [-40 °F to 302 °F]

Enhances application flexibility.

RoHS-compliant materials

Meet Directive 2002/95/EC

Potential Applications
Industrial

Door or lid closure detection in appliances or electronically controlled containers

May be used recessed in the door frame with a magnet embedded in the door.The magnet activates the sensor to indicate door open or close.

Simple speed and RPM (revolutions per minute) sensing in fitness and industrial equipment

May be mounted on the motor shaft of a treadmill such that the rotating magnet pole, which rotates with the motor, activates the sensor with each revolution, producing a single digital pulse for each revolution.

Flow rate sensing in water softeners, industrial processes, and appliances

May be used used with one or more magnets mounted on a paddle to measure the flow rate.

Damper or valve position control in industrial, HVAC and residential or commercial applications

May be used to determine if a valve or damper is fully open or fully closed.

Robotic control (cylinder position monitoring)

May be used to detect the piston's position by detecting a magnet mounted on the piston ring located inside a non-ferromagnetic cylinder.

Level/tilt measurement

May be installed in the base of a machine with a magnet mounted pendulum fashion over the sensor. A change in state of the output as the magnet swings away from the sensor indicates that the machine is not level.

Remote conveyor sensing

May be mounted to the frame of the conveyor, with a magnet mounted on the tail pulley. When the magnet revolves past the sensor, it produces one output per revolution, providing an intermittent visual or audible signal at a remote location to assure stability. Any interruption of the conveyor motion will interfere with the normal signal and alert the operators.

Push button controls

Medical

Position sensor in hospital beds and medical equipment

May be used with a magnet mounted on the activator arm to determine the home or end-of-travel position of the equipment.

Medication bin monitor on portable drug carts

May be used to detect if a drug dispensing drawer is open or closed.

Order Guide
