SS451A
Product Description

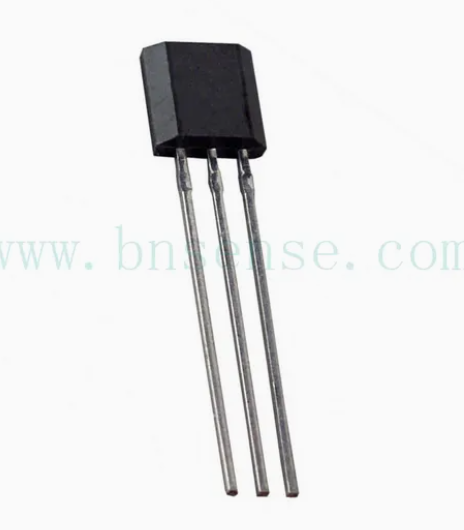

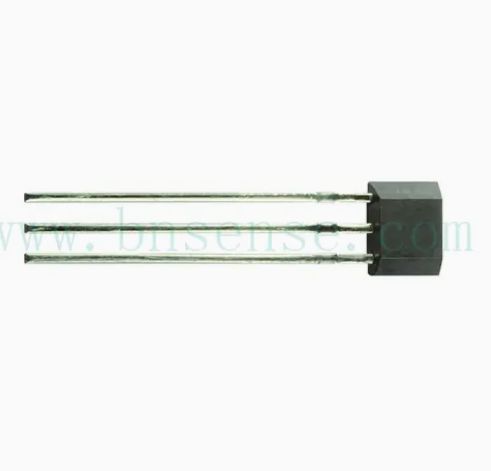

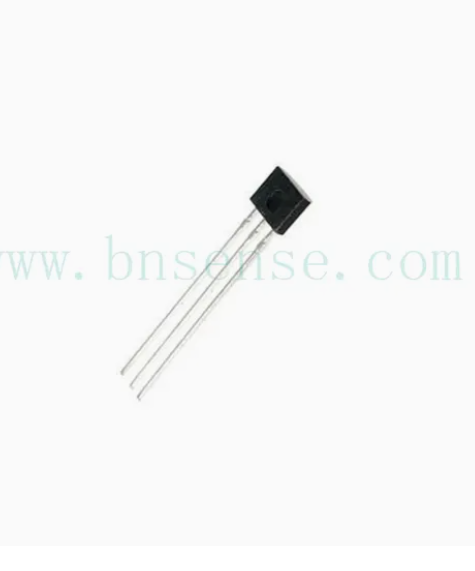

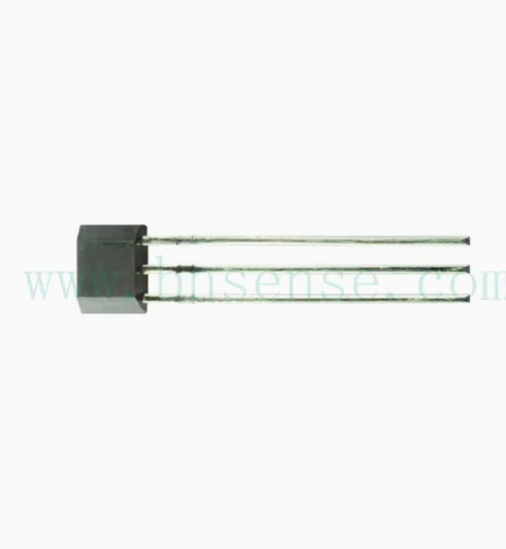

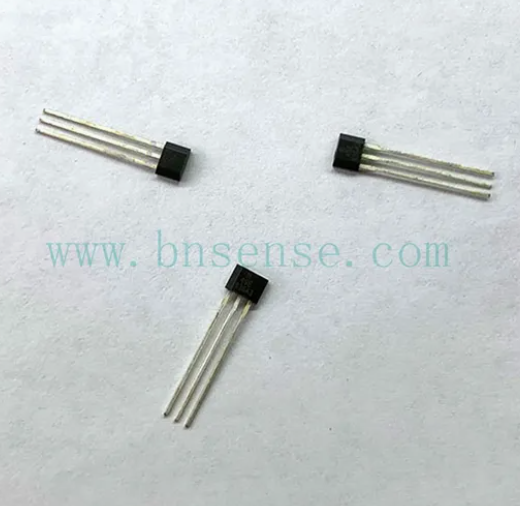

The SS351AT, SS451A, and SS551AT sensor ICs are small and versatile digital Hall-effect devices operated by the magnetic
field from a permanent magnet or an electromagnet. They are designed to respond to either a North pole or a South pole.
These products have a typical operating point of 85 G at 25 °C [77 °F]. Because they can be operated by a North pole or a South pole, they do not require the magnet polarity to be identified, thus making the installation easier and potentially reducing the system cost. These omnipolar sensors are sensitive and flexible devices designed to meet a wide range of potential applications.
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Omnipolar |
| Operating Supply Current | 4.5 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | - 135 G to 135 G |
| Release Point Min/Max (Brp) | - 120 G to 120 G |
| Operating Supply Voltage | 24 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-Flat-3 |
| Packaging | Bulk |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 3 V |

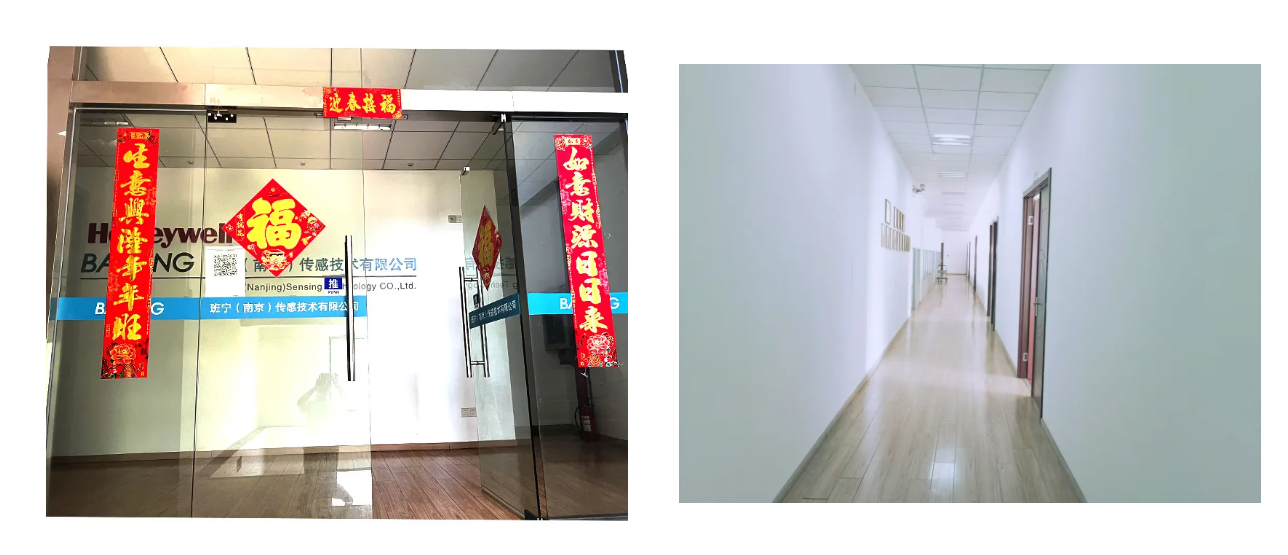

BNSENSE Co., Ltd., located in the core area of pukou new district. Banning is a high-tech enterprise specializing in the development, manufacture and trade of sensor products. A group of excellent domestic technical experts who are excellent in automation, electronic, machinery, computer and many other fields is gathered here. All staffs have college degree or above, using the international first-class management standard and 6 sigma quality system. Main products are pressure, liquid level, flow, current, switches, etc. Company's customers are throughout the country, some products have been exported to Japan, South Korean, Southeast Asia and other countries. BNSENSE Co., Ltd is also an official authorized disitributor of Honeywell in China.
