GKMA36
Product Description

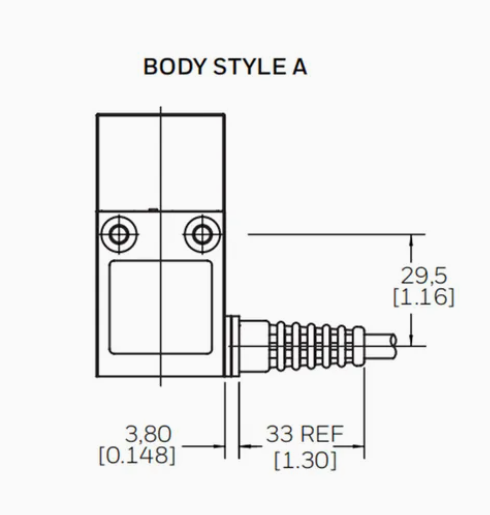

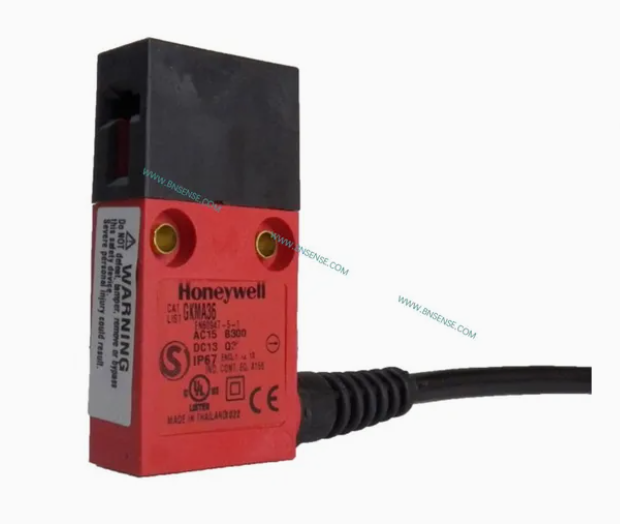

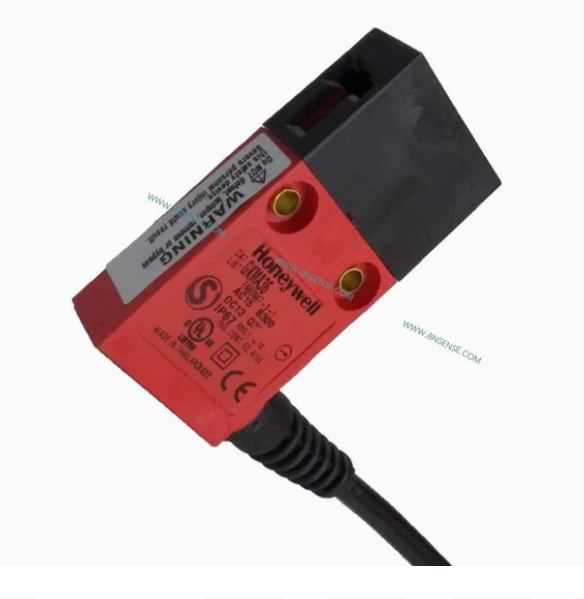

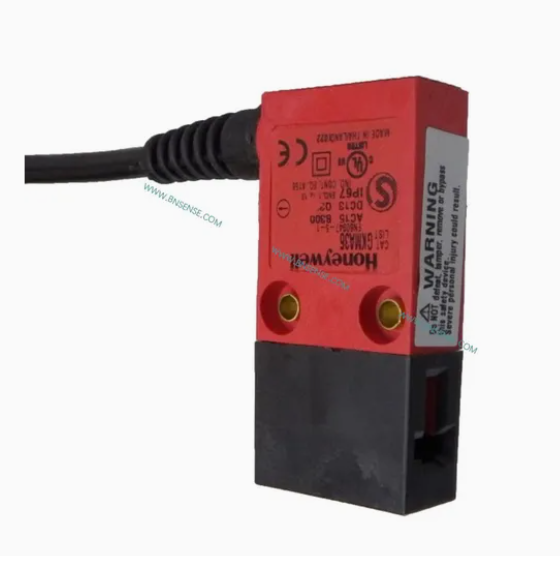

When the application requires a miniature key-operated safety interlocking limit switch for machine guarding, Honeywell provides the GKM Series. The compact housing size of 34 mm L x 16 mm W x 70 mm H is optimal where there is limited space available on machinery. The double-insulated plastic housing and rugged stainless steel actuator key are better suited for demanding environments. The unique design of the switch allows the actuator key to be inserted from the top or the side. The switch can be mounted from the front or back as required. As with the Honeywell safety limit switches, all normally closed contacts are positive opening. Direct mechanical linkage within the switch force the normally closed contacts open when the actuator key is removed from the switch, opening the circuit. The switches are available with either a cable connection or an integral four-pin M12 connector.
FEATURES
• Red switch body for easy safety recognition
• Common 22 mm mounting centers which accept M4 or #8 mounting hardware
• Prewired cable or M12 connector for electrical termination
• Positive opening action of normally closed contacts to EN/IEC 60947-5-1-3 specification
• Switch chamber IP67 environmentally sealed for indoor or outdoor applications
• CE and UL certifications
• Designed and agency evaluated for safety functions up to and including a SIL3 level
POTENTIAL APPLICATIONS
• Safety interlock for small doors and apertures on machinery
• Safety interlock for multiple doors on machinery with daisy chain option (twin connectors)
DIFFERENTIATION
• Miniature package size of 34 mm L x 16 mm W x 70 mm H
• Switch design with dual entry (side or top) for actuator key
• Daisy-chain capability for monitoring multiple gates on machinery
• Rigid or flexible stainless steel actuator keysPerformance Specifications
| Characteristic | Parameter | ||||||
| Description | Dual entry key-operated safety interlockswitch | ||||||
| Agency certifications | CE, DOC 141 (EN60947-1 and EN 60947-5-1)cULus, UL508 (File E37138)SIRA, Functional Safety Certificate (IEC 61508-2:2010) | ||||||
| Housing material | Red glass-filled polyester body, black glass-filled polyamide actuator housing | ||||||
| Actuator key material | Stainless steel | ||||||
| Electrical connection | Side or bottom exit cable (UL rated 105 °C with PVC jacket and cores four conductor 0.5 mm², 20 AWG).Side or bottom exit integral M12 Micro 4-pindc-style connector,Side and bottom exit (twin connectors) integral M12 Micro 4-pindc style connectors for daisy chaining and mon-itoring multiple doors | ||||||
| Contact/switch options¹ | 1NC/1NO slow action BBM, 2NC slow action | ||||||
| Contact design | Double break, electrically separated (Zb) | ||||||
| Contact material | Silver alloy (standard), gold-plated (low energy applications) | ||||||
| Electrical ratings | See Table 2 | ||||||
| Utilization category | AC-15, B300; DC-13, Q300 | ||||||
| Rated operationalvoltage (Ue) | 240 Vac, 250 Vdc | ||||||
| Rated operationalcurrent (Ie) | 1.5 A, 0.27 A | ||||||
| Thermal current (Ith) | 5 A, GKME Series 2 A | ||||||
| Rated insulation (Ui) | 500 V | ||||||
| Rated impulse withstandvoltage (Uimp) | 2500 V | ||||||
| Short circuit protectiondevice (SCPD) | Class RK5 fuse, rated at 4.5A | ||||||
| Pollution degree | 3 | ||||||
| Environmental sealing | IP 66/67, GKME Series (twin connectors) IP66 per EN60529; NEMA 1, 12, 13 | ||||||
| Operating temperature | -25 °C to 85 °C (-13 °F to 185 °F) | ||||||
| Shock | 50 G per IEC 60068-2-27 | ||||||
| Vibration | 10 G per IEC 60068-2-6 | ||||||
| MCTF (Mechanical life) | >1,000,000 cycles with single-sided confidence limit of 95% | ||||||
| MCTF (Electrical life) | 32,000 cycles | ||||||
| SIL Capability² | SIL3 capable with HFT=1, SIL2 capable with HFT=0 with reference to IEC 61508-2:2010 Functional Safety | ||||||
| Proof test interval | 1 year | ||||||
¹All normally closed contacts are positive opening
²HFT (Hardware Fault Tolerance).
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Illuminated | Non-Illuminated |
| Contact Form | DPDT |
| Current Rating | 1.5 A , 0.27A |
| Voltage Rating AC | 240 VAC |
| Voltage Rating DC | 250 VDC |
| Termination Style | Wired Lead |
| Product Type | Safty Switches |
| Series | GKM |
Order Guide
| CatalogListing1 | BodyStyle | Contacts | ContactMaterial | Electrical Connection |
| GKMA13 | Side exit cable | 1NC/1NO slow action, BBM | Silver | 1 meter cable |
| GKMA19 | Side exit cable | 1NC/1NO slow action, BBM | Gold plated | 1 meter cable |
| GKMA23 | Side exit cable | 1NC/1NO slow action, BBM | Silver | 2 meter cable |
| GKMA33 | Side exit cable | 1NC/1NO slow action, BBM | Silver | 3 meter cable |
| GKMA16 | Side exit cable | 2NC slow action | Silver | 1 meter cable |
| GKMA36 | Side exit cable | 2NC slow action | Silver | 3 meter cable |
| GKMB13 | Bottom exit cable | 1NC/1NO slow action, BBM | Silver | 1 meter cable |
| GKMB19 | Bottom exit cable | 1NC/1NO slow action, BBM | Gold plated | 1 meter cable |
| GKMB23 | Bottom exit cable | 1NC/1NO slow action, BBM | Silver | 2 meter cable |
| GKMB33 | Bottom exit cable | 1NC/1NO slow action, BBM | Silver | 3 meter cable |
| GKMB39 | Bottom exit cable | 1NC/1NO slow action, BBM | Gold plated | 3 meter cable |
| GKMB16 | Bottom exit cable | 2NC slow action | Silver | 1 meter cable |
| GKMB17 | Bottom exit cable | 2NC slow action | Gold plated | 1 meter cable |
| GKMB36 | Bottom exit cable | 2NC slow action | Silver | 3 meter cable |
| GKMB37 | Bottom exit cable | 2NC slow action | Gold plated | 3 meter cable |
| GKMB56 | Bottom exit cable | 2NC slow action | Silver | 5 meter cable |
| GKMC03 | Side exit connector | 1NC/1NO slow action, BBM | Silver | M12 Micro connector, 4-pin male |
| GKMC09 | Side exit connector | 1NC/1NO slow action, BBM | Gold plated | M12 Micro connector, 4-pin male |
| GKMC06 | Side exit connector | 2NC slow action | Silver | M12 Micro connector, 4-pin male |
| GKMC07 | Side exit connector | 2NC slow action | Gold plated | M12 Micro connector, 4-pin male |
| GKMD03 | Bottom exitconnector | 1NC/1NO slow action, BBM | Silver | M12 Micro connector, 4-pin male |
| GKMD09 | Bottom exitconnector | 1NC/1NO slow action, BBM | Gold plated | M12 Micro connector, 4-pin male |
| GKMD06 | Bottom exitconnector | 2NC slow action | Silver | M12 Micro connector, 4-pin male |
| GKMD07 | Bottom exitconnector | 2NC slow action | Gold plated | M12 Micro connector, 4-pin male |
| GKME03 | Bottom & side exitconnector | 1NC/1NO slow action, BBM | Silver | Twin M12 Micro connectors,4-pin male |
| GKME09 | Bottom & side exitconnector | 1NC/1NO slow action, BBM | Gold plated | Twin M12 Micro connectors,4-pin male |
| GKME06 | Bottom & side exitconnector | 2NC slow action | Silver | Twin M12 Micro connectors,4-pin male |
| GKME07 | Bottom & side exitconnector | 2NC slow action | Gold plated | Twin M12 Micro connectors,4-pin male |

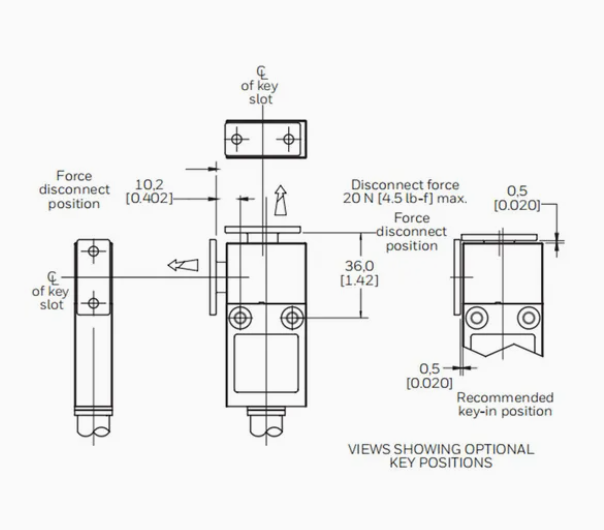

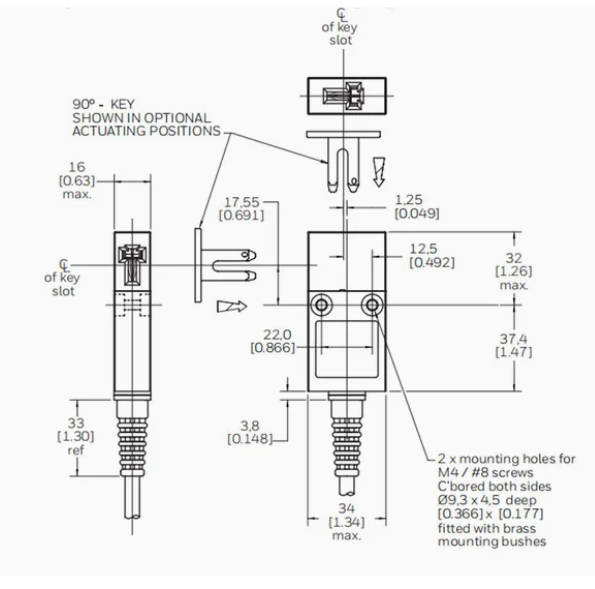

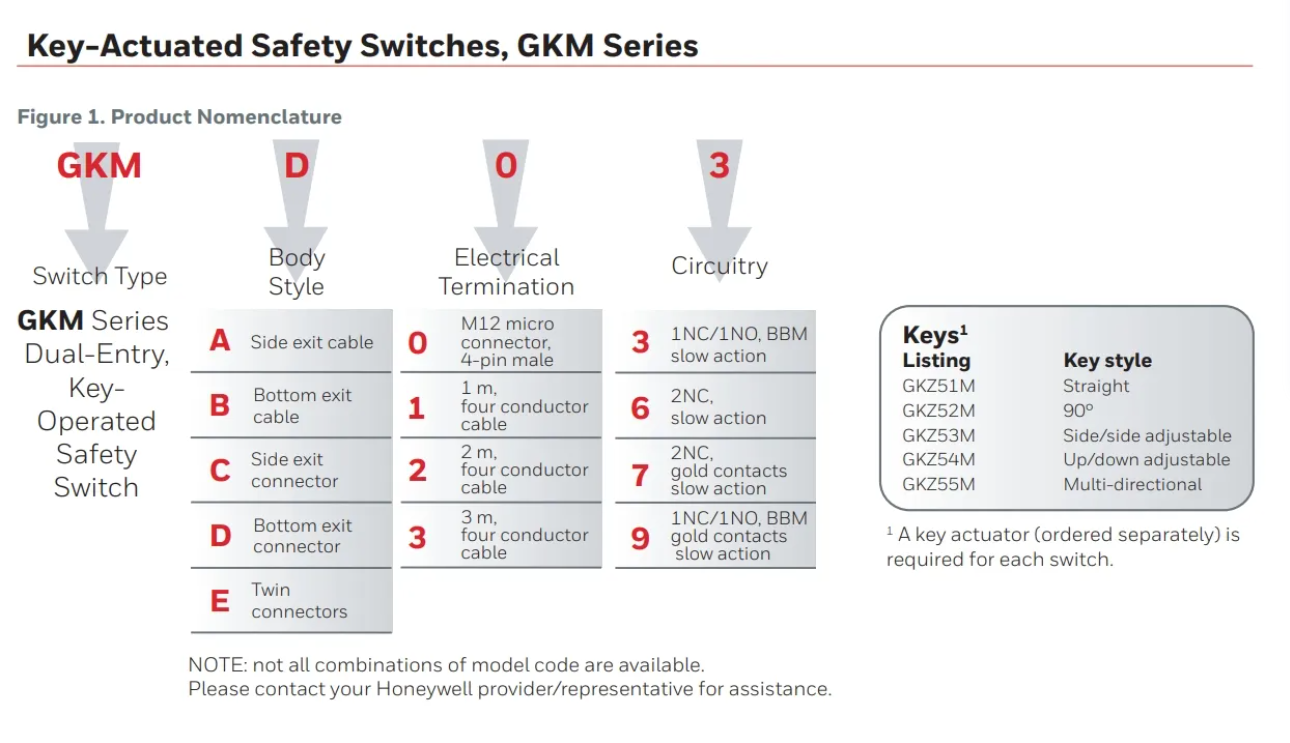

1An actuator key (ordered separately) is required for each switch. Select actuator key by reviewing product nomenclature tree and dimensional
diagrams on page 5.
