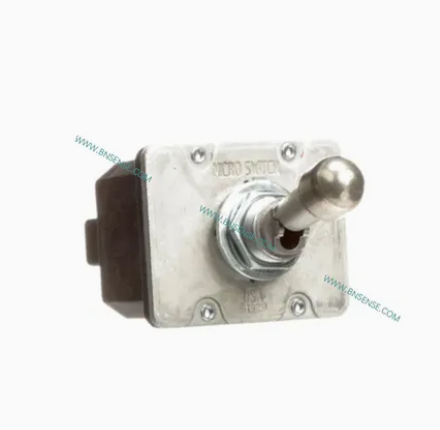

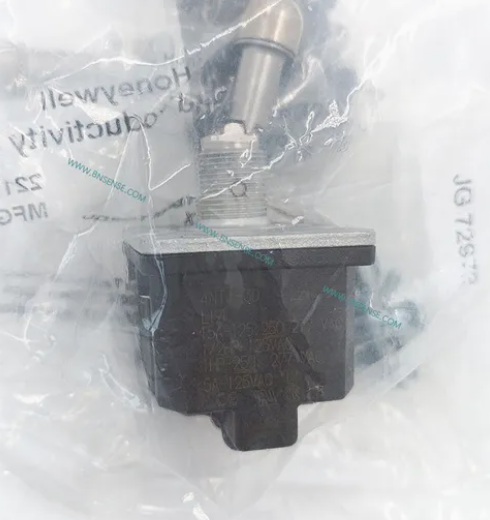

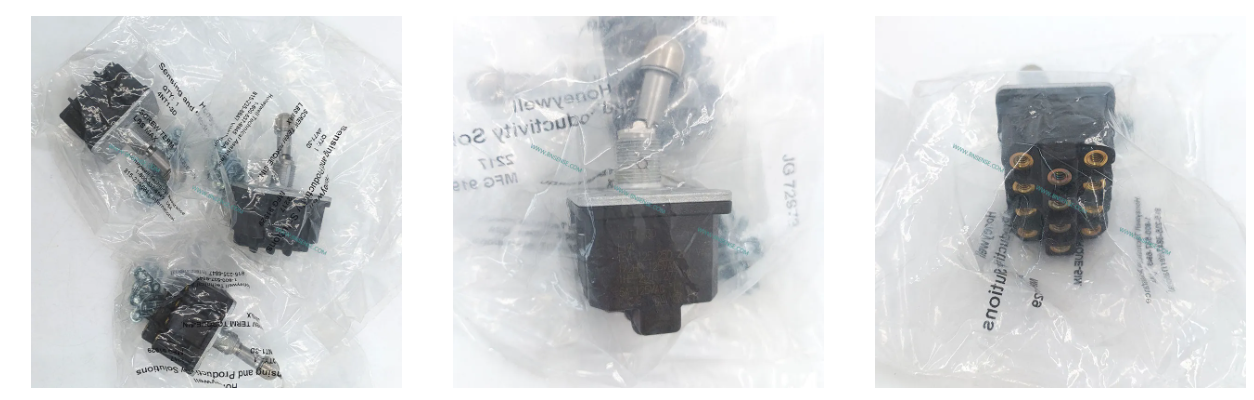

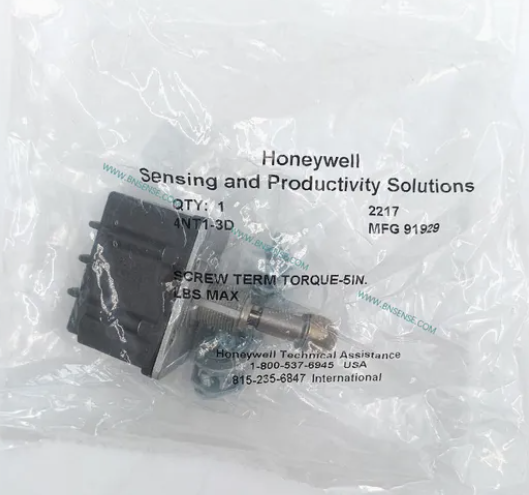

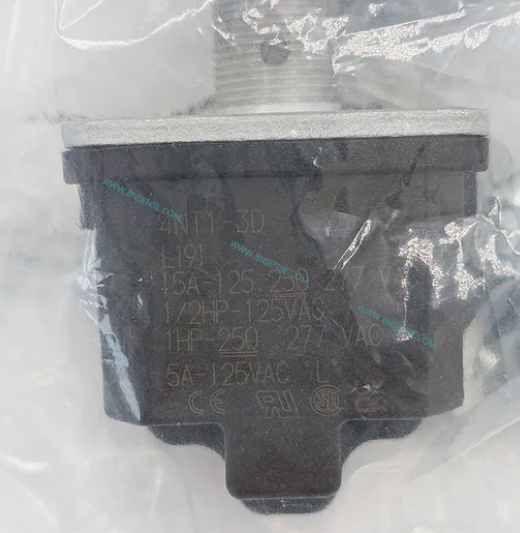

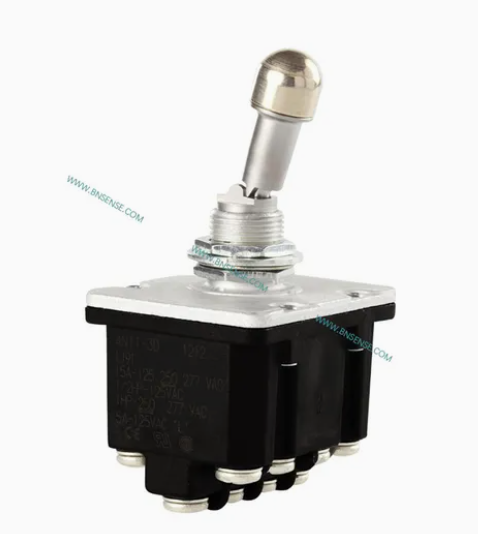

4NT1-3D

Product Description

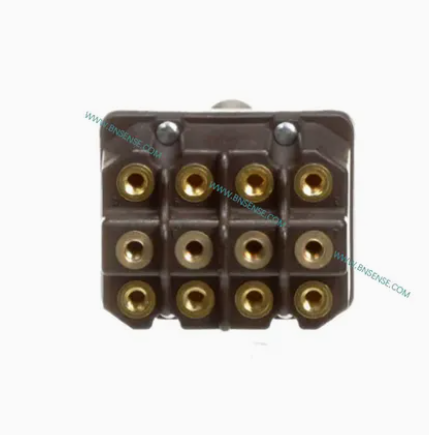

Honeywell MICRO SWITCH NT Series toggle switches meet the need for a rugged, cost-effective toggle switch. Quality construction features include a seal between the toggle lever and bushing and between the cover and case. These switches are suitable for applications in many demanding outdoor environments, where the panels are subjected to vibration from equipment, temperature extremes, dust, splashing water and/or hose directed water. They are capable of withstanding exposure to heavy accumulations of early morning dew that may condense on the control panel in cabs of vehicles left outdoors overnight. The NT toggle switches with larger standard metal or plastic levers are well suited for glovedhand operation. Available in both step-base and flat-base styles, the NT Series offers three popular styles of termination: 6-32 screws, solder lugs with 3,0 mm [0.12 in] diameter hole, or 6,35 mm [0.25 in] quick connect terminals. The optional "Easy Start" threaded bushing enables quick alignment of the mounting nut to minimize any cross threading. The panel stand-off with O-ring feature available on some listings eliminates the need for behind-the-panel hardware, provides a uniform panel height and a panel-to-cover seal.

FEATURES

• Sealed to NEMA 3, 3R, 4, 13 and IP67/IP68 for global use

• Suitable for applications in many demanding outdoor environments, where the panels are subjected to vibration from equipment, temperature extremes, dust, splashing water, and/or hose directed water

• UL recognized, File E12252, Vol. 1, Section 44, CSA certified, UKCA and CE certified for global use

• Spring-loaded actuating mechanism provides excellent tactile feedback

• Optional flat base case design with a quick connect terminal pattern mates to a commercial-type connector for plug-and-play connectivity

• 2- and 3-position, maintained and momentary toggle action

• Delivers high performance in a wide range of temperatures: -40°C to 71°C [-40°F to 160°F]

• Choice of silver alloy or gold-plated contacts

• Optional engineered step-design case provides added space between terminals to prevent shorting

• Optional panel stand-off with O-ring panel seal eliminates behind-the panel hardware

DIFFERENTIATION

• NEMA 3, 3R, 4, 13 and IP67/68 environmental sealing for demanding applications

• UL recognized, CSA certified, UKCA and CE certified for global use

• 1-, 2- and 4-pole options to meet a variety of circuitry requirements

• 2- or 3-position maintained and momentary action to meet circuit and actuator requirements

• Optional step-case design provides added space between terminals to prevent shorting

APPLICATIONS

• Aerial platform lifts

• Platform lifts for trucks

• Industrial equipment

• Railroad locomotives and maintenance equipment

• Construction equipment

• Agricultural machinery

• Syringes (end of travel)

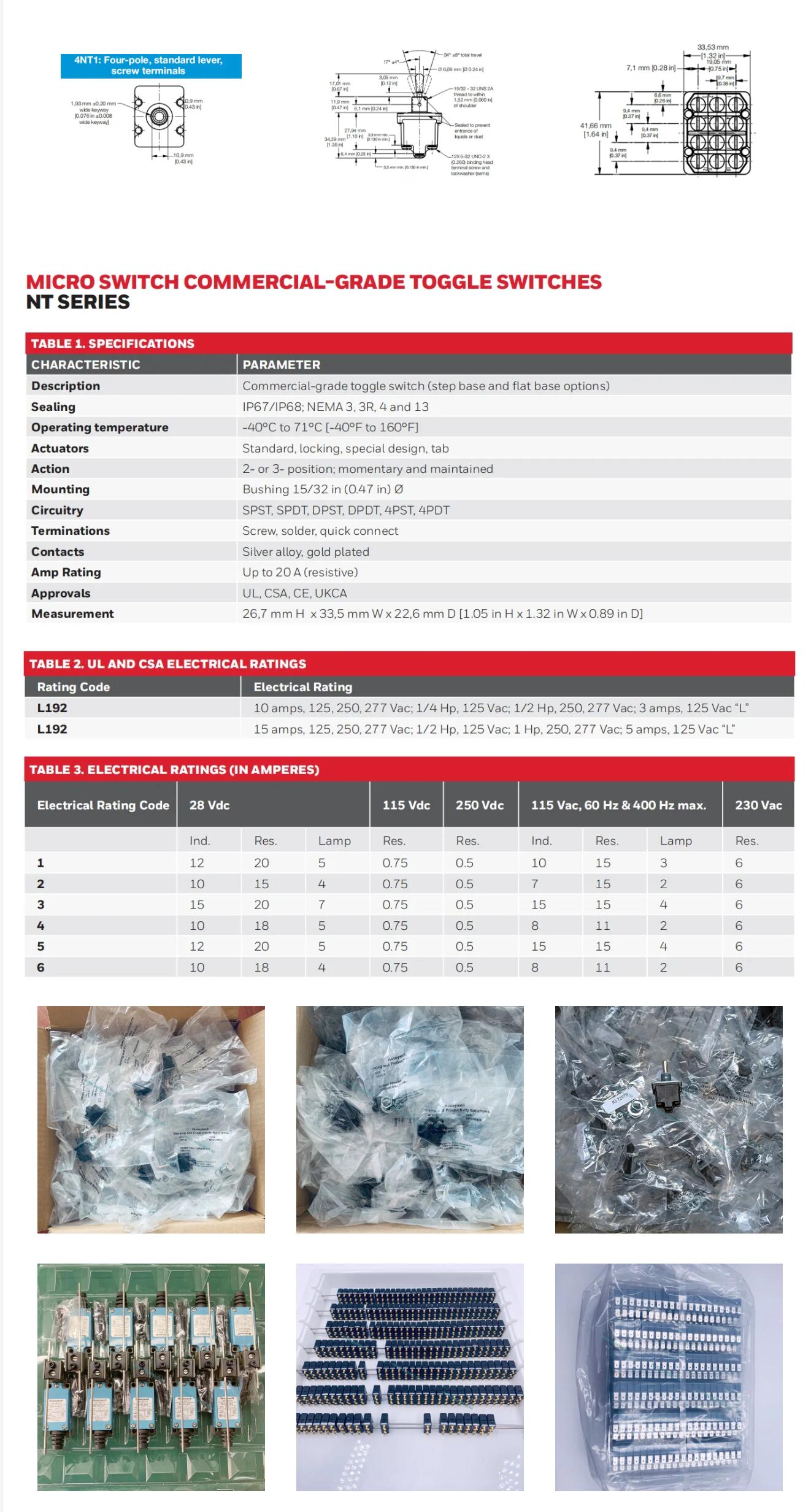

Tech Specifications
