AML54-F10W

Product Description

Honeywell's AML (Advanced Manual Line) Series of commercial grade operator interface switches offers a variety of pushbutton switches, key lock switches, paddle switches, rocker switches, and indicators. Pushbutton switches are offered as momentary action or alternate action (push-on, push-off). The AML Series switches are available with contacts for controlling logic level or power-duty electrical loads. Up to four poles are available on select AML series for control or signaling applications. When lighted switches are required, incandescent, LED, or neon lamps are available to satisfy the supply voltage requirements for the application. A wide variety of pushbutton lens, paddle switch covers, and rocker switch covers are available for lighted or unlighted applications and with or without legends. The switches and indicators snap into the panel from the front for ease of installation and require less than 44,45 mm [1.75 in] panel depth including termination. Honeywell AML switches are UL and CSA certified as noted on page 3 of the specifications. DIFFERENTIATION• A 4PDT contact option available for most AML switches• Lamp package options for up to 250 Vac• Key selector switchesVALUE TO CUSTOMERS• Well suited for power-duty and logic-level loads• Rectangular or square front-of-panel pushbutton design• Standard rectangular design for pushbuttons, paddle, or rocker switchesFEATURES• Pushbuttons, paddles, rockers, key-actuated, and indicators within AML Series for coordinated panel appearance• Less than 1.75 inch panel depth• Pushbuttons, paddles, and rockers furnished lighted or unlighted• Lighted switches furnished with choice of incandescent, LED, or neon lamps dependent upon supply voltage• Pushbuttons available with momentary or alternate action (push-on and push-off)• Paddle, rocker, and key switches with two or three positions and maintained or momentary action• One-, two-, or four-poles with double throw available for most switches• Fine silver contacts for switching electrical loads, optional gold contacts for logic level applications• AML20 Series standard-duty electrical rating or AML30 Series power-duty electrical rating (reference page 4)• AML40 Series indicators with incandescent or LED displays• Optional fabricated metal frames (AML61 Series) for strip mounting multiple AML switches• Wide variety of accessories, including switch guards and panel seals• UL and CSA certifiedPOTENTIAL APPLICATIONS• Agriculture• Food and beverage• Medical equipment• Industrial equipment• Process controls• Oil and gas• Aerospace• Transportation

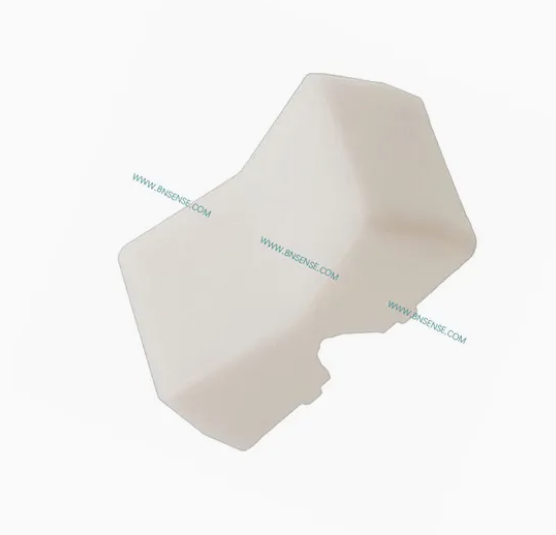

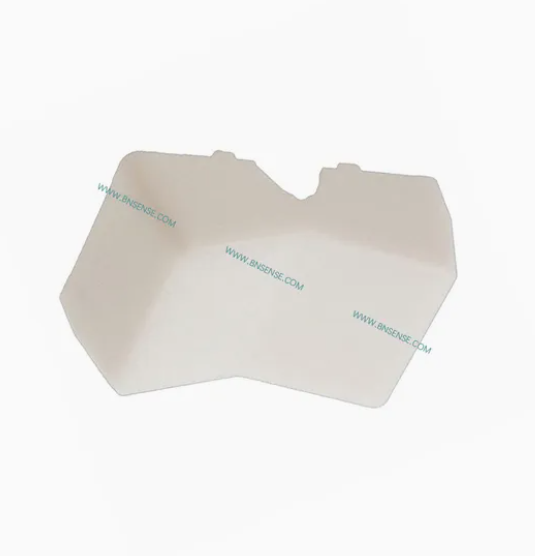

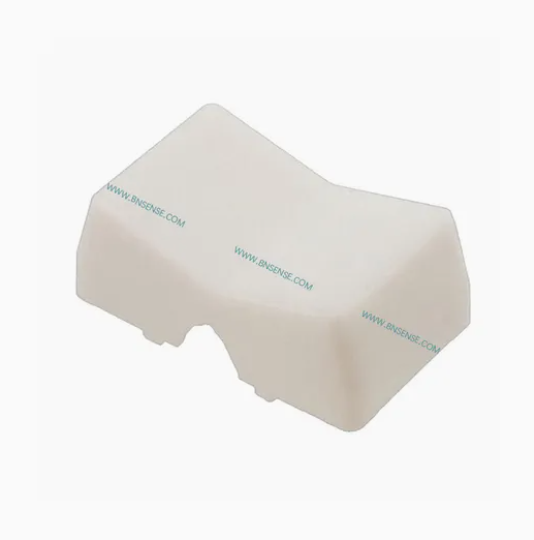

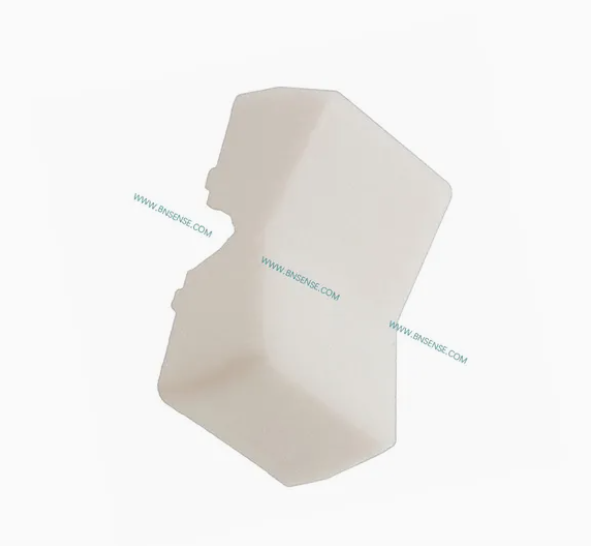

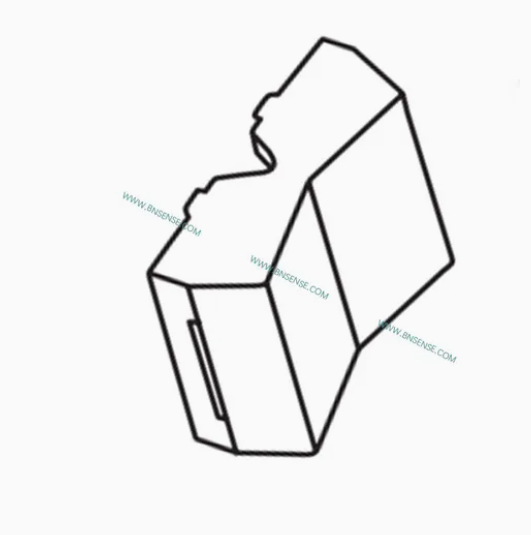

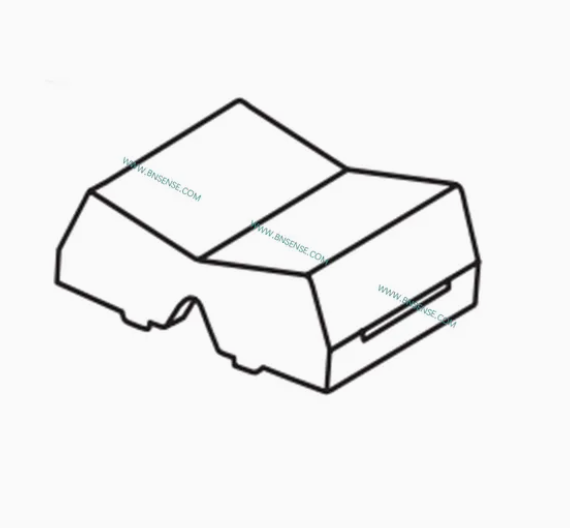

AML54 Series Rocker Switch Buttons without Legends for AML24 & AML34 Series Rocker Switches***

***For AML54 Series Rocker Switch Operator Style E, F, or T from table above with Legends contact the local Honeywell source
