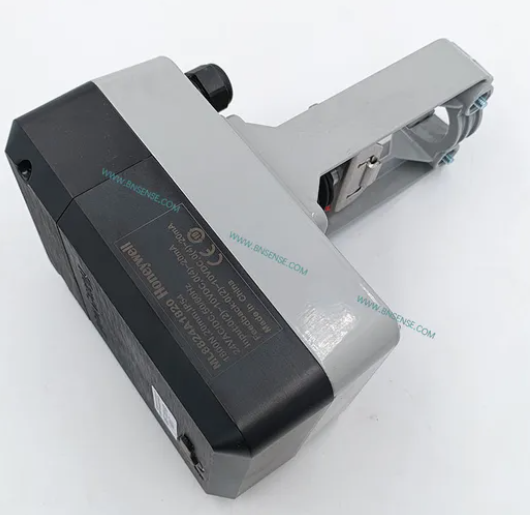

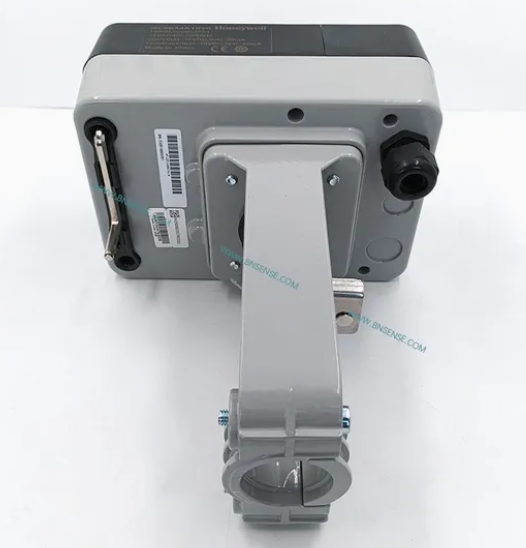

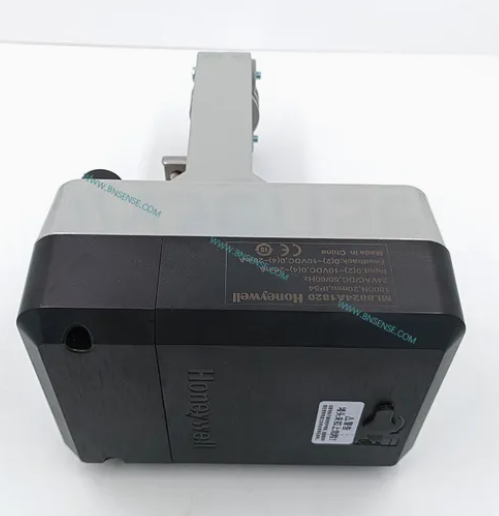

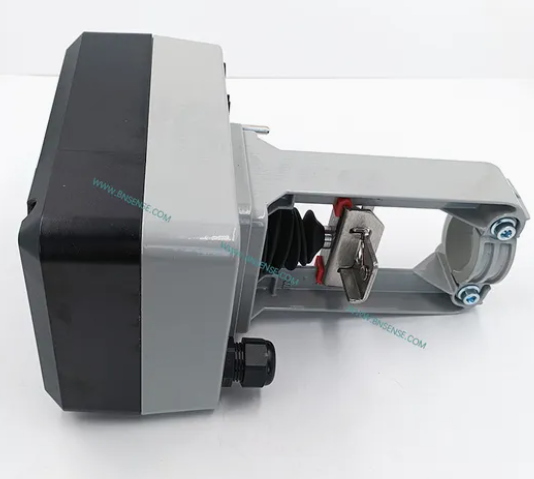

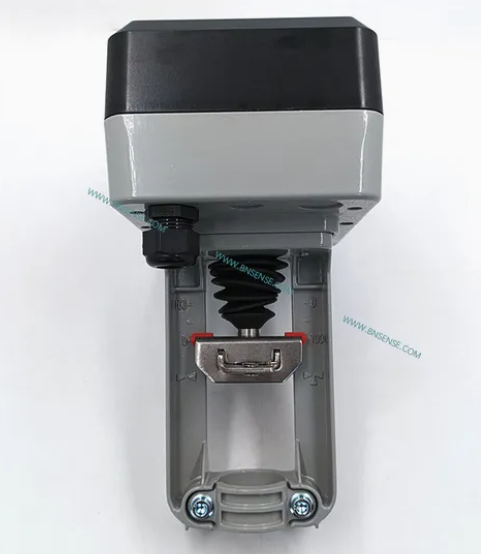

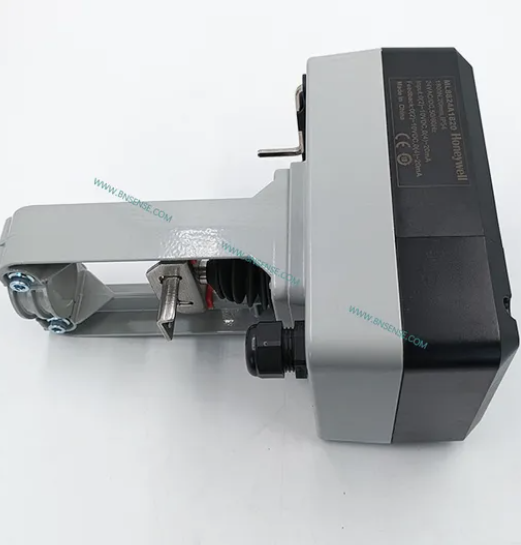

ML8824A1820
Product Description
ML8824A Series electric linear valve actuators offer modulating controls for linear valves with position feedback signal, 0(2)-10Vdc or 0(4)-20mA. The products can be widely used with linear valves in heating, ventilation, and air conditioning application.
Technical Specifications
| Temperature Limits | |
| Ambient storage temperature | -10~+55 °C (5~95% RH) |
| Medium temperature | -40~+65 °C (4~95% RH) |
| Operating medium temperature | up to 130 °C |
| Signals | |
| Input signal | 0~10 Vdc, 2~10 Vdc Voltage input impedance >100 KΩ,Current input impedance<0.125KΩ |
| Feedback signal | 0~10 Vdc, 2~10 Vdc, 0~20mA, 4~20mA |
| Safety | |
| Electrical protection class | III (EN60730-1) |
| Protection class | IP54 (EN60730) |
| Materials | |
| Upper Cover | PC plastics |
| Housing | 600N - Plastics 1800N - Cast aluminum |
| Bracket | Cast aluminum |
| Wiring | |
| Terminal block | 1.5mm2 |
| Cable connector | PG13.5PG9 connector for accessories Operation |
FEATURES
• Quick and easy installation
• Lower power consumption
• Maintenance-free
• Self-adaption mode
• Adjustable travel speed
• Manual operation with override functions
• 0(2)~10 Vdc, 0(4)~20 mA input signal
• 0(2)~10 Vdc, 0(4)~20 mA position feedback signal
• Selectable travel direction
| Table 1. Model Selection | ||||||
| Model No. | ML8824A0620 | ML8824A1820 | ML8824A1840 | |||
| Supply Voltage | 24Vac ± 15% ,50/60Hz; 24Vdc +15% ,-10%; | |||||
| Power Consumption | 7VA | 14.5VA | 14.5VA | |||
| Signal input 1 0(2) Vdc or 0(4) mA | The valve connection is located at the bottom;2-way valve "closed"; 3-way valve A-AB port "open" | |||||
| Signal input 2 10Vdc or 20mA | The valve connection is located on the top;2-way valve "open"; 3-way valve A-AB port "closed" | |||||
| Feedback Signal | 0(2)~10 Vdc, 0(4)~20 mA | |||||
| Rated Travel | 20mm | 20mm | 40mm | |||
| Run time | 60s or 80s | 40s or 60s | 80s or 120s | |||
| Close-off force | ≥600N | ≥1800N | ||||
| Weight | 1.3kg | 2.3kg | 2.4kg | |||
