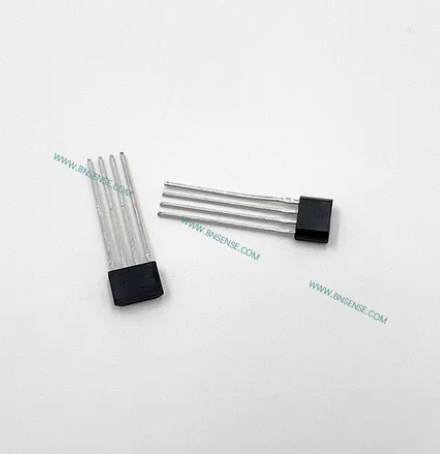

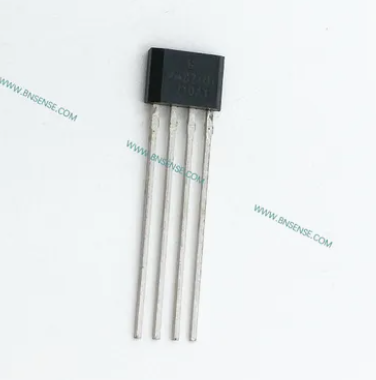

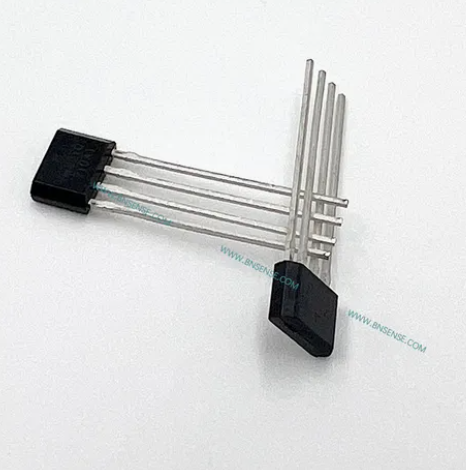

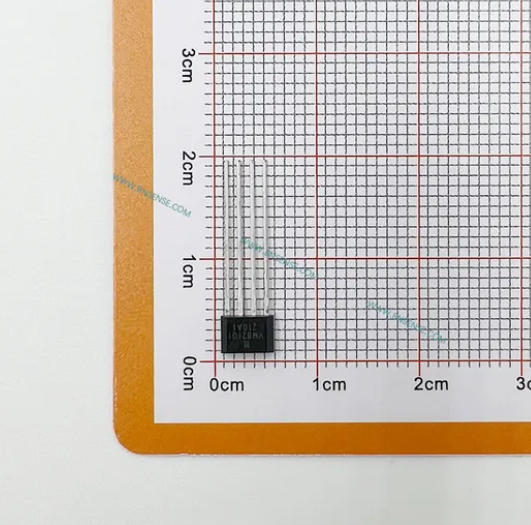

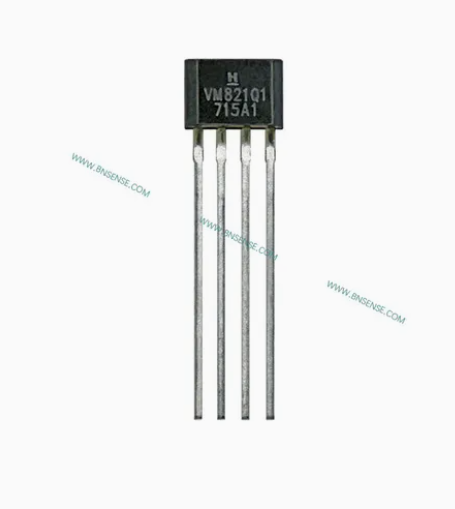

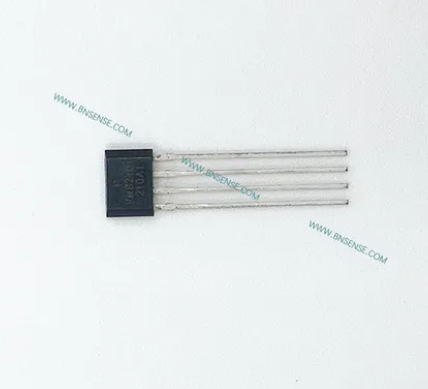

VM821Q1
Product Description
Honeywell's Anisotropic Magnetoresistive (AMR) 4-Pin Quadrature Sensor Integrated Circuit (IC) is designed to detect the speed and direction and position of a ring magnet encoder target using a unique* bridge design. The frequency of the output is proportional to the rotational speed of the target, and the rotational direction is encoded by the phase between the outputs. The sensor IC works over a wide range of speeds, temperatures and air gaps.
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Quadrature, 4-Wire |
| Operating Supply Current | 20 mA |
| Operating Point Min/Max | - 30 G to 30 G |
| Operating Supply Voltage | 24 V |
| Minimum Operating Temperature | - 40 °C |
| Maximum Operating Temperature | + 150 °C |
| Mounting Style | Through Hole |
| Package / Case | SIP-4 |
| Series | VM Series |
| Packaging | Bulk |
| Output Type | Open Collector |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 4 V |
| Termination Style | Through Hole |
