6655---97100901
| Model NO. | 6655---97100901 |
| Thermistor type | NTC |
| Operating temperature range | -20 °C to 110 °C [-4 °F to 230 °F] |
| Time constant on metal surface | 1.5 s |
| Housing material | phenolic |
| Temperature sensing type | air/surface |
| Nominal resistance at 25 °C | 2000 Ohm |
| Tolerance | ±10.0% |
| Dissipation constant on metal | 6.5 m/W°C |
| Trademark | Honeywell |
Product Description

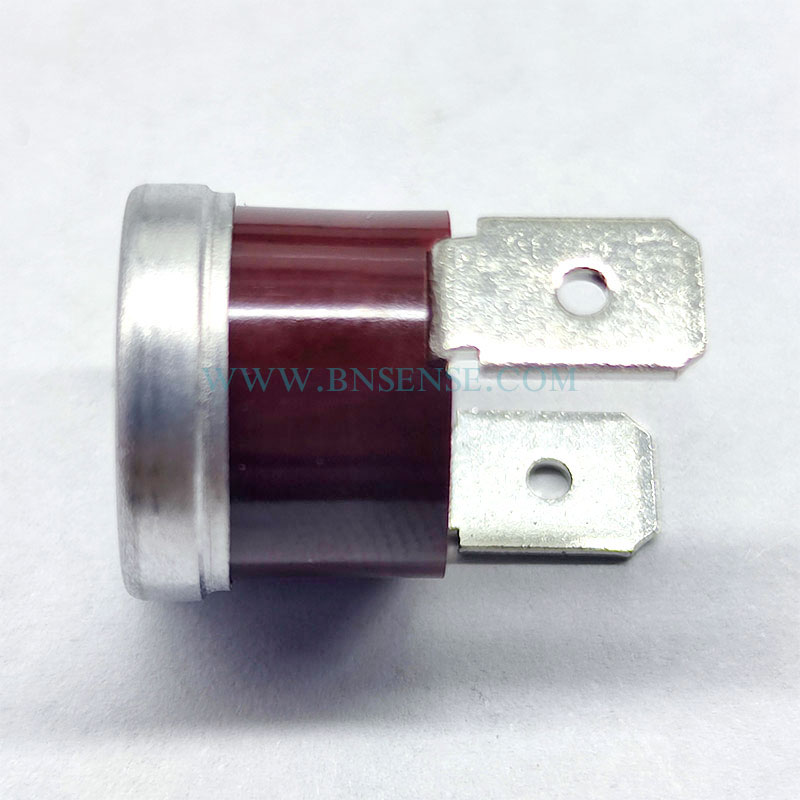

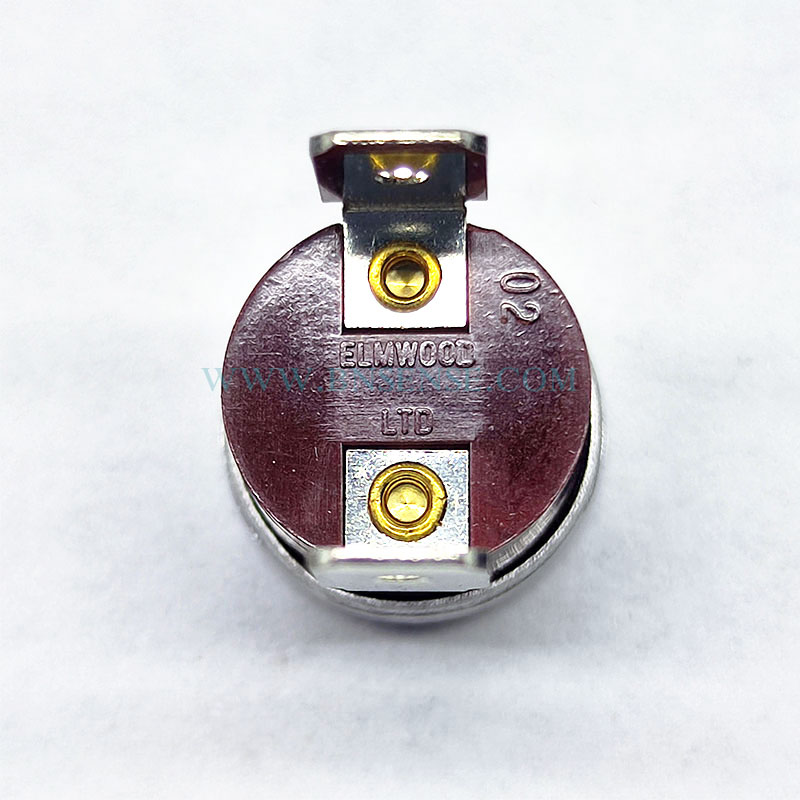

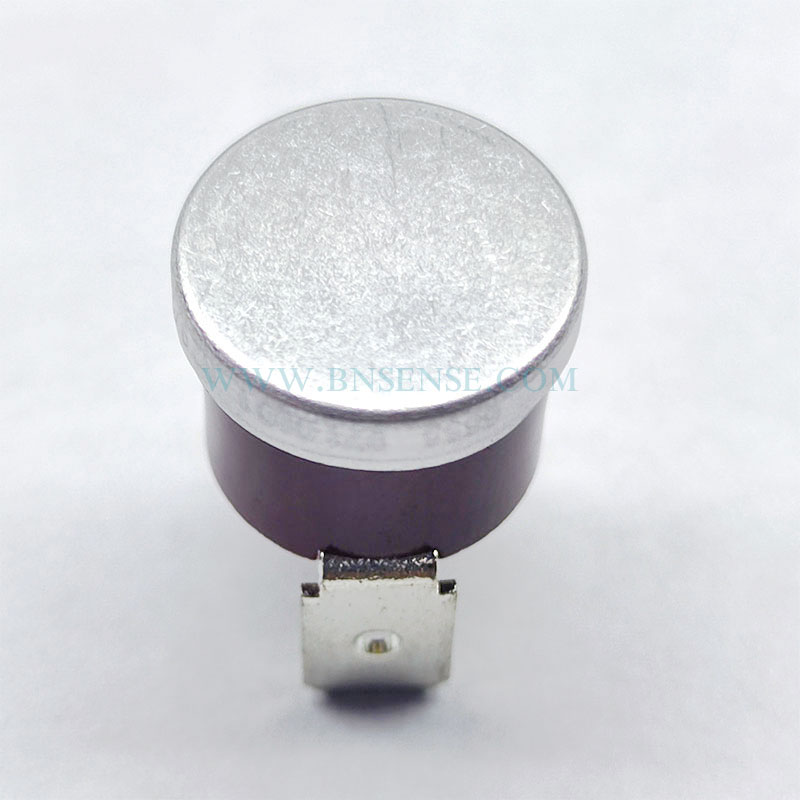

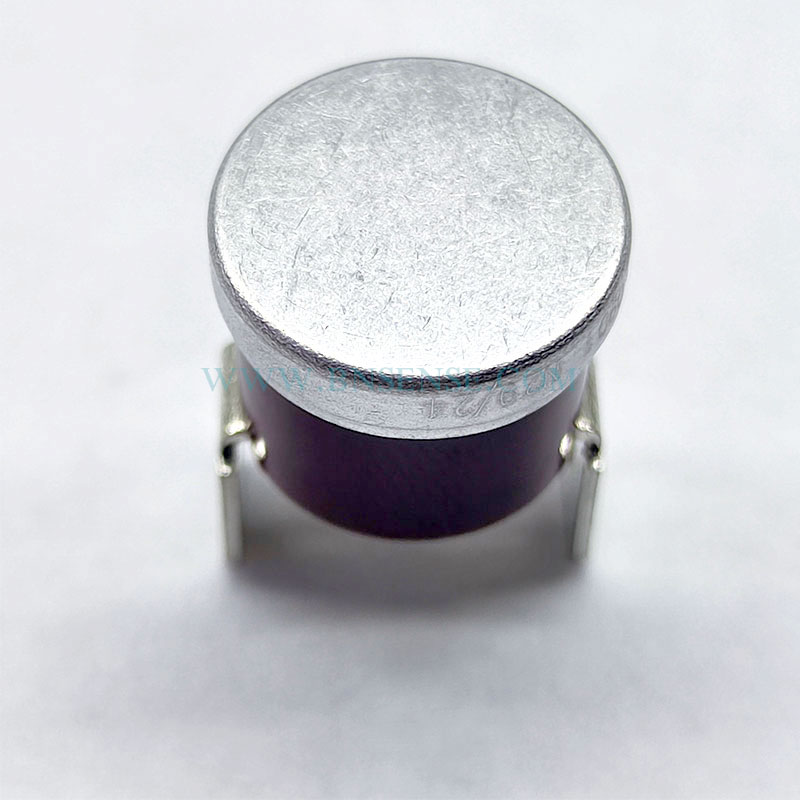

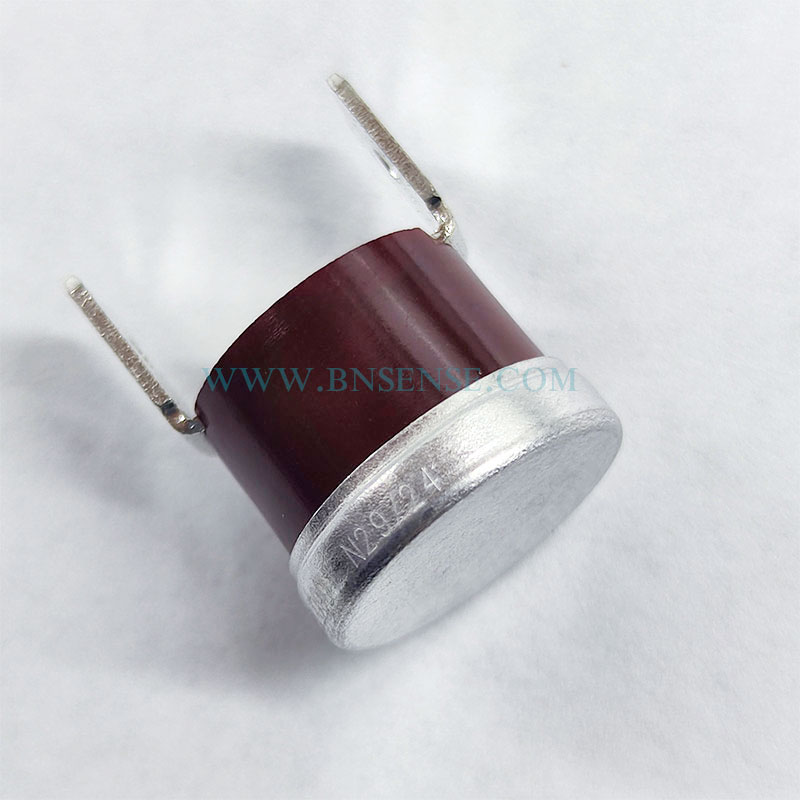

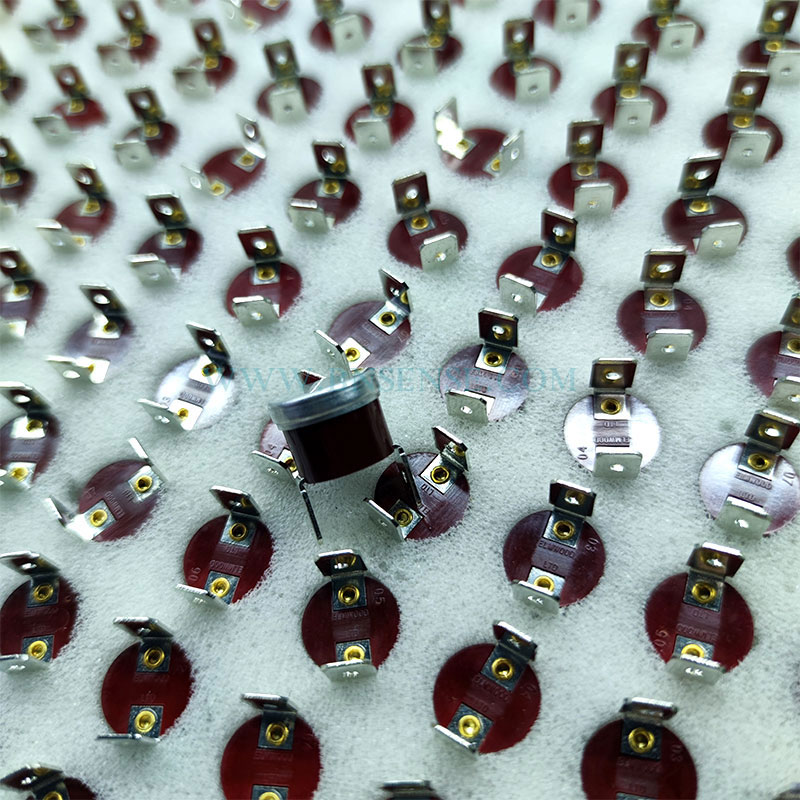

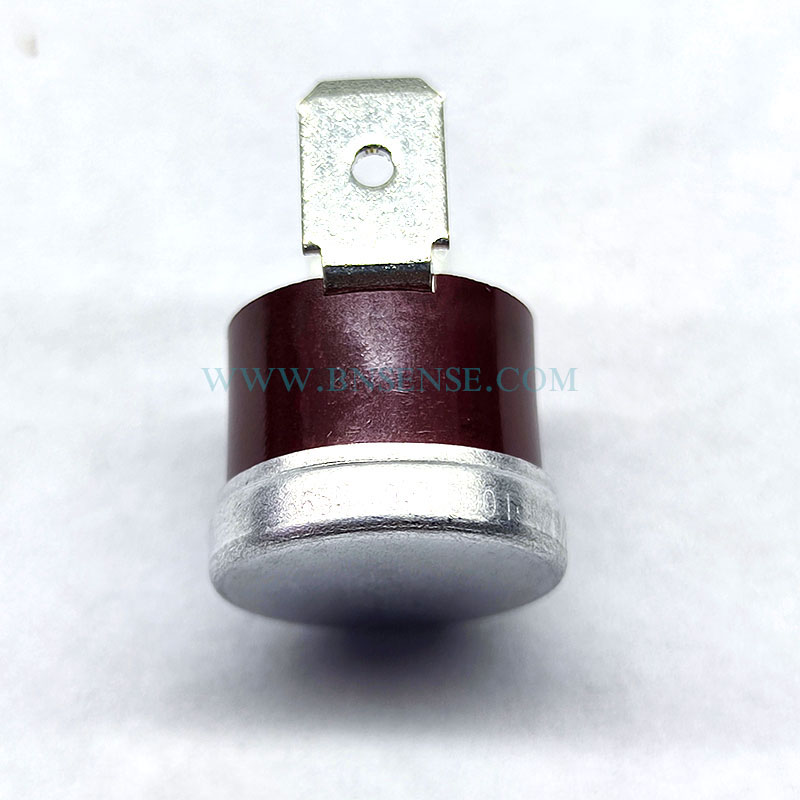

The Honeywell 6655 Series On-Surface Temperature Sensors are lower cost, thermistor-based temperature sensors that use Honeywell's compact, low-profile, 12,70 mm [0.5 in] thermostat package. This series is designed to offer temperature measurements with enhanced response and accuracy on most flat surfaces and pipes in non-condensing applications. Unlike thermostats, which are generally limited to one fixed temperature, these thermistor-based NTC (Negative Temperature Coefficient) devices allow the customer greater flexibility in temperature monitoring and controlling.
Tight interchangeability eliminates or reduces customer need for calibration. Enhanced accuracy and response time are designed to meet your needs. A wide operating temperature range of -20 °C to 110 °C [-4 °F to 230 °F] allows application flexibility. The 6655 Series products have gained widespread acceptance standard due to their robust design and ease of installation. A variety of mounting brackets provides mounting flexibility.
FEATURES
• Air/surface temperature sensing
• NTC thermistor output
• Low cost
• Low, compact profile• Tight interchangeability• Enhanced accuracy• Enhanced response time• Wide operating temperature range• Variety of mounting brackets• Widely used sensor package footprint• Enhanced stability/low drift
POTENTIAL APPLICATIONS
• Water heaters and boilers
• Industrial ovens and ranges
• Copier diffuser rollers
• HVAC compressor or duct temperature sensing
| Table 1. General Specifications | |||||||||||||||||||||||||||||
| Parameter | Characteristic | ||||||||||||||||||||||||||||
| Temperature sensing type | air/surface | ||||||||||||||||||||||||||||
| Thermistor type | NTC | ||||||||||||||||||||||||||||
| Nominal resistance at 25 °C [77 °F] | 10,000 Ohm, 12,000 Ohm | ||||||||||||||||||||||||||||
| Operating temperature range | -20 °C to 110 °C [-4 °F to 230 °F] | ||||||||||||||||||||||||||||
| Tolerance | ±2.5%, ±7.6%, ±10.0% | ||||||||||||||||||||||||||||
| BETA (25/85) | 36,943,976 | ||||||||||||||||||||||||||||
| R-T curve | 1,216 | ||||||||||||||||||||||||||||
| Time constant on metal surface | 1.5 s | ||||||||||||||||||||||||||||
| Dissipation constant on metal surface | 6.5 m/W°C | ||||||||||||||||||||||||||||
| Housing material | phenolic | ||||||||||||||||||||||||||||
| Mounting method/mechanical interface | (see Figure 1) | ||||||||||||||||||||||||||||
| Electrical interface/connector type | (see Figure 1) | ||||||||||||||||||||||||||||
| Order Guide | ||||||
| Catalog Listing | Description | |||||
| 6655---90030004 | 6655 Series on-surface temperature sensor, NTC, 12,000 Ohm, ±7.6% tolerance, 3694 BETA, 12 R-T curve,phenolic, no bracket, quick connect terminal (90°, 0.25 in) | |||||
| 6655---90980004 | 6655 Series on-surface temperature sensor, NTC, 12,000 Ohm, ±7.6% tolerance, 3694 BETA, 12 R-T curve,phenolic, bracket (movable surface), quick connect terminal (90°, 0.25 in) | |||||
| 6655---90980006 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (movable surface), quick connect terminal (90°, 0.25 in) | |||||
| 6655---91000001 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (movable surface), quick connect terminal (0°, 0.25 in) | |||||
| 6655---94280004 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (movable surface), quick connect terminal (45°, 0.25 in) | |||||
| 6655---97100901 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (20.6 mm dia. pipe clip), quick connect terminal (90°, 0.25 in) | |||||
| 6655---99580003 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (fixed surface), quick connect terminal (90°, 0.1875 in) | |||||
| 6655---99600003 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (movable surface), quick connect terminal (90°, 0.1875 in) | |||||
| 6655RP--90030007 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±10.0% tolerance, 3976 BETA, 16 R-T curve,phenolic, no bracket, quick connect terminal (90°, 0.25 in) | |||||
| 6655---79600002 | 6655 Series on-surface temperature sensor, NTC, 10,000 Ohm, ±2.5% tolerance, 3976 BETA, 16 R-T curve,phenolic, bracket (movable surface), quick connect terminal (90°, 0.1875 in) | |||||

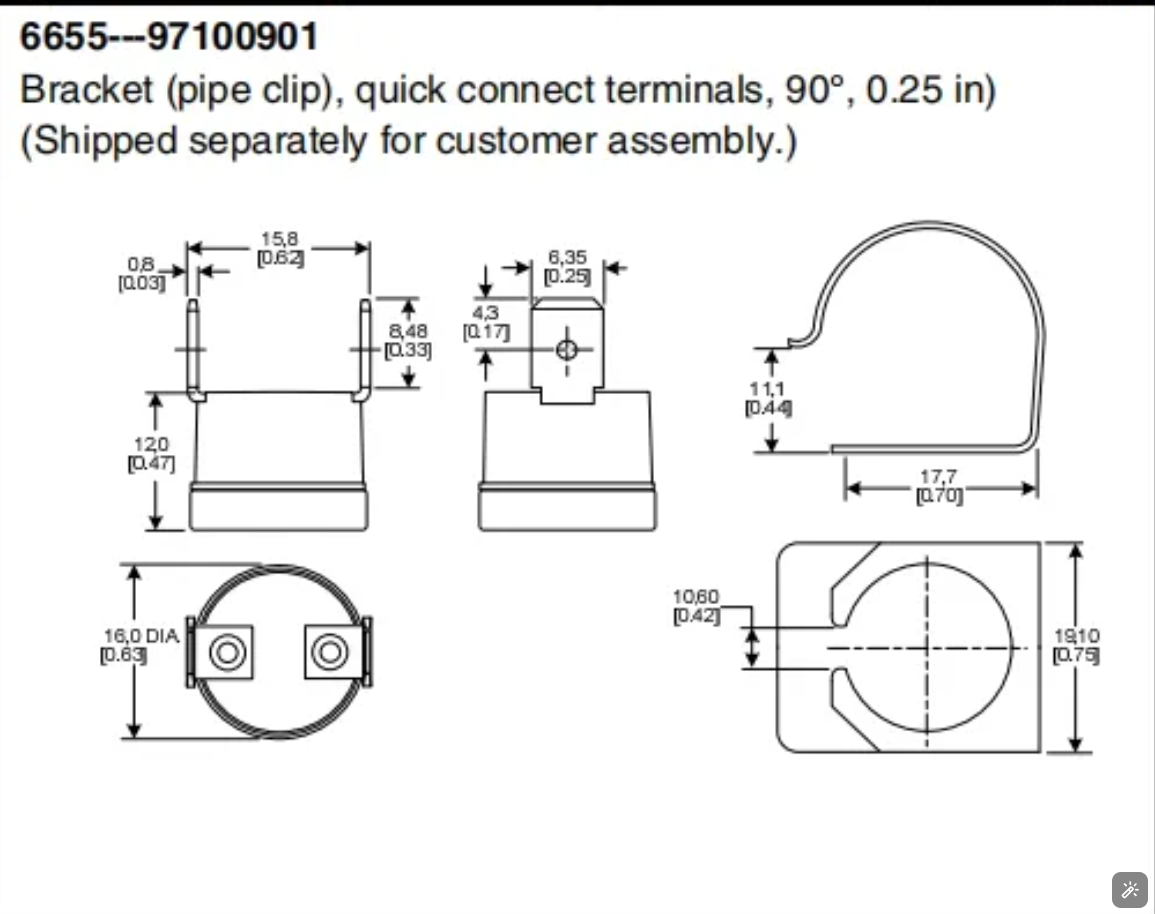

Figure 1.Mounting Dimensions (For reference only: mm/[in].]

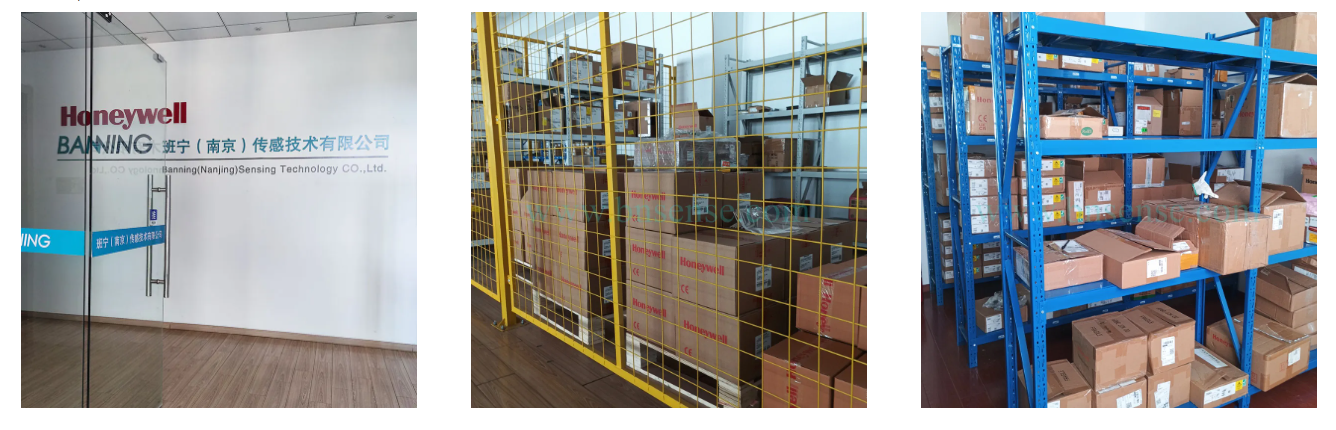

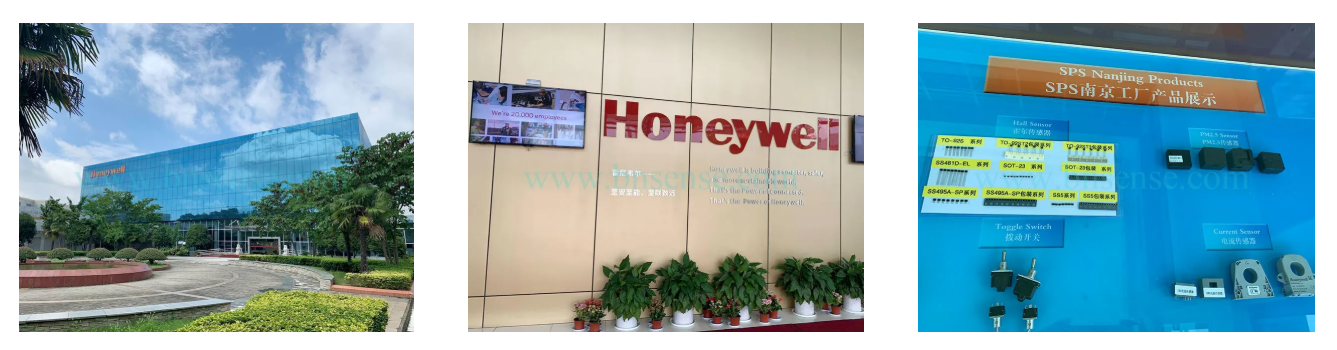

BNSENS (Nanjing) Sensor Technology Co., Ltd. is located in Nanjing, China. It is a high-tech enterprise specializing in the development, manufacturing and trade of sensor products. The company has brought together a group of outstanding technical experts in various fields such as automation, electronics, machinery and computers. All employees of the company have college degrees or above. It adopts the world-class management and operation model and 6 sigma quality system. At present, the company's main products are pressure, liquid level, flow, current, switches, etc. The company's users are all over the country, and some products have been exported to Japan, South Korea and Southeast Asia.
