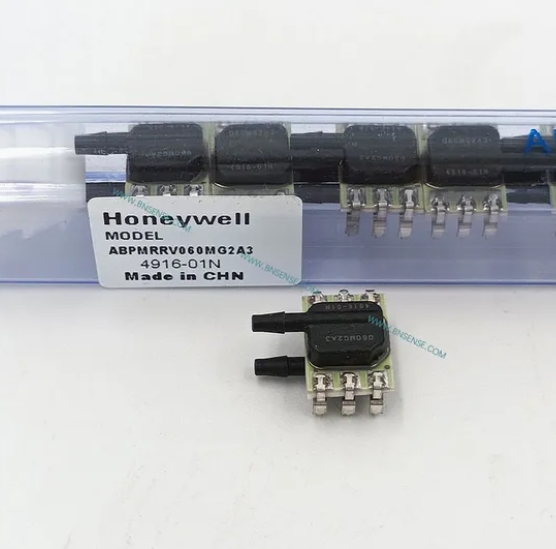

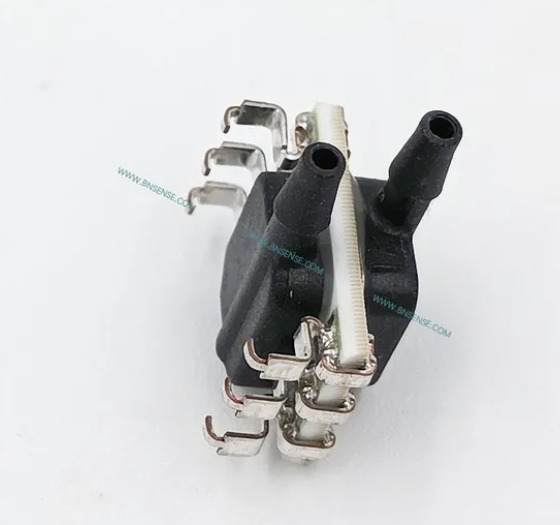

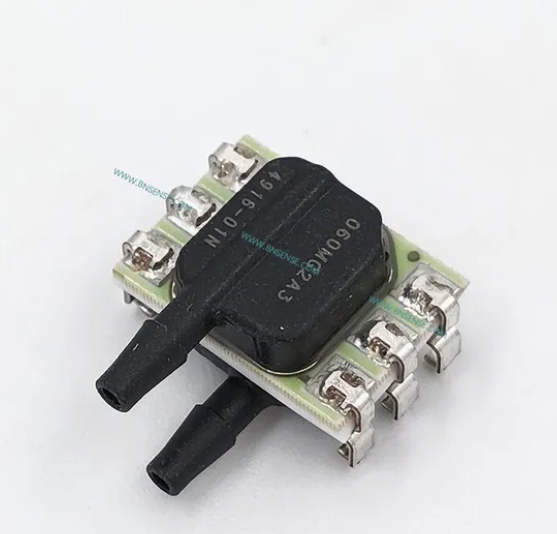

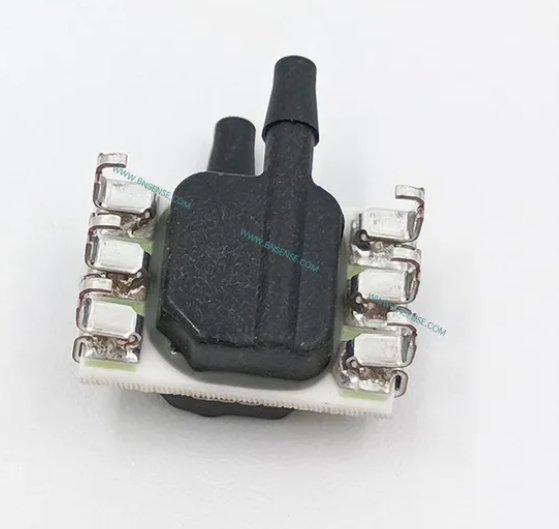

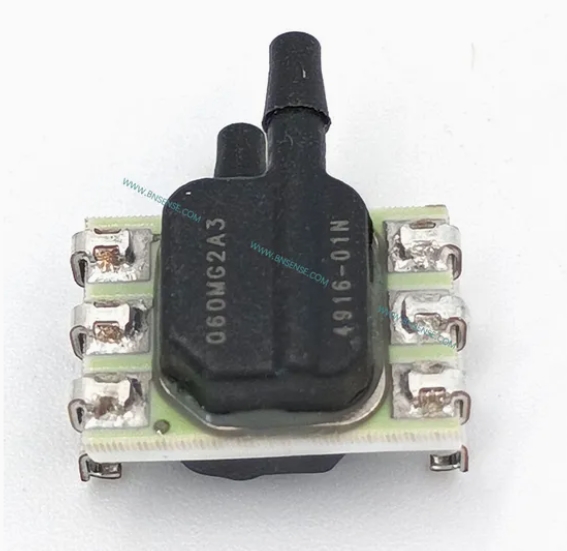

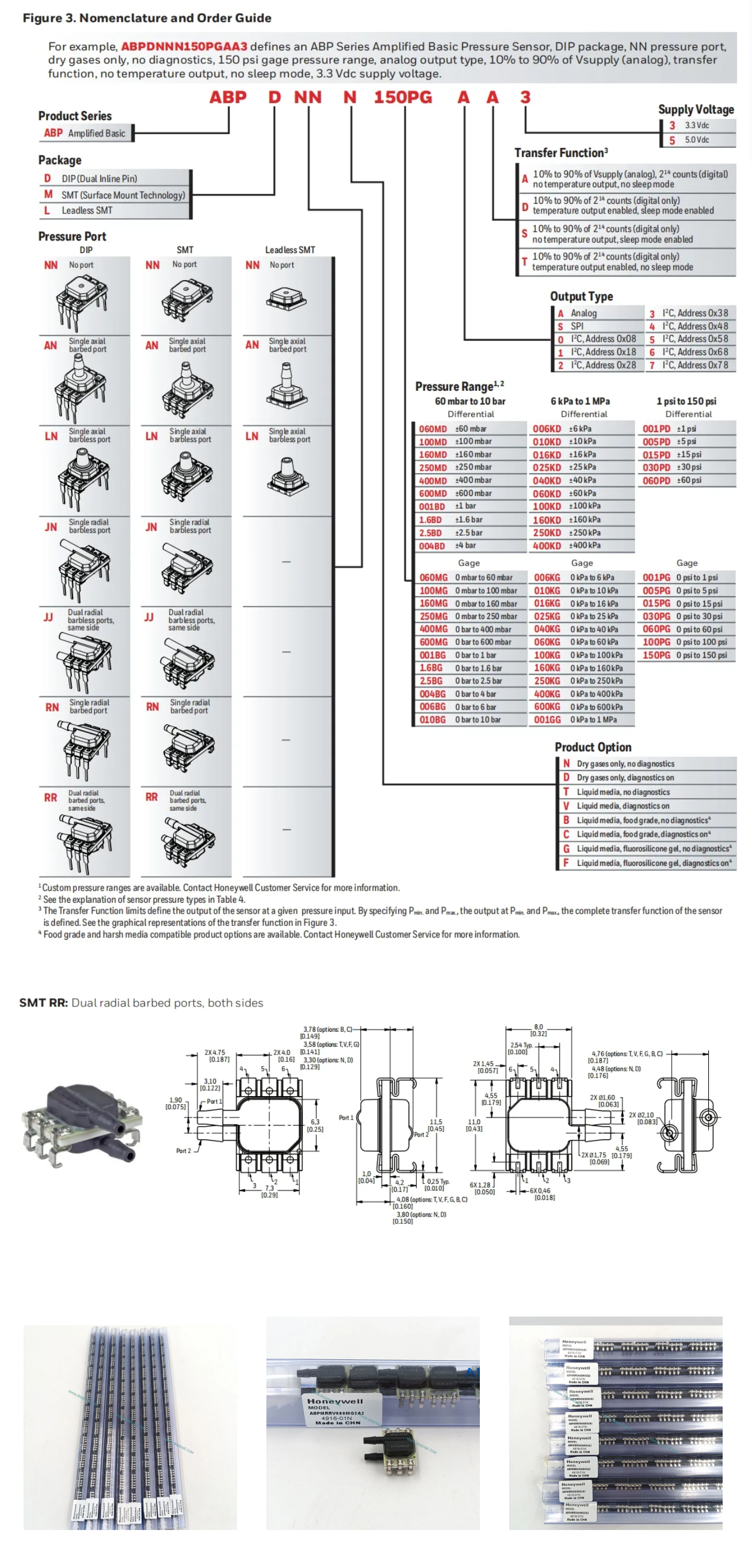

ABPMRRV060MG2A3

Product Description

The ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include nonlinearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards.

• Dry gases option: The input port is limited to non-corrosive, non-ionic media (e.g., dry air, gases) and should not be exposed to condensation. The gases are limited to media compatible with high temperature polyamide, silicone, alumina ceramic, silicon, gold, and glass.

• Liquid media option: Includes an additional silicone-based gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur. Since port P2 is designed for use with non-corrosiveliquids, this option is often suitable forwet-wet differential sensing.

FEATURES

• Measures gage and differential pressures

• Total Error Band (see Figure 1): ±1.5 %FSS

• Liquid media option: Allows for wet/ wet operation on dual ported devices

• Industry-leading long-term stability: ±0.25 %FSS

• Industry-leading accuracy: ±0.25 %FSS BFSL

• Wide pressure range: 60 mbar to 10 bar | 6 kPa to 1 MPa | 1 psi to 150 psi

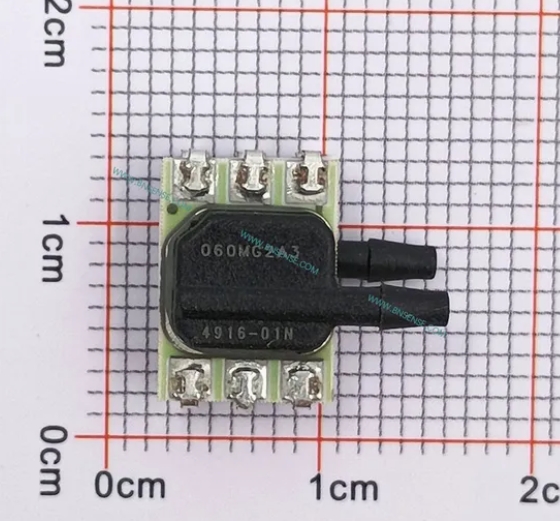

• As small as 8 mm × 7 mm

• High burst pressures (see Table 7)

• Calibrated over temperature range of 0°C to 50°C [32°F to 122°F]

• Operates from a single power supply of either 3.3 Vdc or 5.0 Vdc

• Output: Ratiometric analog or I2C- or SPI-compatible 12-bit digital

• Power consumption: 2 µA typical when utilizing sleep mode option

• Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 2 requirements

• REACH and RoHS compliant

• Options: Internal diagnostic function, liquid media, sleep mode, temperature output

• Sensor materials have been tested and certified for these food safety standards:

- NSF-169

- BPA Free

- LFGB

APPLICATIONS

• Medical: CPAP, blood analysis, blood pressure monitoring, breast pumps, drug dosing, hospital beds, massage machines, oxygen concentrators, patient monitoring, sleep apnea equipment, urine analyzers, ventilators/portable ventilators, and wound therapy

• Industrial: Air brakes, HVAC/ transmitters, life sciences, material handling, pneumatic control and regulation, process gas monitoring, and valve positioning/positioners

• Commercial: Air beds, coffee makers, and washing machines

APPLICATIONS

• Enhanced accuracy helps the design engineer fully understand the error in measurement.

• Wide supply voltage range offers design flexibility.

• Power consumption when utilizing sleep mode option allows for use in battery-powered applications.

DIFFERENTIATION

• Simplifies design-in: Small size saves room on the PC board (PCB), or simplifies design in smaller and lower power devices. Meets Moisture Sensitivity Level 2 requirements, which allows for unlimited storage life, when stored inside sealed moisture barrier bag, allows for PCB soldering without any material concern about solder joint quality due to aging of the sensor terminals, which minimizes the concern about aging of the terminals prior PCB assembly. Pressure choices allow engineers to select range required for their application. Leadless SMT, SMT, and DIP package options.

• Cost-effective: Small size helps engineers reduce design and manufacturing costs while maintaining enhanced performance and reliability of the systems they design.

• Accurate: Total Error Band (TEB) and wide pressure range enable engineers to optimize system performance by improving resolution and system accuracy. Optional internal diagnostics validate that the sensor readings are correct.

• Flexible: Supply voltage range, variety of pressure units, types, and ranges, output options, and wide operating temperature range simplify use in the application.

• Versatile: Wet-media compatibility, sleep mode, and temperature output options make the sensor a versatile choice for Internet of Things applications.

• Honeywell Brand: Utilize proprietary Honeywell technology, and are protected by multiple global patents.

• Food Safety Certification for North America, Europe and Asia.

1 Sensors are either 3.3 Vdc or 5.0 Vdc based on the catalog listing selected.

2 Ratiometricity of the sensor (the ability of the device output to scale to the supply voltage) is achieved within the specified operating voltage.

3 The sensor is not reverse polarity protected. Incorrect application of supply voltage or ground to the wrong pin may cause electrical failure.

4 Operating temperature range: The temperature range over which the sensor will produce an output proportional to pressure.

5 Compensated temperature range: The temperature range over which the sensor will produce an output proportional to pressure within the specified performance limits.

6 Temperature output option: Typical temperature output error over the compensated temperature range of 0°C to 50°C. Operation in Sleep Mode may affect temperature output error depending on duty cycle.

7 Total Error Band: The maximum deviation from the ideal transfer function over the entire compensated temperature and pressure range. Includes all errors due to offset, full scale span, pressurenon-linearity, pressure hysteresis, repeatability, thermal effect on offset, thermal effect on span, and thermal hysteresis.

8 Full Scale Span (FSS): The algebraic difference between the output signal measured at the maximum (Pmax.) and minimum (Pmin.) limits of the pressure range. (See Figure 2.)

9 Accuracy: The maximum deviation in output from a Best Fit Straight Line (BFSL) fitted to the output measured over the pressure range at 25°C [77°F]. Includes all errors due to pressure non-linearity, pressure hysteresis, and non-repeatability.
