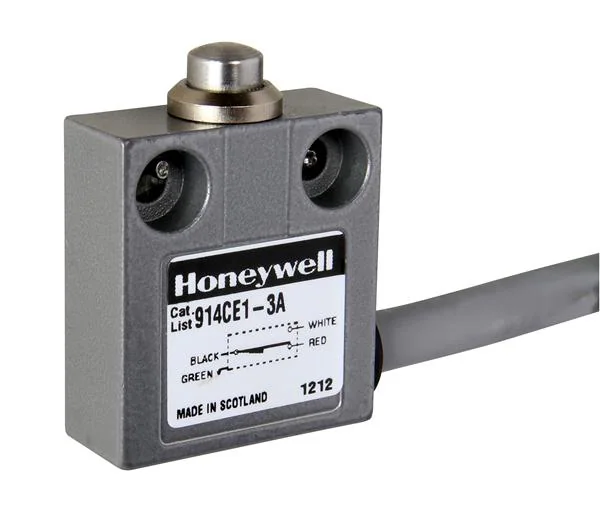

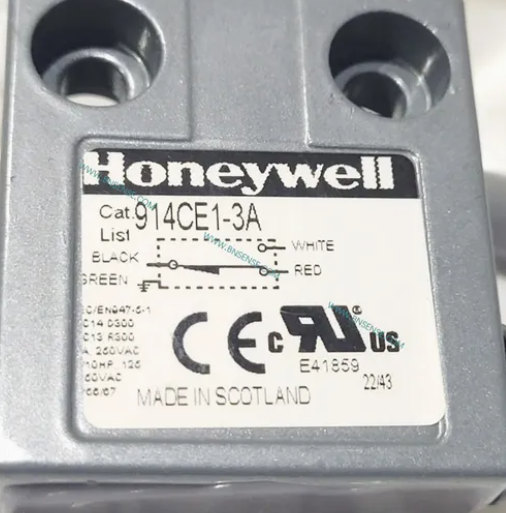

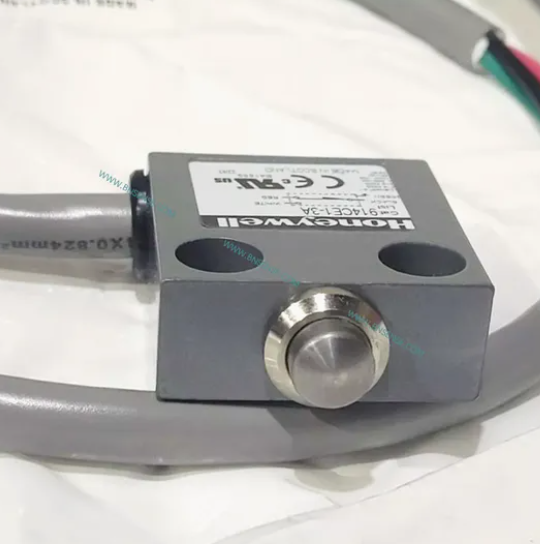

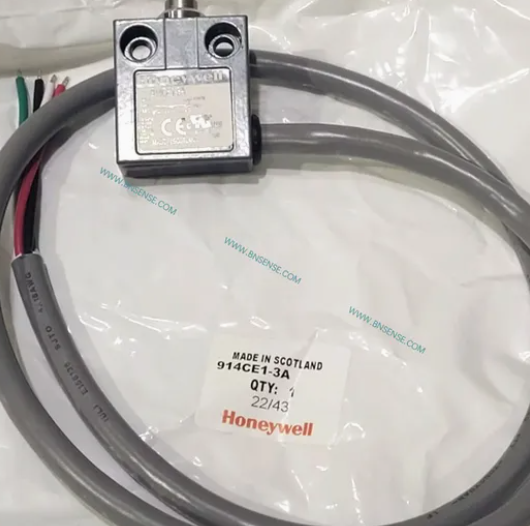

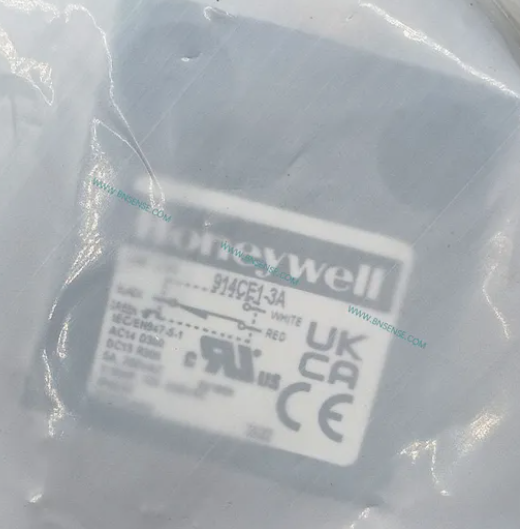

914CE1-3A
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Limit Switches |
| Illuminated | Non-Illuminated |
| Contact Form | SPDT |
| Actuator | Plunger |
| Current Rating | 5 A |
| Voltage Rating AC | 240 VAC |
| Voltage Rating DC | 28 VDC |
| Operating Force | 11.8 N |
| NEMA Rating | 1, 3 |
| Termination Style | Wire Lead |
| Mounting Style | Chassis Mount |
| IP Rating | IP66, IP67, IP69 |
| Actuator Style | Plunger |
| Product Type | Limit Switches |
| Series | 914CE |
| Subcategory | Switches |
| Tradename | Microswitch |
| Type | Miniature Enclosed Limit Switch |
Product Description
All MICRO SWITCH 914CE Series miniature precision switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13, as well as IP66, IP67, and IP68 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.
The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including pin plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH 914CE products meet North American, cURus standards, as well as European CE requirements.
VALUE TO CUSTOMERS
• Big performance in a small package
• Delivers consistent performance in many demanding environments where petroleum, synthetic, or water based fluids are present
• Product variation within defined nomenclature
FEATURES
• Rugged, miniature construction means minimal real estate on equipment
• NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13, and IP66/67/68 environmental sealing
• Pre-leaded (UL cable) or supplied with a M12 four-pin connector
• Wide selection of actuators and cable length variations with side and bottom exit cable/connector options
• 25 mm mounting centers engineered with a MICRO SWITCH SM switch for consistent, precise actuation
• Well suited for up to 10 million actuation cycles (Up to 5 million actuation cycles for wobble actuators)
• Gang mounting capability to provide a multi-plunger limit switch
• Low temperature variants available for indoor and outdoor applications
• cURus, CE approvals for world-wide use
POTENTIAL APPLICATIONS
• Machine tools
• Off-road equipment
• Material handling
• Dock locks and dock levelers
• Access and mobility solutions
• Textile machinery
• Robotics
• Packaging equipment
• Commercial appliances
• Print trade machinery
• Agricultural machinery
DIFFERENTIATION
• Diaphragm seal between the actuator and the switch cavity for high performance sealing
• CE Series incorporates a MICRO SWITCH SM basic switch for consistent, precise actuation
• Side exit termination for space constraints
| Specifications | ||||
| Characteristic Parameter | ||||
| Description | compact enclosed limit switch | |||
| Actuators | • Top pin plunger (914CE1-) • Parallel roller plunger (914CE2-) • Cross roller plunger (914CE3-) • Side rotary (914CE16-) • Top pin plunger with boot seal (914CE18-) • Top adjustable plunger (914CE19-) • Wobble (914CE20-) • Manually operated (914CE22-) • Top pin plunger, panel mount (914CE27-) • Ball bearing plunger (914CE66-) • Top roller plunger, parallel and panel mount (914CE28-) • Top roller plunger, perpendicular, panel mount (914CE29-) • Top roller plunger, parallel & boot sealed (914CE31-) • Top roller plunger, perpendicular, boot seal (914CE55-) | |||
| Terminations | SJTO 4 x 0,75 mm2 (18 AWG) cableConnector (dc), 4-pin male, M12 thread (-Q), (-Q2) Revised pin-out, see page 3Connector (ac), 4-pin male, 1/2 in x 20 thread (-Q1) | |||
| Switching options | SPDT, snap action contacts (1NC/1NO), Form C | |||
| Sealing | IP66, IP67, IP68*NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13 | |||
| Operating temperature | 0 °C to 105 °C [32 °F to 221 °F]; optional -40 °C to 105 °C [-40 °F to 221°F]Side rotary: -40° C to 100 °C [-40 °F to 212 °F] | |||
| Mechanical life | up to 10 million (up to 5 million for wobbles) cycles | |||
| Thermal current | 1 A | |||
| Rated insulation voltage (Ui) | 250 V | |||
| Rated impulse withstandvoltage (Uimp) | 1.5 kV | |||
| Short circuit protection device (SCPD) | Quick blow fuse suitable for rated current of switch | |||
| Pollution degree | 3 | |||
| Min. actuation speed | 0.003 m/s | |||
| Max. actuation speed | 0.1 m/s | |||
| Max. actuation frequency | ac - 200 Hz; dc - 20 Hz | |||
| Shock | 50 g - IEC 60068-2-27 | |||
| Vibration | 10 g - IEC 60068-2-6 | |||
| Approvals | cURus, CE | |||
| Conforming to standards | EN 60947-5-1; AC-14 D300, DC-13 R300UL recognized to US and Canadian Requirements | |||
OTE: not all combinations of model codes are available.
Please contact your Honeywell provider/representative for assistance.
Select "Cable Length" or "Connectors".
1 More than one option may be permissible.

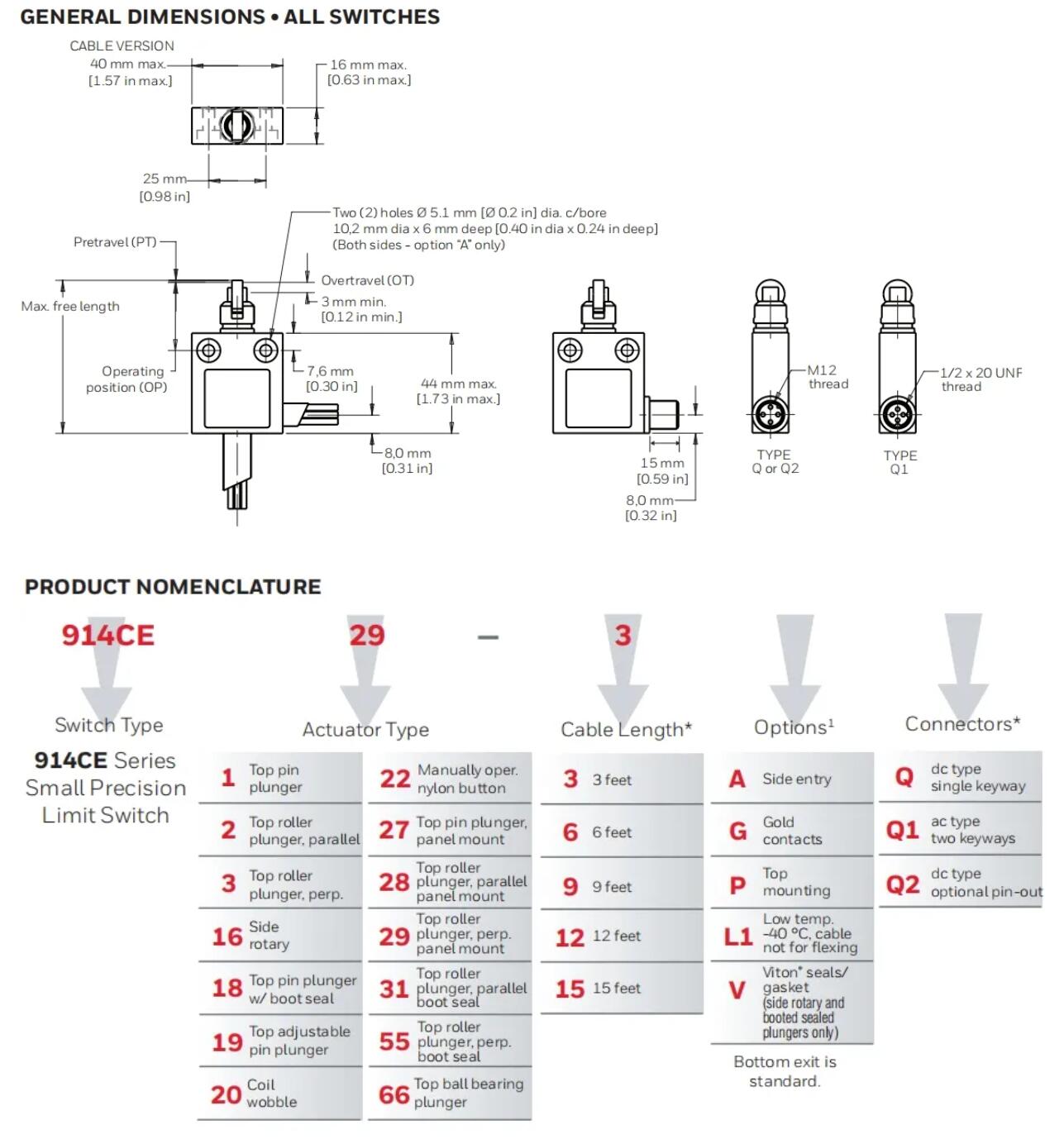

Order Guide
| 914CE1• Pin Plunger914CE27 • Pin Plunger Panel Mount | Contacts | ElecRating | Cable/ConnectorPosition | Free Posi-tion(FP) | OperatingPosition(OP) | Options | Listing |
| Pretravel • 1,8 mm [0.071 in]Diff. travel • 0,1 mm [0.004 in]Overtravel • 3,0 mm [0.118 in]Oper. force • 12,2 N [2.75 in-lb] | Silver | A | Bottom | 17,5mm[0.69 in] | 15,7 mm[0.62in] | - | 914CE1-3 |
| Gold | B | Bottom | 17,5mm[0.69 in] | 15,7 mm[0.62 in] | - | 914CE1-3G | |
| Silver | A | Side | 17,5mm[0.69 in] | 15,7 mm[0.62in] | - | 914CE1-3A | |
| Silver | A | Bottom | 31,1mm[1.23 in] | 29,3 mm[1.15in] | Panel mount | 914CE27-3 | |
| Silver | C | Bottom | 17,5mm[0.69 in] | 15,7 mm[0.62 in] | dc-type,singlekeyway | 914CE1-Q | |
| Silver | C | Bottom | 17,5mm[0.69 in] | 15,7 mm[0.62 in] | ac-type,two keyways | 914CE1-Q1 |
Electrical Ratings (in amperes)
| Model example | Contacts | Rating |
| 914CE* - * | Silver contacts | A |
| 914CE* - *G | Gold contacts | B |
| 914CE* -Q, -AQ, -AQ1, -Q2 | Silver contacts | C with 4-pin connector |
| Rating code | Make | Break | |
| A | 240 Vac,ind. | 1.2 | 0.2 |
| 240 Vac,res. | 5 | 5 | |
| 28 Vdc,res. | 3 | 3 | |
| 28 Vdc,ind. | 3 | 3 | |
| 5A,1/10HP,125 Vac or 250 Vac | - | - | |
| B | 5-25 mA5-50 Vdc | - | - |
| C | 3A,125 Vac or 250 Vac | - | - |
