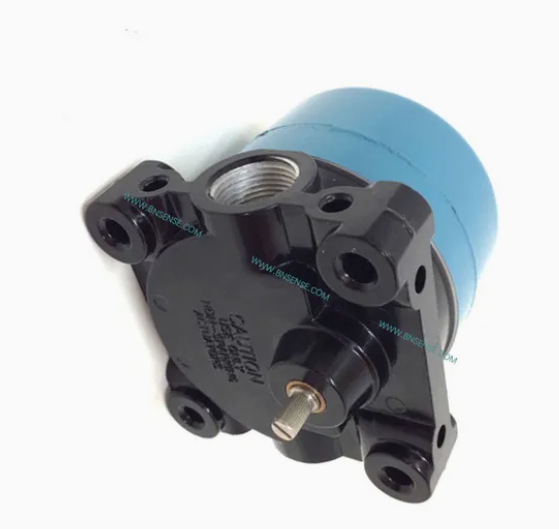

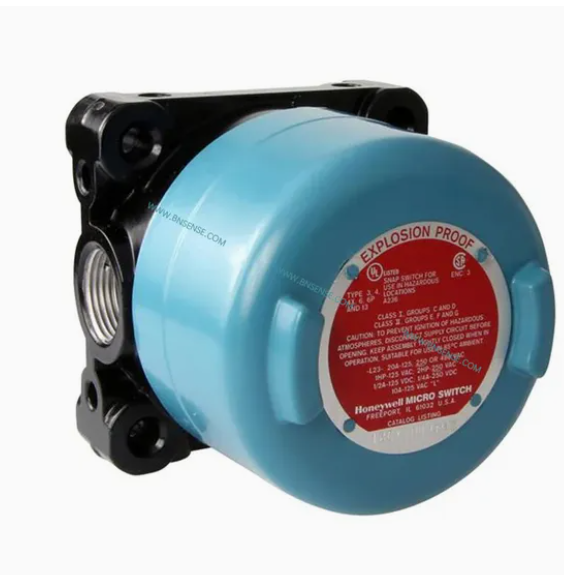

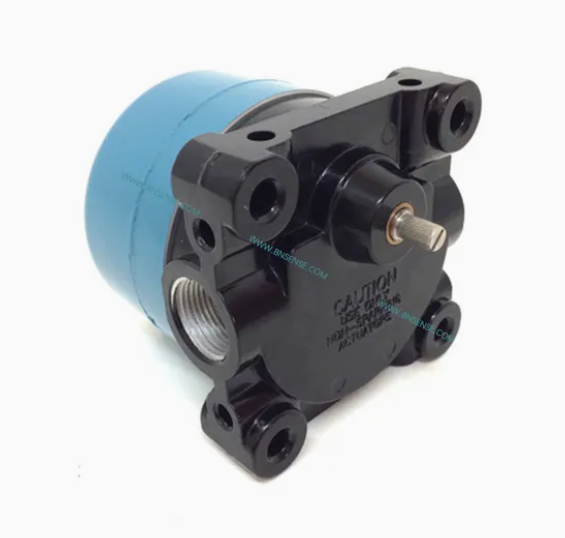

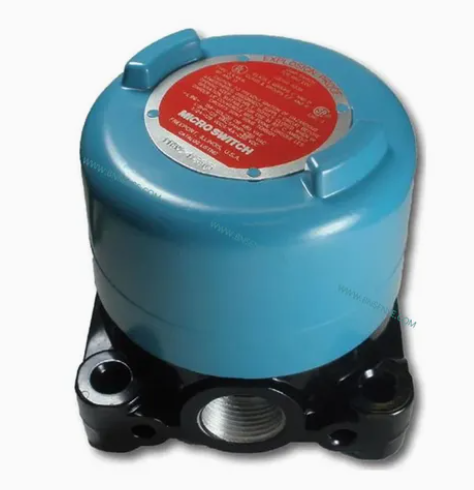

11CX1

Product Description

Honeywell MICRO SWITCH CX switches are built especially for outdoor use in hazardous atmospheres. These enclosures are constructed to withstand the pressure of an internal explosion. Flame paths cool the exploded gases to a point less than the lowest safe operating temperature of the surrounding gas.

Honeywell  MICRO SWITCH 80CX Series switches have rugged bronze housings that are designed to be resistant to salt water and other corrosive environments. They comply with the NEMA 4X requirement for protection against corrosion, in addition to NEMA enclosure standards met by other CX switches.

The product's o-ring seals make the enclosure rain tight, but are outside of required flame paths so explosion proof requirements are maintained. Unless special ordered, all basic switches operate on clockwise and counterclockwise rotation. The actuating mechanism can be field adjusted for CW or CCW operation only. No tools are required.

FEATURES

• Certified for applicable portions of NEMA 7 and 9 for explosive environments

• Select CX switches are certified to ATEX, IEC Ex and KOSHA specifications for global applications

• NEMA 1,3, 4, 4X, 6, 6P and 13 sealing

• Watertight and dust-tight for outdoor use

• Meets hazardous area requirements

• UL Listed, file #E14274 1

• CSA Certified, file #LR57324 1

• ATEX certificate DEKRA 22ATEX0048X 1

• IEC Ex certificate IECEx DEK 22.0033X 1

• KOSHA certificates: 20-AV4BO-0146X, 20AV4BO-0149X, 20-AV4BO-0150X, and 20-AV4BO-0151X1

• Choice of rugged cast aluminum or bronze housings

• Bronze housing offered for corrosion resistance

• Field-adjustability allows pretravel, overtravel and actuating sequence to be field adjusted without tools

VALUE TO CUSTOMERS

• Building-block design allows for digital switching ouputs

• Weather sealed to NEMA and IP ratings

• UL, CSA, ATEX, IEC Ex, KOSHA certified for hazardous (explosive) environments.1

• Designed with the end user in mind, these switches help to create user-friendly interfaces with broad application possibilities to help meet the challenges of many different environments

• Available with gold contacts, low-temp seals and bronze corrosion-resistant housing

INDUSTRIAL APPLICATIONS

• Seaside grain and fuel loading docks that may require explosion proof and corrosion-resistant switches

• Oil and gas wells, refineries and fuel storage facilities that may require explosion-proof and corrosion-resistant switches

• Chemical plants with corrosive environments

SPECIFICATIONS

ELECTRICAL RATINGS (IN AMPERES)
