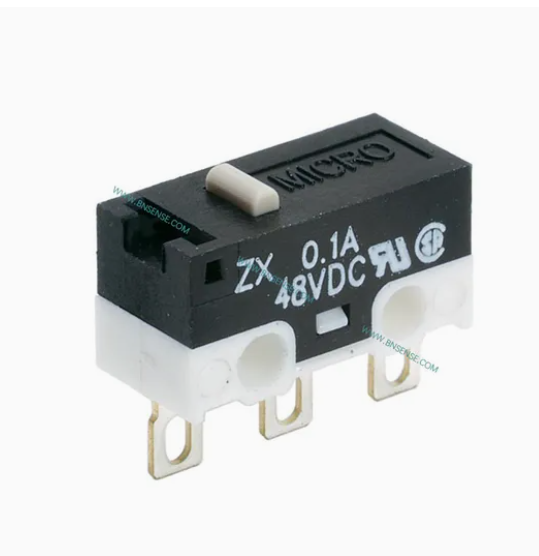

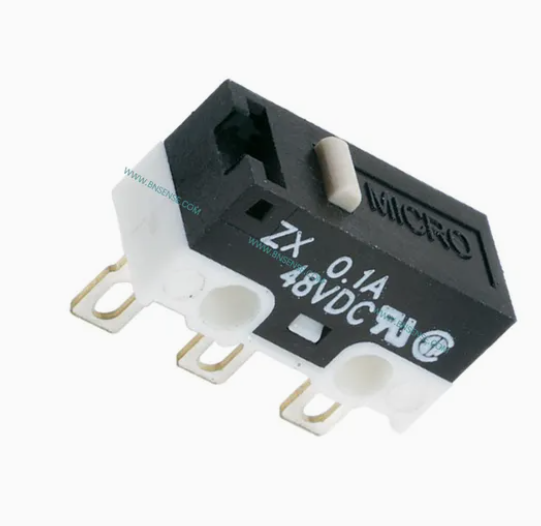

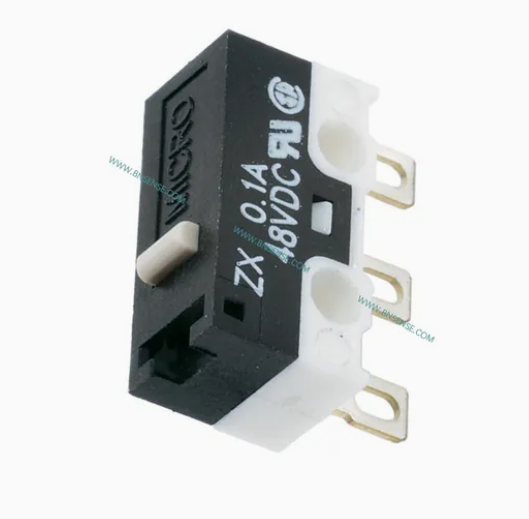

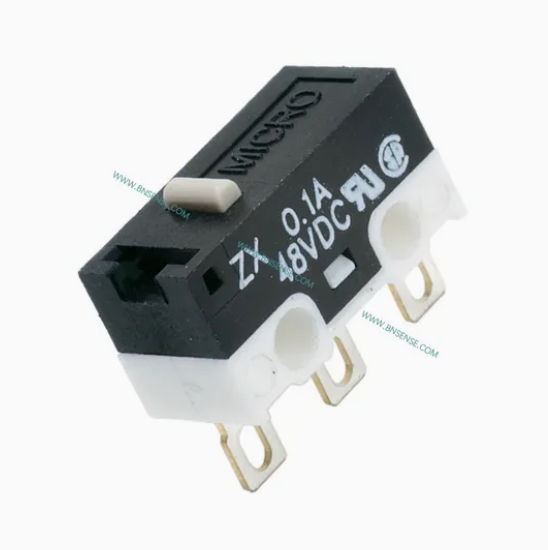

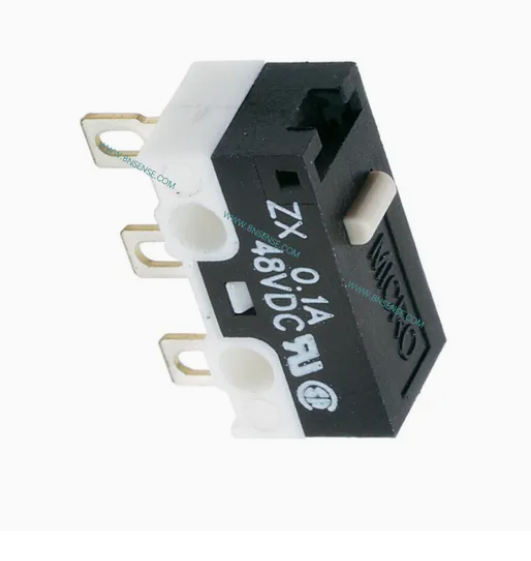

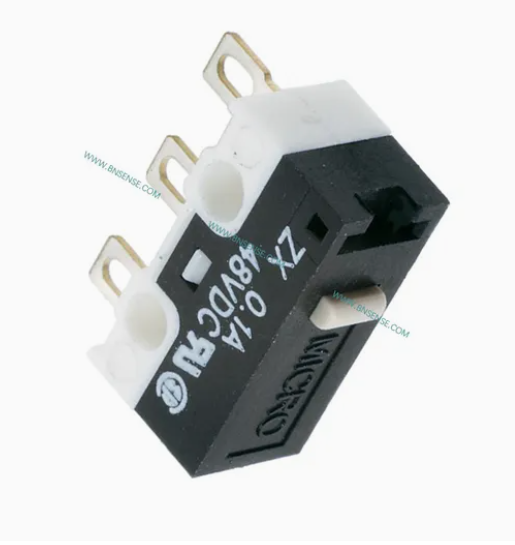

ZX40E10A01
Product Description
Honeywell MICRO SWITCH ZX Series is a subminiature snap-action switch from the family of Honeywell ZX series subminiature basic switches. Although small in size, the Honeywell ZX Series is rated for controlling electrical loads ranging from logic-level/ computer-based circuits to limited power-duty switching (up to 3 A/ 125 Vac). The Honeywell ZX subminiature switch package is available with either solder terminals or a variety of different styles of printed circuit board (PCB) terminals to fulfill the requirements for electrical connectivity.
A wide variety of stainless steel levers are available and when combined with the subminiature package size, can adapt the Honeywell ZX Series to a wide range of applications. To enhance the versatility of Honeywell ZX switches, the family is certified to UL, cUL, ENEC, CE, UKCA and CQC for worldwide use. The Honeywell ZX Series is the right choice for a cost-effective subminiature switch package.
FEATURES
• Subminiature package size (6,5 mm x 12,8 mm [0.25 in x 0.50 in]) allows the switch to fit in applications where other sensors or switches are too large
• Switch design helps assure control of limited power-duty switching with silver contacts or logic-level (low voltage and milliamperes) with gold-plated contacts
• Designed with a pin plunger for actuation, the series is also available with various styles of levers that expand the versatility of the switch in the application
• Variety of terminations designed to provide flexibility for the electrical connectivity. Certified to cUL, UL, ENEC, CE, UKCA and CQC for global applications
• RoHS compliant
• Available worldwide through Honeywell's network
DIFFERENTIATION
• Designed to operate in a variety of applications
• Current carrying capacity, up to 3 A, allows for a solution in many applications where space is a premium
• Cost-effective switch in a compact package
• Subminiature switch package designed to meet a wide range of temperature requirements
APPLICATIONS
• Circuit breaker box module interlock
• Electric utility meter tamper switch
• Tamper switch for computer modules
• Small residential appliances
• ATM equipment
• Hospital bed pendant controls
• Infusion pumps (end of travel)
• Syringes (end of travel)
SPECIFICATIONS
| CHARACTERISTIC | ZX10 SERIES (LOGIC LEVEL) | ZX40 SERIES (POWER DUTY) | ||||
| Circuitry | SPDT | SPDT | ||||
| Operating force | 90 g or 150 g at plunger | 90 g or 150 g at plunger | ||||
| Termination | PCB, solder | PCB, solder | ||||
| Sealing | internal live parts protected to IP40,IP00 due to exposed terminals | internal live parts protected to IP40,IP00 due to exposed terminals | ||||
| Actuators (Levers 300 Seriesstainless steel) | pin plunger, short flat lever, standard flat lever,long flat lever, roller lever, short simulatedroller lever, standard simulated roller lever,long sim. roller lever, special levers | pin plunger, short flat lever, standard flat lever,long flat lever, roller lever, short simulatedroller lever, standard simulated roller lever,long sim. roller lever, special levers | ||||
| Agency certification CE, UKCA | UL, cUL, ENEC, CE, UKCA,CQC, RoHS compliant | UL, cUL, ENEC, CE, UKCA,CQC, RoHS compliant | ||||
| Operating temperature(manufacturer rated) | -40°C to 85°C [-40°F to 185°F] | -40°C to 85°C [-40°F to 185°F] | ||||
| Mechanical endurance (cycles) | 3,000,000 min. at 120 cycles/minute max. | 3,000,000 min. at 120 cycles/minute max. | ||||
| Electrical endurance (cycles) | 10,000 min. at 30 cycles/minute max. | 10,000 min. at 30 cycles/minute max. | ||||
| Switch resistance (initial) | 100 Ohm max. | 50 Ohm max. | ||||
| Insulation resistance (initial) | 100 Ohm min. (500 Vdc for one minute) | 100 Ohm min. (500 Vdc for one minute) | ||||
| Dielectric strength (initial) | 1500 VRMS for one minute | 1500 VRMS for one minute | ||||
| (Between live parts and ground) | < 0.5 mA leakage current | < 0.5 mA leakage current | ||||
| Contact material | gold-plated silver | silver | ||||
| Housing material | case, polyamide (nylon); cover, polyamide (nylon) | case, polyamide (nylon); cover, polyamide(nylon) | ||||

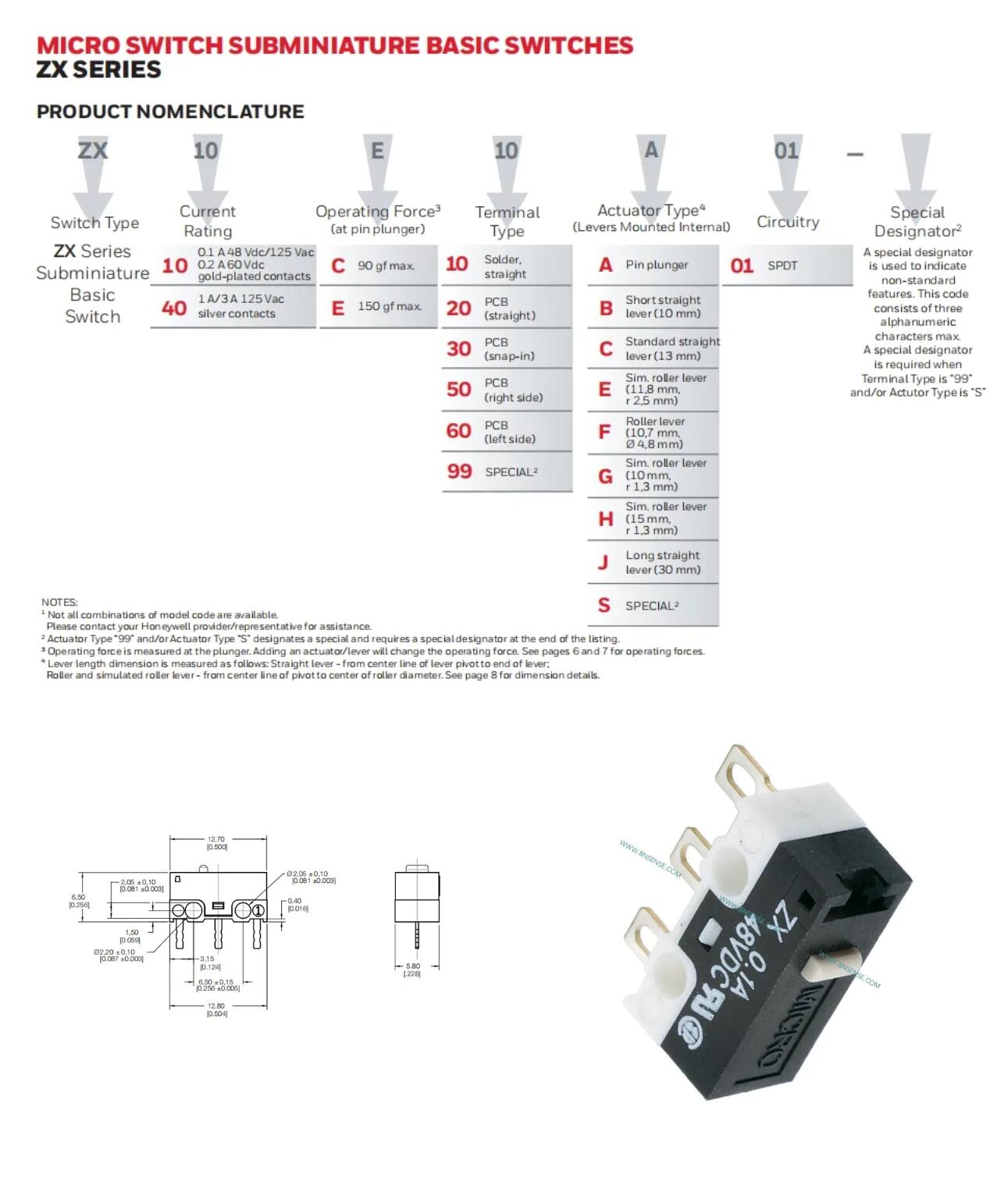

Note: Refer to engineering drawing for additional information
ELECTRICAL RATINGS
| CQC (ASIA-PACIFIC)PER GB 15092-1 | ENEC, CE, UKCA(EUROPE/UNITED KINGDOM)PER IEC 61058-1 | UL, CUL (AMERICAS)UL 61058-1, FILE 12252 | ||||
| ZX10 Series(Gold-plated contacts) | 10,000 cycles | 0.1 A, 125 Vac 0.1 A, 48 Vdc; 0.2 A, 60 Vdc 10,000 cycles | 0.1 RA, 125 Vac 0.1 RA, 48 Vdc; 0.2 RA, 60 Vdc 10,000 cycles | |||
| ZX40 Series(Silver contacts) | 3 A, 125 Vac | 3 A, 125 Vac10,000 cycles | 3 RA, 125 Vac10,000 cycles | |||
Note. UL, cUL; CQC, CE, UKCA and ENEC "use temperature"; 0°C to 55°C [32°F to 131°F].
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Basic / Snap Action Switches |
| Series | ZX Series |
| Type | Subminiature |
| Contact Form | SPDT |
| Switch Function | ON - (OFF), OFF - (ON) |
| Actuator | Pin Plunger |
| Current Rating | 1 A silver contacts /3 A 125 Vac |
| Voltage Rating AC | 125 VAC |
| Voltage Rating DC | 48 VDC |
| Termination Style | Solder Lug |
| Mounting Style | Chassis Mount |
| IP Rating | IP40 |
| Illuminated | Non-Illuminated |
| Maximum Operating Temperature | + 85 °C |
| Minimum Operating Temperature | - 40 °C |
| Product Type | Snap Action Switches |
| Subcategory | Switches |
